The Autel IA1000ASTDT represents the pinnacle of automated alignment and Advanced Driver Assistance Systems (ADAS) calibration technology. This comprehensive all-systems package combines the revolutionary IA1000 automated calibration frame with the powerful MaxiSYS Ultra S2 advanced diagnostics tablet, delivering a complete solution for modern automotive shops performing both precision four-wheel alignments and critical ADAS calibrations on U.S., Asian, and European vehicles.
Engineered to eliminate manual positioning errors and dramatically reduce setup time, the IA1000 features robotic forward-facing camera target positioning, laser-guided ACC calibration, blind spot calibrator, and AVM mat placement capabilities. Six high-definition cameras work with precision-engineered wheel clamps to deliver industry-leading accuracy to 0.02 degrees, while automatic pitch, roll, yaw, and front-to-back fine-tuning adjustments compensate for unlevel floors and reduce human error.

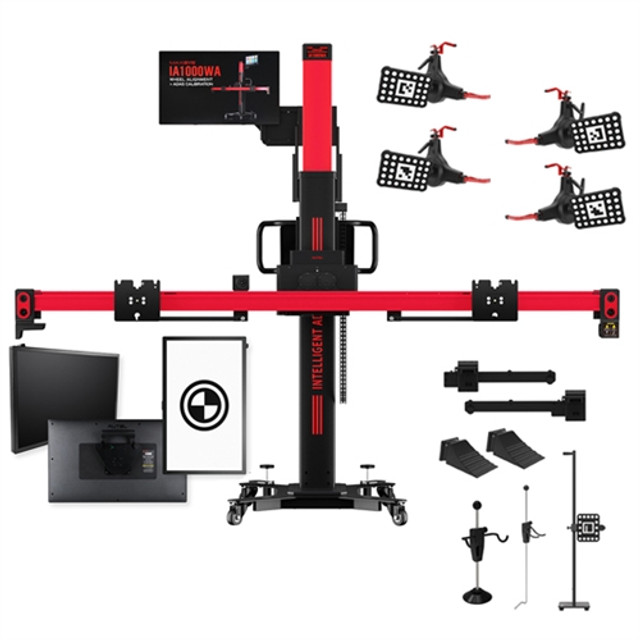

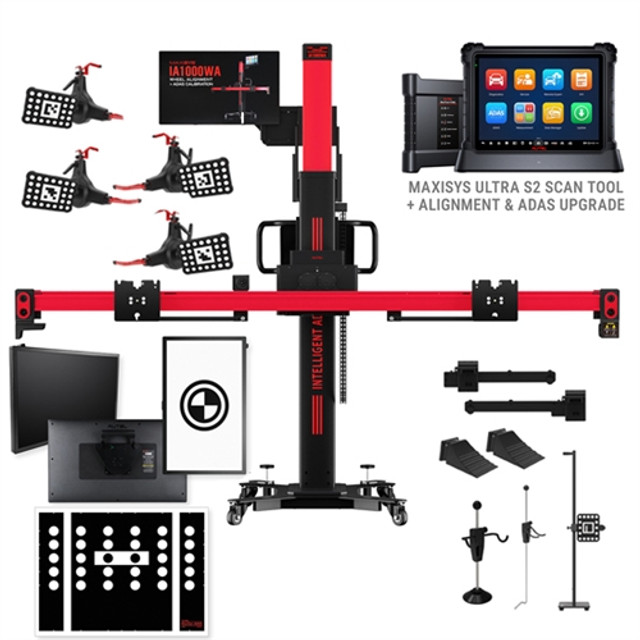

This All-Systems Calibration Package includes everything needed to calibrate cameras, radar, LIDAR, Night Vision, and Around View Monitor (AVM) systems. The package ships with both the Autel digital LDW target kit featuring three 27-inch attachable monitors and the complete Autel physical LDW pattern and target kit, providing maximum flexibility for different vehicle requirements and calibration procedures. The included MaxiSYS Ultra S2 tablet with MaxiFlash VCMI2 6-in-1 communication device delivers extensive diagnostic capability and comes preloaded with IA1000 alignment and ADAS software upgrades.
The IA1000 frame unit transforms ADAS calibration from a time-consuming manual process into a streamlined automated operation. The integrated 24-inch touchscreen display attaches directly to the frame, providing real-time control and visual feedback throughout the calibration process. Illustrated alignment instructions, live readings, required tools, and adjustment locations all display on a single screen, allowing technicians to work efficiently without constantly referencing external documentation.

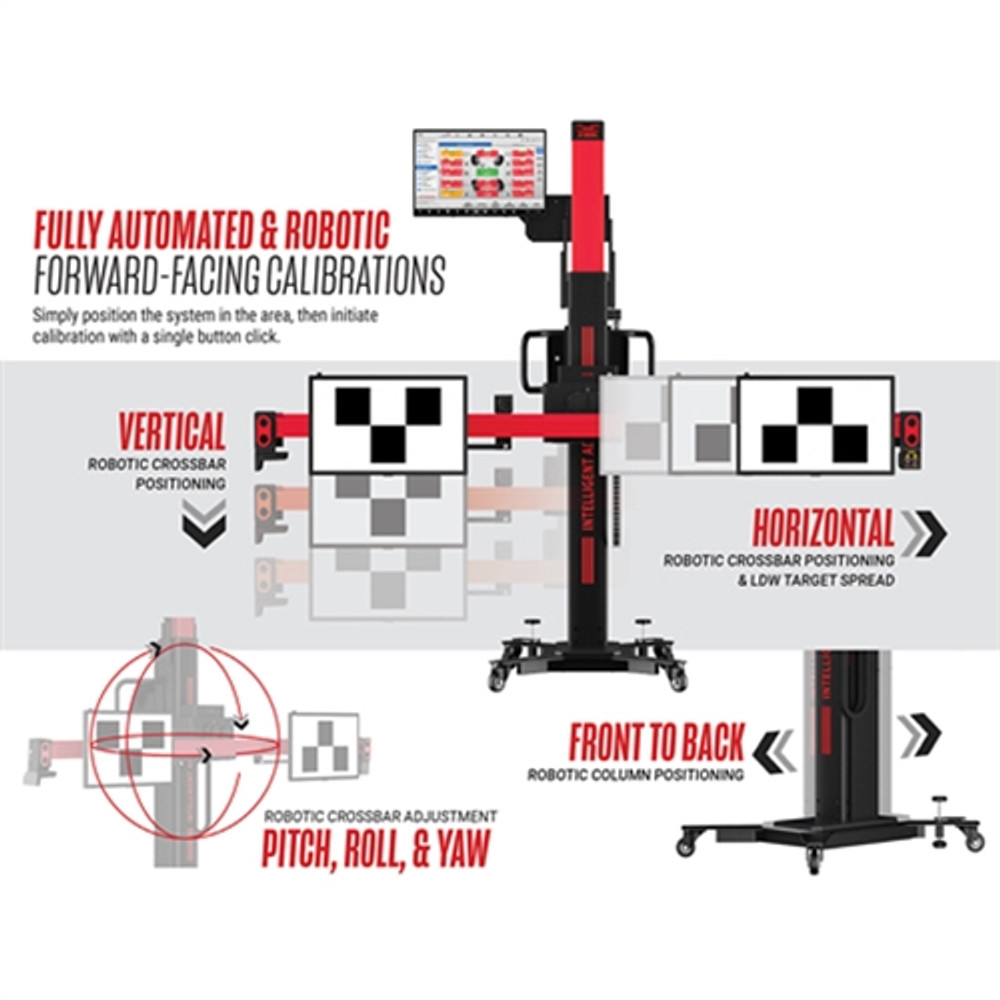

One-step robotic and vertical LDW target placement via physical targets or the included 27-inch digital monitors significantly reduces manual operation and setup time. The system automatically positions targets with precision that manual methods simply cannot match. Laser-guided positioning for ACC radar calibration, blind spot systems, and AVM mat placement further streamlines complex calibration procedures that once required painstaking manual measurement and alignment.
Equipped with six high-definition cameras, the IA1000 continuously monitors wheel positions and vehicle geometry during alignment procedures. The precision-engineered four tire clamps ensure stable, accurate wheel positioning throughout the entire process. This combination delivers industry-leading accuracy to 0.02 degrees—precision that's essential for proper ADAS system operation and vehicle safety.
This All-Systems Calibration Package includes comprehensive calibration components for every major ADAS technology. The package features both digital and physical target kits, providing flexibility to handle manufacturer-specific calibration requirements. Three 27-inch digital monitor targets with activation card enable high-precision calibrations for vehicles requiring digital pattern displays, while the complete physical LDW pattern and target kit ensures compatibility with vehicles specifying traditional physical targets.
Calibration components cover the full spectrum of advanced safety systems: forward-facing cameras, ACC radar systems, LIDAR sensors, Night Vision cameras, and Around View Monitor (AVM) systems. The included two AVM-placement lasers ensure precise mat positioning for 360-degree camera calibration. A distance target aids in accurate measurement and positioning, while the steering wheel and brake lock secures the vehicle in the precise position required for calibration procedures.
The package includes a metal accessory storage cabinet to keep all calibration components organized and protected. Two wheel chocks provide additional vehicle stability during procedures. Everything is designed to integrate seamlessly with the IA1000 frame and work together as a complete calibration ecosystem.
At the heart of this package is the MaxiSYS Ultra S2 advanced diagnostics tablet, Autel's flagship diagnostic platform that powers both comprehensive vehicle diagnostics and sophisticated ADAS calibration procedures. The Ultra S2 ships with the MaxiFlash VCMI2, a 6-in-1 communication and measurement device that provides fast, reliable connections to vehicle systems.
The tablet comes preloaded with IA1000 alignment and static and dynamic ADAS calibration software, providing extensive coverage of U.S., Asian, and European vehicles. This isn't just diagnostic capability—it's a complete workflow solution that guides technicians through every step of alignment and calibration procedures with illustrated instructions, specification lookups, and real-time measurement displays.
The package includes one year of free Ultra S2 software updates, ensuring your system stays current with the latest vehicle coverage, calibration procedures, and diagnostic capabilities as new models and technologies enter the market. Regular updates mean your investment continues to grow in capability and coverage throughout the warranty period.
Model: IA1000ASTDT
Shipping Dimensions: 86.5" H x 197.50" L x 44.5" W
Shipping Weight: 2,212 lbs
Alignment Accuracy: 0.02 degrees
Warranty: One-Year Limited Warranty
Included Software Updates: One year free Ultra S2 updates
