To view or download the assembly instructions for the Two-line Lasers on the Sliding Plates,
click here for the IA1000 AVM Quick Guide.
The Autel IA1000AST All-Systems Calibration System Package represents the pinnacle of automated alignment and ADAS calibration technology for professional automotive shops. This comprehensive system combines the advanced IA1000 automated calibration frame with the powerful MaxiSYS Ultra S2 diagnostic tablet, delivering a complete solution for both four-wheel alignment and advanced driver assistance system (ADAS) calibrations on U.S., Asian, and European vehicles.
Featuring six high-definition cameras and laser-enabled positioning guides, the IA1000 delivers industry-leading accuracy to 0.02 degrees through precision-engineered wheel clamps. The system boasts robotic forward-facing camera target positioning, laser-guided ACC, blind spot calibrator, and AVM mat placement, plus unlevel floor compensation. Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments dramatically improve accuracy while reducing human error and setup time.
The IA1000AST package includes a 24-inch touchscreen display that attaches directly to the frame unit, providing an intuitive interface for both alignment and calibration procedures. Illustrated alignment instructions, live readings, required tools, and adjustment locations all display on a single screen, streamlining your workflow and reducing diagnostic time.

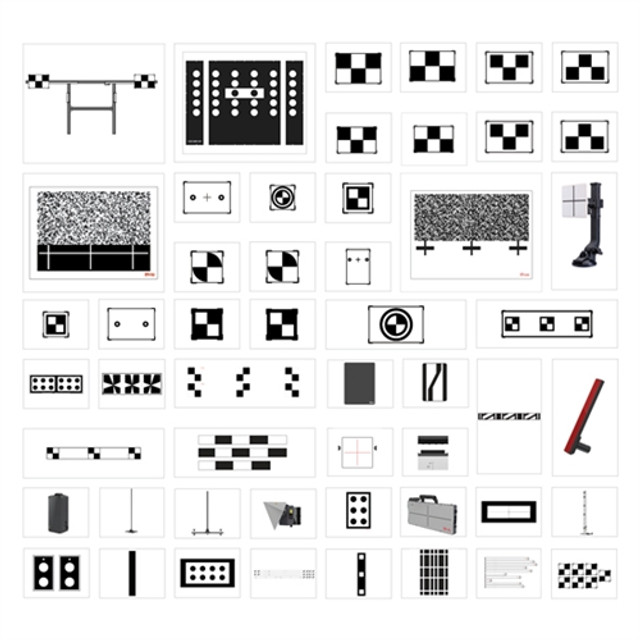

This All-Systems package is equipped with the complete Autel physical LDW pattern and target kit, including AVM mats and calibration components for cameras, radar, LIDAR, Night Vision, and AVM systems. The system provides one-step robotic and vertical LDW target placement via physical targets or with 27-inch attachable monitors (LDW target monitors sold separately), significantly reducing manual operation and setup time compared to traditional ADAS calibration systems.
Additional package accessories include ride height and wide angle targets, a hand-held inclinometer, OE-sized corner reflectors, a camera calibration bar, a wheel-off adaptor kit, an ADAS metal storage cabinet with tire clamp brackets, and the large pattern storage bracket—everything you need for comprehensive calibration coverage organized and ready for use.
Powered by the included MaxiSYS Ultra S2 advanced diagnostics tablet, the IA1000 offers extensive U.S., Asian, and European vehicle four-wheel alignment coverage and industry-leading ADAS calibration coverage. The Ultra S2 tablet ships with the MaxiFlash VCMI2 6-in-1 communication and measurement device and IA1000 alignment and static and dynamic ADAS calibration software coverage.
The IA1000AST package includes one year of free Ultra S2 software updates, ensuring you stay current with the latest vehicle coverage and calibration procedures. The entire system is backed by a one-year limited warranty for peace of mind.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
