The Katool KT-4H950 is a professional-grade four-post car lift engineered to deliver exceptional safety, versatility, and value for automotive service shops, home garages, and enthusiasts. With a robust 9,500 lb. lifting capacity and an impressive 80.70" maximum lifting height, this lift handles everything from sedans and SUVs to light trucks with confidence. Whether you're performing routine maintenance, tire rotations, undercarriage inspections, or long-term vehicle storage, the KT-4H950 delivers the workspace and stability you need.
Designed with operator safety as the top priority, the KT-4H950 features a single-point manual safety release for easy operation and four mechanical locking devices, each equipped with both primary and secondary safety locks for redundant protection. The powerside column can be installed on either side, front, or rear, giving you flexibility to configure the lift for your specific workspace layout. Non-skid diamond plate platforms provide secure footing, while adjustable safety lock ladders ensure precise positioning at multiple height increments.

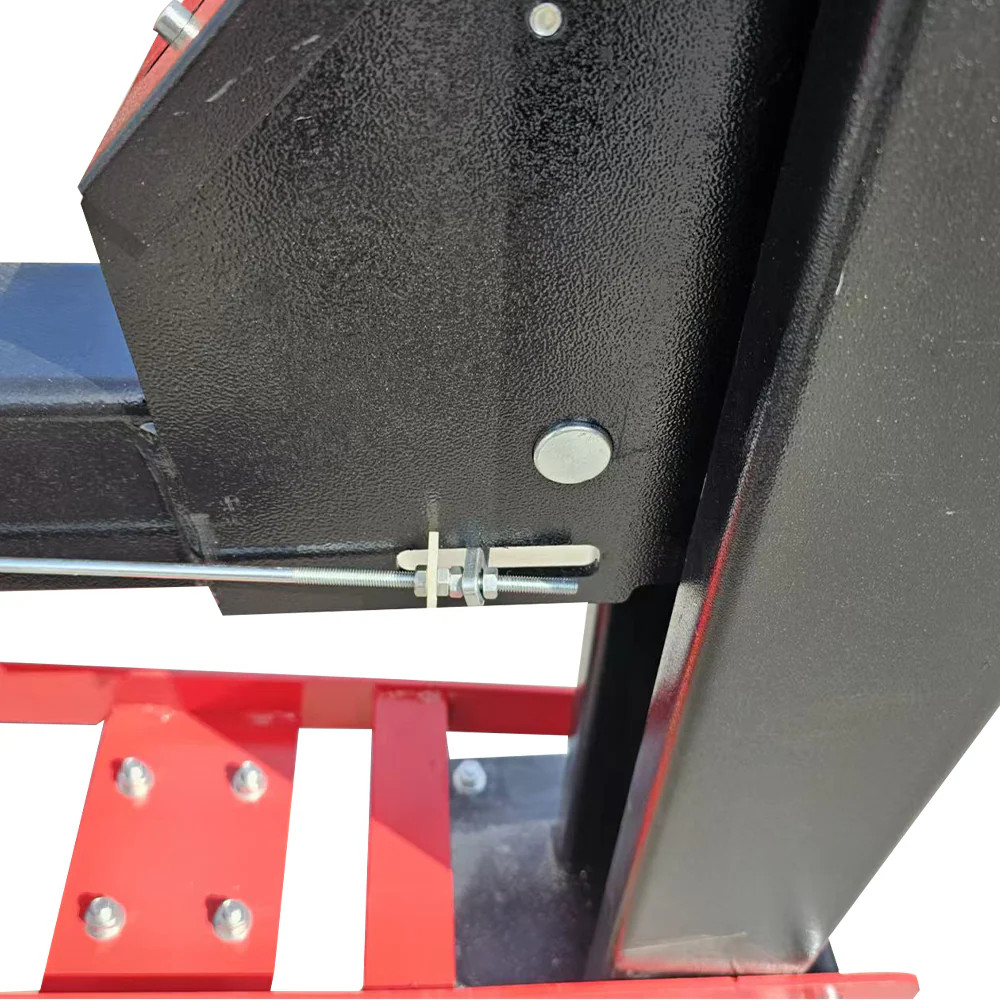

The KT-4H950 is engineered with multiple layers of safety features to protect both operators and vehicles. The single-point manual safety release makes lowering the lift straightforward and controlled, while the four mechanical locking devices engage automatically as the lift rises. Each locking mechanism includes both primary and secondary safety locks, providing redundant protection against accidental lowering.
Non-skid diamond plate platforms ensure secure footing and prevent slippage when loading or unloading vehicles. The adjustable safety lock ladders allow you to lock the lift at multiple positions throughout its travel, giving you precise control over working height. With a 99.40" width between columns and an 83" drive-through clearance, the lift accommodates a variety of vehicle sizes while maintaining easy access to undercarriage components.
Operating on standard 110VAC / 60Hz / 1-phase power, the KT-4H950 plugs into any standard wall outlet—no special electrical installation required. The lift raises vehicles to full height in just 90 seconds and lowers in 40 seconds, keeping your workflow efficient without sacrificing smooth, controlled operation. The 92.48" post height and 214.96" overall length with ramps provide a stable footprint for reliable long-term use.
Every KT-4H950 comes equipped with essential accessories to maximize functionality from day one. Included in the package are a set of drip trays to catch fluids during maintenance, a convenient jack tray for organizing tools and floor jacks, and a set of casters for mobility and positioning flexibility. This lift is ready to handle everything from oil changes to suspension work right out of the box.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Important Concrete Requirements
Concrete thickness must be at least 3.93" (100mm) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
4 Post Lift Limited Warranty
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment. Please click this link to find out more: Click Here
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
For the full warranty terms, disclaimer, and conditions Click Here
