Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

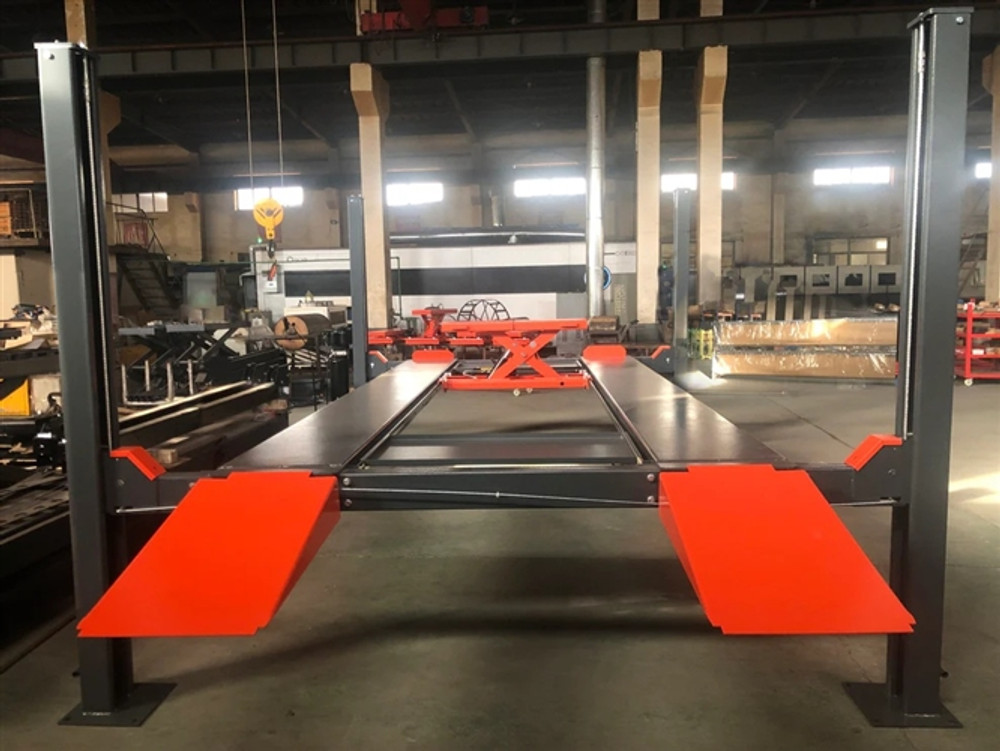

The Katool KT-4H110 four-post car lift delivers exceptional versatility and value for automotive professionals and serious enthusiasts. With an 11,000 lb. lifting capacity, this CE Approved and Certified lift handles a wide range of vehicles from sedans to light trucks with confidence. Engineered to meet rigorous 115% dynamic loading and 150% static loading capacity standards, the KT-4H110 combines safety-critical features with convenient operation—all powered by standard 110V single-phase power.
Whether you're performing routine maintenance, undercarriage inspections, or long-term vehicle storage, this lift provides the access and reliability you need. The 84.25" maximum lifting height gives you ample working room, while 14 locking positions ensure you can set the platform at the perfect height for any task. Fast operation—83 seconds up, 40 seconds down—keeps your workflow efficient, and the single point manual safety lock release makes adjustments simple and secure.
The KT-4H110 is built with multiple layers of safety protection. Four mechanical locking devices provide primary security, while a secondary lock system acts as a slack-cable device to engage automatically in the unlikely event of cable failure. This redundant safety architecture gives you peace of mind during every lift cycle.
Non-skid coated platforms and adjustable safety lock ladders ensure secure vehicle positioning and operator safety. The power side column can be installed at both sides, front or rear, allowing you to configure the lift to match your shop layout and workflow preferences.
Your KT-4H110 includes essential accessories to get you working right away: three drip trays keep your work area clean during fluid changes and maintenance, while a jack tray provides convenient storage for your lifting equipment. The lift's high-quality hydraulic system is designed for reliable performance with standard 110V/60HZ/1PH power (220V option available).
With a minimum runway height of just 6.2 inches, the KT-4H110 accommodates low-clearance vehicles with ease. The 126" overall width and 229.73" overall length (with ramps) fit comfortably in most garage spaces, while the 112.81" inside column clearance provides generous room for vehicle positioning.
Optional Accessories Available
Enhance your lift's functionality with an optional caster kit for easy repositioning around your shop, and optional rolling jacks for flexible lifting solutions. (Rolling jacks and casters sold separately.)
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
⚠ IMPORTANT INSTALLATION REQUIREMENT
Concrete thickness must be at least 3.93" (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
4 Post Lift Limited Warranty
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment. Please click this link to find out more: Click Here
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
For the full warranty terms, disclaimer, and conditions Click Here
