The Challenger CL4P9X is a professional-grade, 9,000 lb. capacity four-post lift engineered for versatility in both commercial service and vehicle storage applications. With an extended 233-1/2" overall length and 188" runways, the CL4P9X accommodates longer vehicles with ease while offering an impressive 85-1/2" rise height and 80" clearance at full raise for double-stacking applications.
Fully ALI certified and ETL validated, this lift meets the highest industry standards for safety and reliability. Whether you're a home enthusiast storing prized vehicles, a commercial shop providing light-duty service, or a hobbyist expanding capacity in your garage, the CL4P9X combines rugged construction, intuitive operation, and flexible installation options to deliver maximum value and performance.
To view the comprehensive lift inspection guide from ALI, click here.
Why Choose the CL4P9X?
The Challenger CL4P9 series was designed from the ground up with versatility, safety, and convenience at the core. From home enthusiast garages and commercial storage applications to light-duty general service needs, these lifts complement your workflow and are loaded with real benefits. They are essential for the "do it yourself" home garage, providing the best of both worlds: store a vehicle up top and park another below with up to 80 inches of clearance when the lift is fully raised, or use the lift for hands-on vehicle service.
The CL4P9X ex-length model takes this versatility even further with its extended runway design, making it ideal for long-wheelbase trucks, SUVs, vans, and specialty vehicles. Whether you're a shop owner looking to maximize bay efficiency or a car collector creating a private showroom, the CL4P9X offers unlimited layout options and exceptional build quality.
Another standout feature of the CL4P9 series free-standing four-post lift is its portability. You can choose between bolting it down for a permanent installation or leaving it free-standing, giving you the freedom to relocate the lift anywhere in your shop or garage. If convenience and flexibility are important to you, the free-standing four-post lift is an outstanding option.
With optional rolling jacks, ramp upgrades, oil drip trays, and more, you'll be able to accommodate just about anything that comes into the garage—and you'll have room to grow, all at a reasonable cost.

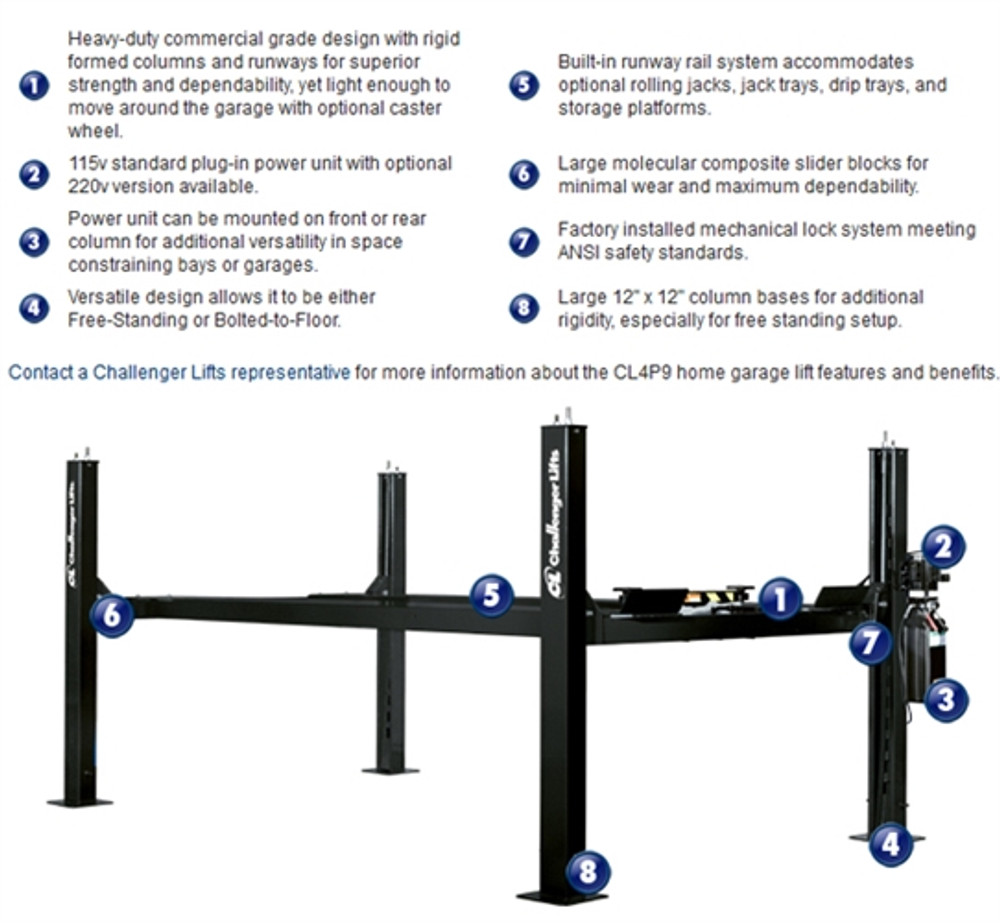

Key Selling Points
9,000 lb. lifting capacity handles a wide range of vehicles including trucks, SUVs, and vans
85-1/2" rise height in the top locked position provides exceptional service and storage clearance
ALI certified and ETL validated – meets rigorous industry safety standards; anchoring not required to maintain certification
Adjustable lock ladders accommodate uneven floors for a versatile, forgiving installation

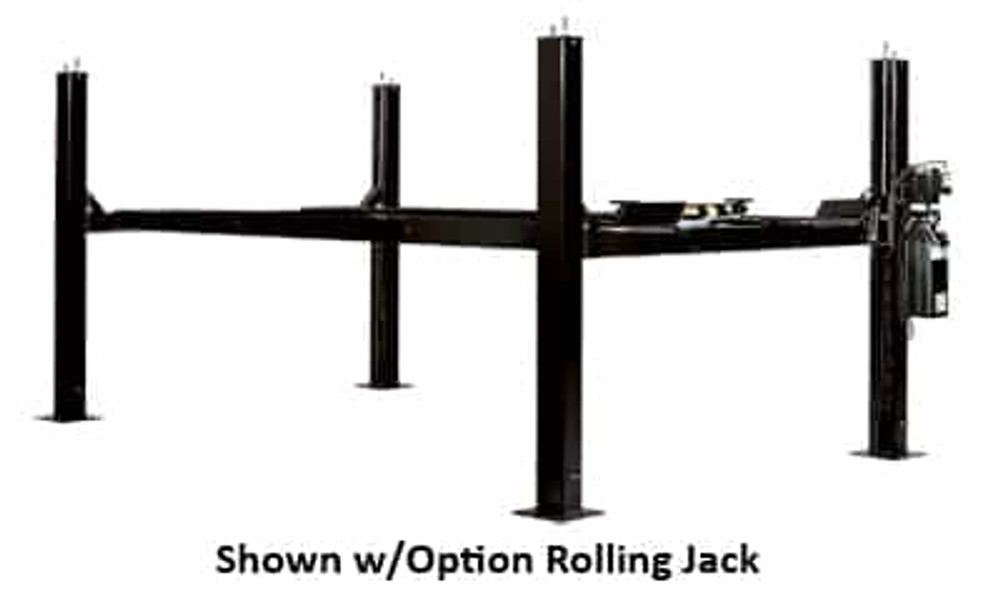

Built-in runway rail system accepts optional rolling jacks, oil drip trays, and other convenience accessories
Single-point manual lock release disengages all column locks simultaneously for fast, easy operation
1 HP motor available in 115V or 220V – air not required for operation
Service Application
Professional-grade quality with an impressive 80" high rise and multiple lock positions makes the CL4P9X perfect for light-duty service up to 9,000 lb. capacity. The extended runway length provides ample space to position vehicles comfortably, while the built-in runway rail system gives you flexibility to add optional rolling jacks and jack trays for quick tire and brake work access. The lift's single-point manual lock release and smooth hydraulic operation make service tasks faster, safer, and more efficient.
Storage Application

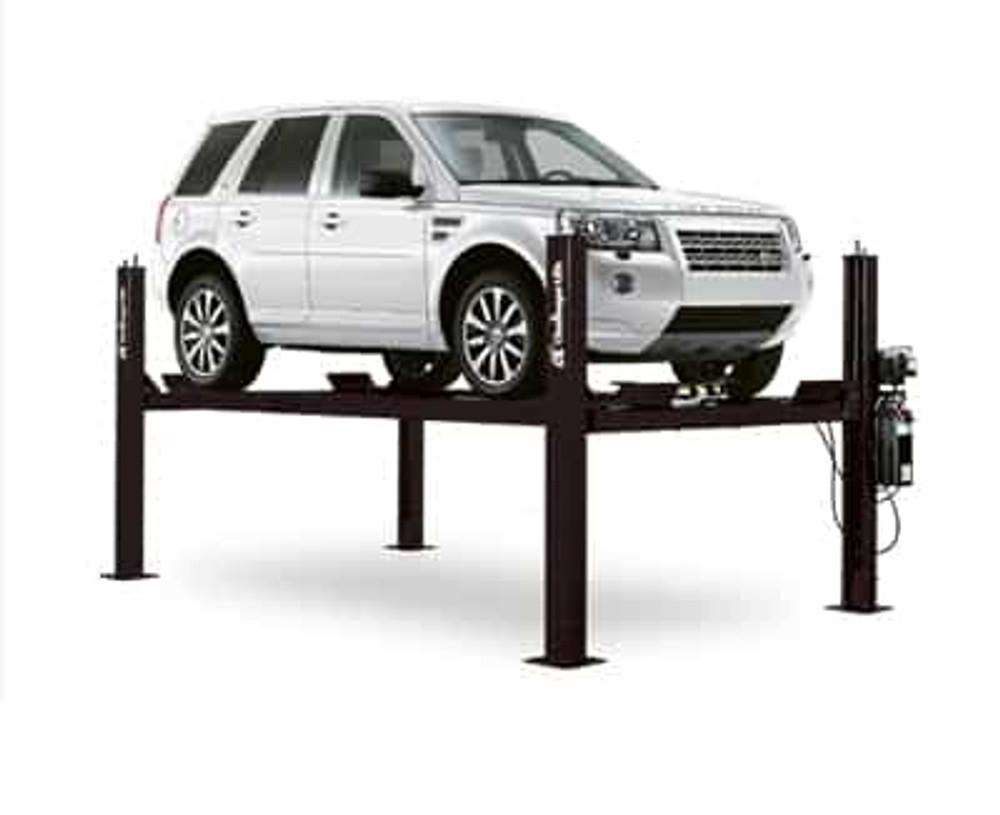

The CL4P9X excels as a storage solution, letting you store a vehicle up top while parking another underneath for everyday use. With 80" rise height, most full-size vehicles fit easily underneath the stored vehicle, maximizing your garage footprint and protecting valuable collections. An optional drip tray set completes the storage application, keeping any fluids from contacting the vehicle underneath and ensuring a clean, safe environment for both cars.
The ex-length design of the CL4P9X is particularly beneficial for owners of longer trucks, classic muscle cars, extended vans, or multi-vehicle collectors looking to double their garage capacity.
Multiple Power Unit Locations
The CL4P9X power unit can be mounted on either the front column of the driver's side or the back column of the passenger side of the lift. This intelligent design provides convenient power control accessibility and exceptional versatility for any garage or shop layout. Whether you're working with tight spaces, optimizing workflow, or accommodating existing equipment, the flexible power unit placement ensures you get the most out of your bay.
The 1 HP motor is available in 115V or 220V configurations (must be specified at time of order), giving you installation flexibility based on your existing electrical setup. The 220V motor offers faster rise speed (60 seconds vs. 120 seconds on 115V), ideal for high-volume service environments.
Built for Durability & Stability
The CL4P9X features commercial-grade formed runways that ensure a strong, stable platform under load. Larger columns and base plates (exclusive to 9,000 lb. models) add exceptional stability and rigidity, even when the lift is fully extended. The lift's adjustable lock ladders allow for a versatile install with sensitivity to uneven floors, ensuring safe, reliable operation in real-world garage conditions.
A durable powder coat finish provides long-lasting protection against shop environments, ensuring your investment stands up to years of demanding use. Combined with the ALI/ETL certification that does not require anchoring, the CL4P9X offers confidence, flexibility, and peace of mind right out of the box.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation,
abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when
repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is
authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
