The Challenger 44060E is engineered specifically for heavy commercial truck and transit vehicle service, delivering a robust 60,000 lb. lifting capacity in an extended-length configuration. Designed as an economical yet high-performance solution for demanding commercial facilities, this chain-driven 4-post lift combines traditional proven design with advanced features like a variable-synchro power system and velocity fused redundant hydraulic safety system. With an impressive 41-foot overall length and 370-inch maximum wheelbase, the 44060E handles everything from waste trucks and construction vehicles to long-wheelbase transit buses. Available exclusively in a sleek new black finish, this lift brings both durability and professional appearance to your shop floor.
Heavy-Duty Engineering for Commercial Applications
The Challenger 44060E was designed from the ground up to be an economical high-capacity lifting solution without sacrificing the features and safety systems that serious commercial operations demand. Built on a traditional 4-post design, this lift provides a stable, reliable platform for servicing the heaviest trucks and commercial vehicles in your fleet.
Diamond plated anti-skid runways and heavy-duty fixed approach ramps provide positive vehicle traction and long-lasting durability, ensuring safe drive-on access even in demanding shop environments. The adjustable runways accommodate a wide variety of tread and axle widths, from 36 inches to 58 inches between runways, making this lift versatile enough to handle diverse vehicle configurations. With 32-inch wide runways and 144 inches inside the columns, you have ample space for even the widest commercial chassis.
At the heart of the 44060E is its variable-synchro power system with dual hydraulic lift cylinders. This advanced system gives you the ability to raise the front or rear lift suspension either variably or simultaneously, providing a perfectly stable platform when lifting vehicles with heavier front or rear axles. Whether you're working on a front-heavy waste truck or a rear-loaded construction vehicle, you maintain complete control and balance throughout the lift cycle.

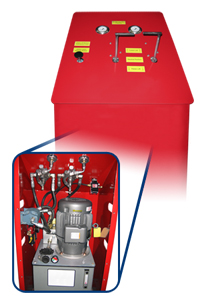

Independent Control Console for Safe Operation
The independent control console is strategically mounted away from the hydraulic lift, providing safe and convenient access to all power controls. This thoughtful design keeps the operator at a safe distance during lift operations while maintaining full visibility and control.
The console features the variable-synchro power system controls to raise and lower the front or rear suspension either simultaneously or independently, dual pressure gauges for monitoring system performance, and a single point air lock release button for quick and simultaneous disengagement of all column locks. This intuitive control layout puts everything the technician needs right at their fingertips.
Anti-Skid Diamond Plate Construction
Safety starts the moment a vehicle approaches the lift. The 44060E features heavy-duty anti-skid diamond plate ramps that are securely bolted down for safe and easy drive-on access. These ramps provide exceptional traction in all conditions, ensuring confident vehicle positioning every time.
The diamond plate construction extends across the runways as well, delivering positive vehicle traction throughout the lift's surface area and outstanding durability that stands up to years of heavy commercial use.
Twin Ladder Lock Positioning System
Versatility in working height is essential for efficient service. The 10-level twin ladder lock positions provide a comfortable working height for a wide variety of service tasks on different vehicle types. With a maximum rise height of 73 inches, technicians have ample clearance for undercarriage work while maintaining easy access from ground level.
The single point air actuated lock release system allows technicians to disengage all column locks simultaneously with the push of a button, streamlining operation and reducing cycle time between jobs.
Premium Components and Safety Systems
The Challenger 44060E is built with components designed for maximum reliability and longevity. Heavy-duty, high tensile strength leaf chain and sealed roller bearings provide smooth, dependable operation lift after lift, year after year.
Safety is paramount in any lift operation, which is why the 44060E incorporates a velocity fused redundant hydraulic safety system. This advanced safety design provides multiple layers of protection, ensuring that vehicles remain securely elevated even in the unlikely event of a hydraulic system failure.
The powerful 15HP motor operates on 230v - 460v 3-phase power at 30 amps, delivering a swift 75-second speed of rise to minimize downtime and maximize productivity. The overall height of 92 inches allows installation in most commercial facilities with standard ceiling heights.
Built-In Convenience Features
Efficiency comes from thoughtful design details. The 44060E includes a built-in runway rail system that accommodates optional convenience accessories like rolling jacks and sliding drain pans. This integrated rail system eliminates the need for separate support equipment and keeps your workspace organized and productive.
With 14-inch height runways, the lift provides excellent ground clearance while maintaining easy access. The robust construction and generous 17' 1-1/4" overall width ensures stability even when working with the heaviest commercial vehicles.
Key Highlights
60,000 lb. lifting capacity handles heavy commercial trucks, waste trucks, and transit vehicles
41-foot overall length (44060E model) with 370-inch maximum wheelbase for extended vehicles
Variable-synchro power system with dual hydraulic cylinders for independent front/rear control
Velocity fused redundant hydraulic safety system and single point air lock release
Heavy-duty leaf chain and sealed roller bearings for maximum reliability and long service life
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation,
abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when
repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is
authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
