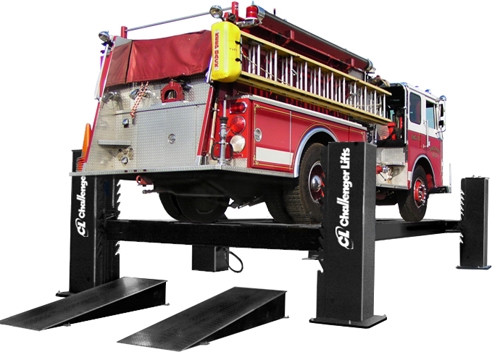

Challenger 44060 Heavy-Duty Chain-Driven 4-Post Lift 60,000 lb - New Black Color

0 review Write a Review
This Item has a 90-Business Day Lead-time
$117,364.50
(You save: $66,017.54 )
Free Shipping
Product Code: 44060
Hurry up! Current stock:
Options

Challenger 44060 Heavy-Duty Chain-Driven 4-Post Truck Lift 60,000 lb Capacity - New Black Color

📄 Download Installation Manual

Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.


Professional-Grade Heavy-Duty Lifting for Commercial Trucks & Transit Vehicles

The Challenger 44060 represents the ultimate solution for shops demanding 60,000 lb. lifting capacity in a proven, reliable four-post design. Now available in the new Black color, this heavy-duty chain-driven lift is purpose-built for commercial truck service, waste haulers, construction vehicles, and heavy transit equipment. Engineered with high tensile strength leaf chain and sealed roller bearings, the 44060 delivers maximum reliability under the toughest shop conditions.

What sets the Challenger 44060 apart is its advanced variable-synchro power system with dual hydraulic lift cylinders. This intelligent design gives you the ability to raise the front or rear suspension either simultaneously or independently, providing a stable, level platform even when lifting vehicles with significantly heavier front or rear axles—a common challenge with waste trucks, dump trucks, and other unbalanced commercial vehicles.

Built for convenience and safety, the 44060 features an independent power control console mounted away from the hydraulic system, a single point air actuated lock release system for fast, synchronized column unlocking, and diamond plate anti-skid runways with heavy-duty fixed approach ramps. The adjustable runways accommodate a wide variety of tread and axle widths, while the built-in runway rail system accepts optional accessories like rolling jacks and sliding drain pans. Available in standard (36'), extended (41'), and extra long (46') lengths to handle virtually any vehicle wheelbase.


Key Features & Standout Benefits

  • 60,000 lb. lifting capacity – ideal for heavy commercial trucks, transit buses, waste haulers, and construction vehicles
  • Variable-synchro power system with dual hydraulic cylinders – independently control front and rear suspension for stable lifting of unbalanced vehicles
  • Velocity fused redundant hydraulic safety system – ensures operator safety and prevents accidental descent
  • Single point air actuated lock release – disengage all column locks simultaneously for faster service cycles
  • Adjustable runways with built-in rail system – accommodate multiple axle widths and accept optional rolling jacks and drain pans
  • Heavy-duty leaf chain and sealed roller bearings – engineered for long-term durability and maximum reliability
  • Available in Black color only – modern, professional appearance for today's shops

Independent Control Console for Maximum Safety & Convenience

Challenger 44050 independent control console

The independent control console is strategically mounted away from the hydraulic lift system, providing safe and convenient access to all power controls. This advanced console features the variable-synchro power system, allowing you to raise and lower the front or rear suspension either simultaneously or independently. Dual pressure gauges give you real-time feedback on system performance, while the single point air lock release button lets you disengage all column locks at once—dramatically speeding up your service workflow and improving shop efficiency.


Anti-Skid Diamond Plate Ramps for Safe, Easy Drive-On

Challenger 44050 Anti-skid Ramps

The diamond plate anti-skid runways and ramps are engineered for positive vehicle traction and long-lasting durability. Heavy-duty fixed approach ramps are bolted down for safe and easy drive-on, eliminating the hassle of loose or shifting ramps. The diamond plate surface provides superior grip in all conditions, ensuring drivers can confidently load even the heaviest commercial vehicles without slipping or hesitation.


Twin Ladder Lock Positions for Versatile Working Heights

Challenger 44050 Ladder Lock

The 10 level twin ladder lock positions provide a comfortable and versatile working height for a wide variety of service tasks across many different vehicle types. Whether you're performing brake service, transmission work, suspension repairs, or undercarriage inspections, you'll always have the perfect height for the job. The robust locking mechanism ensures stability and safety at every position, with a maximum rise height of 73 inches.


See the Challenger 44060 in Action


Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.


⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

LIMITED WARRANTY

Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.

Note: Warranty registration must be completed online at https://www.challengerlifts.com/register-your-lift/ or warranty period will beging from invoice date of lift purchase.
