When your shop demands the ultimate in heavy-duty lifting capability for commercial trucks, buses, and large fleet vehicles, the Challenger 44030E delivers. With a massive 30,000 lb. capacity and an extended length design that accommodates wheelbases up to 290 inches, this professional-grade 4-post hydraulic lift is engineered to handle the toughest jobs with reliability and precision. Featuring a superior lifting system with high tensile strength leaf chain, sealed roller bearings, and a robust 3HP motor, the 44030E offers smooth, consistent operation and minimal maintenance requirements—making it the go-to solution for busy commercial service centers.
Now available in the new black color finish, the Challenger 44030E combines rugged functionality with a modern, professional appearance. This extended length model is part of the versatile 44030 series, designed to transform your facility into a complete heavy-duty productivity powerhouse. Whether you're performing routine maintenance, brake work, suspension repairs, or wheel service, this lift provides a stable, accessible platform with 68 inches of rise height and multiple lock positions for comfortable working conditions at any elevation.
30,000 Pounds of Heavy Duty Truck Lifting Power
The 30,000 lb. capacity heavy duty four post truck lift features a superior lifting system with high tensile strength leaf chain and sealed roller bearings for maximum reliability and smooth operation over thousands of cycles. Heavy duty hydraulic cylinders provide optimum lifting performance with minimum maintenance requirements, ensuring your investment delivers years of dependable service.
Additional features and benefits of the 44030E four post lift include a single point air lock release system that allows technicians to disengage all post column locks simultaneously for rapid, efficient operation. Diamond plate approach ramps and anti-skid runway surfaces provide positive traction upon approach and unload, ensuring safe vehicle positioning every time. The internal multi-position lock ladder offers a variety of comfortable work heights, allowing technicians to position vehicles at the ideal elevation for any service task.
An All-in-One Hydraulic Truck Lift Solution
The 44030E four post truck lift accommodates a wide range of heavy duty vehicles and can be transformed into a complete productivity solution with optional accessories. Add ramp kits, oil drain pans, heavy duty turning radius gauges, and rolling jacks for comprehensive brake and wheel work capabilities. The built-in runway rail system provides exceptional versatility, allowing you to integrate convenience options like rolling jacks and sliding oil drain pans directly into your workflow.
The 44030 series truck lifts are available in standard length, extended length (44030E), and extra extended lengths to handle wheelbases ranging from 230 inches up to an impressive 350 inches—making them suitable for everything from medium-duty trucks to full-size transit buses. These hydraulic lifts are also available in alignment rack four post models (AR versions) for shops requiring precision two-wheel alignment capabilities.

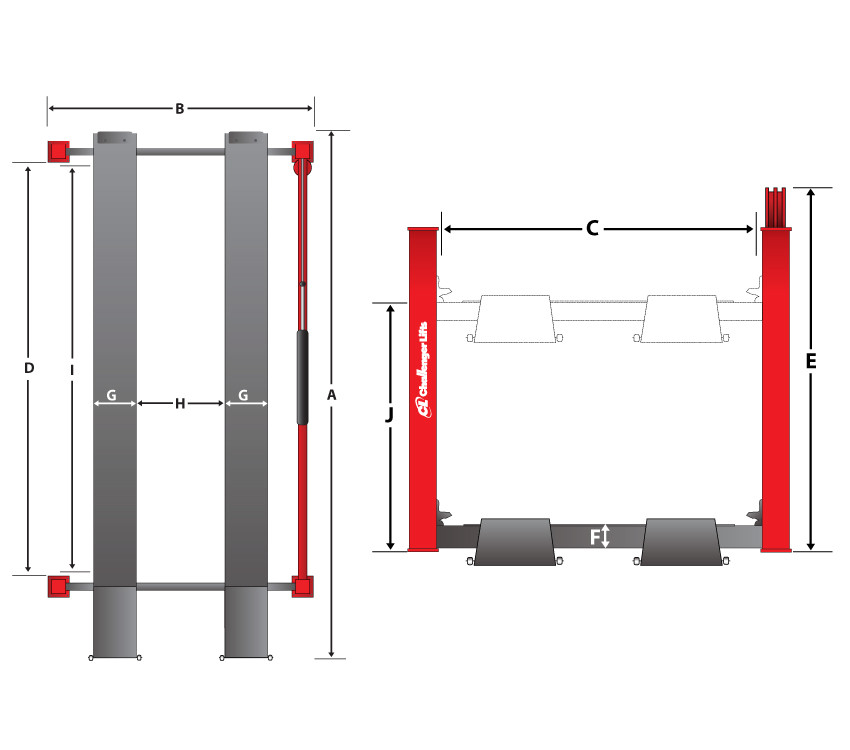

With adjustable runways that accommodate a variety of commercial transit buses and other large vehicles, the 44030E offers unmatched flexibility. The 24-inch wide runways feature variable spacing between 54 and 75 inches, ensuring compatibility with diverse vehicle configurations. The overall width of 12 feet 5½ inches and inside column clearance of 132½ inches provide ample space for oversized vehicles and equipment access.
Engineered for Durability and Performance
Diamond Plate Ramps: The heavy-duty diamond plate approach ramps provide exceptional drive-on tread traction and feature robust steel rolling wheels engineered for high volume durability. Vehicles load smoothly and safely, reducing operator stress and improving shop efficiency.

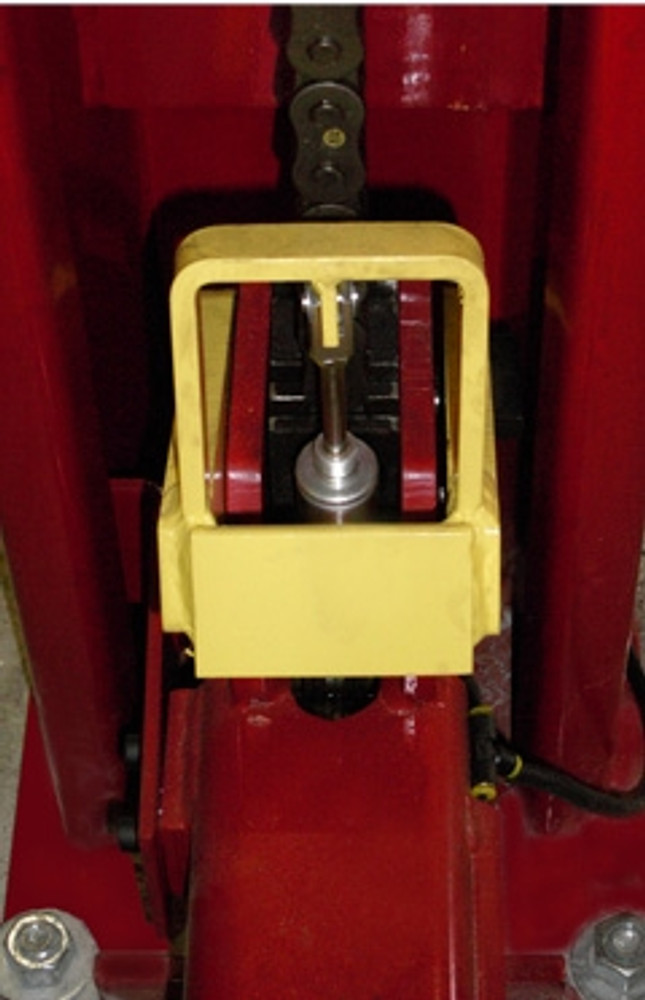

Internal Lock Ladder: The multi-position internal lock ladder system enables technicians to secure vehicles at a variety of comfortable work heights throughout the full 68-inch rise range. This flexibility ensures optimal ergonomics and productivity for any service procedure.
Heavy-Duty Chain System: The high tensile strength leaf chain with sealed roller bearings delivers smooth, reliable lift operation cycle after cycle. Combined with the single point air actuated lock release system, technicians can operate the lift quickly and confidently, reducing service times and maximizing throughput.
Powered by a dependable 3HP motor operating on 208v-230v single phase power (optional three phase available upon request), the lift achieves full rise in just 105 seconds, minimizing wait times and keeping your operation moving. The system draws 30 amps, making it compatible with most shop electrical installations.
Key Highlights
30,000 lb. lifting capacity for heavy commercial trucks and buses
Extended length design with 29' 7½" overall length and 290" maximum wheelbase
68-inch rise height with multi-position internal lock ladder for flexible work positioning
Single point air actuated lock release for fast, simultaneous column unlocking
Adjustable runways with built-in rail system for rolling jacks and accessories
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation,
abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when
repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is
authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
