BendPak HDS-14XT Extended Limo Style 4 Post Lift 14,000 lb.

Previous Next

BendPak

BendPak HDS-14XT Extended Limo Style 4 Post Lift 14,000 lb.

Name: BendPak HDS-14XT Extended Limo Style 4 Post Lift 14,000 lb.
Brand: BendPak
SKU: 5175624
Price: 9295 USD
Availability: InStock

0 review Write a Review

$9,295.00

Product Code: 5175624

Quantity:

Hurry up! Current stock:

Options

Delivery Options: *

Residential, or business address?: *

Delivery Notice: *

Product Details
Warranty Information
Product Features
Product Specs

Product Details

BendPak HDS-14XT Extended Limo Style 4 Post Lift 14,000 lb.

📄 Download Installation Manual

Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

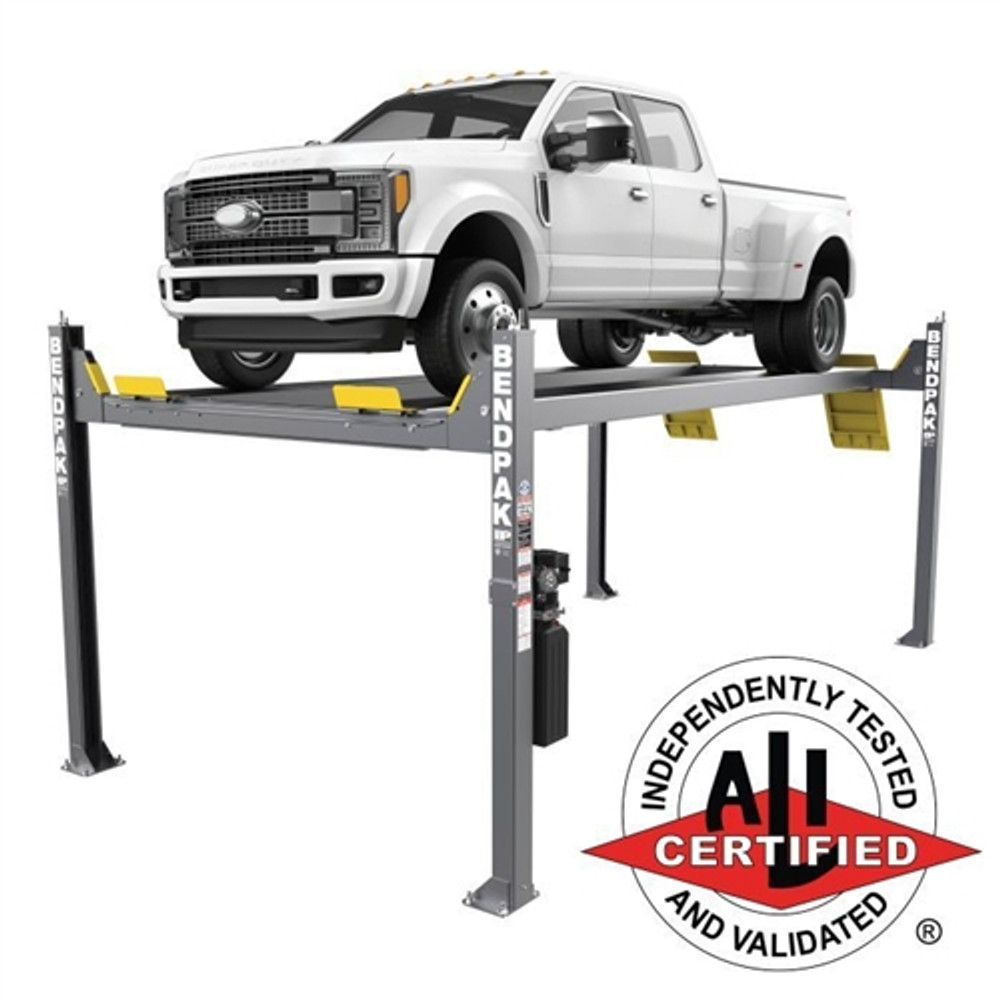

The BendPak HDS-14XT is an extended-length, high-rise four-post lift engineered specifically for long-wheelbase vehicles including limousines, extended-cab trucks, and large SUVs. With a 14,000 lb. lifting capacity and extended runways reaching 227.5 inches, this lift delivers the stability and reach your shop needs to service oversized vehicles safely and efficiently. CE Approved and Certified, the HDS-14XT meets or exceeds the standards prescribed by European Standard EN-1493, and it's built with all the legendary BendPak features that make it the top choice for professional installers and serious enthusiasts.

To view the lift inspection guide, click here.

Built for the Most Demanding Lifting Applications

There's No Such Thing as Overboard when it comes to safety, durability, and performance. The BendPak HDS-14XT is engineered to meet the strenuous demands of your toughest professional lifting applications. Every lift incorporates a comprehensive list of premium features—from oversized cable sheaves and heavy-duty 1/2" aircraft cable to spring-loaded automatic safety locks and large 10" x 12" base plates—ensuring BendPak lifts remain the absolute best in the industry.

Extended Runways for Long Wheelbases: Vehicles approaching 14,000 lbs. often have wheelbases that demand specialized equipment to keep them safe and properly supported. The HDS-14XT's 227.5-inch extended runways prevent excessive wear and tear on your vehicle, providing a smooth, stable drive-on experience. Your truck or limo shouldn't feel like it's climbing Mt. Everest just to get on the lift—this extended-length design makes loading and lifting effortless and secure.

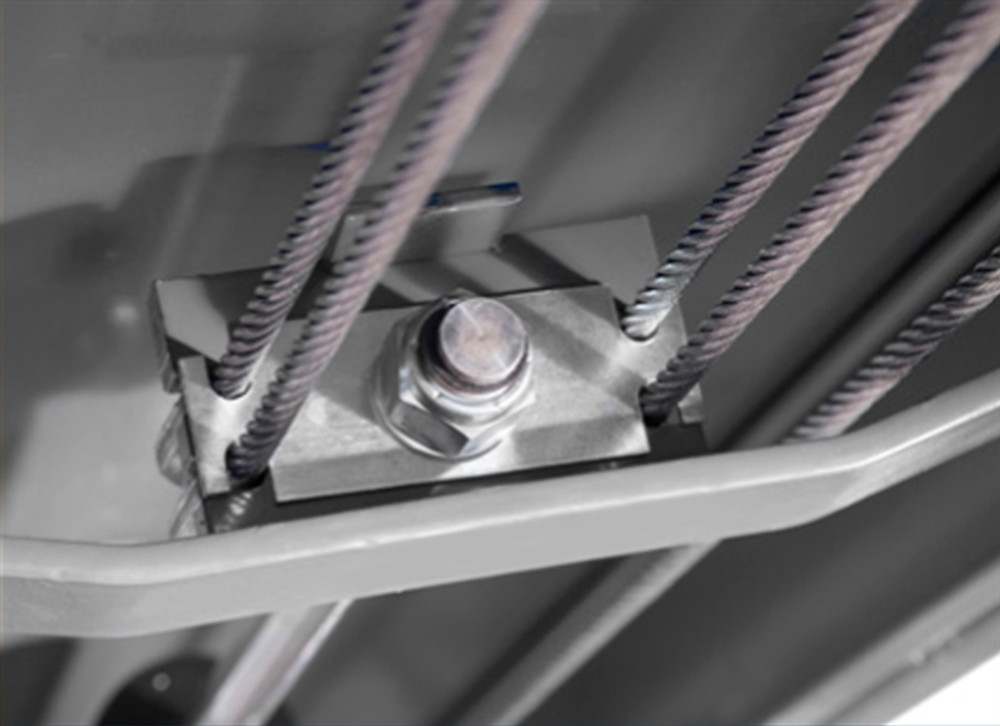

Dual-Hub Cable Sheaves: The HDS-14XT features dual-hub cable sheaves that significantly reduce stress, fatigue, and wear on critical lifting components. Massive 10.5" diameter cable sheaves within the runway and cross tubes, combined with robust 2.25" diameter sheave axles, dramatically improve cable longevity and component lifespan. This means fewer service-related expenses and more uptime for your shop.

Heavy-Duty Aircraft Cable: This lift is equipped with four 1/2" diameter, 6 x 25 stainless-steel lifting cables, each with a breaking strength of over 14,000 lbs. This aircraft-quality cable is specifically designed for lifting applications, providing an optimal balance between abrasion resistance and fatigue resistance for long-lasting, reliable performance.

Solid Foundation with Large Base Plates: Every 14,000 lb. capacity four-post lift from BendPak rests on 10" x 12" base plates, delivering a rock-solid foundation for stable, secure lifting operations every single time.

Spring-Loaded Safety Locks: Safety locks automatically engage continuously during the rise cycle, providing redundant protection at every stage. Adjustable safety ladders allow for precise runway leveling, even when the lift is installed on sloped floors, ensuring consistent performance in any shop environment.

Why Choose the BendPak HDS-14XT?

Extended 227.5-inch runways accommodate long-wheelbase vehicles including limos, extended trucks, and large SUVs
14,000 lb. lifting capacity with 7,000 lb. max per axle for balanced, safe lifting
Maximum lifting height of 89.5 inches provides ample working clearance for undercarriage service
CE Approved and Certified to meet or exceed European Standard EN-1493 for superior quality and safety
Mid to long-style approach ramps designed for low ground clearance vehicles, with built-in rear-wheel chocks for added security
Fully enclosed lifting cables, safety locks, and sheaves minimize pinch points and improve operator safety
Single hydraulic cylinder mounted underneath the runway for clean, efficient operation
Internal anti-sway slider blocks in each column reduce lateral movement and enhance stability
Pneumatic push-button safety release for convenient, hands-free lock disengagement
17 locking positions spaced every 4 inches for precise height adjustments
Runways include rail-kit for optional accessories such as rolling jacks and drip trays
Independent backup slack-cable safety latches for redundant protection
Customizable power unit location to fit your shop layout
220 VAC / 60 Hz / 1Ph motor for reliable, efficient operation

Key Highlights: What Sets the HDS-14XT Apart

Extended Limo-Style Design: With 227.5-inch runways and an overall length of 272 inches, this lift is purpose-built for long-wheelbase vehicles that won't fit on standard lifts.

Exceptional Lifting Height: The HDS-14XT reaches a maximum rise of 83 inches and a maximum lifting height of 89.5 inches, giving you plenty of room for undercarriage work.

Safety First, Always: Spring-loaded automatic safety locks engage continuously during rise, with 17 locking positions and independent backup slack-cable latches providing multiple layers of protection.

Built to Last: Oversized cable sheaves, heavy-duty aircraft cable, rugged 1.75" roller axles, and self-lubricating cable rollers ensure years of reliable service with minimal maintenance.

Professional-Grade Performance: From the low 6.75" minimum runway height to the 120" width between columns, every dimension is optimized for real-world shop use.

Important Technical Notes

Air Supply Required: An air supply (minimum 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.

Wheelbase and Capacity: The lift supports less weight than its rated capacity if the vehicle's wheelbase is shorter, because the wheels are closer to the middle of the runways where there is less support. For example, the maximum weight allowed on the lift for a vehicle with a wheelbase of 85 inches is 50% of the lift's rated capacity (or 7,000 lbs. when the rated capacity is 14,000 lbs.). Consult the specifications for minimum wheelbase requirements at various load capacities.

Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV (Current Edition) or ANSI/UL 201. Consult www.autolift.org for a complete list.

Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.

Warranty Information

Better Products – Better Service – Better Value

Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.

a Five Years (60-Months) Bumper-to-Bumper Warranty on the lift structure

a Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit

a One Year (12-Months) Labor Warranty on site or at factory

a One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance

Limited Warranty

Who gives this warranty (Warrantor): BendPak Inc., 1645 lemonwood dr. Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty: Any BendPak Two-Post or Four-Post car lift**
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:
- Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
- And damage caused by overloading lift beyond rated capacity
- Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
- Items considered general wear parts such as rubber pads, lifting cables, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
- Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
- Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
- Rusted components due to improper maintenance or corrosive environments
- Cosmetic defects that do not interfere with product functionality
- Damage due to incorrect voltage or improper wiring
- Any incidental, indirect, or consequential loss, damage, or expense that may result from any defect, failure, or malfunction of BendPak Inc product
Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
Responsibilities of Purchaser under this warranty:
- Provide dated proof of purchase and maintenance records
- In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
- Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

*Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. **For all BendPak brand two-post and four-post surface mounted lifts manufactured on or following 1/1/2011.

Limitation of Liability

In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages. All expressed and implied warranties, including the implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the coverage period. No warranties, expressed or implied, will apply after this period. BendPak may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
