BendPak

BendPak HD-9 Four Post Car Lift 9,000 lb. Capacity - New Gray

0 review Write a Review
$6,095.00
Free Shipping
Product Code: 5175861
Hurry up! Current stock:
Options
Product Details

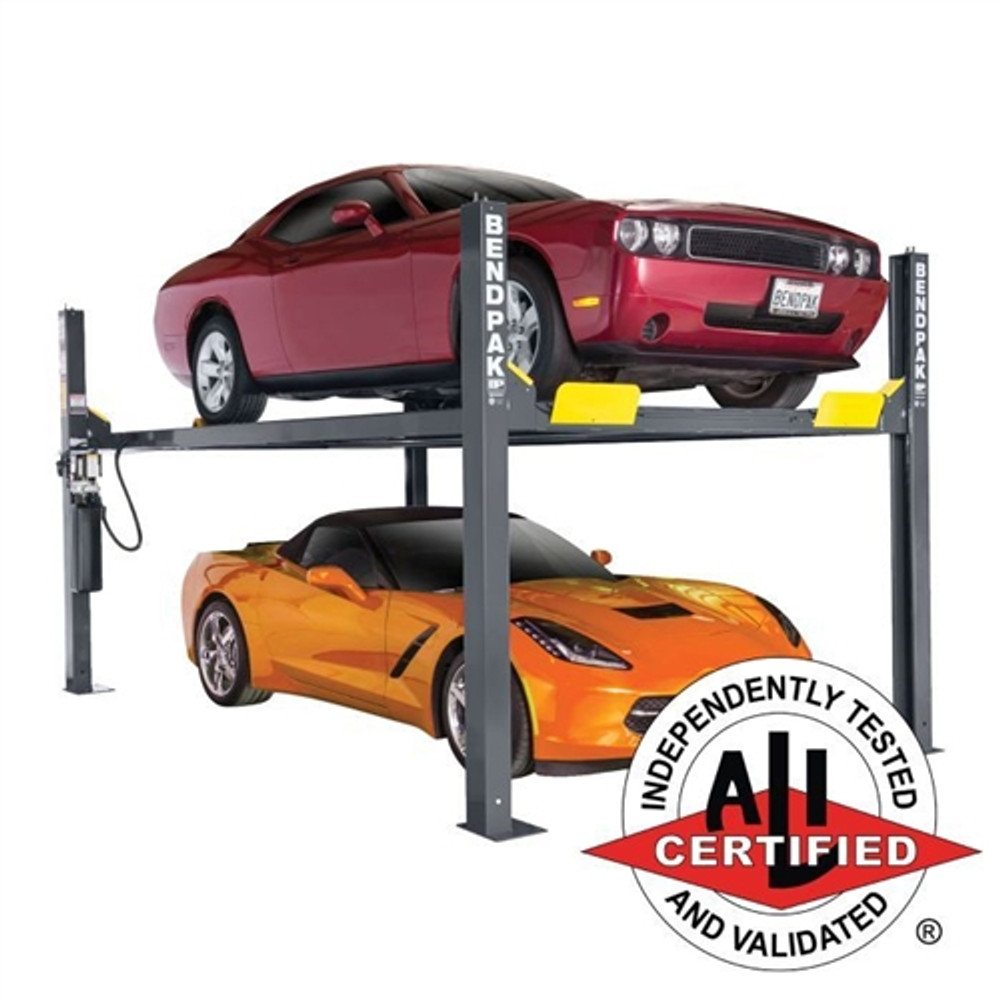

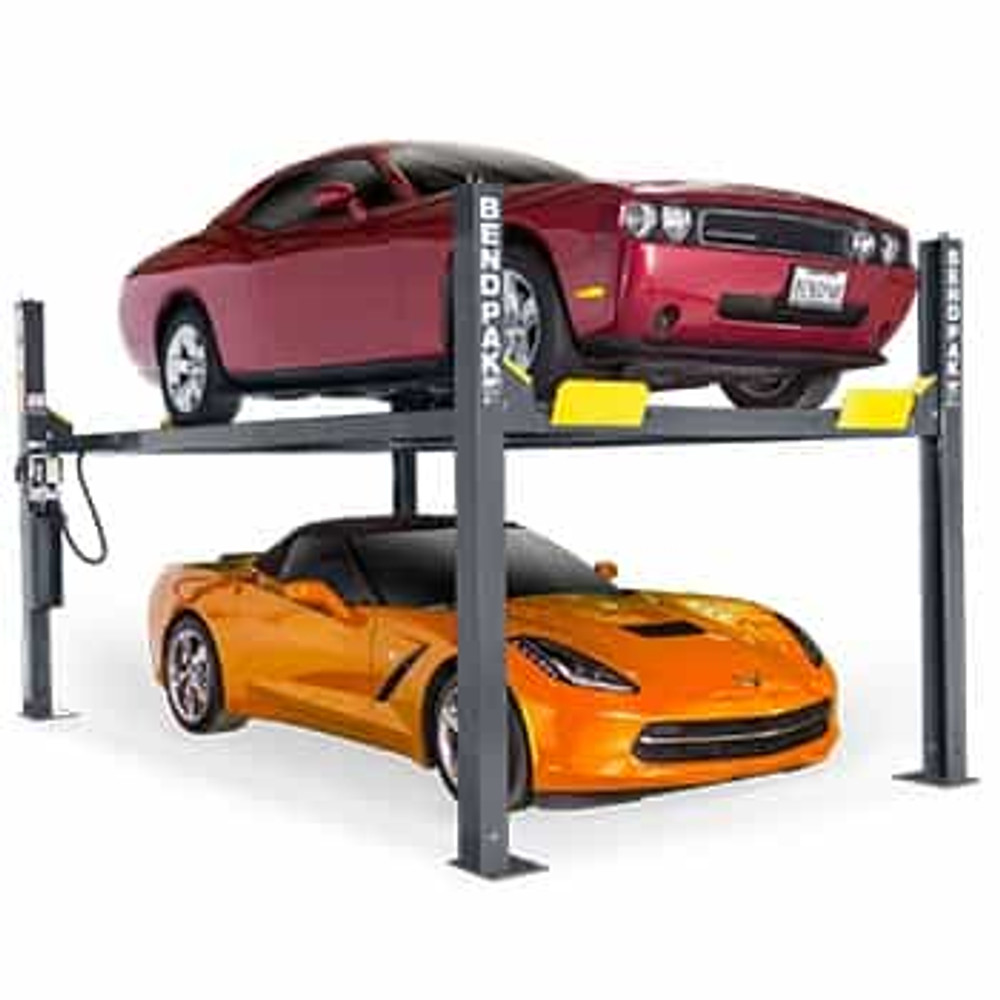

BendPak HD-9 Four Post Car Lift 9,000 lb. Capacity - New Gray

ALI Certified

📄 Download Installation Manual

Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

To view the lift inspection guide Click Here.

Maximize your vertical space with the BendPak HD-9, a 9,000-lb. capacity four-post lift engineered for both vehicle storage and professional service work. Perfect for residential garages and commercial facilities alike, this freestanding lift offers exceptional versatility without requiring a special foundation. Whether you're parking, storing, or servicing cars, trucks, ATVs, snowmobiles, jet skis, golf carts, or boats, the HD-9 transforms wasted vertical space into productive square footage. With a compact footprint about the size of a typical parking space and compatibility with standard 8-foot ceilings, this lift delivers big performance in tight spaces.

The HD-9 is the standard-width, standard-rise model in BendPak's renowned HD-Series lineup. If you need a narrower configuration, consider the HD-9ST narrow-width model. Optional casters allow you to roll the lift outside or reposition it wherever you need — installation is straightforward, and the space-saving design ensures you make the most of every square foot.

Engineered for Dependability and Performance

Electric / Hydraulic Power System
The HD-9 incorporates a maintenance-free electric hydraulic power system for ultimate reliability. A single hydraulic cylinder mounted underneath the runway drives the entire lift, hidden away for minimum exposure and maximum performance. This industrial-grade cylinder features a single-piece, pilot-fitted, machined steel piston wrapped with specially designed, pressure-loaded U-cup piston seals, backups, and wear bands to virtually eliminate fluid bypass. The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel, plated to a minimum of .001" diametrically, ensuring superior operation and longevity. High-durometer, mechanically-loaded rod seals eliminate leakage, while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing that exceeds ASTM specifications. An integrated flow restrictor provides controlled descent in the unlikely event of an unexpected hose rupture — safety is engineered into every component.

Heavy-Duty Aircraft Cable
Each lift is equipped with four high-quality stainless steel lifting cables, each rated at 14,400 lbs. The combined rating of these cables is an astounding 640% of the maximum lifting capacity of the entire lift. BendPak uses 3/8" aircraft-grade cable with rugged 1-1/4" roller axles and oversized self-lubricating cable rollers for smooth, reliable operation. All lifting cables are fully enclosed within the lift structure itself for a clean, professional look and added safety.

Dual-Hub Cable Sheaves
BendPak insists on using dual-hub cable sheaves, even though they cost more to manufacture. These heavy-duty sheaves reduce stress and fatigue on the axles, sheaves, and cables, ensuring smoother operation and longer lifespan. When you buy BendPak, peace of mind comes standard.

Advanced Safety Features

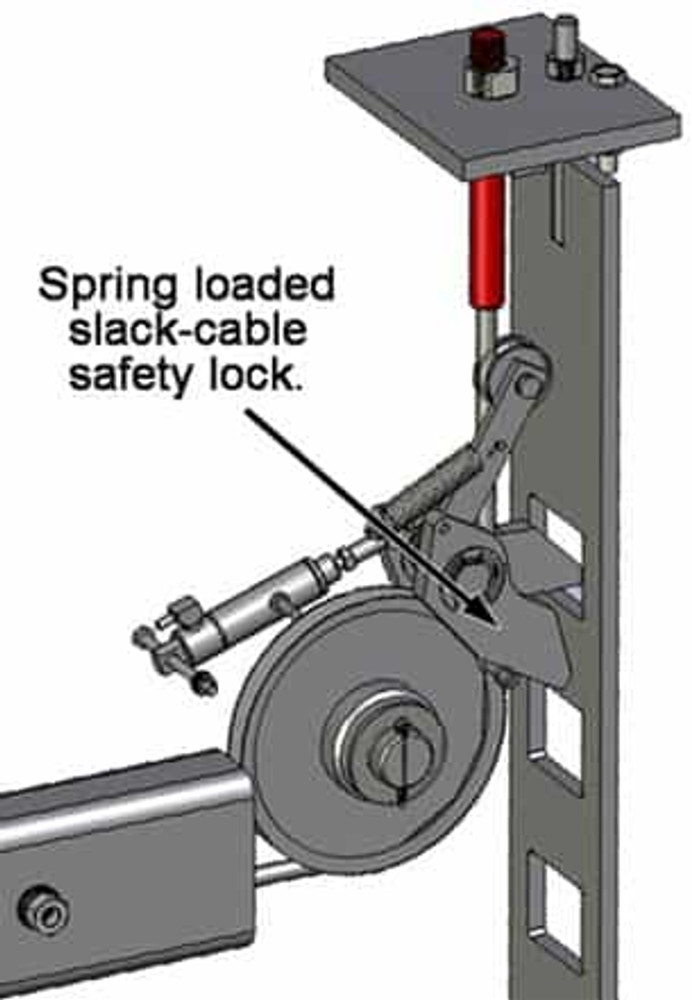

Automatic Multi-Position Safety Locks
The HD-9 features 12 adjustable locking positions spaced every 4 inches, providing variable-height parking and service flexibility. Aircraft-quality stainless steel and aluminum pneumatic cylinders release all four locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised — no manual intervention required. For added security, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure. Independent backup slack-cable safety latches provide an extra layer of protection.

Push-Button Pneumatic Safety Release
Convenient push-button pneumatic controls are located within easy reach and release all four independent safety locks simultaneously. Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.

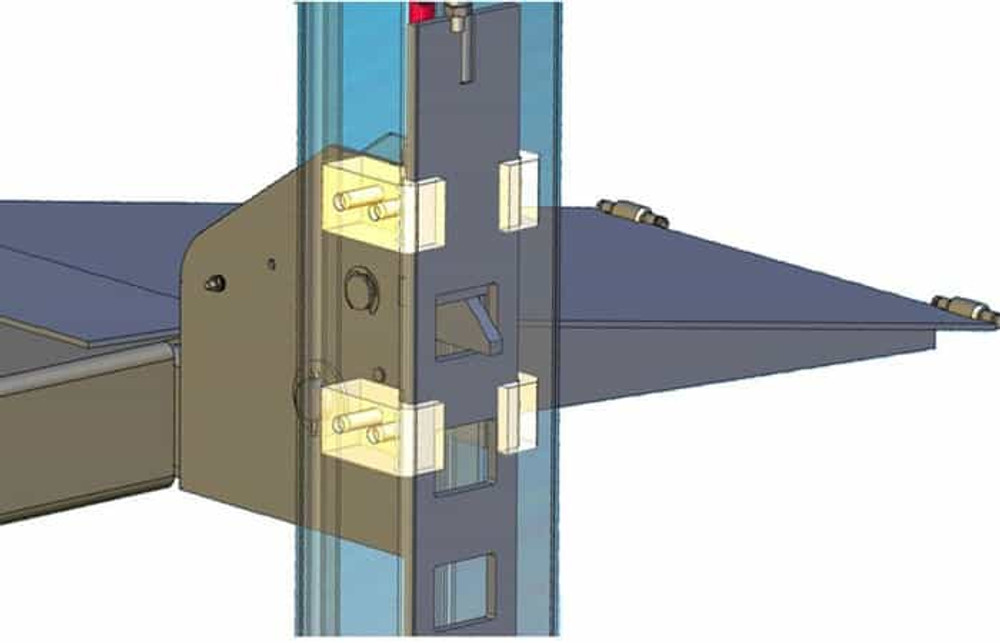

Internal Anti-Sway Slider Blocks
Each column features internal anti-sway slider blocks to reduce lateral movement and ensure stable, controlled lifting. Fully enclosed lifting cables, safety locks, and sheaves protect these critical components from debris and damage.

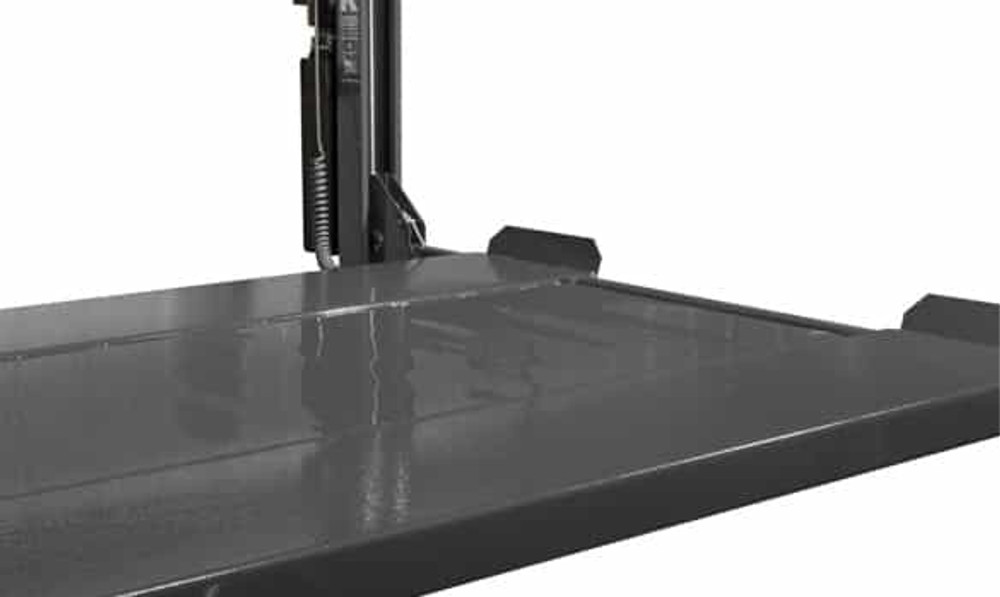

Solid Base and Non-Skid Runways
Large 10" x 12" base plates provide a solid foundation for the HD-9, ensuring stability and secure footing. The runways feature a non-skid surface for safe vehicle positioning, and removable approach ramps provide additional drive-under clearance when needed.

Versatile Design and Configuration Options

Freestanding, No Special Foundation Required
The HD-9 is designed for easy installation on standard concrete surfaces — no elaborate pit or specialized foundation work needed. Optional casters enable you to roll the lift outside or reposition it as your needs change. Customizable power unit location allows for flexible installation in various shop layouts.

Adjustable Runway Width
Runways are 19 inches wide and can be positioned with widths between runways of 37.5" or 44.375", accommodating both narrow and standard vehicles. This versatility makes the HD-9 ideal for a wide range of vehicle types, from compact cars to full-size trucks.

Longer Approach Ramps
The HD-9 features extended approach ramps designed to accommodate low-ground-clearance vehicles. These longer ramps make loading sports cars, lowered vehicles, and modern sedans easier and safer. Removable ramps provide additional drive-under clearance when working beneath the lift.

Runways Include Rail-Kit for Accessories
Each runway is equipped with a rail-kit, ready to accept optional accessories like rolling bridge jacks, drip trays, and more. This integrated accessory system makes it easy to expand your lift's capabilities as your needs grow.

Premium Construction and Finish

Durable Powder-Coat Finish
All HD-Series lifts feature a meticulous 10-step powder-coat process that produces an exceptionally durable, high-quality finish capable of withstanding the harshest environmental and chemical conditions. Unlike competitors who claim to powder coat, BendPak takes pride in its rigorous process: parts are visually inspected, sandblasted, washed in a 5-stage phosphate tank system, immediately dried to prevent rust, and outgassed in a curing oven to eliminate blemishes that may hide in the metal's pores. After masking threaded holes and sensitive surfaces with high-temperature tape and silicone plugs, parts receive a quick thinner wipe before being hung on an electrostatically grounded conveyor line. Powder is applied using an electrostatic spray gun, causing it to "stick" to the surface like dust on a television screen. Finally, parts are baked in a curing oven at 400°F for 45 minutes. The result is a finish that looks great and lasts for years.

Integrated Design for Clean Aesthetics
Lifting cables, airlines, safety latches, and sheaves are all fully enclosed within the lift's structure for a clean, professional appearance and maximum protection from contaminants.

Why Choose the HD-9?

  • 9,000-lb. capacity handles a wide variety of vehicles, from compact cars to full-size trucks and SUVs
  • Freestanding design requires no pit or special foundation — installs easily on standard concrete
  • 70-inch maximum rise with 12 locking positions every 4 inches for flexible service and storage heights
  • ETL Approved and meets rigorous safety standards for peace of mind
  • Quiet operation at just 45 dB — whisper-quiet lifting for residential and commercial environments
  • Compact footprint (200" overall length × 110.25" overall width) fits in standard garage bays
  • Fast lifting — reaches full rise in just 45 seconds

Four Models in the HD-9 Series

Take your pick. You're currently looking at the standard-width, standard-rise HD-9. BendPak also offers the HD-9ST (narrow width model), the HD-9STX (tall and narrow model), and the HD-9XW (standard-width, high-lift model with 82" max rise). Choose the configuration that best fits your ceiling height, vehicle types, and workspace.

Optional Accessories to Expand Your Lift's Capabilities

Optional Drip Trays
Keep your workspace and vehicles clean with BendPak 5700301 Plastic Drip Trays, designed to fit the HD-7 and HD-9 Series lifts (sold in sets of 2). These lightweight, cost-effective polypropylene trays catch harmful fluids and protect your vehicles and garage flooring from leaks. Each tray features 56 articulated catches and gutters to restrain fluid from sloshing out, even when carried or bumped. The reversible design accommodates BendPak four-post lifts with runways positioned either wide or narrow. A smart black color hides the appearance of stains and blemishes. These affordable, impact-resistant trays are an essential accessory, especially if you have a vehicle that leaks.

Other Available Accessories:

  • Optional drive-thru ramps for added versatility
  • Optional solid deck to increase storage capacity and create a true second-level platform
  • Optional 4,500-lb. air/hydraulic rolling jacks (Model RJ-45) for wheel-free service

Drip Tray Specifications

Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.

Key Technical Highlights

  • Lifting Capacity: 9,000 lbs. (4,082 kg)
  • Max Capacity / Front Axle: 4,500 lbs. (2,041 kg)
  • Max Capacity / Rear Axle: 4,500 lbs. (2,041 kg)
  • Minimum Runway Height: 4.5" (114 mm)
  • Maximum Rise: 70" (1,778 mm)
  • Maximum Lifting Height: 74.5" (1,892 mm)
  • Time to Full Rise: 45 seconds
  • Overall Width: 110.25" (2,800 mm)
  • Overall Length: 200" (5,080 mm)
  • Height of Columns: 88" (2,235 mm)
  • Width Between Columns: 100.25" (2,546 mm)
  • Drive-Thru Clearance: 86.5" (2,197 mm)
  • Runway Width: 19" (483 mm)
  • Length of Runways: 164" (4,166 mm)
  • Locking Positions: 12 positions, spaced every 4" (102 mm)
  • Motor: 220 VAC / 60 Hz / 1Ph
  • Noise Level: 45 dB
  • Shipping Weight: 1,746 lbs. (792 kg)
  • Shipping Dimensions: 165" × 22" × 34" (4,191 × 559 × 864 mm)

Certifications and Standards

The BendPak HD-9 is ETL Approved, ensuring it meets rigorous safety and performance standards. Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV (Current Edition) or ANSI/UL 201. Consult www.autolift.org for a complete list of certified models.

⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Warranty Information

BendPak 521 Warranty

Better Products – Better Service – Better Value

LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER

Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.
  • Five Years (60-Months) Warranty on the lift structure
  • Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
  • One Year (12-Months) Warranty on operating components
  • One Year (12-Months) Warranty on electrical components (excluding power unit)
  • One Year (12-Months) Labor Warranty on site or at factory*
  • One Year (12-Months) Free-Shipping** on ground-freight charges related to warranty performance

Limited Warranty

  1. Who gives this warranty (Warrantor): BendPak Inc., 1645 lemonwood dr. Santa Paula, CA 93060
  2. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
  3. What products are covered by this warranty: Any BendPak Two-Post or Four-Post car lift***
  4. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
  5. What is not covered under this warranty:
    • Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
    • Any damage caused by overloading Product beyond rated capacity
    • Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
    • Items considered general wear parts such as rubber pads, lifting cables, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
    • Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
    • Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
    • Rusted components due to improper maintenance or corrosive environments
    • Cosmetic defects that do not interfere with product functionality
    • Damage due to incorrect voltage or improper wiring
    • Any failure that results from improper installation or use not according to specifications
    • Damage caused by disasters such as fire, flood, wind, and lightning
    • Damage caused by unauthorized attachments or modifications
  6. Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
  7. Responsibilities of Purchaser under this warranty:
    • Provide dated proof of purchase and maintenance records
    • In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
    • Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
    • Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
  8. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

*As determined by Warrantor in its sole discretion**Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Two-Post or Four-Post Vehicle Service Lifts (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 1/1/2011.
