Important: 4-Post Cylinder Bleeding Procedure
To view the Atlas 4-Post Cylinder Bleeding Procedure click here.
This procedure must be performed immediately after installation to ensure optimal lift performance.
The Atlas® 414 is a commercial-grade 4-post lift engineered to deliver professional-level performance for shops and facilities working with heavy-duty vehicles. With a robust 14,000 lb. capacity, extra tall 80" lifting height, and extra wide 116" clearance between columns, this lift accommodates a wide range of trucks, vans, SUVs, and larger vehicles with ease. Built from heavy-duty steel and finished with a durable powder coat, the Atlas® 414 is designed and tested to provide many years of reliable service in demanding commercial environments.
The Atlas® 414 incorporates many structural and cosmetic features typically found on lifts costing thousands of dollars more. This lift has been manufactured to the same exacting specifications for many years, ensuring consistent quality and performance. Whether you're running a professional service bay or equipping a serious home garage, the Atlas® 414 delivers the strength, stability, and features you need at an exceptional value.

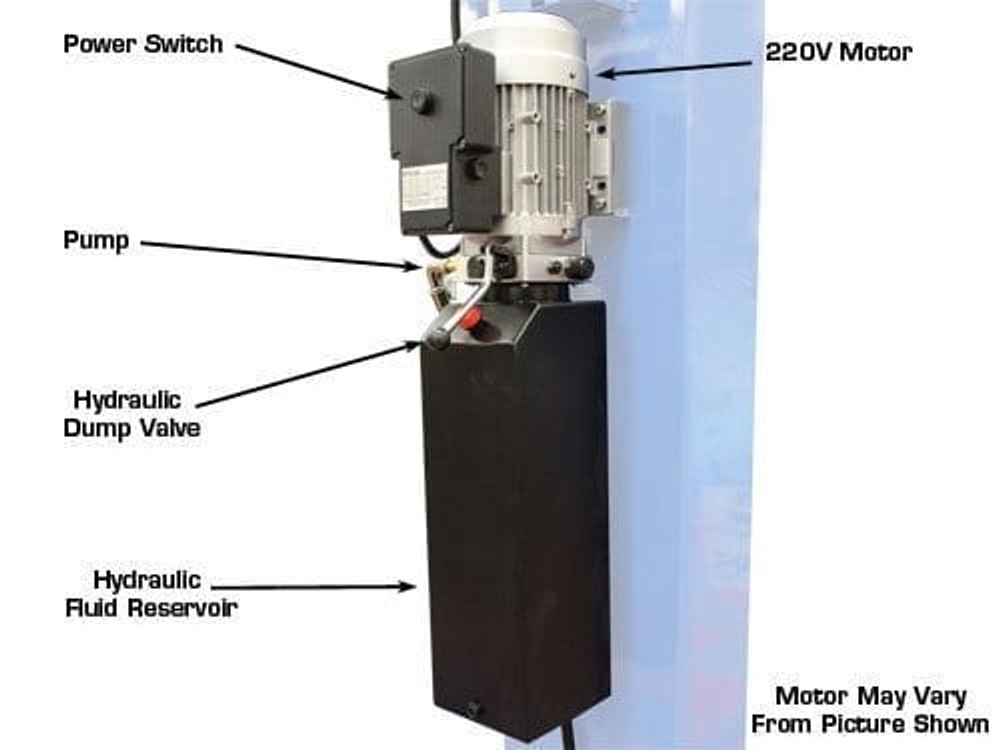

The Atlas® 414 uses an advanced high-strength cable lifting system paired with an under-runway oversized hydraulic cylinder, powered by a 220-volt single-phase power unit. This modern design offers significant advantages over older-style chain lifting systems used by many competitors.
Unlike old-style chain lifts that are difficult to level properly and feature exposed hydraulic cylinders prone to causing door dings, the Atlas® 414's under-runway cylinder design keeps all hydraulic components safely out of the way. This results in a cleaner workspace, easier operation, and better vehicle protection. The cable system is tested to ensure this lift performs flawlessly at its rated 14,000 lb. capacity.
The Atlas® 414 comes complete with everything you need for a professional installation:
Optional accessories available separately: Additional drive-off ramps and runway extensions can be purchased to further customize your lift for specific applications.
Every Atlas® 414 is designed and built to commercial-grade standards that meet or exceed industry expectations. The lift features heavy-duty structural steel construction, precision-engineered cable and pulley systems, and oversized hydraulic components for long-term reliability under heavy use.

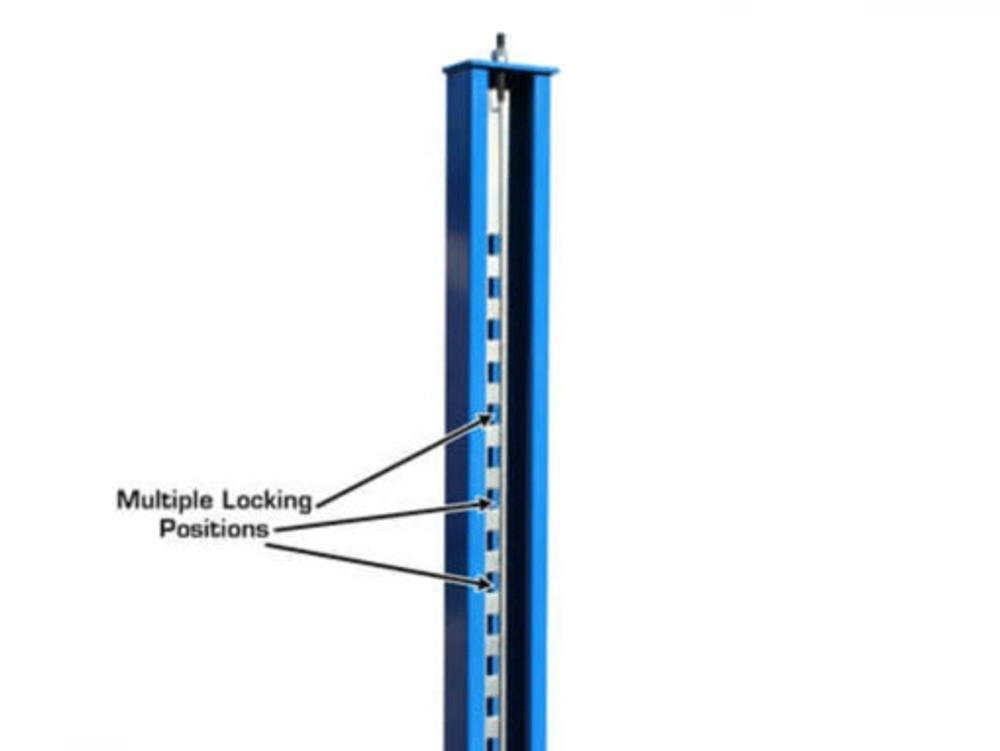

The lock ladder design provides multiple secure locking positions throughout the lift's range, and the double lock safety system ensures that vehicles remain safely elevated even in the unlikely event of a primary lock failure. Combined with the air-operated single point release, you get both maximum safety and operational convenience.
With a shipping weight of 3,100 lbs and robust construction, the Atlas® 414 is a substantial piece of equipment built to last. Installation requires a minimum of 6 inches of concrete with a 3,000 PSI rating to ensure proper anchoring and long-term stability.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
