Professional-Grade Extended Length Lifting Power

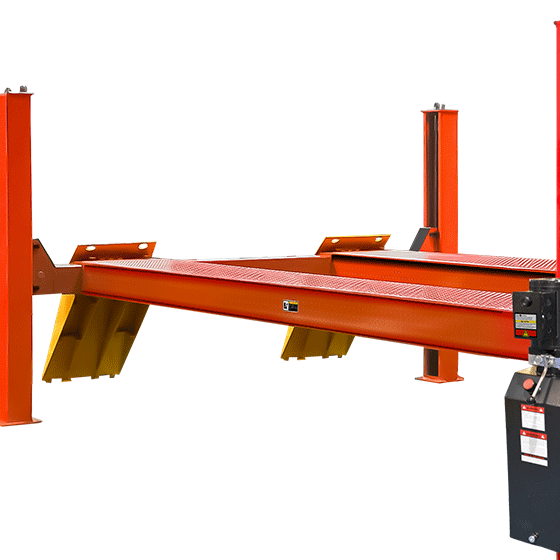

The AMGO® Hydraulics PRO-40E is engineered for serious professionals who demand maximum capacity and extended reach. With a commanding 40,000 lbs lifting capacity and an impressive 374 9/16" runway length (without ramps), this extended-length model is purpose-built to accommodate longer trucks, commercial vehicles, and oversized equipment that standard lifts simply can't handle.
AMGO's powerful four-post platform delivers a generous 143 7/8" width between columns and extra-wide runways designed to handle an extensive variety of vehicle types. From heavy-duty pickups and box trucks to specialty commercial vehicles, the PRO-40E provides the workspace, clearance, and stability your operation demands. This is the lift that works as hard as you do—day in, day out.
Built with a heavy-duty design and cutting-edge manufacturing technology, the PRO-40E features over 6 feet of unrestricted under-vehicle access at maximum lock height, giving technicians ample room to work efficiently and safely. With a max lifting height of 74 13/16" and a max lock height of 71 11/16" to the top of the runway, this lift provides the vertical clearance needed for comprehensive vehicle service and inspection.
Extended Runway for Longer Vehicles
The PRO-40E distinguishes itself with an extended runway configuration specifically designed for longer wheelbase vehicles. With the same exceptional 40,000 lbs weight capacity as the standard PRO-40 model but featuring a significantly longer 374 9/16" runway length, this lift can accommodate the extended vehicles and work truck configurations that are increasingly common in commercial and municipal fleets.
The overall length with ramps extends to 425 3/16", ensuring smooth, gradual approach angles for safe vehicle loading. Whether you're servicing extended cab pickups with long beds, cargo vans, or specialty vehicles, the PRO-40E delivers the reach and capacity you need for confident, professional-grade work.
Key Features & Engineering Excellence
40,000 lbs lifting capacity — handles the heaviest trucks and commercial vehicles with confidence
Air-released safety lock for convenient operation and reliability — fast, intuitive control for technicians
Mechanical self-lock and cable-breaking protection — double redundancy ensures maximum safety
3/4" aircraft quality cable — premium-grade lifting cables built for durability and long service life
Skid-proof diamond platform — textured runway surface provides superior traction in all conditions

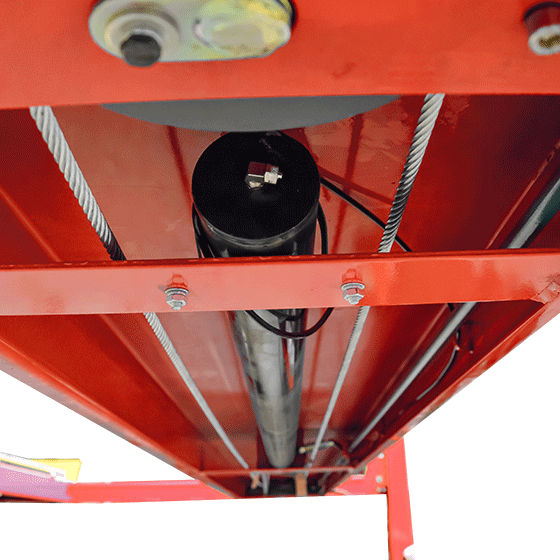

High-quality hydraulic cylinders designed and manufactured to exacting standards with strict quality control
Flow restrictor technology ensures stable, smooth operational speed throughout the entire lift cycle
2.0HP motor, 220V/60Hz single phase — powerful, efficient lifting with 183-second lifting time
Enhanced Safety & Reliability

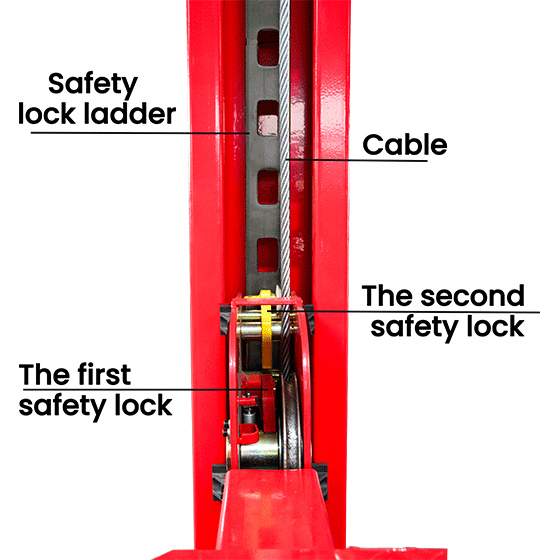

The PRO-40E features a comprehensive double locking safety system combining an air-released safety lock with mechanical self-lock technology and cable-breaking protection. This multi-layer approach to safety ensures that your vehicles—and your technicians—are protected at every stage of the lift cycle.
Dimensions & Workspace
With an overall width of 161 7/16" and 143 7/8" between columns, the PRO-40E provides generous lateral clearance for technicians and tools. The 129 7/8" drive-thru clearance allows easy vehicle entry and exit, while the adjustable runway width between columns ranges from 49 1/16" to 58 7/8", accommodating a wide variety of vehicle track widths.
The lift's minimum height of just 10 7/16" allows low-clearance vehicles to drive on easily, while the maximum underneath height of 65 7/8" (with a lock height of 62 3/4") gives technicians ample overhead working space for undercarriage service, exhaust work, and drivetrain repairs.
Why Choose the PRO-40E?
Extended Length. Maximum Capacity. Professional Results.
374 9/16" runway length accommodates longer trucks and commercial vehicles
40,000 lbs capacity handles the heaviest service demands
Over 6 feet of under-vehicle clearance at lock height for unrestricted access
Double safety lock system with mechanical and air-release technology
Premium aircraft-quality cables and precision hydraulic cylinders
Optional Accessories Available
Maximize your lift's capabilities with optional accessories designed specifically for heavy-duty 4-post applications:
RJ-20A Pneumatic 20,000 lbs Rolling Jacks — provide additional lift points and mobility for wheel service
40106 Airline Kit for Heavy-Duty 4 Post Lifts — integrated air supply for tools and accessories
40103 LED Light Kit for 4 Post Lifts — brilliant illumination for superior visibility during undercarriage work
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
