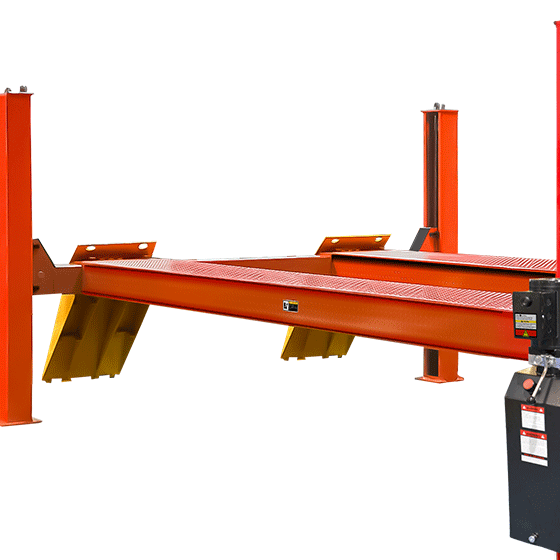

When you need maximum lifting power for heavy-duty trucks, service vehicles, and commercial equipment, the AMGO® PRO-40 delivers uncompromising performance. This is AMGO's most powerful four-post lift, engineered to handle the demands of professional shops, fleet maintenance facilities, and serious automotive operations. With a massive 40,000 lbs lifting capacity, the PRO-40 provides the strength and stability required for the heaviest vehicles on the road.
Built with AMGO's signature commitment to quality and safety, the PRO-40 features extra-wide runways that accommodate a wide variety of vehicle types—from full-size work trucks and RVs to heavy commercial vans and specialty vehicles. The robust design includes air-released safety locks for convenient and reliable operation, along with mechanical self-lock and cable-breaking protection systems that provide multiple layers of safety during every lift.
With a maximum lifting height of 74 13/16" and over 6 feet of unrestricted under-vehicle access (65 7/8" max underneath height), technicians enjoy exceptional working clearance for maintenance, repairs, and inspections. The lift is powered by a 2.0HP, 220V/60Hz single-phase motor with smooth, stable operation thanks to strict quality control of hydraulic cylinders featuring flow restrictors. 3/4" aircraft-quality cable and skid-proof diamond plate platforms ensure durability and safety for years of reliable service.
Why Choose the PRO-40?
Massive 40,000 lbs capacity – AMGO's most powerful four-post lift, engineered for heavy trucks, RVs, and commercial vehicles

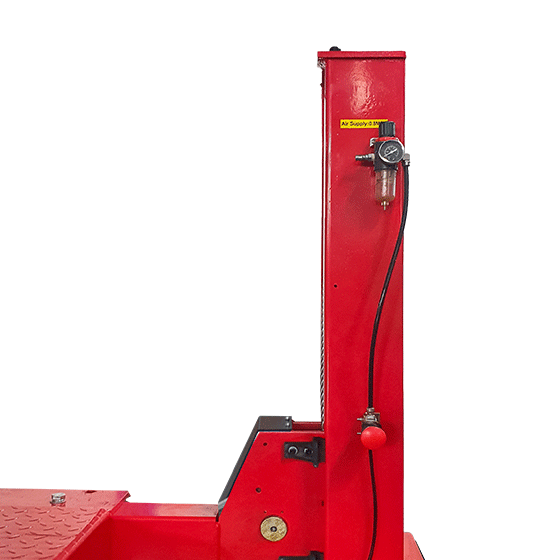

Air-released safety lock system – Convenient, reliable operation with mechanical self-lock and cable-breaking protection for maximum safety
Extra-wide adjustable runways – Accommodates diverse vehicle types with flexible runway positioning (49 1/16" - 58 7/8" width between columns)
Over 6 feet of under-vehicle clearance – 65 7/8" max underneath height provides exceptional working space for technicians
Premium construction – Features 3/4" aircraft-quality cable, skid-proof diamond plate platforms, and high-quality hydraulic cylinders with flow restrictors for stable, smooth performance
Professional-Grade Performance
The PRO-40 is built to last with AMGO's heavy-duty manufacturing technology and rigorous quality standards. The lift operates with exceptional stability and control, with hydraulic cylinders designed and tested to meet the highest performance benchmarks. The 143 7/8" width between columns and 129 7/8" drive-thru clearance make positioning vehicles quick and straightforward, while the 161 7/16" overall width provides a stable, secure footprint for maximum load capacity.
Available in two models—PRO-40 (366 1/8" overall length with ramp) and PRO-40E (425 3/16" overall length with ramp)—the lift can be configured to fit your workspace and vehicle requirements. Both models share the same robust 40,000 lbs capacity, safety features, and quality construction that define AMGO's commitment to professional-grade equipment.
Optional Accessories to Enhance Your Lift
Maximize the versatility and functionality of your PRO-40 with AMGO's optional accessories designed specifically for heavy-duty four-post lifts:
RJ-20A Pneumatic 20,000 lbs Rolling Jacks – Add wheel service capability and additional lifting flexibility

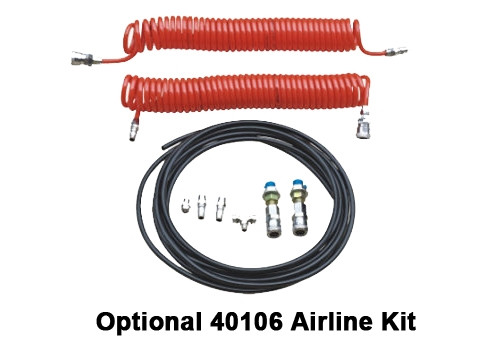

40106 Airline Kit for Heavy-Duty 4 Post Lifts – Convenient air supply for pneumatic tools and accessories
40103 LED Light Kit for 4 Post Lifts – Enhance under-vehicle visibility with professional LED lighting
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
