Professional Heavy-Duty Lifting for Commercial & Industrial Applications

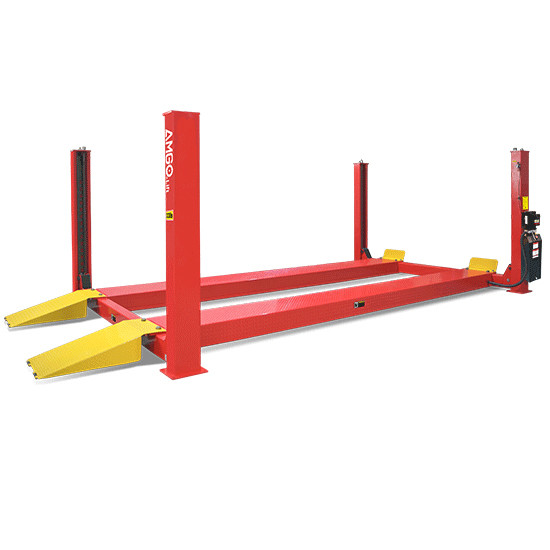

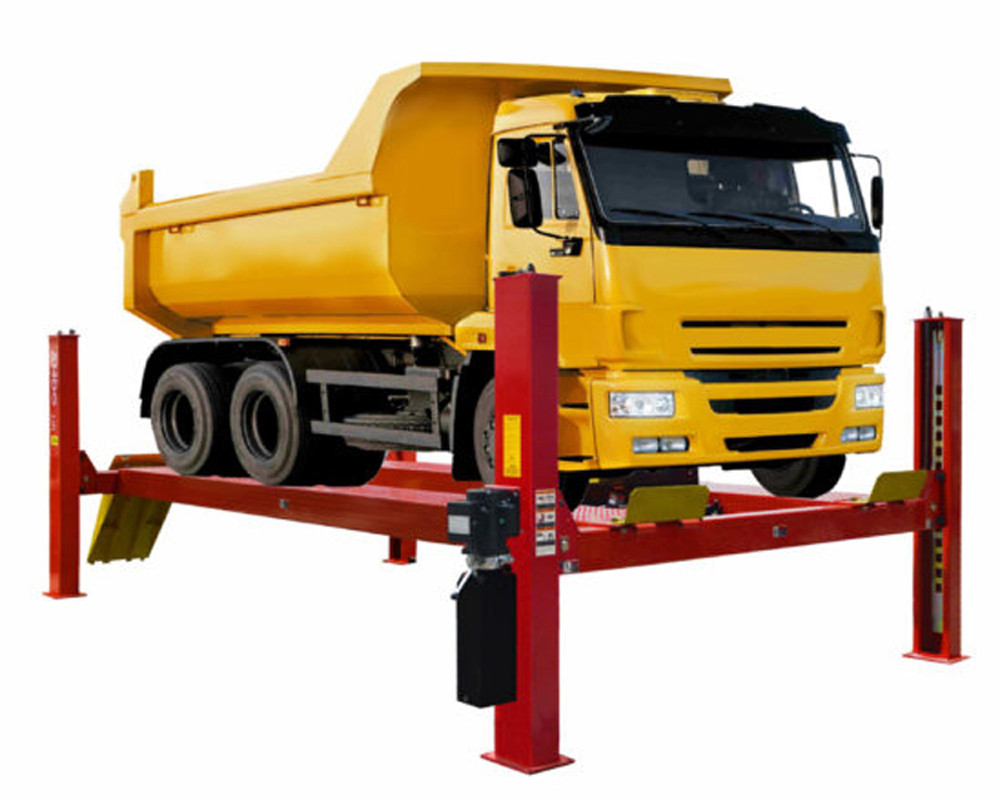

The AMGO® Hydraulics PRO-30 represents a significant step up in the heavy-duty truck lift category with its impressive 30,000 lb lifting capacity. Engineered for professional service facilities, municipal garages, and commercial operations, this 4-post lift is built to handle the demanding requirements of modern heavy-duty vehicle service.
While the PRO-18 serves as an excellent entry-level lift in the medium-duty truck category, the PRO-30 takes your capabilities to the next level. This lift brings you into the business of working with construction equipment, semi trucks, and buses, opening up new revenue streams and service opportunities for your operation.

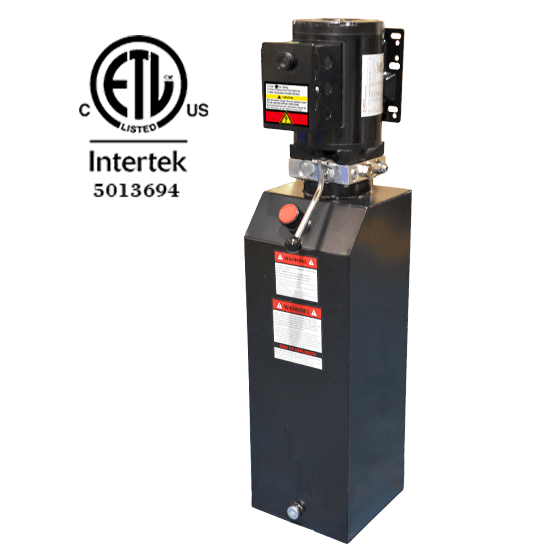

Powered by a reliable 2.0HP, 220V single-phase motor, the PRO-30 achieves a full 74 3/4" lifting height in approximately 130 seconds, providing efficient operation without requiring expensive three-phase power installation. The lift features 3/4" aircraft quality cable and hydraulic cylinders designed and manufactured to the highest quality standards, ensuring years of dependable service.
Key Features & Benefits

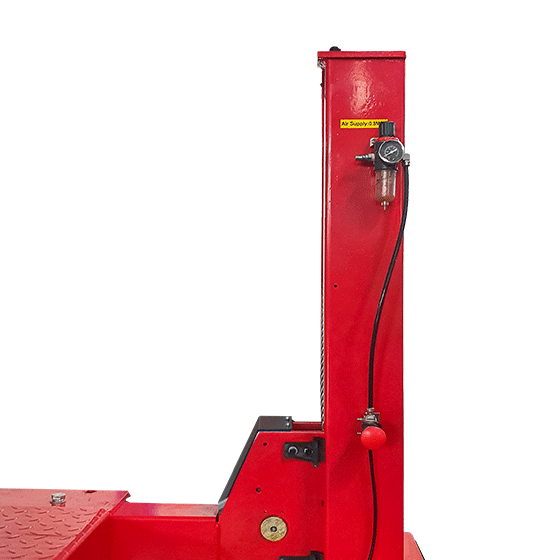

Air-Released Safety Lock System – Convenient operation with reliable safety mechanisms for every lift cycle
Mechanical Self-Lock & Cable-Breaking Protection – Redundant safety systems provide peace of mind when working under heavy vehicles

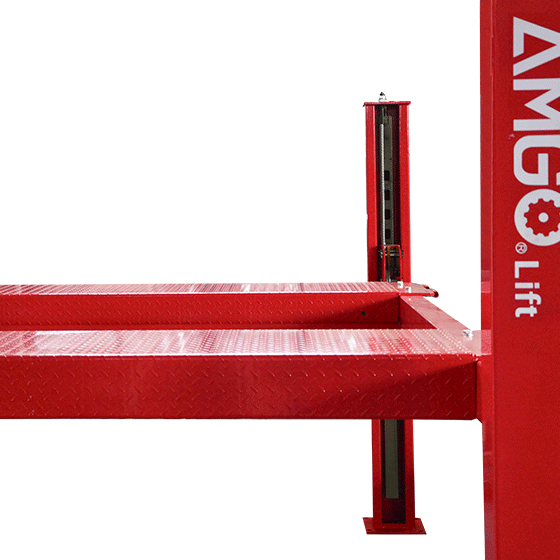

Skid-Proof Diamond Plate Runways – Enhanced traction and durability with 22" wide runways and 54 3/4" width between runways
Precision Hydraulic Control – Flow restrictor ensures stable, smooth operational speed throughout the lifting range
Low Profile Design – Only 10 1/2" minimum height accommodates a wide variety of vehicle ground clearances
Specifications at a Glance
PRO-30 Model Highlights:
Capacity: 30,000 lbs (13,600 kg)
Overall Length with Ramp: 307 1/8" (25' 7")
Overall Width: 149 3/8" (12' 5")
Drive-Thru Clearance: 108 3/8" (9' 0")
Lifting Height: 74 3/4" (6' 2")
Overall Height: 87 7/8" (7' 3")
The PRO-30 model features an overall length of 256 1/2" without the ramp, making it suitable for facilities with space constraints while still providing ample work area. The 131 3/4" width between columns ensures excellent vehicle access and operator mobility around the lift.
Note: The PRO-30E extended model is also available with 366 1/8" overall length with ramp for extra-long vehicle applications.
Optional Accessories to Enhance Your Lift
Customize and expand the capabilities of your PRO-30 with these optional accessories:
43001 Extension Platform Set (2 Pcs) – Increase the effective working length of your PRO-30
RJ-20A Pneumatic Rolling Jacks – 20,000 lb capacity rolling jacks for axle service and tire work

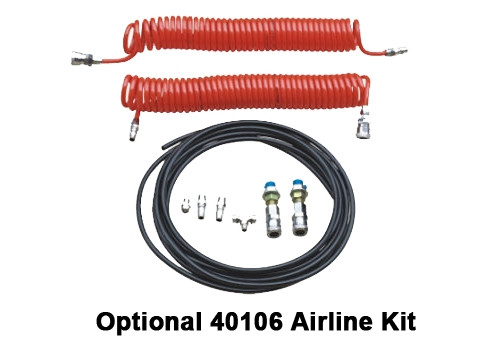

40106 Airline Kit – Convenient compressed air delivery for heavy-duty 4-post lifts
40103 LED Light Kit – Professional illumination for improved visibility during service procedures
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
