Professional-Grade Performance for Heavy-Duty Applications
The AMGO® Hydraulics PRO-14E is engineered for professionals who demand exceptional performance and reliability. This powerful 4-post lift delivers a generous 14,000 lbs lifting capacity with extended runway length, making it the ideal solution for shops working with trucks, SUVs, and full-size commercial vehicles. With an impressive 245" overall length without ramps (286" with ramps), the PRO-14E accommodates longer wheelbases that standard lifts simply can't handle.
Built to AMGO® Hydraulics exacting quality standards, this heavy-duty 4-post truck lift features extra wide runways to accommodate a diverse range of vehicle types and wheelbases. The non-alignment design provides versatility for general service, maintenance, and storage applications. Whether you're servicing light trucks, vans, or larger commercial vehicles, the PRO-14E delivers the capacity and reach you need.

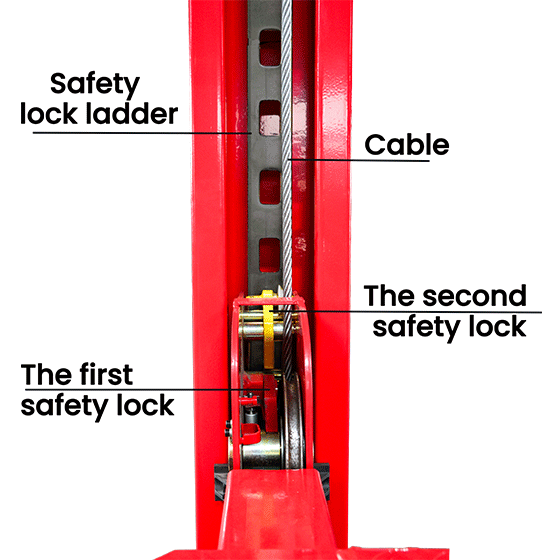

Safety and reliability are engineered into every aspect of this lift. The air-released safety lock system provides convenient operation with absolute confidence, while the mechanical self-locking device and cable-breaking protection ensure redundant safety throughout every lift cycle. High-quality 1/2" aircraft quality cable delivers exceptional strength and longevity, and the skid-proof diamond platform provides secure footing during vehicle service.
Why Choose the PRO-14E Extended Lift?
Extended Runway Length: At 245" (6224mm) overall length without ramp, this lift handles longer wheelbase trucks and commercial vehicles that shorter lifts can't accommodate
Impressive 73 1/2" Lifting Height: Provides ample working clearance with 66 3/4" max underneath height for comfortable access to vehicle undercarriages
Triple-Redundant Safety Systems: Air-released safety locks, mechanical self-locking mechanism, and cable-breaking protection work together to ensure operator confidence
Wide 116" Width Between Columns: Generous 102 1/8" drive-thru clearance accommodates vehicles with wide track widths and provides easy access for service
Professional-Grade Hydraulics:2.0HP motor with 220V/60Hz single phase power drives precision-engineered hydraulic cylinders with flow restrictors for stable, smooth operation
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Engineered for Quality and Reliability
Every AMGO® Hydraulics PRO-14E is manufactured under strict quality control standards. The hydraulic cylinders are designed and built to meet demanding professional specifications, featuring integrated flow restrictors that ensure stable and smooth operational speed throughout the entire lifting range. This attention to detail translates into consistent, predictable performance shift after shift.
The lift's adjustable runway width offers exceptional flexibility. With a standard 47" width between runways that can expand to a maximum of 54 1/2", you can accommodate various vehicle track widths. The outside edge of runways measures 87" standard, expandable to 94 1/2" maximum, providing the versatility needed in a busy professional shop environment.
With a compact 7 7/8" minimum height, the PRO-14E easily accommodates low-clearance vehicles, while the 86" overall height fits comfortably in standard commercial bays. The 130 7/8" overall width maximizes lifting capacity while maintaining a footprint that doesn't dominate your workspace.
Expand Your Capabilities with Optional Accessories
The PRO-14E is designed to grow with your business. Consider these popular accessories to maximize your investment:
41403 Extension Platform Set for PRO-14 & PRO-14A (2 pieces) – adds even more length for specialized applications
RJ-8A Pneumatic Rolling Jacks – 8,000 lbs capacity jacks for wheel service and suspension work
40102 Airline Kit for 4 Post Lifts less than 18K – convenient compressed air access at the lift
40103 LED Light Kit for 4 Post Lifts – enhance visibility during service and inspection

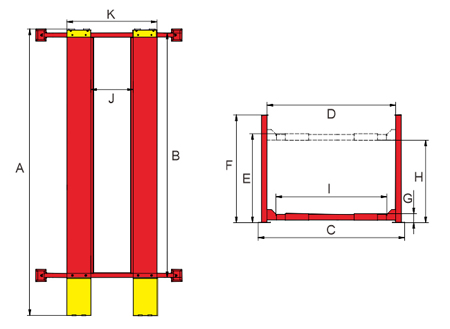

Model Specifications & Technical Details
Click on Image to Download or Enlarge It
Ready to upgrade your shop's capabilities?
The AMGO® PRO-14E delivers the extended reach, heavy-duty capacity, and reliable performance that professional technicians demand. With its triple-redundant safety systems, precision-engineered hydraulics, and generous 14,000 lbs capacity, this lift is built to handle your toughest jobs for years to come.
