Commercial-Grade Lifting Power for Your Shop

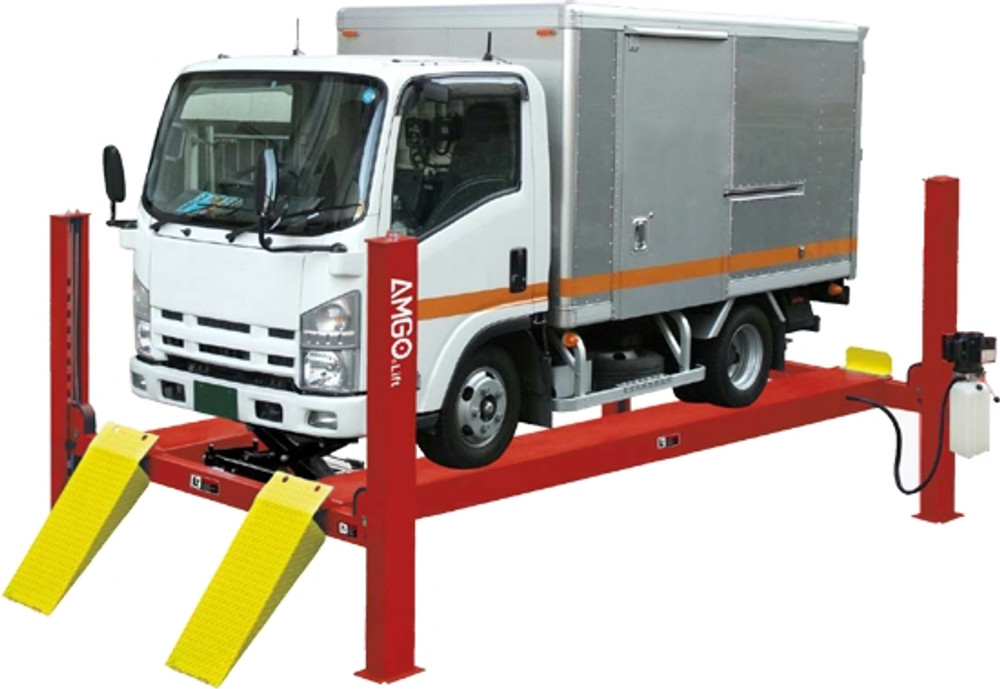

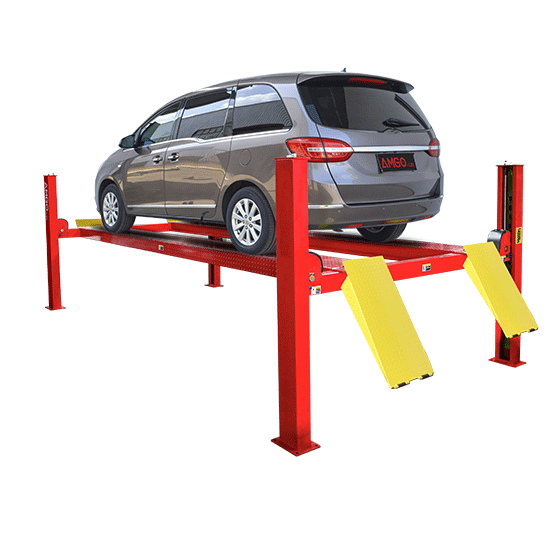

The AMGO® PRO-14 is a powerful, 14,000 lbs capacity four-post lift engineered to commercial-grade standards for professional shops and serious enthusiasts. Designed to accommodate a wide variety of vehicle types and wheelbases, this lift features extra-wide runways and a robust hydraulic system that delivers reliable, smooth operation day after day. Whether you're performing routine maintenance, tire changes, or undercarriage inspections, the PRO-14 provides the strength and stability you need to work safely and efficiently.
Built with quality materials and precision engineering, the PRO-14 offers 73 1/2 inches of lifting height and a 66 3/4 inch max underneath clearance, giving you ample room to work beneath even large trucks and SUVs. The lift's drive-thru clearance of 102 1/8 inches and adjustable runway width (from 47 inches up to 54 1/2 inches between runways) ensure compatibility with a broad range of vehicles. This is a lift designed to deliver many years of dependable service in demanding environments.
Key Features & Benefits
14,000 lbs Lifting Capacity: Handle everything from passenger cars to heavy-duty trucks with confidence and ease.

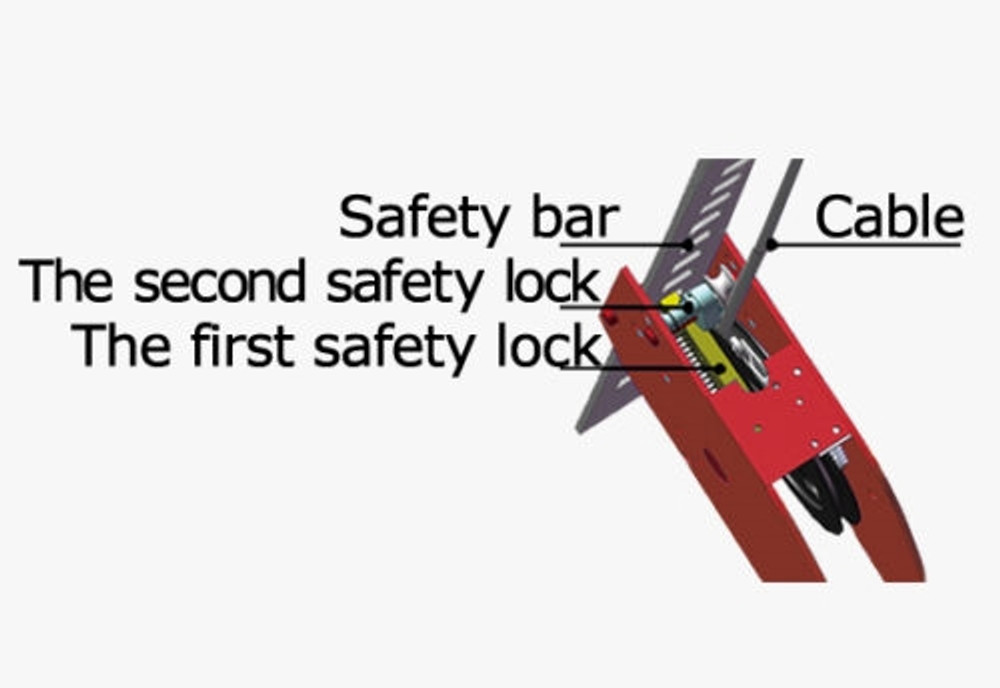

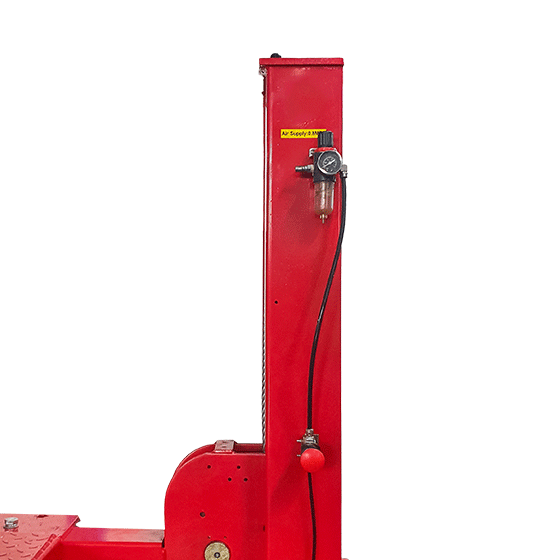

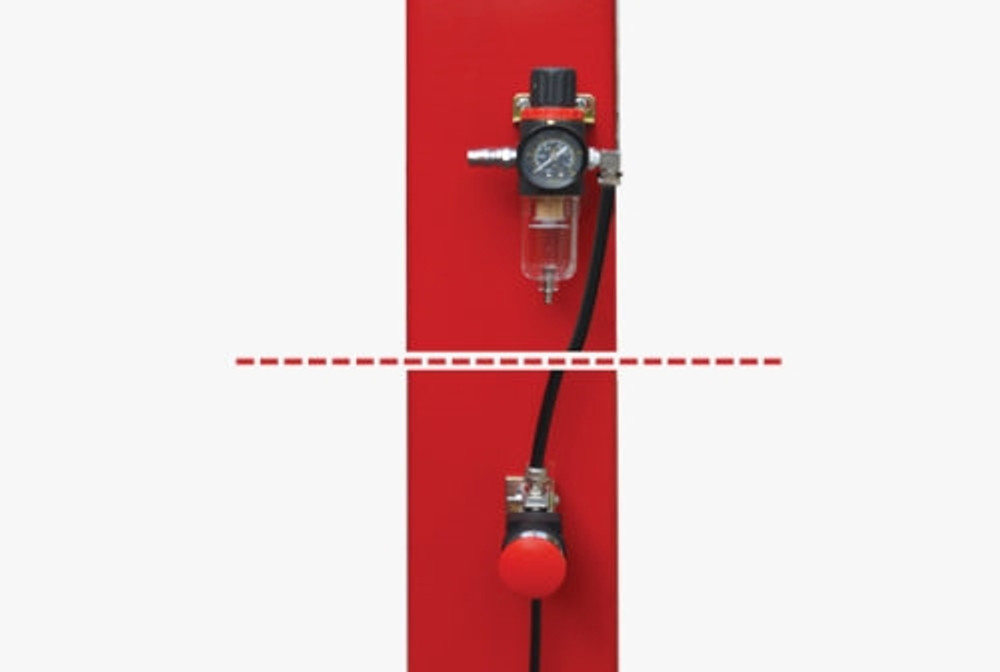

Air-Released Safety Lock System: Convenient, reliable operation with mechanical self-lock and cable-breaking protection for maximum safety.

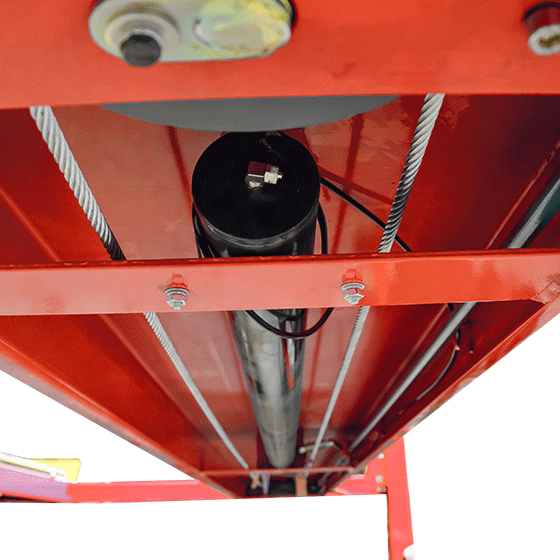

Aircraft-Quality Cables: Built with 1/2" aircraft-grade cables and high-quality hydraulic cylinders featuring flow restrictors for stable, smooth lifting speeds.
Skid-Proof Diamond Plate Platforms: Enhanced traction and durability for secure vehicle positioning.
Compact Minimum Height: Just 7 7/8 inches minimum height allows low-clearance vehicles to drive on easily.
Optional Accessories Available:

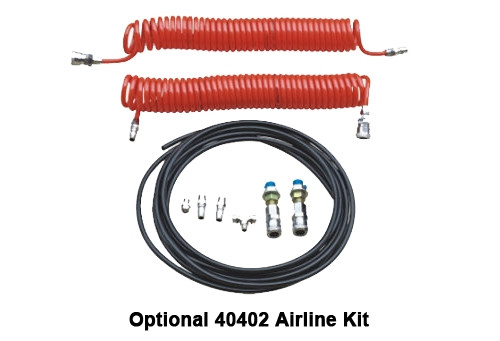

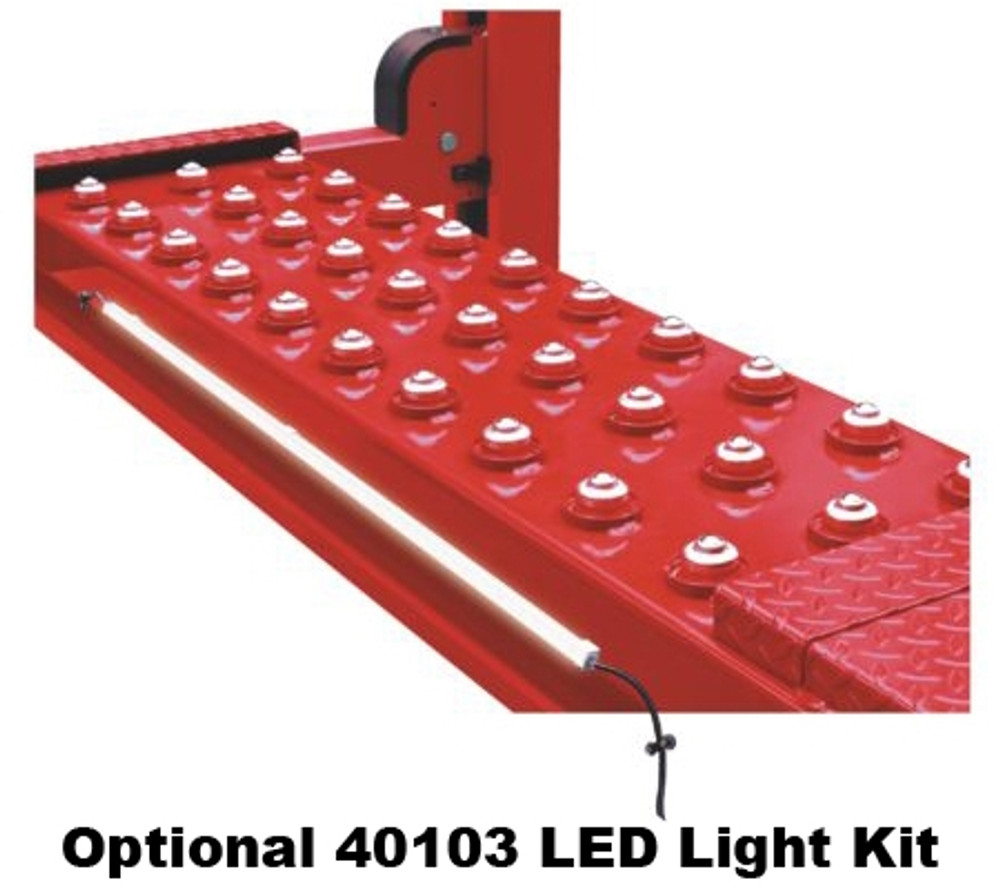

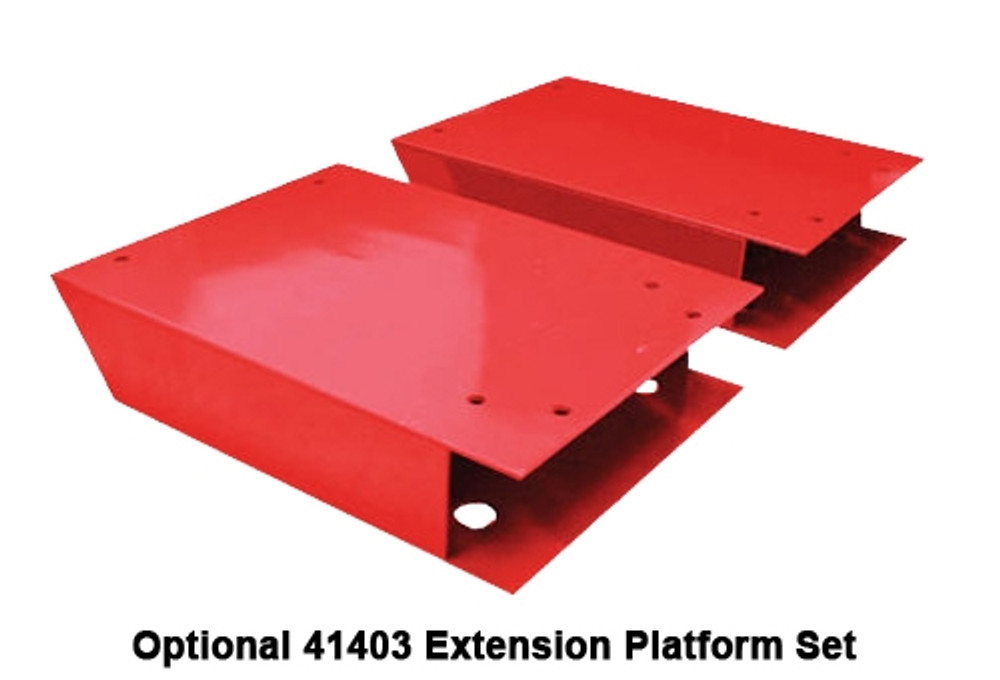

Expand your lift's capabilities with 41403 Extension Platform Set for even longer vehicles, RJ-8A Pneumatic Rolling Jacks (8,000 lbs) for wheel-free service, 40102 Airline Kit, and 40103 LED Light Kit for improved visibility.
Why Choose the AMGO PRO-14?
This is not just another four-post lift—it's a commercial-grade workhorse designed to meet the rigorous demands of professional automotive service. Every detail, from the 2.0 HP, 220V single-phase motor to the strict quality control of hydraulic cylinders, reflects AMGO's commitment to safety, performance, and longevity. The PRO-14 is trusted by shops across the country for its rock-solid reliability and ease of use.
With a 130 7/8 inch overall width and 116 inches between columns, the lift provides a stable, spacious work area. The outside edge of runways can be adjusted from 87 inches up to 94 1/2 inches, making it versatile enough to handle a variety of vehicle footprints. Whether you're working on compact cars, full-size trucks, or anything in between, the AMGO PRO-14 adapts to your needs.
Standout Highlights
73 1/2" Lifting Height with 66 3/4" max underneath clearance for ample working room
102 1/8" Drive-Thru Clearance for easy vehicle access and removal
Adjustable Runway Width: 47" to 54 1/2" between runways; 87" to 94 1/2" outside edge
Available in PRO-14 (257 1/2" with ramp) and PRO-14E (286" with ramp) for extended vehicle compatibility
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Technical Overview
The AMGO PRO-14 comes equipped with a 2.0 HP, 220V/60Hz single-phase motor that delivers consistent lifting power without the need for three-phase electrical service—making it ideal for home garages and smaller shops. The hydraulic system is designed and manufactured to high quality standards, with cylinders that include flow restrictors to ensure smooth, controlled operation at every height. The lift's air-released safety lock provides both convenience and peace of mind, while the mechanical self-lock and cable-breaking protection add multiple layers of safety.
The PRO-14 model has an overall length with ramp of 257 1/2 inches (216 1/2 inches without ramp), while the PRO-14E extends to 286 inches with ramp (245 inches without), offering flexibility for different shop layouts and vehicle sizes. With a gross weight of approximately 2,791 lbs (PRO-14) or 2,945 lbs (PRO-14E), the lift is substantial enough to stay stable under load, yet manageable for installation and positioning.
Built to Last
When you invest in the AMGO PRO-14, you're investing in a lift that's built to provide many years of service. From the skid-proof diamond plate platforms to the 1/2" aircraft-quality cables, every component is selected for durability and performance. The lift's design emphasizes both safety and ease of use, so you can focus on the work at hand, not on the equipment.
Whether you're a professional technician, a restoration specialist, or an automotive enthusiast with a passion for hands-on work, the AMGO PRO-14 delivers the lifting power, safety features, and versatility you need to get the job done right. Upgrade your shop with a lift that's engineered for excellence.
