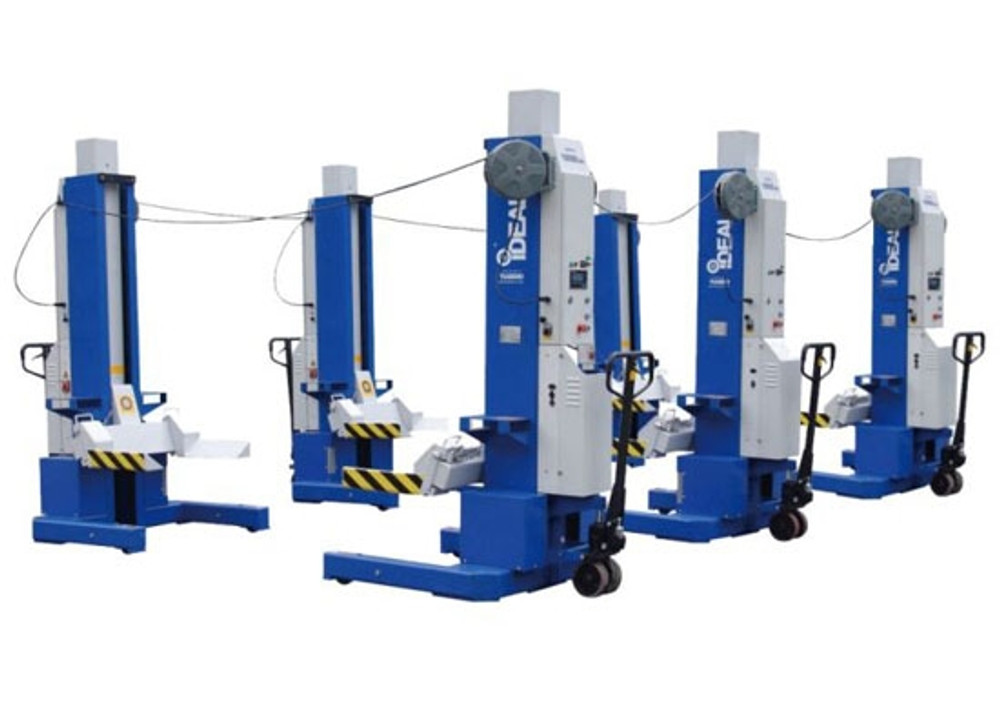

When your shop needs to service fire trucks, school buses, large commercial vehicles, and other heavy-duty equipment, the iDeal MSC-18K-X-6108 delivers the power, flexibility, and safety you require. With 108,000 pounds of total lifting capacity (six columns at 18,000 lbs. per column), this ALI-certified mobile column lift system transforms any flat bay into a fully functional lift bay in minutes. Designed for wheels-on lifting of massive vehicles, the MSC-18K-X provides the kind of versatility that enhances productivity in commercial fleet maintenance, fire departments, transit agencies, and heavy truck repair facilities.
The iDeal MSC-18K-X is available in sets of two (MSC-18K-X-236), four (MSC-18K-X-472), and six (MSC-18K-X-6108) to meet the demands of your operation. This six-column system (MSC-18K-X-6108) is built for the heaviest jobs, providing 108,000 lbs. of total lifting capacity and the ability to raise vehicles up to 67.1 inches off the ground with a lifting time of just 100 seconds and lowering time of 60 seconds at full load. Each column operates on a 24VDC battery system with an onboard charging system, eliminating the need for air hoses or electrical cords running across your shop floor. That means faster setup, safer operation, and the freedom to position your columns exactly where you need them.
Unmatched Flexibility for Heavy-Duty Applications

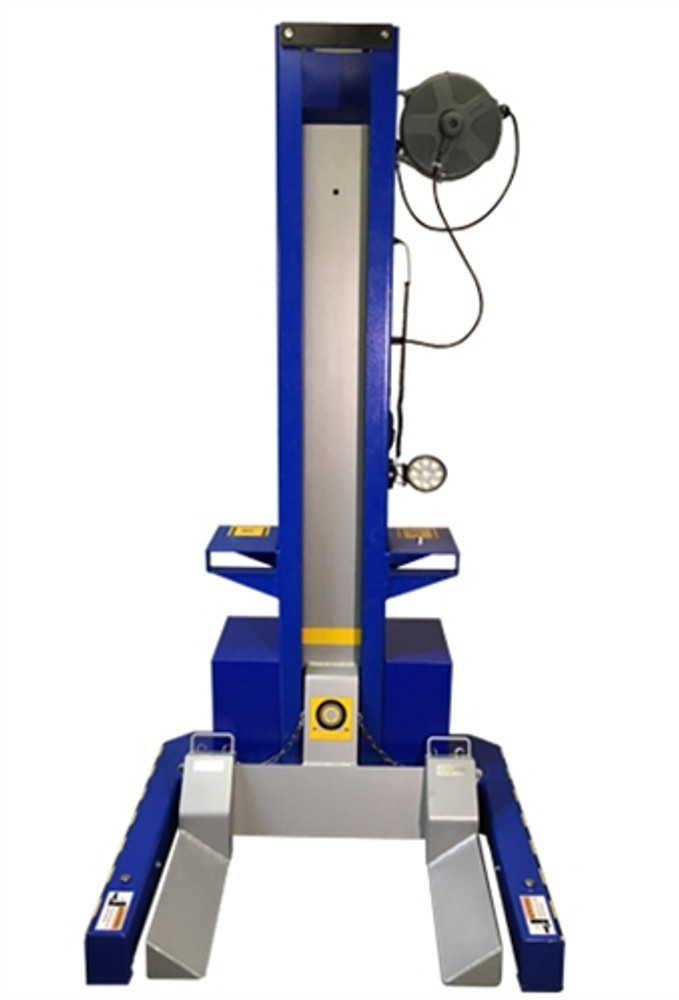

The mobile design and compact footprint of the MSC-18K-X-6108 allow technicians to easily transform any open bay into a fully functional lift bay without permanent installation. Each column is equipped with poly caster wheels and can be easily positioned using a pallet jack-type device, making setup and reconfiguration quick and effortless. The column dimensions of 44.1" width with adjustable height from 88.6" minimum to 155.5" maximum provide exceptional flexibility for different vehicle types and ceiling heights. When not in use, the columns can be conveniently stored out of the way to maximize your valuable shop space. This flexibility is a game-changer for shops that service a wide variety of vehicle types and need to adapt quickly.

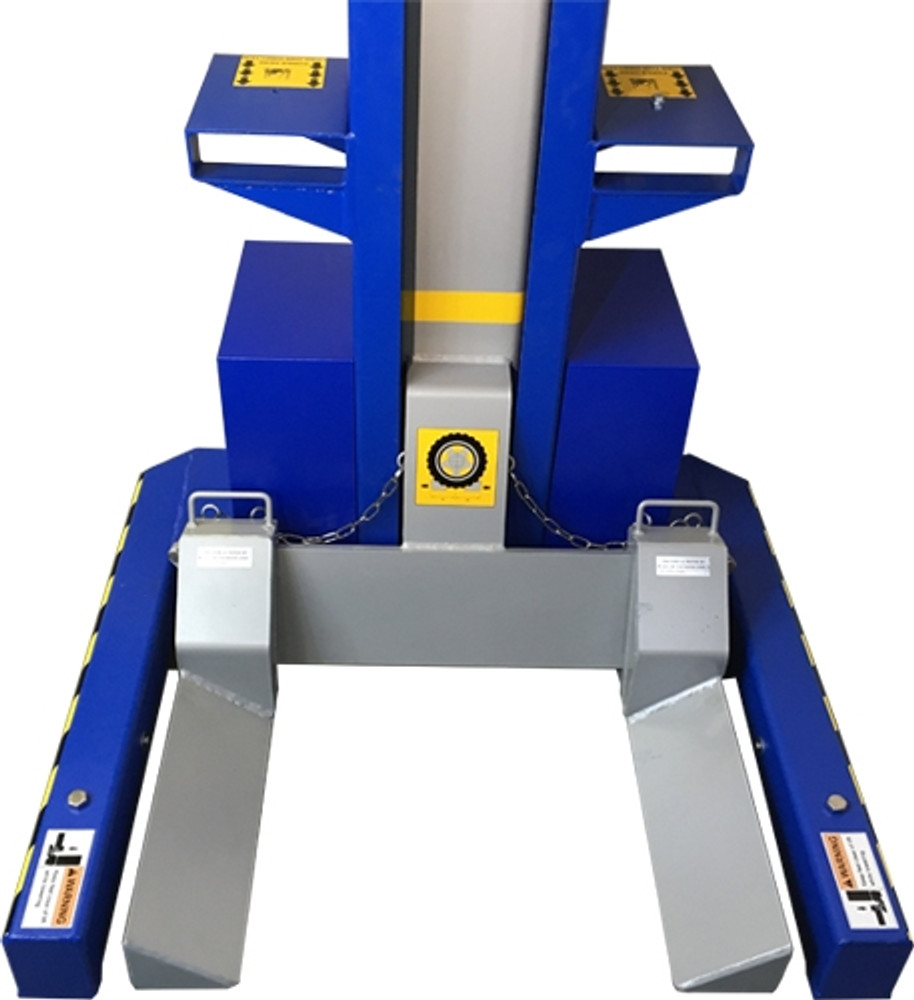

The adjustable lifting forks accommodate the widest range of wheel diameters, with an adjustable range of 12.6" to 22", a fork length of 17.9", and 10" fork to column clearance. Optional accessories expand capabilities even further, allowing you to lift pickup trucks and perform wheels-free lifting for more comprehensive service options. The U-shape wiring configuration with retractable cable reels enables quick vehicle entry and exit while keeping cables organized and out of the way, streamlining workflow and improving technician efficiency throughout the workday.
The system's exceptional range allows columns to be positioned with a maximum distance between columns of 32 feet 8 inches, making it perfect for extremely long vehicles such as articulated trucks, tour buses, and specialized emergency equipment. This spacing flexibility gives your team the adaptability to handle any vehicle that rolls into your bay.
Advanced Controls and Uncompromising Safety
Technicians realize improved productivity through the safe, simple operation of the MSC-18K-X at each column. The well-designed master control panel with LCD screen and keypad offers easy operation for both individual or paired synchronized operation, giving your team maximum control over the lift. The intuitive LCD screen with keypad provides easy-to-read visuals for setting lifting height with precision, ensuring accuracy in every lift. Convenient operation from any column means your technicians spend less time walking around the bay and more time getting the job done.
Safety is paramount with the MSC-18K-X-6108. Each column features an independent mechanical locking system and an emergency switch per column, providing the highest safety assurance for your crew. A PLC (programmable logic controller) and optical encoder continuously synchronize all six columns during lifting and lowering operations, ensuring smooth, even movement under the heaviest loads. This advanced synchronization technology provides continuous feedback and adjustment, maintaining perfect coordination across all columns regardless of load distribution or floor conditions.
The communication cable with retractable cable reels keeps your workspace organized and safe, preventing trip hazards while maintaining reliable communication between all six columns. Designed for indoor setup operation on concrete surfaces with a minimum strength of 3,000 PSI, the MSC-18K-X provides a stable, secure platform for even the most demanding lifts. The system's robust construction and intelligent safety features deliver peace of mind on every lift.

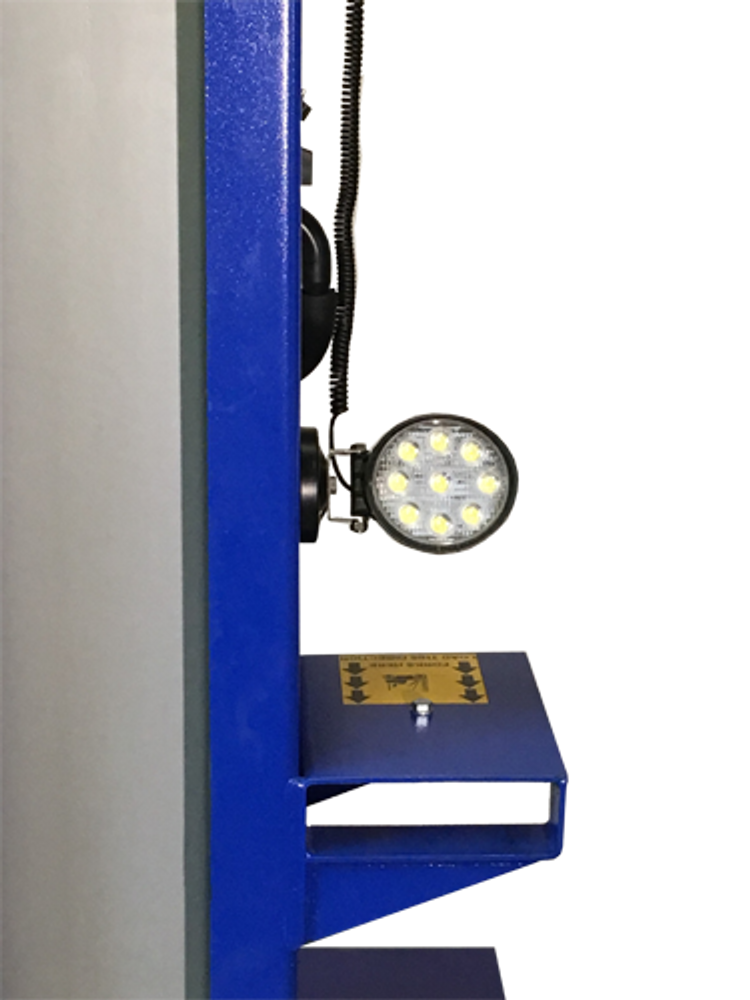

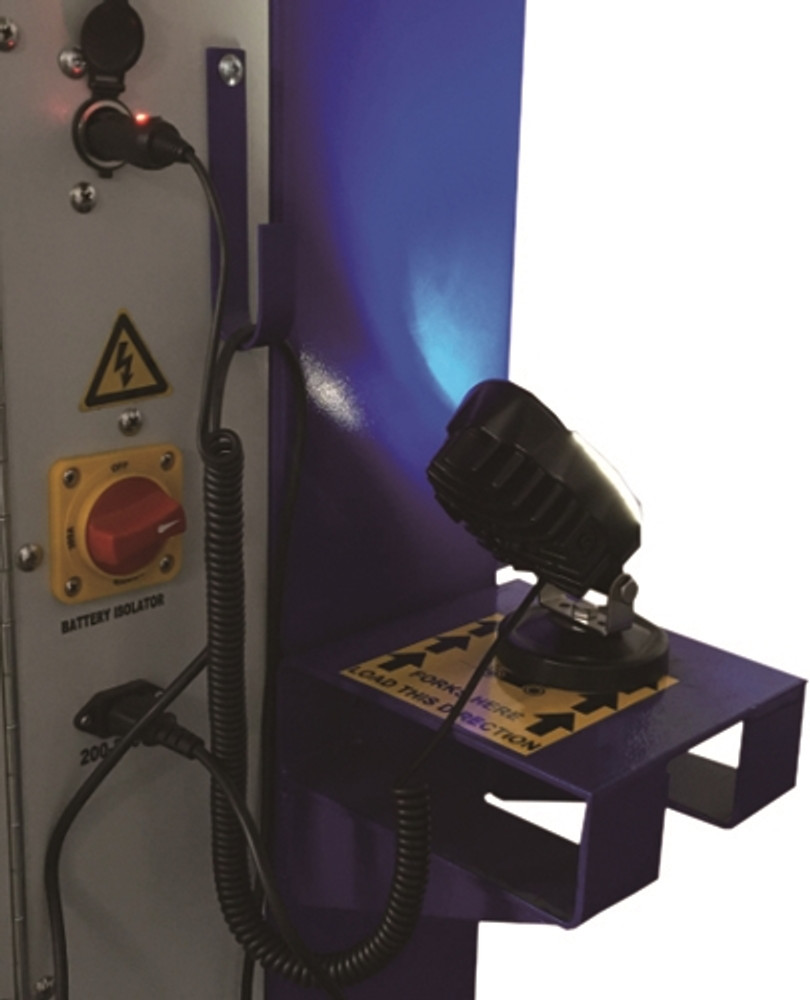

As an added convenience, each system now includes a new LED light with magnetic base, providing enhanced visibility during inspections and repairs. This thoughtful addition ensures your technicians have optimal lighting exactly where they need it, improving work quality and reducing eye strain during detailed service work.
To view the lift inspection guide: Visit the official Auto Lift Institute resource page for comprehensive inspection and safety guidelines.
Key Highlights
108,000 lbs. total lifting capacity across six columns (18,000 lbs. per column) — ideal for fire trucks, school buses, and large commercial vehicles
Cordless 24VDC battery operation with onboard charging system (100-140V / 60Hz input, 24VDC max 15 Amp output) eliminates tripping hazards and allows maximum mobility (batteries not included)
67.1" lifting height with fast operation: 100 seconds lifting / 60 seconds lowering at full 18,000 lbs. per column
Adjustable lifting forks (12.6" - 22" range, 17.9" length) accommodate the widest range of wheel sizes for versatile applications
PLC and optical encoder synchronization ensures smooth, even lifting across all columns with continuous precision control
Easy mobility and storage — quickly reposition with poly caster wheels and store compactly when not in use to maximize shop space
Maximum 32 feet 8 inches spacing between columns for extremely long vehicles and flexible bay configurations
New! LED light with magnetic base included for enhanced visibility during inspections and repairs
Important: This is a Special Order Item Only. Please contact us for lead times and delivery information. Batteries are NOT included and must be purchased separately.
Battery Requirements (Not Included)
Each column requires two 12V deep cycle batteries or one 24V battery (Type 27 or 31 Series) with a 120 AMP/HR rating and 350-500 CCA starting current. Recommended battery type: 12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105. The onboard charging system operates on 100-140V / 60Hz / Single Phase input and outputs 24VDC at a maximum of 15 amps, ensuring your columns are always ready for operation.
Battery dimensions must not exceed 14.2" length x 7.5" width x 11.8" tall maximum to fit within the battery cover size of 14.56" x 8.27" x 13". Proper battery selection ensures optimal performance, runtime, and longevity of your mobile column system. Deep cycle batteries are specifically recommended for their ability to handle the repeated charge and discharge cycles that occur in daily shop operations.
Built for Commercial and Fleet Operations
The iDeal MSC-18K-X-6108 is engineered to meet the rigorous demands of high-volume commercial operations. Whether you're maintaining a fleet of municipal buses, servicing emergency vehicles around the clock, or handling heavy construction equipment, this system delivers the reliability and performance your operation depends on. The ALI certification ensures that every aspect of the lift system meets or exceeds industry safety standards, giving you confidence in every lift.
The system's versatility extends beyond traditional wheel lifting. With optional accessories (sold separately), you can configure the MSC-18K-X for wheels-free lifting and adapt it for pickup trucks and other specialized vehicles. This modularity means your investment grows with your business, adapting to changing service demands without requiring a complete equipment overhaul.
Shop efficiency improves dramatically when technicians can set up and break down lift configurations quickly. The communication cable with retractable reels and U-shape wiring configuration minimize setup time while keeping your bay organized and safe. Technicians appreciate the freedom to work without dodging cables and hoses, and management appreciates the increased throughput that comes from faster vehicle turnaround times.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Structural Warranty:
The following parts and structural components carry a five year warranty:
Columns
Top Rails
Beams
Uprights
Arms
Swivel
Pins
Legs
Carriages
Tracks
Cross Rails
Overhead Beams
Limited One-Year Warranty:
Tuxedo Distributors, LLC offers a limited one-year warranty to the original purchaser of iDeal Lifts and Wheel Service in the United States and Canada. Tuxedo Distributors, LLC will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations:
This warranty does not cover:
Parts needed for normal maintenance
Wear parts, including but not limited to cables, rub blocks, chains, rubber pads and pulleys
Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter.
On-site labor
Upon delivery of goods, the Customer has sole responsibility to notify Tuxedo Distributors, LLC of missing parts or concealed damage within 72 hours of receipt. If no notification of missing parts or of concealed damage is made, all parts will be purchased after 72 hours has passed.
Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.
The customer is required to notify Tuxedo Distributors, LLC of any missing parts within 72 hours. Timely notification must be received to be covered under warranty.
Tuxedo Distributors, LLC will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.
Tuxedo Distributors, LLC reserves the right to make improvements and/or design changes to its without any obligation to previously sold, assembled or fabricated equipment.
There is no other express warranty on the iDeal lifts and this warranty is exclusive of and in lieu of all other
warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
To the fullest extent allowed by law, Tuxedo Distributors, LLC shall not be liable for loss of use, cost of cover, lost profits, inconvenience, lost time, commercial loss or other incidental or consequential damages.
This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.
Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state

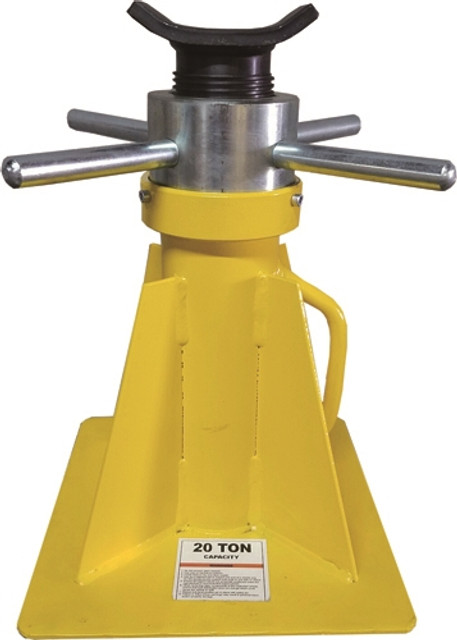

iDeal Lift MSC-44K-Stand-26 Heavy-Duty Low Rise Stand 16"-26"
