When your shop demands serious lifting power for heavy-duty commercial vehicles, buses, trucks, and equipment, the iDeal Lift MSC-13K-B-452 delivers professional-grade performance in a completely wireless, mobile platform. This 4-column set provides an impressive 52,800 lbs. combined lifting capacity, with each individual column rated to safely lift 13,200 pounds. Powered by advanced Siemens PLC technology and a precision Electro-Optical encoder, every column in your system maintains perfect synchronization throughout the entire lift cycle—ensuring maximum safety, stability, and precision for even your most demanding applications.
Engineered for ultimate flexibility and robust power, the MSC-13K-B is a completely wireless, battery-powered mobile column system that liberates you from the constraints of power cords and fixed installations. Position your lifts anywhere in your facility with total freedom. The intuitive master controller featuring an LCD screen with keyboard allows you to operate columns individually or synchronize multiple units with effortless precision. Adjustable 14-inch lifting forks accommodate the widest range of wheel sizes, while the heavy-duty hydraulic system and large carriage bearings deliver durable, fast, and exceptionally smooth lifting performance day after day.
Key Advantages That Set the MSC-13K-B-452 Apart
Massive 52,800 lb. Total Lifting Capacity: Four columns at 13,200 lbs. each easily handle heavy commercial vehicles, municipal buses, RVs, and large trucks.
True Wireless Mobility: Battery-powered columns with 24VDC/3HP power packs eliminate cords entirely—position lifts anywhere in your shop without limitations.
Advanced Synchronization Technology:Siemens PLC system and Electro-Optical encoder ensure all columns lift and lower in perfect unison for uncompromising safety and stability.
Effortless Positioning & Maneuverability: Pallet jack style wheels make each 1,210 lb. column surprisingly easy to move and precisely position under any vehicle configuration.
Multi-Layer Safety Protection: Independent mechanical locking system on each column plus emergency switches provide multiple redundant layers of protection for your team and valuable equipment.
Professional-Grade Features for Commercial Shop Environments
The MSC-13K-B system is built to exacting professional shop standards with features specifically designed to maximize productivity, safety, and operational versatility:
Intuitive Master Controller: Easy-to-use interface enables individual column operation or paired synchronized control of multiple columns with simple commands
LCD Display with Integrated Keyboard: Clear, easy-to-read visual display of all settings and precise real-time lifting height measurements

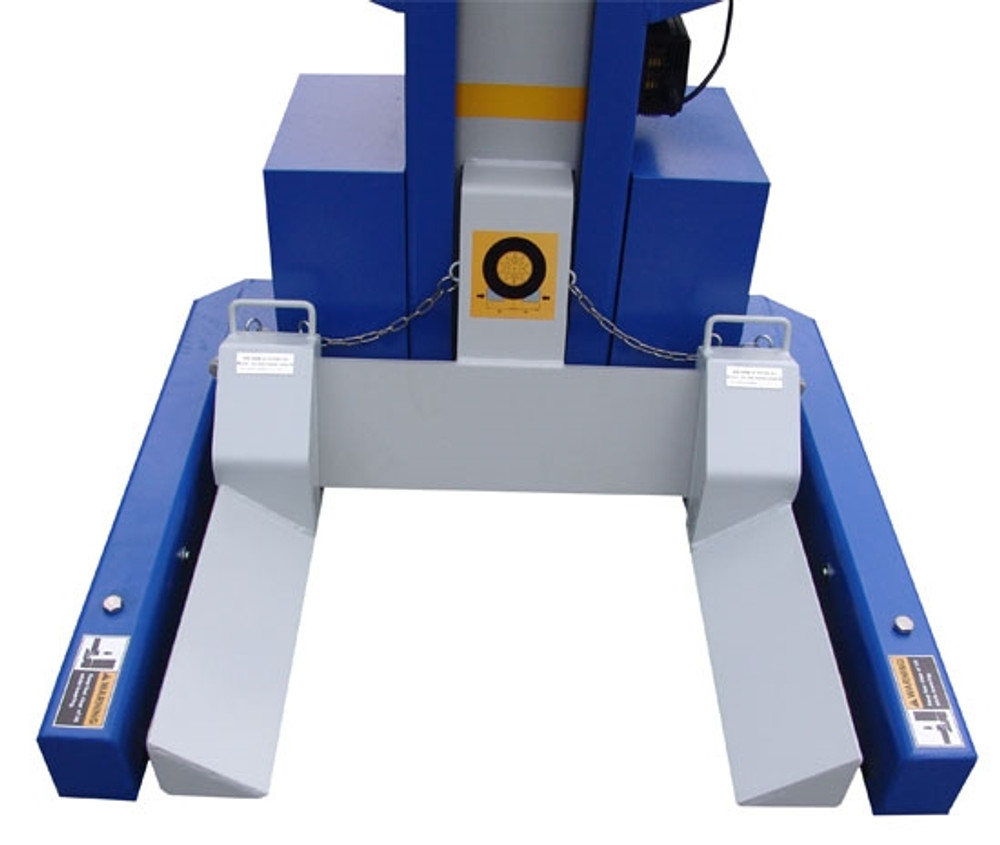

Adjustable Lifting Forks:14-inch fork length accommodates the widest possible range of wheel sizes and diverse vehicle types
Fast Lift/Lower Cycle Times: Highly efficient 75-second lifting / 60-second lowering time keeps your workflow moving and maximizes bay productivity
Extended Column Spacing Capability: Columns can be positioned up to 32 feet 8 inches apart to handle even long-wheelbase commercial vehicles and equipment
Quiet Shop-Friendly Operation: Low 70dB(A) noise level maintains a comfortable, professional work environment
Space-Efficient Compact Footprint: Each column measures just 44 inches wide × 88.5 inches tall for efficient space utilization without sacrificing performance
Standard Cable Reel System: Included cable reels keep communication cables organized, protected, and tangle-free between columns
Optional Hand-Held Remote Control: Available for added operator convenience and enhanced control from multiple positions
Optional Jack Stand Compatibility: System accommodates optional jack stands for additional support during extended service procedures
Important Battery Power System Requirements:
Each column requires one 24V battery (or two 12V batteries wired in series). This 4-column system requires 4 total batteries for operation. Batteries are NOT included and must be purchased separately. Recommended specifications: Type 27 or 31 Series Deep Cycle Batteries, 120 AMP/HR rating, 350-500 CCA starting current. Maximum battery dimensions: 14.2" × 7.5" × 11.8" tall.
Precision Engineering for Demanding Applications
The MSC-13K-B-452 represents the pinnacle of mobile column lifting technology. The integrated Siemens PLC controller works seamlessly with the Electro-Optical encoder to provide continuous real-time synchronization of all columns during every phase of operation. This advanced control system constantly monitors and adjusts each column's position to maintain perfect alignment, eliminating the risk of vehicle instability during lifting or lowering.
The heavy-duty hydraulic system features oversized components and large carriage bearings engineered for longevity and smooth operation under the most demanding daily use. Each 1,210 lb. column is built with professional-grade materials and construction methods that ensure years of reliable service in high-volume commercial environments.
Safety is paramount in every aspect of the MSC-13K-B design. The independent mechanical locking system on each column engages automatically during lifting, providing a fail-safe backup to the hydraulic system. Additionally, every column features its own dedicated emergency switch that allows instant system shutdown from any position around the vehicle—giving your technicians ultimate control and peace of mind during every service procedure.
Standard Equipment & Available Accessories
Every MSC-13K-B-452 system includes integrated cable reel systems as standard equipment. These professional-grade cable management systems keep your wireless columns connected and perfectly synchronized while maintaining clean, organized, tangle-free operation:
Cable Reel System (Included Standard)
Enhance your system's capabilities and operator convenience with optional accessories designed specifically for the MSC-13K-B series:
Hand-Held Remote Control (Optional Accessory)
The optional hand-held remote provides wireless control freedom, allowing operators to control the lift system from the most convenient position around the vehicle. Optional jack stands are also available to provide additional support and extra safety assurance during extended maintenance and repair procedures that require prolonged vehicle elevation.
Scalable Configuration Options for Every Shop Size
The iDeal MSC-13K-B mobile column lift system is available in three different configurations, allowing you to select the exact setup that matches your specific lifting requirements and vehicle mix:
MSC-13K-B-226: Set of 2 columns — 26,400 lbs. total capacity (2,420 lbs. total net weight) — ideal for lighter commercial vehicles and paired lifting applications
MSC-13K-B-452: Set of 4 columns — 52,800 lbs. total capacity (4,840 lbs. total net weight) — [This Model] — the most popular configuration for full-size commercial trucks and buses
MSC-13K-B-678: Set of 6 columns — 79,200 lbs. total capacity (7,260 lbs. total net weight) — maximum capacity for the heaviest vehicles and equipment
Each configuration shares the same proven 13,200 lb. per column capacity, 88.5-inch overall height, and 44-inch width specifications, ensuring consistent performance and compatibility across your entire fleet of lifting equipment.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, battery requirements, and detailed feature breakdowns.
Why the iDeal MSC-13K-B-452 Is the Right Choice for Your Shop
The MSC-13K-B-452 represents a significant investment in your shop's capability, productivity, and safety. This system delivers the perfect combination of wireless freedom and precision control that traditional fixed lifts simply cannot match. Whether you're servicing municipal buses, commercial delivery trucks, heavy-duty construction equipment, RVs, or specialty vehicles, this system gives you the flexibility to work efficiently anywhere in your facility without the limitations and installation costs of fixed installations or the hassle of power cables.
Built with heavy-duty hydraulic systems, oversized carriage bearings, and professional-grade components throughout every assembly, the MSC-13K-B is specifically engineered to withstand the rigorous demands of high-volume commercial and fleet service operations. The Siemens PLC control system and precision Electro-Optical encoder provide the continuous synchronization accuracy and reliability you need for safe, consistent operation on every single lift, shift after shift, year after year.
The wireless, mobile design of the MSC-13K-B-452 means you can reconfigure your shop layout as your business evolves, move columns between bays as needed, and even transport the system to off-site locations for field service work. This level of versatility is impossible with traditional fixed lift installations and provides a strategic advantage that will serve your business for years to come.
Invest in a mobile column system that delivers uncompromising professional performance, maximum multi-layer safety protection, and the operational versatility to handle your heaviest vehicles with complete confidence. The iDeal MSC-13K-B-452 is ready to transform your shop's lifting capabilities and take your service operation to the next level.
Structural Warranty:
The following parts and structural components carry a five year warranty:
Columns
Top Rails
Beams
Uprights
Arms
Swivel
Pins
Legs
Carriages
Tracks
Cross Rails
Overhead Beams
Limited One-Year Warranty:
Tuxedo Distributors, LLC offers a limited one-year warranty to the original purchaser of iDeal Lifts and Wheel Service in the United States and Canada. Tuxedo Distributors, LLC will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations:
This warranty does not cover:
Parts needed for normal maintenance
Wear parts, including but not limited to cables, rub blocks, chains, rubber pads and pulleys
Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter.
On-site labor
Upon delivery of goods, the Customer has sole responsibility to notify Tuxedo Distributors, LLC of missing parts or concealed damage within 72 hours of receipt. If no notification of missing parts or of concealed damage is made, all parts will be purchased after 72 hours has passed.
Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.
The customer is required to notify Tuxedo Distributors, LLC of any missing parts within 72 hours. Timely notification must be received to be covered under warranty.
Tuxedo Distributors, LLC will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.
Tuxedo Distributors, LLC reserves the right to make improvements and/or design changes to its without any obligation to previously sold, assembled or fabricated equipment.
There is no other express warranty on the iDeal lifts and this warranty is exclusive of and in lieu of all other
warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
To the fullest extent allowed by law, Tuxedo Distributors, LLC shall not be liable for loss of use, cost of cover, lost profits, inconvenience, lost time, commercial loss or other incidental or consequential damages.
This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.
Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state
iDeal Lift MSC-44K-Stand-26 Heavy-Duty Low Rise Stand 16"-26"
The iDeal Lift MSC-44K-Stand-26 is a professional-grade heavy-duty low rise stand engineered specifica

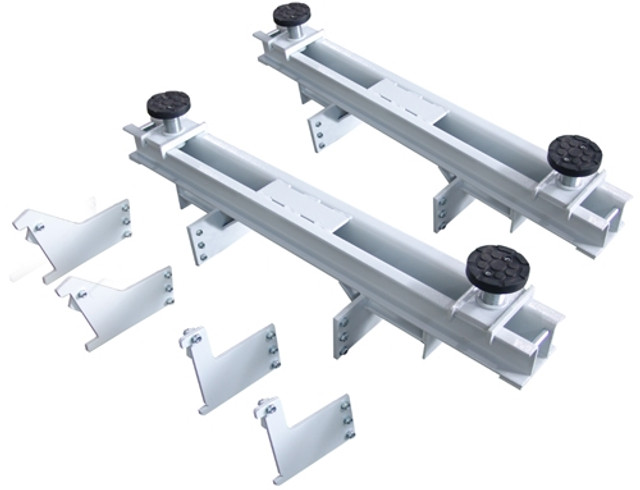

iDeal Lift MSC13KB-LTVA Light Vehicle Adapter Kit 20,000 lbs.
