Atlas® ML-6051BC ALI Battery Powered Mobile Column Lift System 111,000 lbs

📄 Download Installation Manual

Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

To view or download the lift inspection guide click here.

Ultimate Freedom and Power for Heavy-Duty Lifting

The Atlas® ML-6051BC ALI CERTIFIED Mobile Column Lift System delivers an impressive 111,000 lb. total lifting capacity with unmatched portability and convenience. This six (6) column system is designed and engineered specifically for bus, RV, and heavy truck lifting applications that demand high quality, reliability, and flexibility. Powered by 24V DC motors with dual batteries per column, this system works anywhere—no wall socket required. Move your lifting power wherever the job takes you, indoors or outdoors on any level concrete surface with a minimum thickness of six inches.

Each heavy-duty mobile column is equipped with a hydraulic pallet jack system and rechargeable batteries, providing unparalleled freedom of movement around your shop. When not in use, the columns can be easily stored out of the way, making this the perfect choice for repair shops that need to safely raise heavier trucks but have limited bay space. The Atlas® mobile column lift system offers full lifting capacity for both short and long wheelbase vehicles, with adjustable forks that accommodate tire diameters from 19 inches to 44 inches.

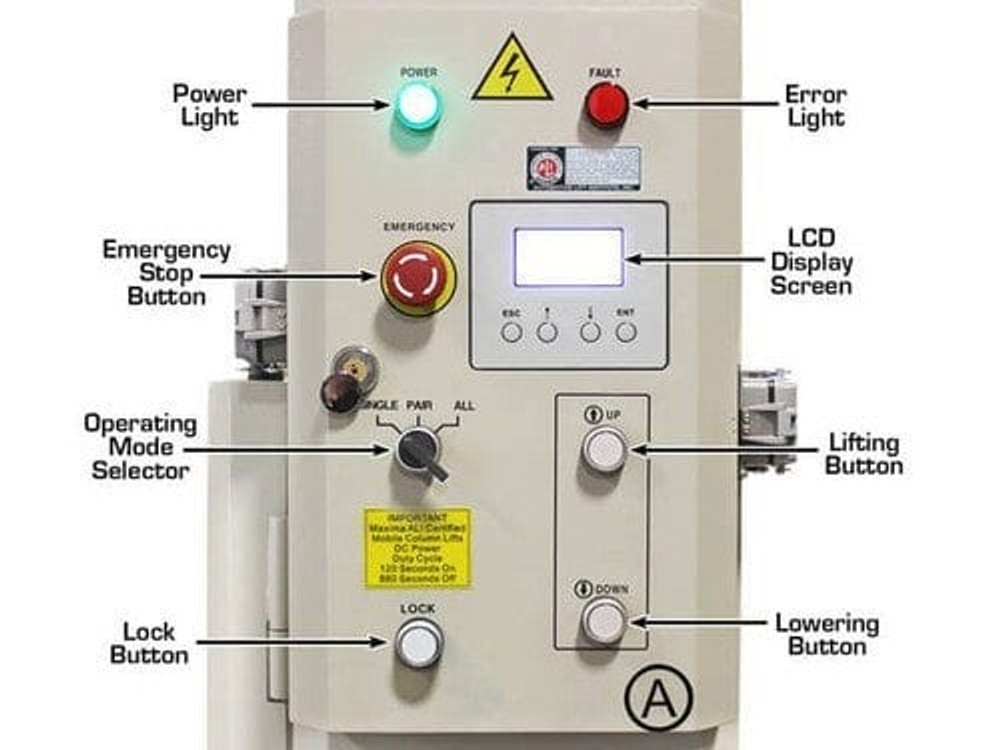

Battery power lasts 10-20 lifts depending on load and is recharged with the attached 110V single-phase cord. Each column is equipped with an LCD screen showing exact lifting height, an emergency stop button, and has an individual lifting capacity of 18,500 lbs. An advanced electronic synchronization system ensures all columns operate in perfect harmony, while double-safety features—both hydraulic flow control and mechanical locks—provide peace of mind on every lift.

Optional Atlas® Tripod Support Stands can be used to support vehicles for wheel service.

Key Selling Points

ALI CERTIFIED for safety and compliance—trusted industry standard
111,000 lb. total capacity (18,500 lbs per column) handles the heaviest buses, RVs, and trucks
Battery powered freedom: 24V DC motors with dual batteries per column—no wall outlet needed
Complete six-column system with simultaneous operation and electronic synchronization
Maximum portability: Hydraulic pallet jack system on each column for easy movement and storage
LCD screens on every column display exact lifting height for precision control
Adjustable forks accommodate tire diameters from 19" to 44"—versatile for any vehicle
Double-safety design: Hydraulic flow control and mechanical locks for added security
2-year limited warranty and six 32' column connecting cables included

Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
