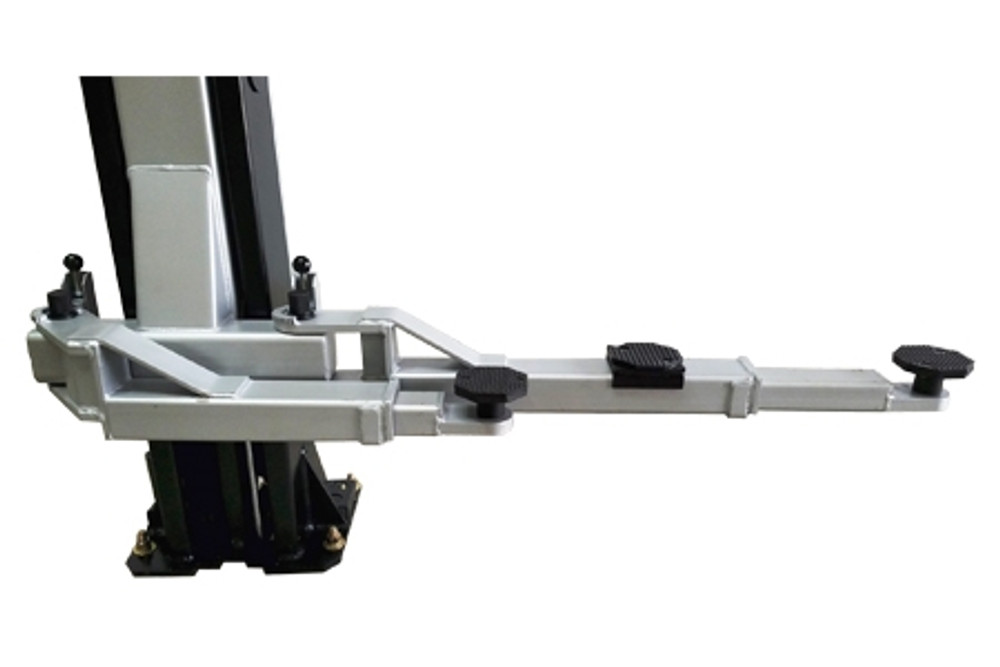

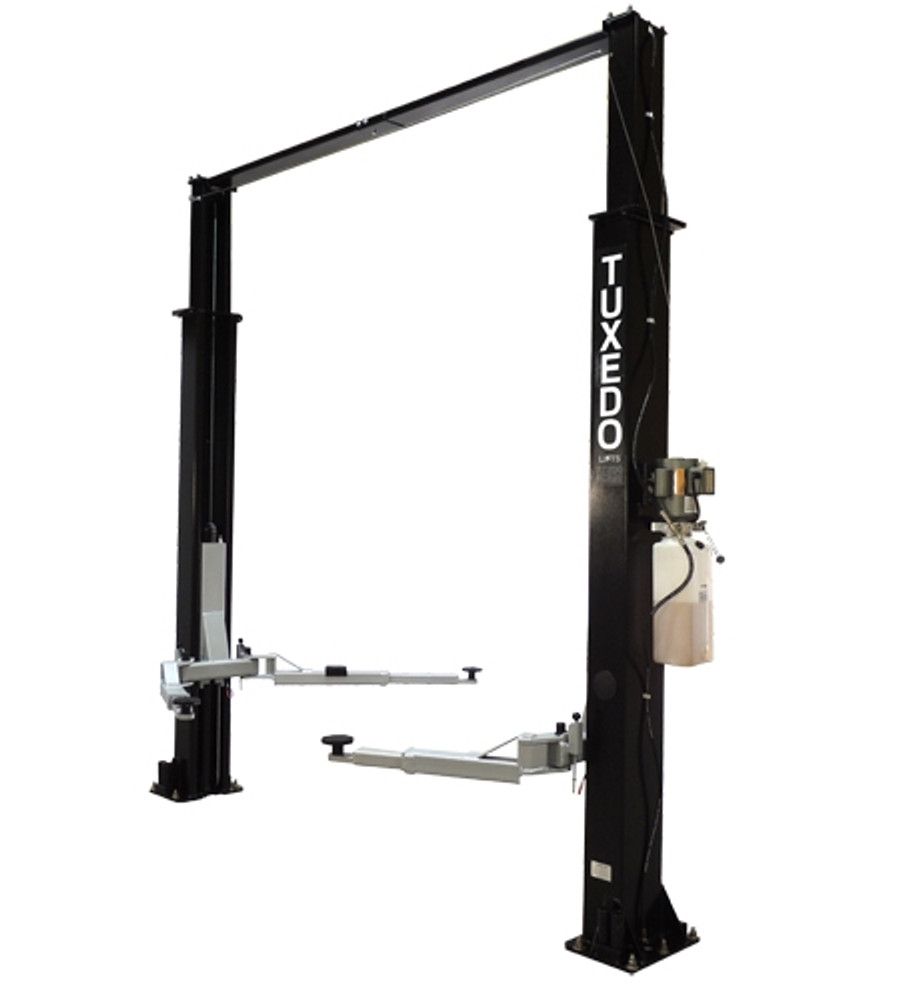

The TUXEDO TP9KAC-TUX delivers the professional-grade features you need without breaking the bank. This 9,000 lb. capacity light duty two post lift combines an economy-focused design with the reliability and safety features demanded in busy service environments. Its clear floor design with two-piece columns provides easy vehicle positioning and maximum workspace underneath, while the asymmetrical swing arms allow optimal placement of lift points for better door clearance and easier vehicle access.
Built with chain drive cylinders for dependable operation, the TP9KAC-TUX reaches its maximum lift height of 72 inches in approximately 50 seconds, getting vehicles up in the air quickly so you can start work faster. The low profile 4" lifting pads accommodate a wide range of vehicle types, from passenger cars to light duty trucks and most SUVs. With a 93.7" drive-thru clearance and 110.4" width between columns, this lift provides the working room needed for efficient service and repair.
Safety and convenience features come standard, including automatic arm restraints, dual point lock release mechanisms for precise control, and an overhead shut-off limit wire for protection. The durable powder-coat finish ensures long-lasting appearance and corrosion resistance even in demanding shop environments. Powered by 220V single-phase electrical service, the TP9KAC-TUX delivers professional performance at a value price point.
Your TP9KAC-TUX includes:
Free drop-in stackable height adapters included – Set of 4 each: 1-5/16" & 5"
TP9-CA Frame Cradle Pads (4 Pack) – Designed specifically for the TP9KAC-TUX and TP9KF-TUX, these optional frame cradle pads provide additional lifting versatility for frame-contact applications and specialized vehicle types.
Optional TP9-CA Frame Cradle Pads (4 Pack) for enhanced lifting versatility
The TP9KAC-TUX requires a minimum ceiling height of 144 inches and 220V single-phase electrical service with a 20 AMP circuit. With an overall height of 142.7 inches and an overall width (including power unit) of 141 inches, ensure your workspace can accommodate these dimensions. The lift ships at 1,390 lbs and requires professional installation per the included manual.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Structural Warranty:
The following parts and structural components carry a five year warranty:
Limited One-Year Warranty:
Tuxedo Distributors, LLC offers a limited one-year warranty to the original purchaser of Tuxedo Lifts and Wheel Service in the United States and Canada. Tuxedo Distributors, LLC will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations:
This warranty does not cover:
Upon delivery of goods, the Customer has sole responsibility to notify Tuxedo Distributors, LLC of missing parts or concealed damage within 72 hours of receipt. If no notification of missing parts or of concealed damage is made, all parts will be purchased after 72 hours has passed.
Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.
The customer is required to notify Tuxedo Distributors, LLC of any missing parts within 72 hours. Timely notification must be received to be covered under warranty.
Tuxedo Distributors, LLC will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.
Tuxedo Distributors, LLC reserves the right to make improvements and/or design changes to its without any obligation to previously sold, assembled or fabricated equipment.
There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
To the fullest extent allowed by law, Tuxedo Distributors, LLC shall not be liable for loss of use, cost of cover, lost profits, inconvenience, lost time, commercial loss or other incidental or consequential damages.
This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.
Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state
