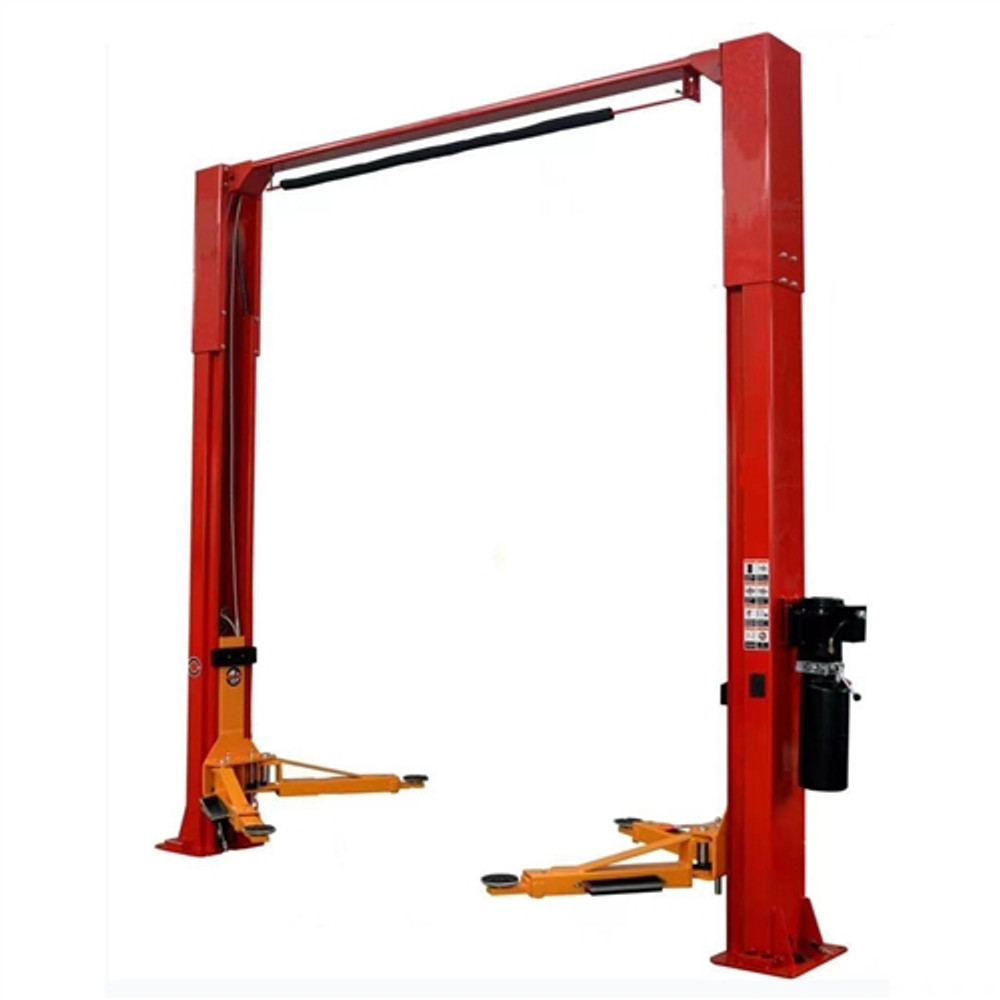

The Katool KT-M120 is a professional-grade symmetric two-post automotive lift engineered for serious workshops and garages demanding heavy-duty performance and exceptional safety. With a robust 12,000 lb lifting capacity, this clear-floor design lift handles everything from sedans and trucks to SUVs and commercial vehicles with ease. CE Approved and Certified, the KT-M120 has been rigorously tested to 115% dynamic loading capacity and 150% static loading capacity standards, ensuring reliable, safe operation day after day.
This industrial-capacity lift features heavy-duty construction capable of safely raising vehicles up to 70.75 inches (1800mm), with an impressive overall height of 166.75 inches (4235mm) to accommodate larger vehicles. The dual hydraulic chain-drive cylinders deliver smooth, balanced lifting performance, while the symmetric arm configuration provides optimal vehicle positioning and weight distribution. A generous 117.75-inch drive-thru clearance ensures easy vehicle access and maneuverability in your workspace.
Safety First – Comprehensive Protection Systems
Safety is paramount with the KT-M120. The lift incorporates multiple layers of protection to keep your team and vehicles secure. Manual safety release from two sides provides convenient emergency lowering capability from either column. The overhead safety shutoff bar prevents over-lifting accidents, automatically stopping the lift before contact with the vehicle. Rubber pad door opening protection safeguards vehicle doors and panels during lifting operations, while feet-protection safety guardrails with integrated tool box create a safe work zone around the lift base.
The clear-floor design eliminates tripping hazards and maximizes workspace efficiency, allowing technicians to move freely around the lifted vehicle. Every component is engineered with operator safety in mind, from the robust column construction to the precision-engineered locking mechanisms.
Versatile Lifting for Every Vehicle

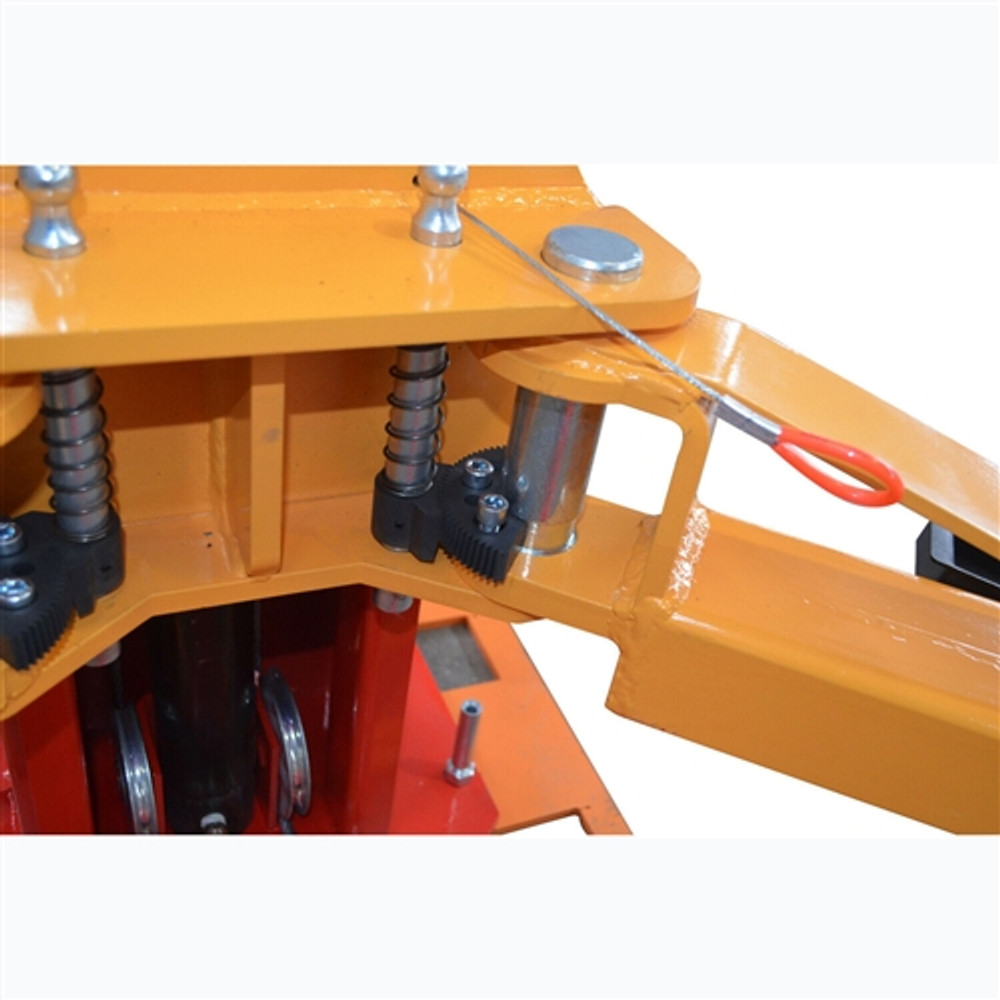

The symmetric arm design provides maximum flexibility for positioning vehicles of various sizes and configurations. With screw-on pad and extension support adapter sets (+30mm & +120mm included), you can precisely adjust lifting points to accommodate different vehicle chassis designs and wheelbases. The minimum height of just 4.25 inches (110mm) allows you to lift low-profile sports cars, while the generous maximum height handles lifted trucks and SUVs with ease.
The 130-inch inside column clearance and 151.25-inch outside column clearance provide ample room for a wide range of vehicle sizes, while the overall width of 165.5 inches ensures stable operation without compromising shop floor space efficiency.
Professional-Grade Hydraulic System

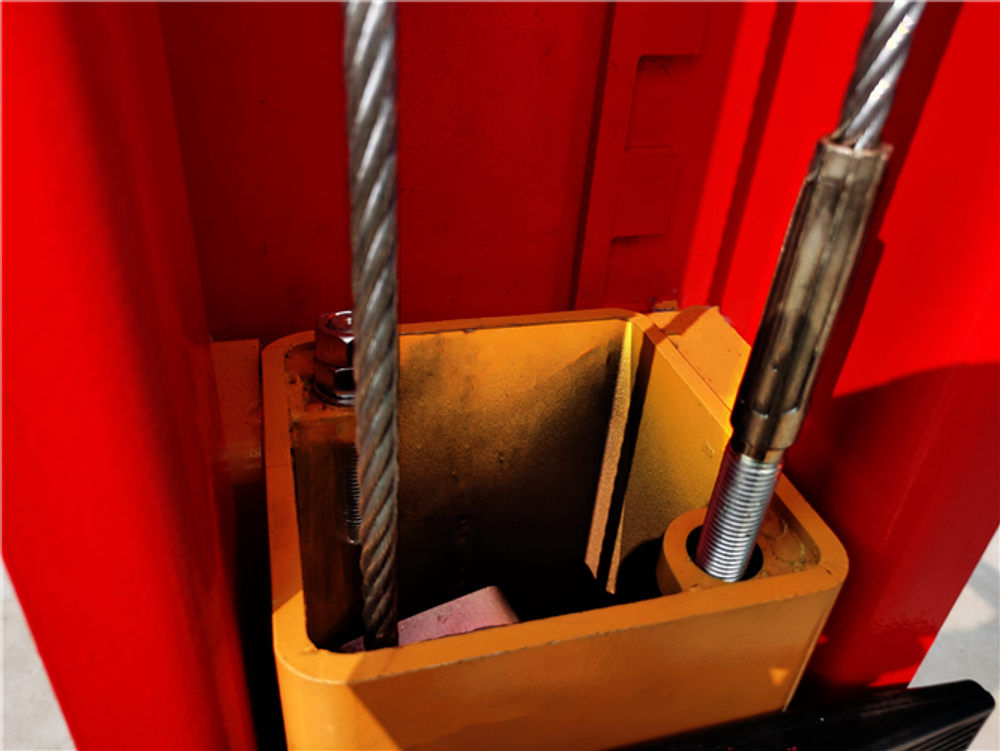

At the heart of the KT-M120 is a top-level hydraulic system powered by a 220VAC / 60Hz / 1Ph motor (with 110V/60Hz/1Ph available as an option). The advanced dual hydraulic chain-drive cylinder configuration ensures perfectly synchronized lifting, preventing vehicle tilt and maintaining precise balance throughout the entire range of motion. This chain-driven system provides superior reliability compared to cable systems, with reduced maintenance requirements and extended service life.
Key Highlights
12,000 lb capacity – handles trucks, SUVs, and commercial vehicles with confidence
CE Certified – meets rigorous European safety standards with 115% dynamic and 150% static load testing
Clear-floor symmetric design – maximizes workspace efficiency and safety
70.75-inch max lift height – provides excellent working clearance for comprehensive vehicle service
Dual hydraulic chain-drive system – ensures smooth, balanced lifting with minimal maintenance
Comprehensive safety features – including dual manual releases, overhead shutoff, and door protection
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Important Installation Requirements
⚠ Critical Foundation Requirements

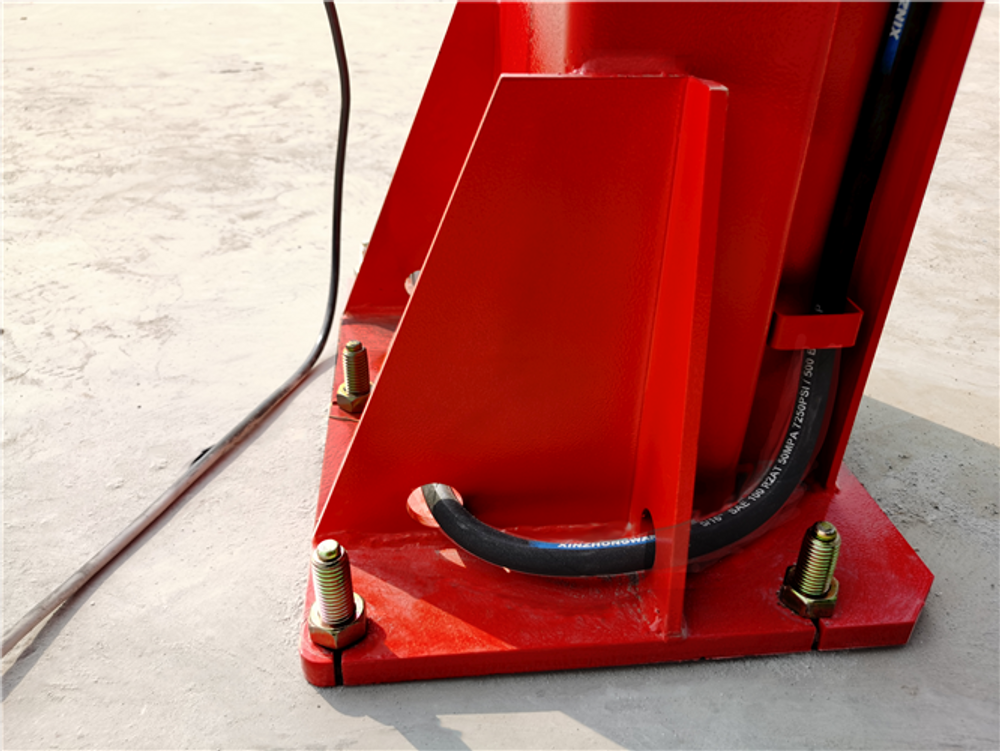

Concrete thickness must be at least 5.9 inches (150mm) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
The KT-M120 includes a complete set of extension support adapters to get you started. With a net weight of 1,653 lbs (750kg), this lift combines substantial construction with manageable installation requirements. For detailed weight capacity information and guidance on selecting the right lift for your specific needs, refer to the "Understanding Two-Post Lift Weight Capacities" resource available in the Product Features tab.
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to www.P65Warnings.ca.gov
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers,
on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment. Please click this link to find out more: Click Here
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift
structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty.
Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested.
Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
