Professional-Grade Lifting Power for Your Shop or Garage

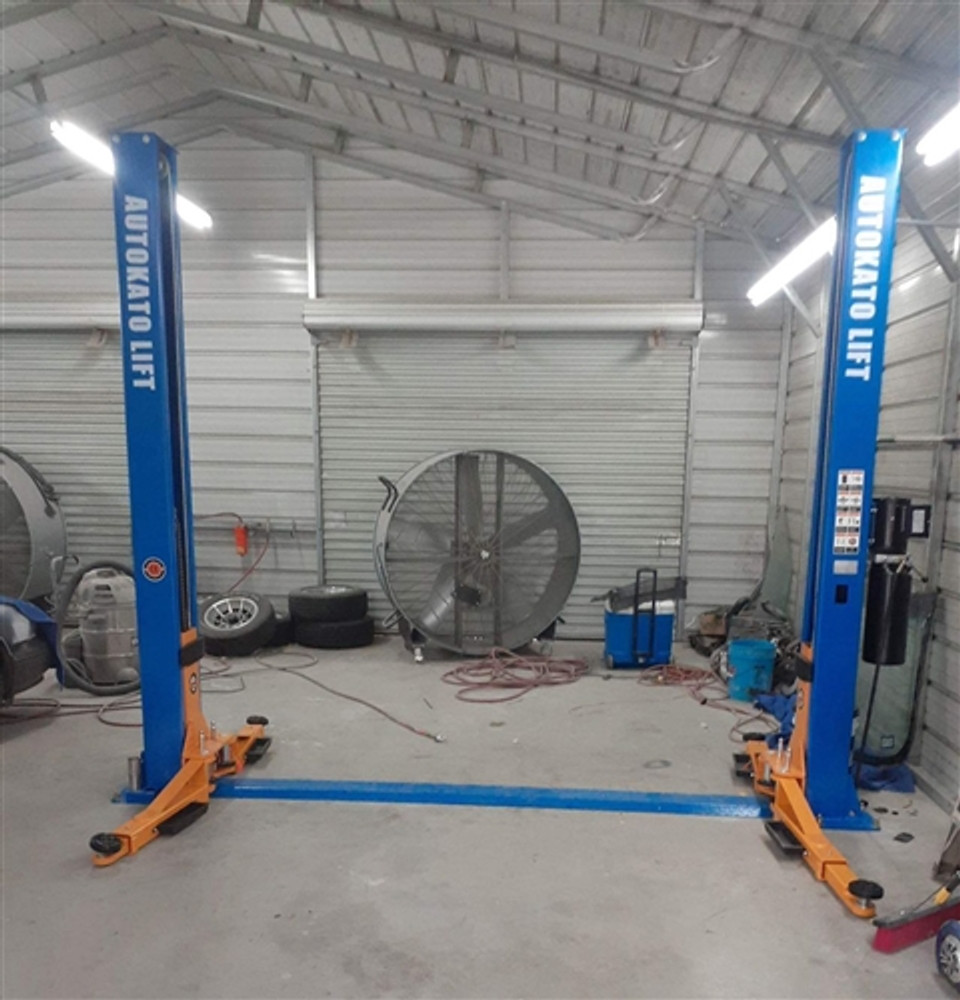

Engineered for professional-grade performance, the Katool KT-H105 two-post lift supports vehicles up to 10,000 lbs, making it suitable for a wide range of automotive applications—from compact sedans to full-size trucks and SUVs. Its heavy-duty construction delivers stable, reliable lifting for daily use in auto shops, home garages, and enthusiast workspaces. CE Approved and Certified, this lift has been rigorously tested to meet 115% dynamic loading capacity and 150% static loading capacity standards, ensuring the highest level of safety and durability.
The symmetric arm design with 2-stage adjustable arms offers flexible vehicle positioning, accommodating diverse wheelbases and body styles. With a maximum lifting height of 70.8 inches (1800mm), the lift provides generous clearance for comfortable repairs, maintenance, and inspections, improving technician ergonomics and reducing physical strain during extended service sessions. The ultra-low 3.9-inch (100mm) minimum height allows easy access for low-clearance vehicles, including sports cars and lowered models, without the need for ramps or adapters.
Constructed from high-strength steel and equipped with reinforced lift arms, integrated safety locks with manual safety release from two sides, and a dependable dual hydraulic chain-drive cylinder system, this lift is designed for long-term durability and user safety. The base plate design ensures stability and easy installation on proper concrete foundations. Rubber pad door opening protection prevents vehicle damage, while the screw-on pad and extension support adaptor sets (included, +100mm / 3.94") expand your lifting flexibility for various vehicle configurations.
Key Selling Points
10,000 lbs lifting capacity – handle a wide range of vehicles with confidence
CE Certified safety – exceeds industry standards with 115% dynamic and 150% static load testing
70.8" max lift height and 3.9" minimum height – exceptional clearance range for all vehicle types
Symmetric 2-stage arms with included extension adaptors – versatile positioning for any vehicle
Base plate design – stable installation and excellent weight distribution
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Designed for Versatility and Safety
The KT-H105 features a drive-thru clearance of 98.4 inches (2500mm), providing ample space for maneuvering vehicles into position and enabling easy walk-around access during service. The front arms extend from 29.5" to 46", and the rear arms adjust from 35.4" to 58.2", ensuring you can securely lift vehicles with varying wheelbases and lift point configurations.
Powered by a robust 220VAC / 60Hz / 1Ph / 2.2KW motor (with optional 110V configuration available), the hydraulic system delivers consistent, controlled lifting power with intuitive operation. The integrated safety lock system engages automatically at multiple height positions, and the manual safety release accessible from both sides ensures you can safely lower vehicles in any situation.
With an overall width of 142.4 inches and an overall height of 110.9 inches, this lift is designed to fit comfortably in most garage and shop environments while maximizing lifting performance. The net weight of 1,256 lbs (570kg) ensures stability during operation, and the durable construction is built to withstand years of heavy use.
Important Installation Requirements
⚠️ Critical: Proper Concrete Foundation Required
Concrete thickness must be at least 5.9" (150mm) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
The Katool KT-H105 comes complete with a set of extension support adapters to expand your lifting versatility right out of the box. Every lift is backed by comprehensive installation and operation manuals, ensuring you have the support you need for a safe, successful installation and long-term reliable performance. Whether you're running a busy commercial shop or outfitting a personal garage, this lift delivers the power, safety, and flexibility you need to work smarter and more efficiently.
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to www.P65Warnings.ca.gov
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment. Please click this link to find out more:
Click Here
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift
structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty.
Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested.
Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
