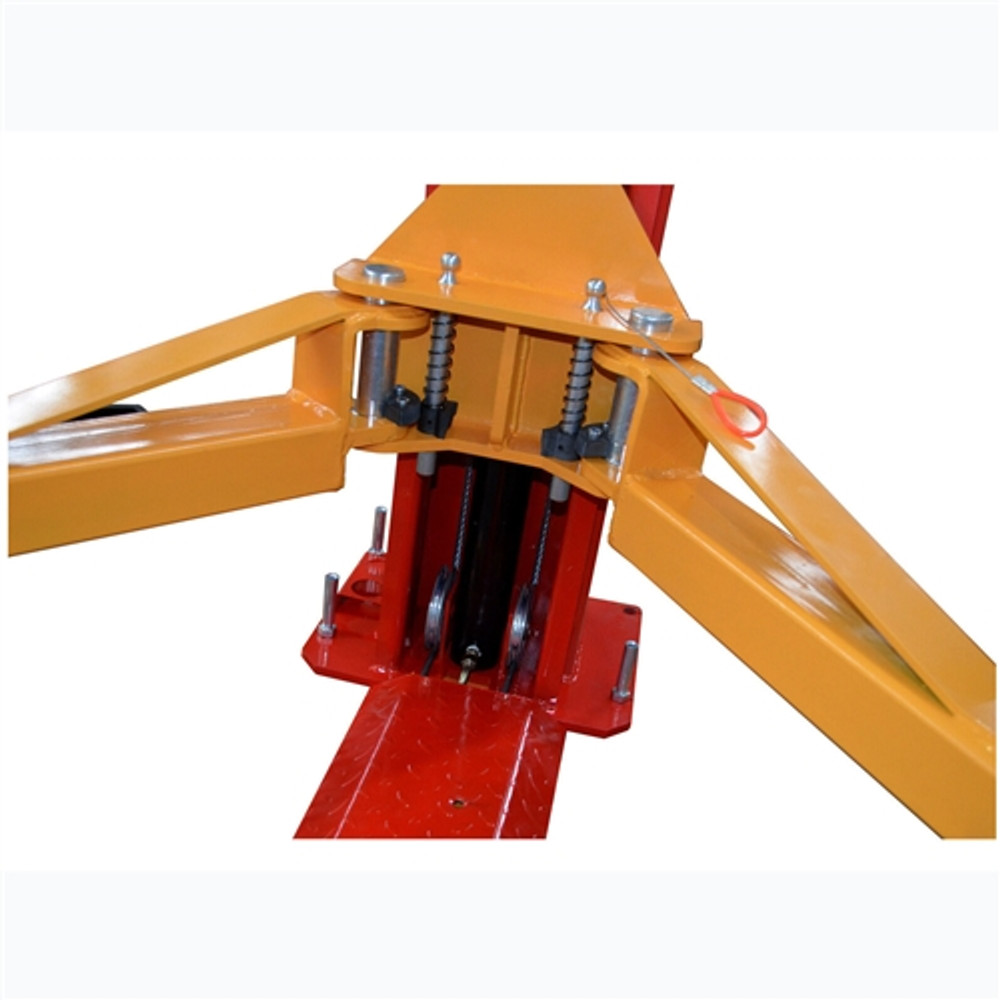

The Katool KT-H100 is a professional-grade 10,000 lbs capacity symmetric two-post car lift engineered for automotive shops, garages, and serious enthusiasts who demand reliable performance and CE approved safety standards. Featuring a base plate floor design, dual hydraulic chain-drive cylinders, and a striking red finish, the KT-H100 combines robust construction with versatile functionality to handle a wide range of vehicles with confidence.
This lift has been rigorously tested to meet 115% dynamic loading capacity standards and 150% static loading capacity, ensuring you can work safely under vehicles day after day. The symmetric arm configuration with 2-stage telescoping arms provides exceptional flexibility, with front and rear arm reach adjustable from 30.75" to 50.5" to accommodate various wheelbases and vehicle types. With a maximum lifting height of 70.75 inches and a generous 94.5-inch drive-thru clearance, you'll have ample working space for maintenance, repairs, and inspections.
Why Choose the KT-H100?
10,000 lbs Lifting Capacity – Handle sedans, trucks, SUVs, and light commercial vehicles with ease
CE Certified Safety – Rigorously tested to 115% dynamic and 150% static load standards for peace of mind
Versatile Arm Configuration – Symmetric 2-stage arms extend from 30.75" to 50.5" for maximum vehicle compatibility
Floor Plate Design – Base plate construction provides stability and simplified installation compared to buried-post systems
Dual Safety Features – Manual safety release accessible from both sides plus rubber pad door opening protection and feet-protection guardrails
Advanced Engineering & Construction
The KT-H100 is powered by a top-level hydraulic system with dual hydraulic chain-drive cylinders that deliver smooth, synchronized lifting action. The standard 220V/60Hz/1Ph motor (2.2KW) provides reliable power, with 110V operation available as an option. The lift features a compact minimum height of just 4.25 inches, allowing you to get under low-profile vehicles, while the overall height of 110.25 inches fits comfortably in most standard garage spaces.
Safety is paramount with manual safety release controls conveniently located on both sides of the lift, rubber pad door opening protection to prevent vehicle damage, and feet-protection safety guardrails that double as a practical tool storage box. The lift includes extension support adapter sets of +30mm and +120mm, giving you additional height options when working with lifted vehicles or larger tires.
Key Highlights at a Glance
Max Lifting Height: 70.75" – plenty of clearance for undercarriage work
Drive-Thru Clearance: 94.5" – easy vehicle positioning and access
Column Spacing: Inside columns at 110.25", outside columns at 128"
Overall Width: 142.25" fits standard two-car garage bays
Net Weight: 1,256 lbs – substantial construction without excessive weight
What's Included
Your KT-H100 lift comes complete with a set of extension support adapters (+30mm and +120mm) to accommodate various vehicle configurations right out of the box. The lift also features integrated feet-protection safety guardrails with a tool storage box, keeping your workspace organized and safe.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Important Installation Requirements
⚠️ Critical Concrete Requirements:
Concrete thickness must be at least 5.9" (150mm) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
Need Help Understanding Two-Post Lift Weight Capacities?
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers,
on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment. Please click this link to find out more: Click Here
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift
structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty.
Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested.
Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
