Katool KT-AS110D Asymmetric Direct-Drive 2 Post Car Lift 11,000 lbs

📄 Download Installation Manual

Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

Professional-Grade Performance at an Exceptional Value

The Katool KT-AS110D brings CE Approved and Certified performance to your garage or shop with an impressive 11,000 lbs lifting capacity. This asymmetric two-post lift features direct-drive cylinders for reliable, low-maintenance operation and a generous 70.75" maximum lifting height that handles everything from compact cars to full-size trucks and SUVs. Engineered with professional-grade safety standards, this lift has been tested to 150% static loading capacity and adopts the 115% dynamic loading capacity standard, ensuring it exceeds industry requirements for shop use.

Designed with asymmetric arms, the KT-AS110D positions the vehicle's center of gravity behind the columns, providing easier door access and enhanced clearance for working around the vehicle. The single point lock release system simplifies operation, while the overhead safety shutoff bar provides an additional layer of protection. With a 99.61" drive-thru clearance, you'll have ample room to maneuver vehicles safely into position. The lift operates on 220VAC / 60HZ / 1PH power (with 110V optional) and includes thoughtful features like rubber pad door opening protection and adjustable extended support adaptor sets that range from 3.94" to 6" for versatile vehicle compatibility.

See the KT-AS110D in Action

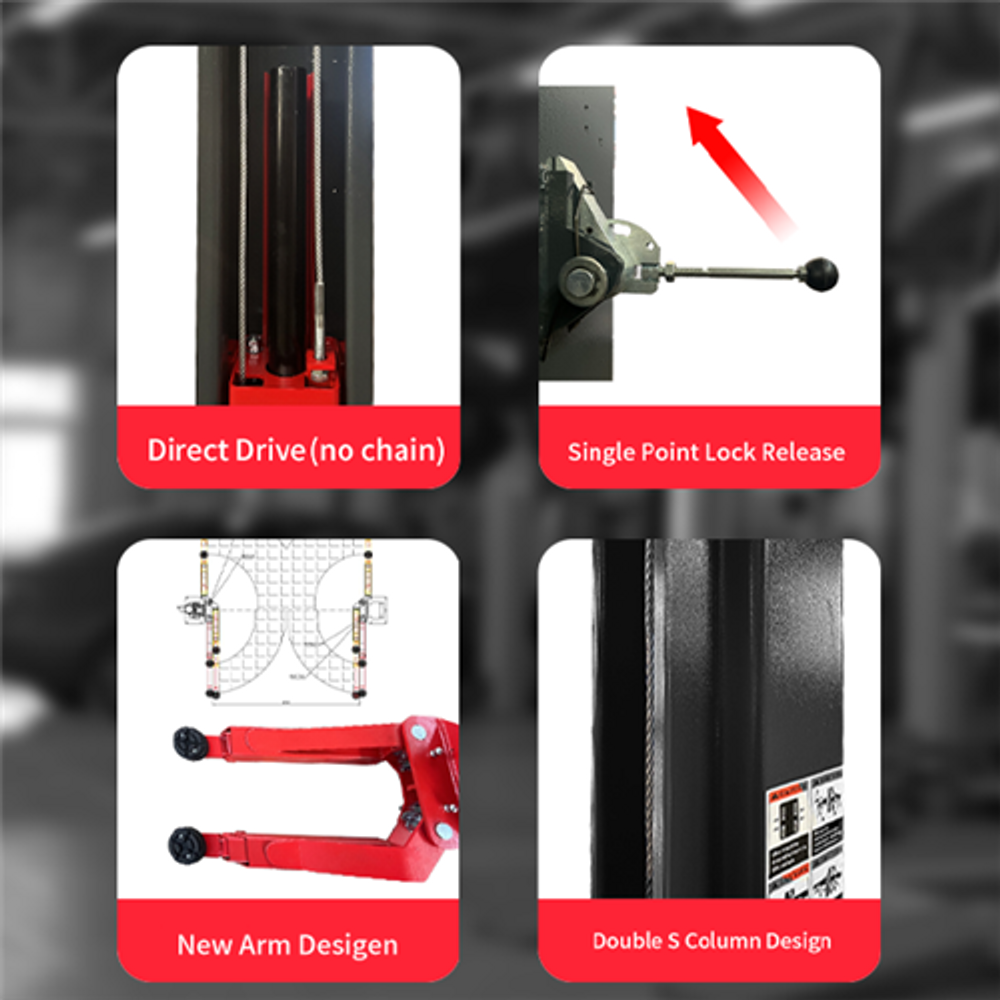

Key Highlights

11,000 lbs lifting capacity – handles a wide range of vehicles from sedans to light trucks
Direct-drive cylinders – proven reliability with fewer moving parts and less maintenance
CE Approved and Certified – tested to 150% static and 115% dynamic loading capacity standards
Asymmetric arms – optimized vehicle positioning for superior door access and work clearance
Single point lock release and overhead safety shutoff bar – convenient, safe operation

Important Concrete Requirements: This lift requires concrete that is at least 5.9" (150mm) thick with a 3000 PSI rating. Failure to install this lift on proper concrete could result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

What's Included

Your Katool KT-AS110D comes complete with a set of extension support adapters to accommodate a variety of vehicle styles and lift points. The included adjustable extended support adaptor sets range from 3.94" to 6", ensuring compatibility with different undercarriage configurations and providing secure, stable support for every lift.

Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.

Additional Resources

For more detailed information on how two-post lift weight capacities work and how to choose the right lift for your needs, download our Understanding Two-Post Lift Weight Capacities guide.

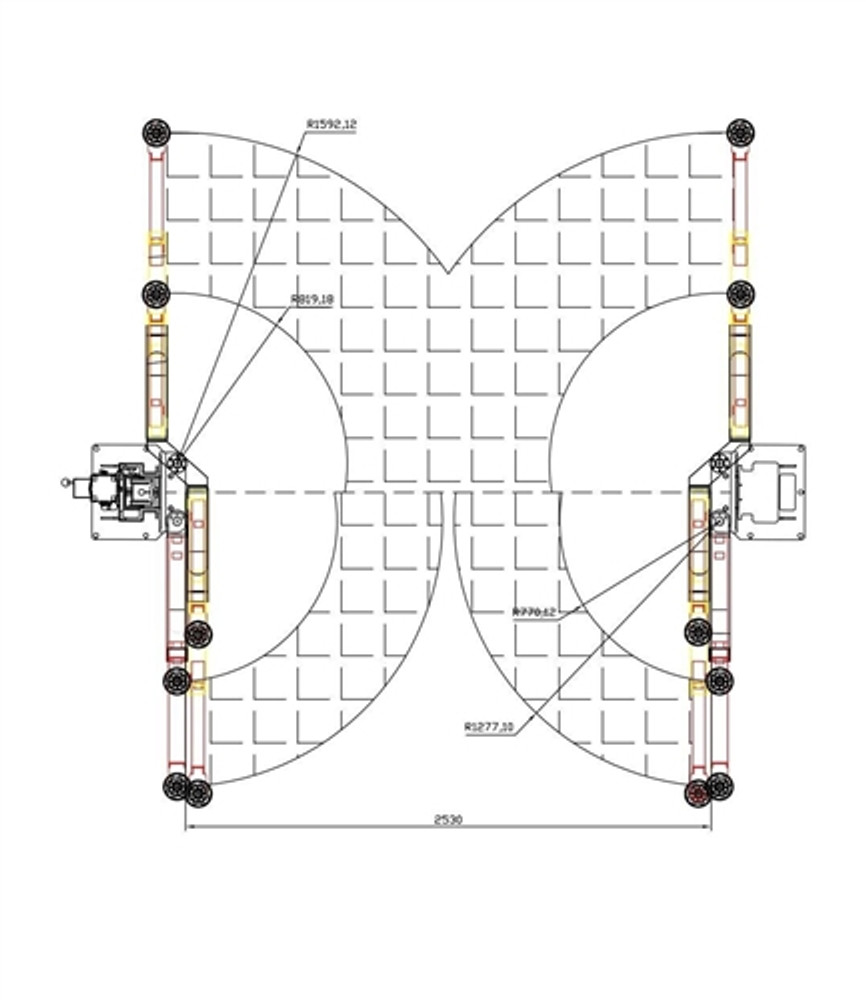

Click on Image to Download or Enlarge Specifications Diagram

Warranty Information

2 Post Lift Limited Warranty

We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.

A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment. Please click this link to find out more: Click Here

* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...

Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.

Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.

*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.

For the full warranty terms, disclaimer, and conditions Click Here
