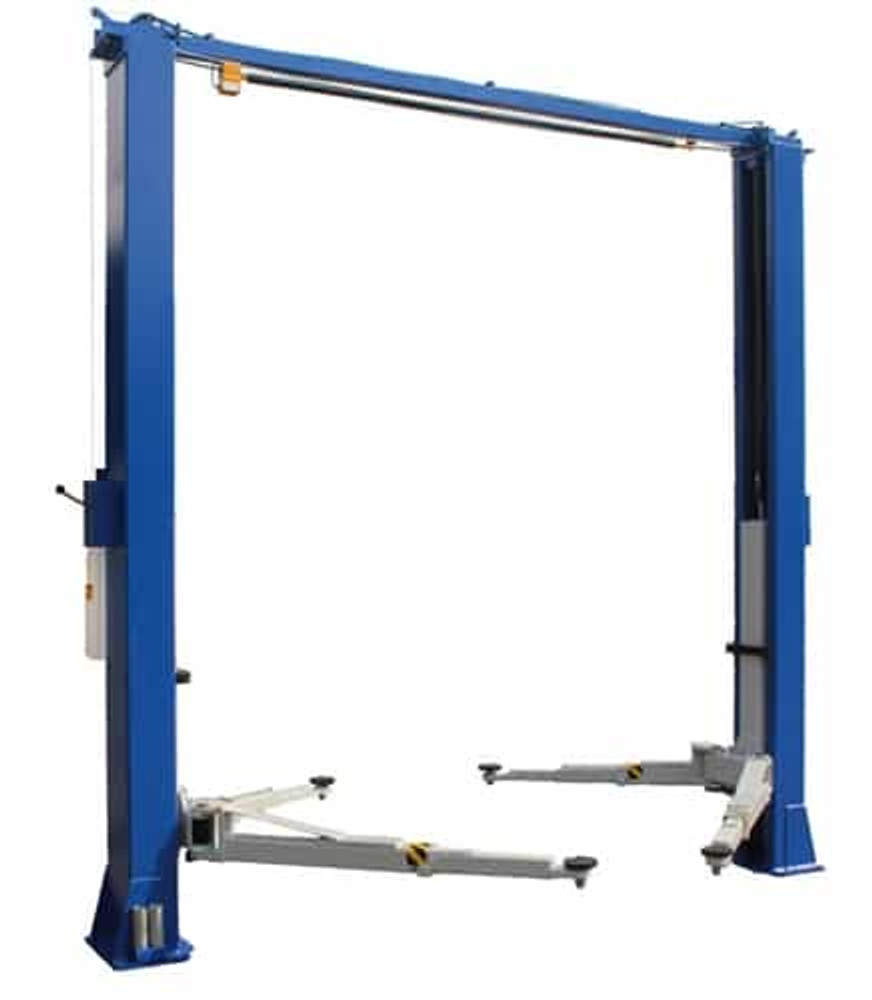

iDeal Lift TP10KAC-DX 10K 2 Post Bi-Symmetrical Car Lift ALI-ETL Certified

0 review Write a Review
$4,800.00
(You save: $1,138.00 )
Product Code: TP10KAC-DX
Hurry up! Current stock:
Options

ALI Certified iDeal Lift TP10KAC-DX 10K 2 Post Bi-Symmetrical Car Lift ALI-ETL Certified

📄 Download Installation Manual

Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

To view the lift inspection guide Click Here.

The iDeal TP10KAC-DX is a premium 10,000 lb capacity ALI Certified two-post automotive lift designed for professional shops and serious enthusiasts who demand versatility, safety, and durability. This bi-symmetric design clear floor lift combines the best of both worlds—offering both asymmetric and symmetric lifting configurations to accommodate a wide range of vehicles from compact cars to light trucks.

Engineered with offset three-stage short arms and an impressively low pad height of just 4 inches, the TP10KAC-DX provides exceptional ground clearance access for low-profile sports cars, sedans, SUVs, and trucks alike. The adjustable spin-up pads allow precise positioning under vehicle lift points, ensuring safe and balanced lifts every time. With a maximum lifting height of 71 inches (up to 76.5 inches with the tallest adapter), you'll have plenty of working room underneath for maintenance, repairs, and inspections.


Built for Performance and Reliability

The iDeal TP10KAC-DX features a rigid single-piece column construction that eliminates flexing and ensures rock-solid stability under load. The direct pull hydraulic cylinder provides smooth, consistent lifting power with an operating pressure of 3,050 PSI, raising vehicles to full height in approximately 50 seconds. The clear floor design means no base plates or tripping hazards—just clean, open workspace that's easy to sweep and maintain.

Safety is paramount with the single point lock release system, allowing quick and intuitive engagement and disengagement of the mechanical safety locks. The lift is equipped with rubber door guards to protect vehicle doors and panels during positioning. Each arm is rated to handle up to 2,500 lbs, and truck adapters are included for added versatility when lifting larger vehicles with higher ground clearance.


Key Highlights

  • 10,000 lb lifting capacity handles a wide variety of vehicles from sports cars to light-duty trucks
  • Bi-symmetric arm design offers both asymmetric and symmetric configurations for maximum flexibility
  • Low 4-inch pad height with offset three-stage short arms reaches modern low-profile vehicles with ease
  • ALI Certified and ETL listed for proven safety and compliance with industry standards
  • Clear floor design with no base plates—clean workspace and easy vehicle positioning
  • Single point lock release for fast, user-friendly safety lock operation
  • Rigid single-piece column construction with direct pull hydraulic cylinder for dependable performance
  • Adjustable spin-up pads and included truck adapters accommodate diverse vehicle types and lift points
  • Requires only 12-foot minimum ceiling height, making it ideal for many garage and shop environments
  • Backed by 1-year parts warranty and 5-year structural warranty for long-term peace of mind

Space and Installation

With an overall width of 137 3/16 inches (145.5 inches with power lift unit) and an overall height of 144 inches, the TP10KAC-DX fits comfortably in most professional and home garage spaces with a 12-foot ceiling. The generous 104-inch drive-through width and 116-inch width between columns provide ample clearance for vehicles to be driven on and positioned easily.

Installation requires a minimum concrete thickness of 4.25 inches with 3,000 PSI strength. The lift operates on standard 220V, 20 AMP, single-phase power, making electrical setup straightforward in most facilities. The unit ships in a compact configuration with dimensions of 140" L x 19" W x 40" H and a shipping weight of 1,750 lbs.

Professional-Grade Performance
The TP10KAC-DX is one of iDeal Lift's most popular models, trusted by professional technicians and automotive enthusiasts for its robust construction, versatile bi-symmetric design, and intuitive operation. Whether you're servicing daily drivers, performance vehicles, or light trucks, this lift delivers the reliability and features you need.


Product Images

iDeal TP10KAC-DX 3 stage arms

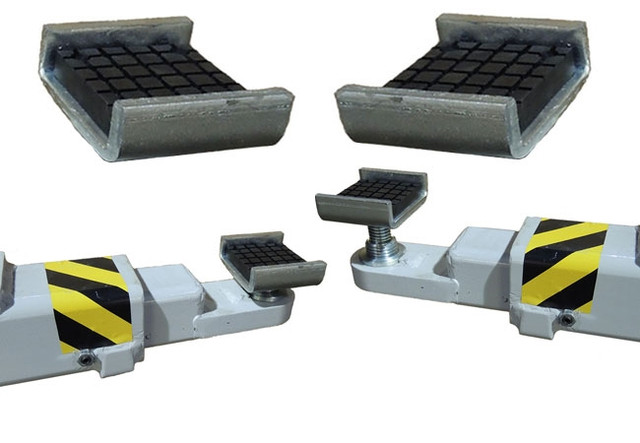

iDeal TP10KAC-DX offset three-stage short arms with adjustable spin-up pads


Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.

Structural Warranty:
The following parts and structural components carry a five year warranty:

  • Columns
  • Top Rails
  • Beams
  • Uprights
  • Arms
  • Swivel
  • Pins
  • Legs
  • Carriages
  • Tracks
  • Cross Rails
  • Overhead Beams

Limited One-Year Warranty:
Tuxedo Distributors, LLC offers a limited one-year warranty to the original purchaser of iDeal Lifts and Wheel Service in the United States and Canada. Tuxedo Distributors, LLC will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.

Other Limitations:
This warranty does not cover:

  1. Parts needed for normal maintenance
  2. Wear parts, including but not limited to cables, rub blocks, chains, rubber pads and pulleys
  3. Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter.
  4. On-site labor

Upon delivery of goods, the Customer has sole responsibility to notify Tuxedo Distributors, LLC of missing parts or concealed damage within 72 hours of receipt. If no notification of missing parts or of concealed damage is made, all parts will be purchased after 72 hours has passed.

Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.

The customer is required to notify Tuxedo Distributors, LLC of any missing parts within 72 hours. Timely notification must be received to be covered under warranty.

Tuxedo Distributors, LLC will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.

Tuxedo Distributors, LLC reserves the right to make improvements and/or design changes to its without any obligation to previously sold, assembled or fabricated equipment.

There is no other express warranty on the iDeal lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.

To the fullest extent allowed by law, Tuxedo Distributors, LLC shall not be liable for loss of use, cost of cover, lost profits, inconvenience, lost time, commercial loss or other incidental or consequential damages.

This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.

Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state
