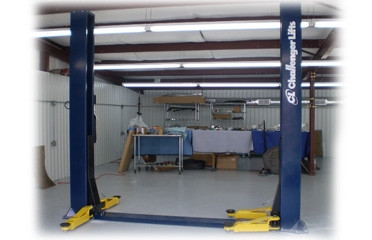

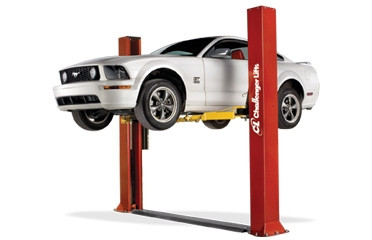

The Challenger CLFP9 two-post car lift is engineered specifically for low ceiling environments, featuring a 10' 7/8" overall column height that maximizes your available workspace without sacrificing lifting performance. With a 9,000 lbs. capacity and an impressive 78-1/8" rise height, this professional-grade lift delivers the power and versatility you need for a wide range of vehicle service applications. Whether you're a home enthusiast with limited ceiling clearance or operating a professional service shop, the CLFP9 provides dependable, long-lasting durability with smooth, reliable lifting motion that inspires confidence with every use.
Designed for maximum versatility, this floor plate car lift accommodates an exceptionally wide variety of vehicle lifting points, including short and long wheelbase configurations as well as wide body imports. The standard 3-stage front and 3-stage rear arms deliver exceptional arm sweep, retraction, and reach, ensuring you can precisely position the lift pads on manufacturer-designated lift points across virtually any vehicle type. Combined with double telescoping screw pads that adjust to multiple heights, the CLFP9 minimizes the need for additional adapters while providing secure, stable lifting for cars, trucks, and SUVs alike.
Perfect for Low Ceiling Applications
The defining advantage of the CLFP9 is its optimized design for facilities with limited overhead clearance. Requiring only 10' 1-7/8" ceiling height, this lift opens up installation possibilities in garages, shops, and service bays where standard-height lifts simply won't fit. The low profile drive-over floor plate makes vehicle positioning effortless, eliminating awkward approaches and allowing smooth entry and exit. Despite its compact vertical profile, you still achieve an exceptional 78-1/8" rise height, providing ample undercarriage access for comprehensive service work, diagnostics, and repairs.
With an 11' 5-1/2" overall width and 98-3/16" drive-thru clearance, the CLFP9 accommodates full-size vehicles while maintaining a footprint that fits efficiently into your workspace. The 109" inside column measurement ensures you have plenty of room to maneuver around the vehicle once it's lifted, making every service task more comfortable and efficient.
Exceptional Arm Reach and Retraction for Every Vehicle

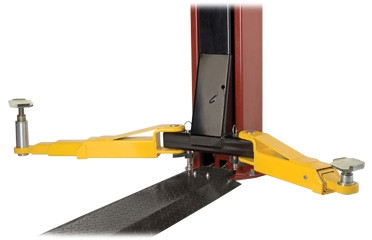

The CLFP9's 3-stage front and 3-stage rear arms are designed to provide excellent reach and retraction, giving you the flexibility to hit the designated lifting points of virtually any manufacturer's vehicle. With front and rear arm reach of 24-1/2" / 44-1/2" (both positions), you can confidently position lift pads exactly where they need to be, whether you're working on a compact car with a tight wheelbase or a full-size truck with extended reach requirements.
This outstanding adjustability ensures you can accommodate short wheelbase vehicles, long wheelbase trucks, and wide body imports with equal ease. The arms retract fully to minimize interference during vehicle positioning, then extend precisely to the correct lift points. Combined with adjustable screw pad heights from 4" to 5-7/8", the CLFP9 adapts to a remarkable variety of vehicle undercarriage configurations without requiring constant adapter changes.
Note: Frame engaging adapters (10314 or 10318) are required when lifting vehicles with frame construction.
Heavy-Duty Chain Lifting System with Cable Equalization

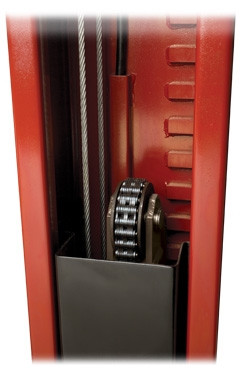

At the heart of the CLFP9 is a robust electric/hydraulic heavy-duty chain lifting operation with cable equalization, engineered to deliver smooth, synchronized lifting performance with every cycle. This proven lifting system ensures that both columns rise in perfect harmony, maintaining vehicle stability throughout the entire lifting process. The cable equalization system continuously balances the load across all four arms, providing consistent, reliable operation even when working with unevenly distributed vehicle weights.
Powered by a 2HP single-phase motor operating on 208v-230v, 60Hz, the CLFP9 delivers a rapid 60-second speed of rise, minimizing wait time and maximizing productivity. Each arm is rated for a maximum load of 2,250 lbs., ensuring safe, confident lifting when the total vehicle weight is properly distributed across all four lifting points.
The dual point mechanical pull-lock cable release system provides secure, positive locking at any height, with easy manual release from either column. This dual-release design enhances safety and convenience, allowing you to operate the lift from whichever side is most accessible during your workflow.
Built for Durability and Long-Term Performance
The CLFP9 is built with professional-grade components designed to withstand the demands of daily use. The fully gussetted base plate design significantly reduces column deflection under load, maintaining structural integrity and ensuring stable, predictable lifting performance over years of operation. This reinforced construction distributes stress evenly throughout the frame, preventing premature wear and maintaining precise alignment.
A premium powder coat finish provides long-lasting durability and resistance to scratches, chemicals, and the rigors of a busy shop environment. Plated arm pins inhibit rust and corrosion, ensuring smooth arm adjustment and long service life even in humid or harsh conditions. Rubber foot pads on each screw pad minimize stress to the vehicle's delicate undercoatings, protecting your customers' vehicles while providing secure, non-slip contact at each lift point.
With a shipping weight of 1,925 lbs., the CLFP9 has the substantial construction needed for professional service work, while still being manageable for installation in most facilities.
Key Highlights
9,000 lbs. lifting capacity with 78-1/8" rise height for professional service applications
10' 7/8" column height is ideal for low ceiling environments — requires only 10' 1-7/8" ceiling clearance
3-stage front and rear arms with 24-1/2" / 44-1/2" reach provide maximum versatility for diverse vehicle types
Electric/hydraulic chain lifting system with cable equalization for smooth, synchronized operation
Dual point mechanical pull-lock release for safe, convenient operation from either column
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Available Colors
The Challenger CLFP9 is available in red and blue only, allowing you to choose the finish that best matches your shop aesthetic or personal preference.
Expand Your Productivity
The CLFP9 serves as an excellent foundation for a complete productivity center. Many accessories are available to enhance functionality and adapt the lift to your specific service needs, from additional adapters and pad extensions to integrated tooling solutions. Transform your workspace into a comprehensive vehicle service station with the versatile Challenger CLFP9.
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation,
abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when
repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is
authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
