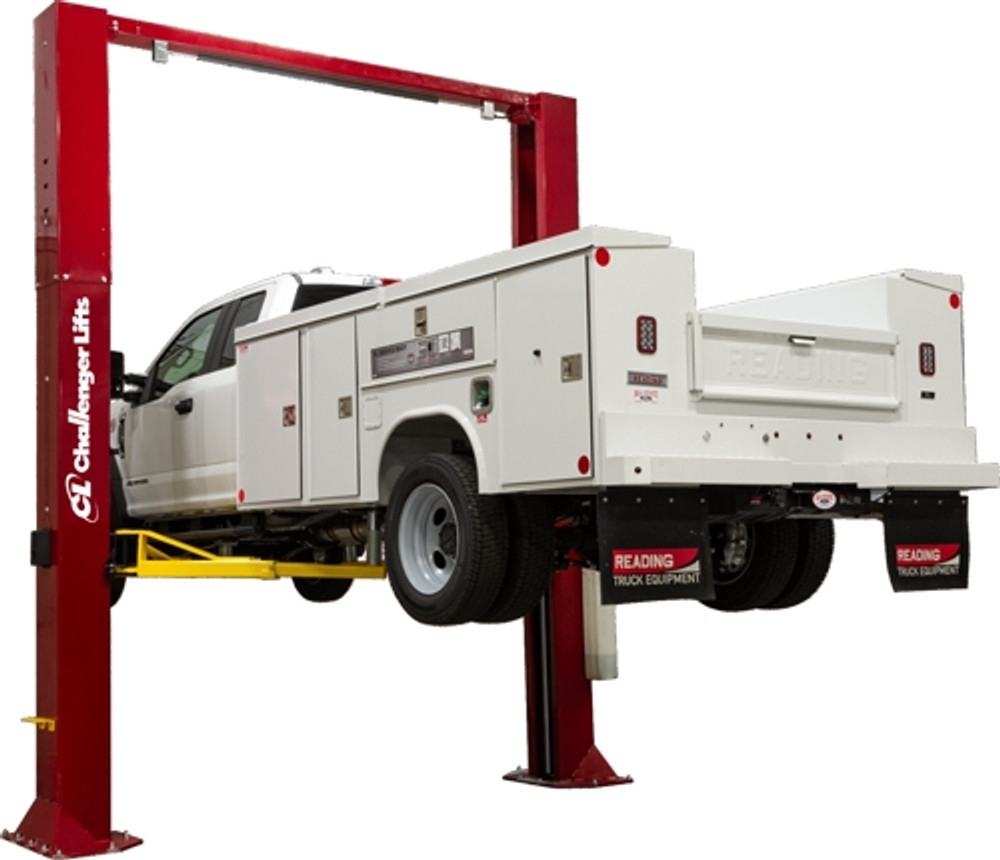

The Challenger CL20 Series represents the pinnacle of heavy-duty two-post lift engineering. Built from the ground up to meet rigorous ALI/ANSI safety standards, this 20,000 lb capacity lift delivers uncompromising strength and versatility for professional shops handling everything from compact cars to tall, heavy trucks. Engineered wider, taller, and stronger than standard two-post lifts, the CL20 is purpose-built to withstand the demands of the toughest fleet maintenance environments while providing superior technician access and vehicle safety.
What sets the CL20 apart is its exceptional flexibility. Available in one of three height variations and one of three width configurations, this lift adapts to your shop's specific ceiling clearance and bay layout requirements. The innovative synchronizer cable system easily adjusts to any of the three lift height options without requiring extra parts or making cable connections inaccessible—a critical feature for long-term serviceability. Whether you're working on full-size pickups, commercial vans, or heavy-duty fleet vehicles, the CL20 provides the robust lifting power and accessibility you need to work efficiently and safely.
Built for Heavy-Duty Performance
The Challenger CL20 doesn't compromise on strength or durability. With a 20,000 lb lifting capacity and 5,000 lb maximum load per arm, this lift handles the heaviest vehicles in modern fleets with confidence. The 2-stage front and rear arms provide an impressive reach range from 38.5" minimum to 62" maximum, allowing you to position lift points precisely on a wide variety of vehicle types and wheelbases.

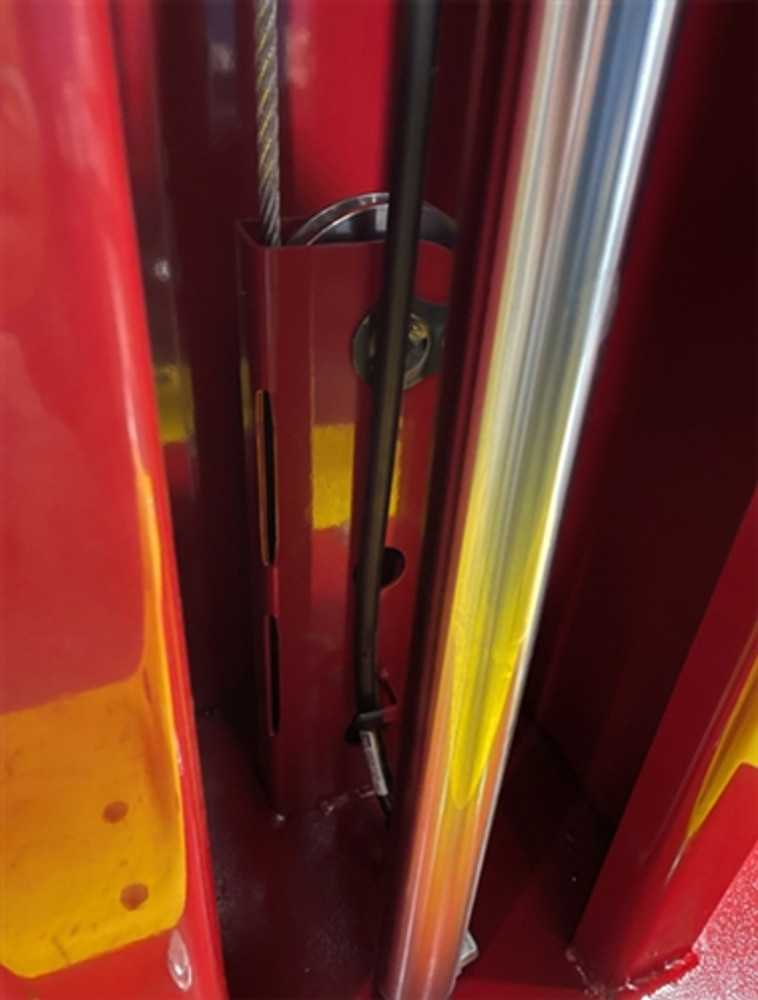

At the heart of the lift's reliability is an oversized 5-inch diameter steel pulley paired with heavy-duty 3/8" aircraft-grade cable. This robust equalization system reduces stress on the cable and pulley assembly, significantly increasing component life and minimizing maintenance. The 60-inch lifting carriage design further enhances durability by distributing loads more evenly across the lift structure, extending the service life of the entire system.
Powered by a 3HP single-phase motor (208/230V), the CL20 reaches full rise in approximately 62 seconds, optimizing workflow without sacrificing smooth, controlled operation. Optional 3-phase electrical configurations are available at the time of order for shops with 3-phase power infrastructure. The lift requires 90-120 psi air supply for its pneumatic lock release system, ensuring fast and reliable engagement.
Unmatched Installation Flexibility
One of the most impressive features of the Challenger CL20 is its adaptability to nearly any shop environment. The lift is available in three overall height configurations: 162", 168", or 174" for standard height applications, or 186", 192", or 198" for extended height installations (CL20-2 model). This means you can select the perfect height to match your facility's ceiling clearance while maximizing rise height for technician access.
Width flexibility is equally impressive. The CL20 offers three width options: 166.75" standard width, 160.75" narrow (-6"), or 154.75" extra-narrow (-12"). The between-columns measurement adjusts accordingly to 132", 126", or 120", while maintaining generous drive-thru clearance of 116.25", 110.25", or 104.25" respectively. This versatility allows the lift to fit into existing bays without costly modifications or wasted space.
The symmetric lifting configuration provides balanced vehicle positioning and allows easy access to the vehicle's interior from both sides. The adjustable width design means you can fine-tune arm positioning for optimal support on different vehicle types, from narrow sports cars to wide commercial trucks.
Safety and Convenience Features
Safety is paramount in every aspect of the CL20's design. The single-point air-actuated lock release allows technicians to disengage both columns simultaneously with one simple action, ensuring synchronized lowering and reducing the risk of operator error. The lift meets all ALI (Automotive Lift Institute) and ANSI certification requirements, giving you peace of mind that your equipment meets the industry's strictest safety standards.
Dual integrated rubber door guards protect vehicle doors from accidental contact with lift columns during loading and unloading. Heavy-duty rubber screw pads accommodate a wide range of OEM-recommended vehicle lifting points, ensuring secure contact without damaging pinch welds or frame rails. The lift includes 4" and 8" stack adapters that allow you to reach higher lift points on trucks and SUVs, with maximum rise heights (with adapters) reaching up to 84.6".
Screw pad height is adjustable from 6.2" minimum to 7.6" maximum, providing flexibility for different vehicle ground clearances. The lift also includes organizer racks with hardware to keep adapters and accessories neatly stored and within easy reach.
See the CL20 in Action
Watch the Challenger CL20 Series lift in operation and see its features firsthand
Key Advantages at a Glance
20,000 lb lifting capacity with 5,000 lb max load per arm—ready for heavy trucks and commercial vehicles
Three height options and three width configurations for unmatched installation flexibility in any bay
Oversized 5" steel pulley and 3/8" cable reduce stress and extend component life
60" lifting carriage design distributes loads evenly for long-term durability
Standard Equipment Included
Every Challenger CL20 comes complete with everything you need to start lifting right away:
B12162S-12 heavy-duty screw pads
4" and 8" stack adapters for extended reach
Organizer racks with mounting hardware for accessory storage
Dual integrated rubber door guards
Standard lift colors are Red, Blue, and Black. Specify your preferred color at the time of order.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
To View or Download the CL20 Service Bay LayoutClick Here
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation,
abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when
repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is
authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
