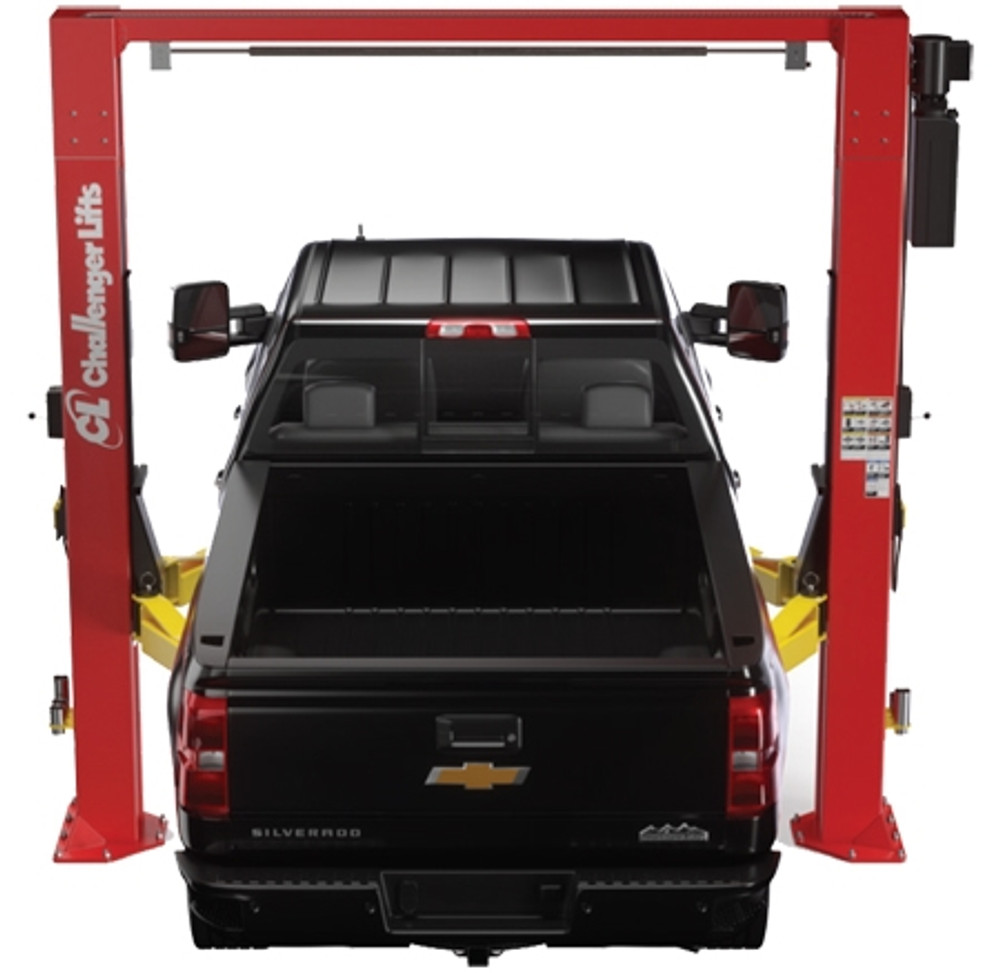

The Challenger CL12A-LC delivers the full power and versatility of the revolutionary CL12A series in a compact, low-ceiling design perfectly suited for shops where overhead clearance is at a premium. With a reduced overall height of just 11' 11" (143 inches), this 12,000 lbs. capacity two-post lift provides professional-grade lifting capability without requiring the tall ceiling heights of standard models.
This ALI® Certified symmetric lift features 3-stage front and 3-stage rear arms that provide exceptional reach and retraction, combined with premium telescoping footpads for secure vehicle contact. The CL12A-LC isn't just a space-saving solution—it's a fully featured, professional-grade lift designed to handle cars, trucks, vans, SUVs, and even electric vehicles with ease, all while fitting into facilities with lower ceiling restrictions.
Adaptability Meets Professional Performance
What sets the Challenger CL12A-LC apart is its remarkable flexibility in installation and operation. This lift offers adjustable width at the time of installation, allowing you to configure the columns at 142", 148", or 154" overall width to perfectly match your bay dimensions and workflow requirements. This means you can optimize drive-thru clearance from 103.5" to 115.5" depending on your shop's specific needs.
The 3-stage arm design on both front and rear positions provides greater extension and retraction than traditional two-stage arms, giving you 27.5" minimum reach and 59" maximum reach. This extended range makes it simple to accommodate everything from compact cars to full-size trucks and modern wide-body electric vehicles when combined with the optional TFPK footpad kit. Stack Adapter Kits (P/N 10315) come standard-equipped with every CL12A-LC, further enriching its versatility and allowing smooth adjustments to accommodate a wide range of vehicle lifting points.
For shops that need even greater flexibility, optional 1-foot and 2-foot column height extensions are available, allowing you to customize the lift's specifications to match your facility and service requirements as your business evolves.
Built for Modern Vehicles, Including EVs
Today's automotive landscape is rapidly evolving, with electric vehicles, hybrid powertrains, and wider vehicle designs becoming the norm. The CL12A-LC is engineered to meet these challenges head-on. Its symmetric lifting configuration provides balanced support for a diverse range of vehicles, while the adjustable arm reach and optional wide-footpad compatibility ensure you can safely service the latest electric vehicles with their unique battery placement and weight distribution.
With a rise height of 74-3/4" in the screw pads' highest position, the CL12A-LC provides ample working clearance for undercarriage service, maintenance, and repair work. The lift operates with a 2HP, 208-230V, 60Hz, single-phase motor, raising vehicles to full height in approximately 60 seconds—keeping your technicians productive and minimizing vehicle cycle times.
Safety and Certification You Can Trust
Safety isn't an option—it's a commitment. The Challenger CL12A-LC proudly bears ALI® Certification, demonstrating compliance with the automotive lift industry's most rigorous safety and performance standards. This certification provides peace of mind that your investment meets or exceeds all requirements for commercial shop use, protecting both your technicians and your business.
Every component of the CL12A-LC is designed and manufactured to deliver long-lasting reliability under the demanding conditions of professional automotive service. From the heavy-duty columns and carriages to the precision-engineered arms and locking mechanisms, this lift is built to perform day after day, year after year.
Key Advantages of the CL12A-LC
Low-ceiling design with 11' 11" overall height — fits shops with limited overhead clearance while maintaining full 12,000 lbs. lifting capacity
Adjustable width installation options — choose 142", 148", or 154" overall width to optimize your bay layout and drive-thru clearance
3-stage front and rear arms — provide superior reach (27.5" to 59") for handling a wide variety of vehicle sizes and lifting points
Ready for electric vehicles — designed to service EVs and wider modern vehicles when combined with optional TFPK footpad kit
ALI® Certified — meets the industry's highest safety and performance standards for professional shop use
The Right Lift for Your Business
Whether you're setting up a new shop, upgrading aging equipment, or expanding your service capabilities, the Challenger CL12A-LC represents a smart investment in quality, safety, and long-term value. Its low-ceiling design opens up installation possibilities in facilities where standard lifts won't fit, while its professional-grade construction and versatile features ensure you can service virtually any vehicle that rolls into your bay.
Experience the future of automotive lifting with a two-post lift that refuses to compromise on performance, even in compact form. The CL12A-LC proves that superior lifting power, advanced features, and exceptional versatility can come in a space-efficient package. Trust Challenger Lifts to elevate your service offerings and empower your technicians with equipment that works as hard as they do.
Available in Red, Blue, and Black to match your shop's aesthetic and branding.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation,
abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when
repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is
authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
