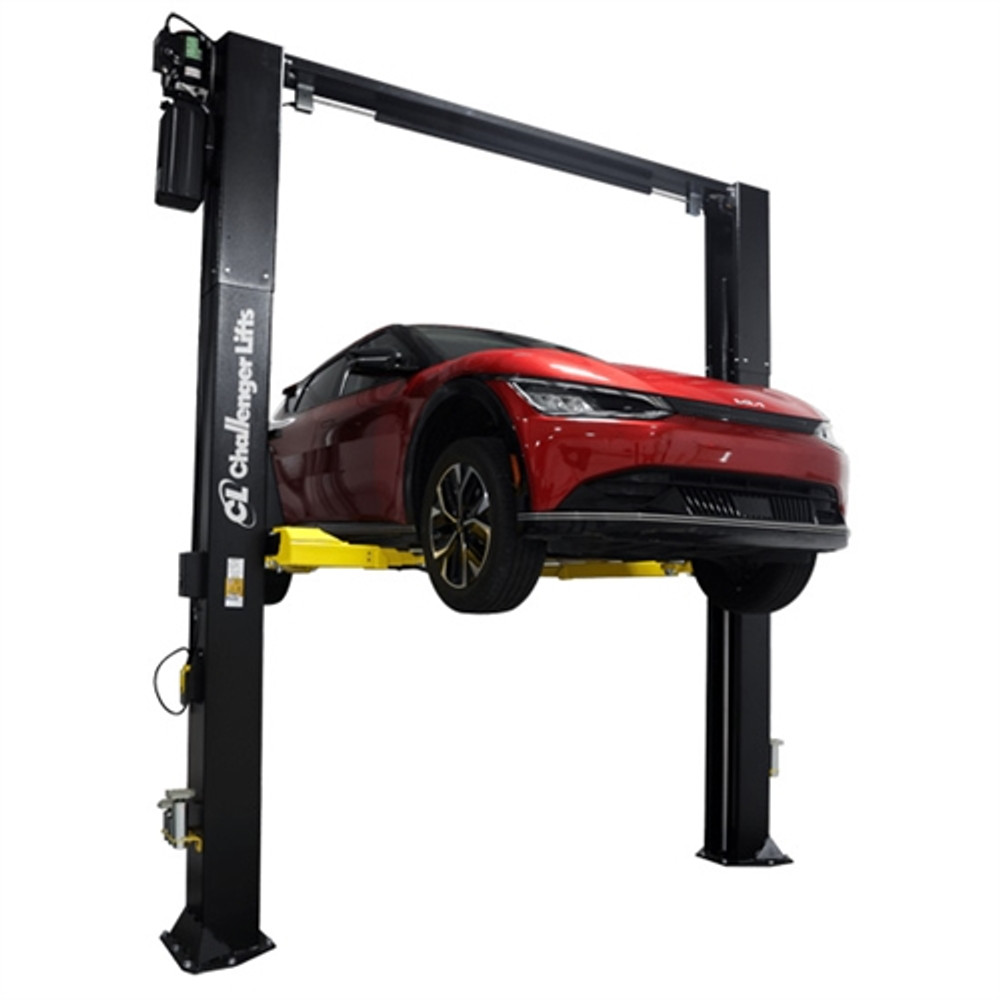

In today's fast-paced automotive service industry, efficiency and versatility are paramount. That's where the Challenger CL10AV3-DPC-QC with exclusive Versymmetric® technology truly shines. This innovative 10,000 lbs. capacity two-post lift allows you to service the broadest range of vehicles—from compact cars and luxury EVs to SUVs and trucks—significantly enhancing your shop's capability and, most importantly, your bottom line.
With its 3-stage front and rear arms equipped with the pioneering directSPOT™ design, the days of shuffling a vehicle back and forth to position the front arm properly are over. Now, you can achieve accurate first-try spotting every time, skyrocketing your productivity and reducing vehicle spotting time dramatically. The Versymmetric® offset front arms provide direct access to vehicle lift points and safely lift both symmetrically and asymmetrically within the same service bay, maximizing service capabilities and revenue potential.
QuickCycle™ Technology: Speed That Pays for Itself
The CL10AV3-DPC-QC comes equipped with the QuickCycle™ upgrade, which redefines efficiency with astonishing lift speed. Rising in just 24 seconds (compared to 38 seconds on standard models), this dramatic increase in speed is achieved by upgrading from the standard 2HP motor to a more powerful 3HP motor. This impressive speed propels your service capabilities to new heights and allows your team to handle more vehicles per day, enhancing customer satisfaction, improving throughput, and boosting your shop's reputation and profitability.
For shops prioritizing speed and efficiency—especially express service lanes or high-volume operations—the QuickCycle™ DPC feature is a game-changer. The faster rise and descent cycles mean less waiting, more productivity, and a faster return on your investment.
Dual Pendant Power Controls: Precision at Your Fingertips
The Dual Pendant Power Controls are always within technician reach when small spotting adjustments matter the most. These dual pendant controls expedite vehicle spotting by providing an unobstructed view to lifting points, making the process smoother and more intuitive.
OSHA compliant keyed lockout safety button locks out power to the lift for enhanced safety compliance
Up power button raises the lift smoothly and quickly
Down power button / dual single-point mechanical lock release system lowers the lift from either column, providing flexibility and ease of operation
The pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life, reducing maintenance needs and downtime.
Adjustable Width for Every Shop and Every Vehicle
Understanding that one size does not fit all, the CL10AV3-DPC-QC features three adjustable width settings ranging from 11' 6.5" to 12' 6.5", ensuring the lift can adapt to your shop's unique requirements and the wide variety of vehicles you service:
Narrow (11' 6.5"): Ideal for space-constrained bays or express pad configurations
Universal (12' 0.5"): Perfect for cars, SUVs, trucks, and most electric vehicles
Wide (12' 6.5"): Optimal for cars, EVs, and luxury vehicles requiring extra clearance
This adjustable design maximizes your service flexibility and ensures you can accommodate virtually any vehicle that rolls into your bay, from compact sedans to wide-body trucks and the latest electric vehicles.
Flexible Height Configurations for Any Bay
The CL10AV3-DPC-QC Series offers multiple height configurations to fit shops with varying ceiling heights:
CL10AV3-DPC-QC (Standard): Column height 11' 2" or 11' 8" – fits a 12-foot ceiling minimum
CL10AV3-2-DPC-QC (2-Foot Extension): Column height 13' 2" or 13' 8"
CL10AV3-3-DPC-QC (3-Foot Extension): Column height 14' 2" or 14' 8"
With a rise height of 74-1/8" and a maximum extended cylinder height of 11' 11", the CL10AV3 provides ample clearance for most service and repair tasks. The standard model fits a 12-foot ceiling height, while additional 2-foot or 3-foot extensions are available for shops with taller bays.
Built to Last: Premium Construction & Safety Features
Challenger has engineered the CL10AV3-DPC-QC with heavy-duty components designed for longevity and reliability:
Oversized 5" diameter pulley and heavy-duty 5/16" cable reduce stress on the equalization system and increase cable life
48" elongated carriage design increases lift life and stability
Fully gusseted base plate design increases column rigidity and structural integrity
Padded overhead shut-off system prevents vehicle damage and provides peace of mind
Premium double telescoping screw pads adjust to multiple heights (Min. 3-7/8" / Max. 6-1/2"), minimizing the need for adapters
Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
Premium powder coat finish with textured formula (as of Nov 1, 2022) provides long-lasting durability and a professional appearance
Low lock height of 12" net rise for safe, secure locking at minimal height
Every component is designed to deliver years of trouble-free operation, from the heavy-duty cables and oversized pulleys to the rugged powder-coated finish.
Key Highlights at a Glance
10,000 lbs. lifting capacity with ALI® Certified safety and reliability
QuickCycle™ DPC increases rise speed to just 24 seconds (vs. 38 seconds standard)
Versymmetric® 3-stage arms with directSPOT™ technology for first-try spotting every time
Three adjustable width settings from 11' 6.5" to 12' 6.5" to fit any vehicle and any bay
Dual Pendant Power Controls for unobstructed view and easy operation from either column
Made in the USA with Pride
Choose the CL10AV3-DPC-QC and expand your service potential with Challenger's most versatile, easy-to-operate two-post lift. Proudly ALI® Certified and Made in the USA, it's not just an investment in equipment but an investment in your shop's future, promising reliability, safety, and unmatched performance.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation,
abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when
repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is
authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
