CLXP9 Low Profile Express Service Pad Manual Available
To view the CLXP9 Low Profile Express Service Pad Manual click here. Important: Please pay special attention to page 2 of the CLXP9-RS-SUP-A when installing.
Maximize Productivity with the Ultimate Express Bay Lift

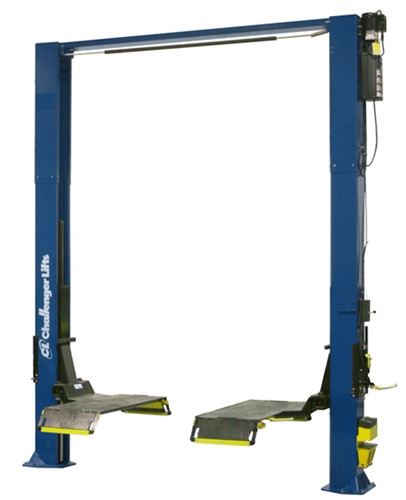

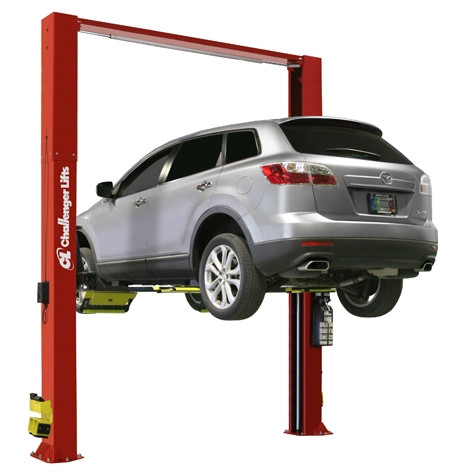

The Challenger CL10A-XP9-QC Series represents the pinnacle of express service lifting technology. With an impressive 9,000 lb. capacity and innovative drive-on express pad design, this ALI-certified 2-post lift eliminates the guesswork from vehicle positioning, enabling accurate first-try spotting that dramatically boosts productivity and reduces operator frustration in fast-paced service environments.
What truly sets the CL10A-XP9-QC apart is its revolutionary Quick Cycle™ technology, which accelerates lifting operations by an astounding 30 percent compared to standard models. Experience lightning-fast 24-second rise time and 17-second descent with the Quick Cycle system, compared to 38 seconds with standard configurations. In high-volume express bays, these time savings translate directly to increased throughput and profitability.
Designed with versatility in mind, the CL10A-XP9-QC offers adjustable width settings from 11'6-1/2" to 11'11" and multiple column height configurations (standard 11'2"/11'8", 2-foot extension to 13'2"/13'8", or 3-foot extension to 14'2"/14'8"), ensuring the lift adapts perfectly to your facility's ceiling height requirements. The standard model accommodates 12-foot minimum ceiling heights, with optional extensions available for taller bays.
Built for the demanding rigors of express service environments, this American-made lift features Dual Pendant Controls for expedited vehicle spotting from either column with unobstructed views of lift points, a 90-inch drive-thru clearance, and an impressive 74-1/8" rise height. Premium engineering touches include an oversized 5" diameter pulley with heavy-duty 5/16" cable that reduces equalization system stress and dramatically extends cable life.

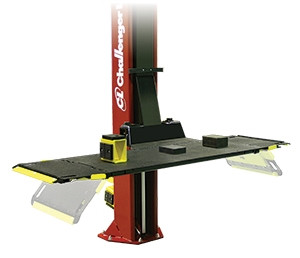

CLXP9 Low Profile Express Service Pad System
The integrated CLXP9 low profile express service pad is purpose-built for rapid vehicle positioning in express service applications. This innovative pad system features a compact 2.25" platform height with 24" width and selectable 58" / 66.5" / 75" platform lengths to accommodate diverse vehicle wheelbases. The 31.5" width between platforms provides ample clearance for most vehicles while maintaining optimal lift point access.
Each lift includes a comprehensive spotting block package with (4) 1.5-inch rubber spotting blocks, (4) 3-inch rubber spotting blocks, and (2) convenient spotting block storage caddies, ensuring you always have the right adapter height for any vehicle configuration. The drive-on pad design eliminates time-consuming arm positioning, allowing technicians to focus on service work rather than lift setup.
Premium Engineering & Safety Features
Challenger's commitment to quality and longevity is evident throughout the CL10A-XP9-QC. The 48-inch elongated carriage design increases operational life, while the fully gusseted base plate enhances column rigidity and stability under load. A pulley-less jacketed single-point lock release system delivers smoother operation and extended service life compared to conventional designs.
Safety features are comprehensive and thoughtfully designed. The padded overhead shutoff system prevents costly vehicle damage, while dual integrated rubber door guards protect vehicle panels from inadvertent contact. Premium double telescoping screw pads adjust to multiple heights, minimizing the need for adapters and ensuring secure vehicle contact. Plated arm restraints and arm pins inhibit rust formation and provide lasting durability in demanding shop environments.
The lift's low lock height of 12" net rise enables safe vehicle access for undercarriage work, while the 208-230V, 1Ph, 30 Amp motor provides reliable power without requiring specialized electrical infrastructure. A durable premium powder coat finish ensures long-lasting appearance and corrosion resistance even in harsh automotive service environments.
Key Advantages at a Glance
Quick Cycle™ Technology: Lightning-fast 24-second rise and 17-second descent times boost shop throughput by 30%
Drive-on Express Pad: Eliminates spotting errors and accelerates vehicle positioning for express service efficiency
9,000 lb. Capacity: Handles the vast majority of passenger vehicles, light trucks, and SUVs with confidence
Flexible Configuration: Multiple column heights and adjustable width settings accommodate diverse facility requirements
ALI Certified: Meets rigorous industry safety standards for peace of mind and compliance
Video Overview
Watch the Challenger CL10A-XP9-QC in action and see how Quick Cycle technology and drive-on pad design revolutionize express service operations.
CL10A-XP9-QC Series Models Available
Choose the configuration that matches your service bay requirements:
CL10A-XP9-QC – Standard column height: 11' 2" or 11' 8" (fits 12-foot ceilings)
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Premium American Manufacturing
Proudly manufactured in the United States with premium materials and craftsmanship
Important Product Updates
Paint Upgrade Notice
Starting November 1, 2022, Challenger implemented a premium textured powder coat formula upgrade for enhanced durability and appearance. For complete details about this improvement, click here.
Service Bay Layout & Planning
Proper bay layout is critical for optimal lift performance and safety. The CL10A-XP9-QC requires a minimum 12-foot ceiling height (or higher with column extensions), with a recommended bay width of 14 feet and recommended depth of 24 feet to ensure adequate working space and vehicle clearance.
Service Bay Layout Diagram Click on image to enlarge or download detailed layout specifications
Why Choose the Challenger CL10A-XP9-QC?
When you invest in the Challenger CL10A-XP9-QC Series, you're choosing more than just a lift—you're selecting a comprehensive productivity solution backed by American manufacturing excellence, ALI certification, and decades of engineering innovation. The combination of Quick Cycle™ speed, drive-on express pad convenience, and 9,000 lb. capacity delivers the fastest return on investment in the express service segment.
From the oversized pulley system that extends cable life to the fully gusseted base plates that ensure decades of stable operation, every component is engineered for longevity and reliability. The adjustable width and multiple height configurations mean this lift adapts to your facility rather than forcing costly building modifications.
Take advantage of Challenger's premier 9,000 lb. capacity 2-post lift and experience unmatched versatility, lightning-fast cycle times, and the confidence that comes with ALI-certified safety. The CL10A-XP9-QC is simply the best choice for service professionals who demand maximum productivity without compromising safety or quality.
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation,
abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when
repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is
authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
