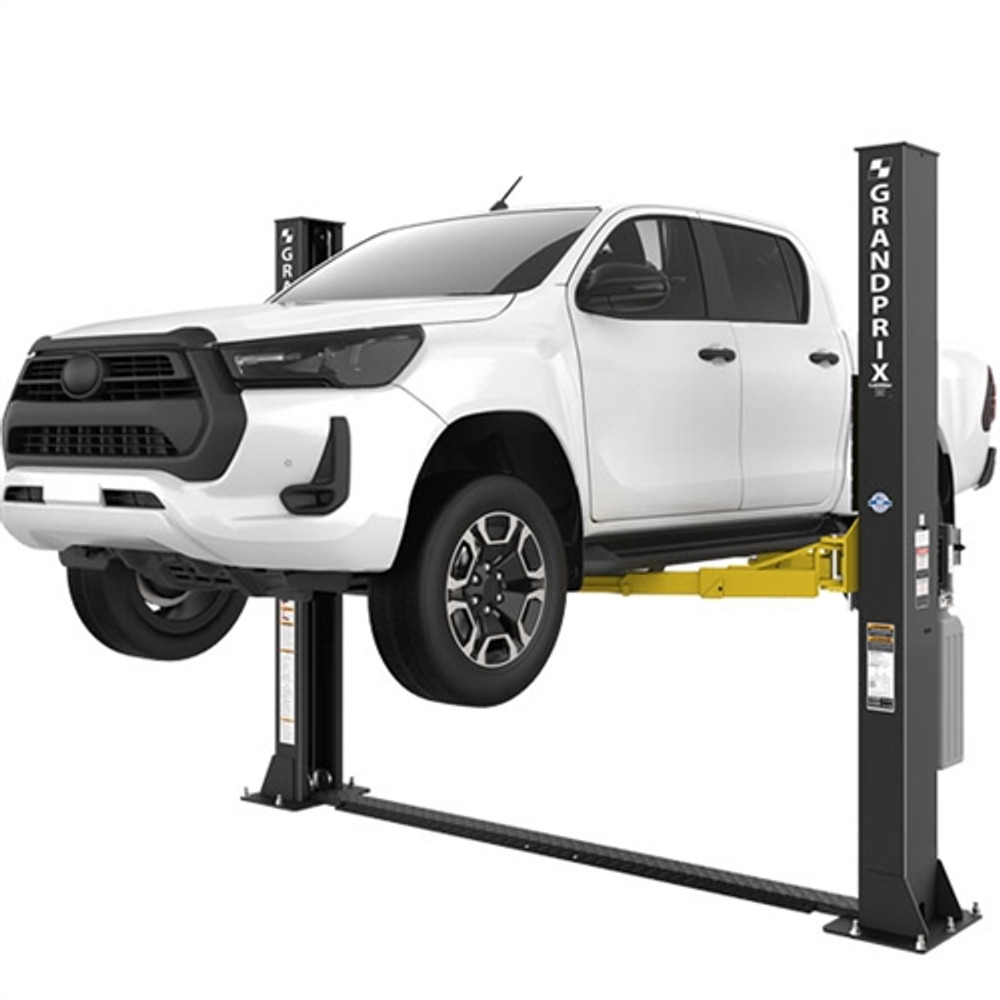

Designed for both professional shops and serious home mechanics, the BendPak GrandPrix GP-9LC strikes the perfect balance of power, reliability, and efficiency. With a 9,000-lb. lifting capacity, this versatile two-post lift is built to handle anything from nimble compact cars to full-size pickups. Its dual symmetric and asymmetric lifting options let you position the arms exactly where you need them, making it easy to tackle a wide range of vehicles with confidence. Whether you're wrenching on a daily driver or a weekend project, the GP-9LC delivers pro-level performance without compromise.
The low-ceiling floorplate design is engineered to maximize overhead clearance by eliminating the restrictive top crossbar. This means you get full lifting capability for taller vehicles without worrying about height interference. With an overall height of just 109.5 inches, this design is perfect for garages with low ceilings, keeping your workspace open while delivering the 9,000-lb. lifting power you need. Upgrade to the GP-9LC floorplate lift and get the flexibility your shop demands.

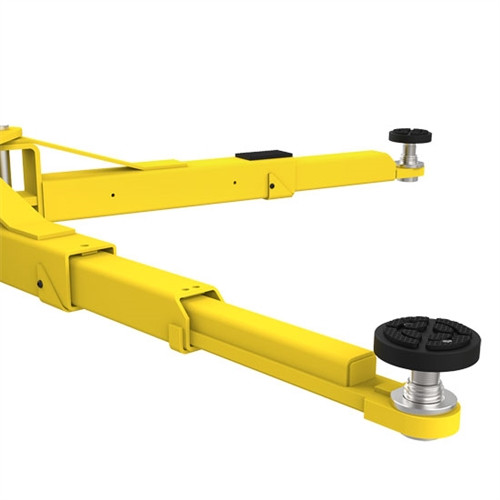

Getting a vehicle properly positioned on a two-post lift can be a hassle—but the GrandPrix GP-9LC takes the guesswork out of the equation. Triple-telescoping front arms with 22.5" to 43.25" reach and dual-stage extended rear arms with 33.5" to 53.25" reach provide exceptional versatility, making it easy to lift everything from low-slung sports cars to full-size trucks. Double-telescoping screw pads with 2 inches of adjustment and a 4-piece 63mm stackable adapter set (included) ensure rock-solid contact with virtually any frame design, giving you the stability and confidence to work on any vehicle like a pro.
With a minimum pad height of just 3.9 inches and a generous drive-thru clearance of 103 inches, you can accommodate a broad spectrum of vehicle types. The 1.25-inch drive-over height makes loading effortless, while the 113.5-inch width inside columns provides ample space for modern vehicles. This lift is designed to adapt to your shop's needs—quickly and efficiently.
A reliable lift is one that keeps both you and your vehicle protected. The GP-9LC is equipped with automatic safety locks in each column that engage every 3 inches, ensuring rock-solid security throughout the entire 70-inch rise height. Designed for trouble-free operation, these locks release effortlessly via single-pull lanyards on each carriage, providing maximum safety without unnecessary complexity.
For added security, automatic arm restraints secure the arms in place when the lift is raised, preventing unintended movement during service. This is peace of mind you can count on, every single lift.
Designed to handle the rigors of daily shop use, the GrandPrix GP-9LC is built tough with high-strength steel and reinforced components for unmatched durability. Its heavy-duty 6" x 6" tubular steel carriage delivers superior load-bearing strength, while the electric-hydraulic power system (operating on 220 VAC / 60Hz / 1 Ph) keeps operation smooth, quiet, and efficient. With a full rise time of just 65 seconds, you'll spend less time waiting and more time working.
Stability is key, and the oversized 20.5" x 15.5" base plates ensure even weight distribution, so you get rock-solid lifting performance you can trust—day in, day out. The wide 137.5-inch overall width at baseplate provides exceptional stability, even with heavier vehicles at maximum capacity. Each arm can safely support up to 2,250 lbs., ensuring balanced, reliable lifting every time.
The GP-9LC is built on a proven chain-over design, utilizing an industrial-grade heavy-duty leaf chain engineered for extreme durability and strength. Manufactured to ANSI standards and engineered for demanding lifting applications, this heavy-duty chain is extremely durable and resistant to wear, ensuring it can withstand serious loads and frequent use. Unlike other systems that stretch or degrade over time, the GP-9LC is built for longevity, maintaining its integrity even under high stress and repeated lifting cycles.
Adding to its durability, the GP-9LC features oversized heavy-duty cable sheaves that reduce cable fatigue, along with heavy-duty 1/2" aircraft-quality equalizer cables—a premium upgrade that sets it apart. These components are long-lasting, and the self-lubricating UHMW polyethylene guide blocks ensure smooth operation with minimal maintenance. The combination of high-strength chain, precision-engineered rollers, and durable cables significantly increases the working load capacity and shock resistance of the lift, ensuring smooth, consistent performance in even the most demanding environments.
Additional thoughtful features include a full-size rubber carriage guard to reduce door dings, and double-telescoping screw pads featuring tear-resistant polyurethane for long-lasting durability. Every detail is designed to maximize uptime and minimize hassle.
When you invest in the GrandPrix GP-9LC, you're backed by BendPak's industry-leading 36-month limited warranty, covering structural components and craftsmanship. With BendPak's renowned customer support and a nationwide network of service providers, expert assistance is always within reach.
This isn't just a lift—it's a long-term investment in your shop's efficiency, safety, and productivity. You work hard, and you need equipment that works just as hard as you do.

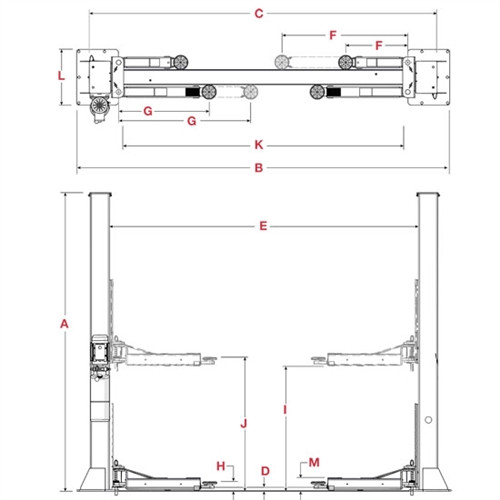

Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493. Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV (Current Edition) or ANSI/UL 201. Consult www.autolift.org for a complete list.
The design, material and specifications are subject to change without notice.
LIMITED WARRANTY
Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER
