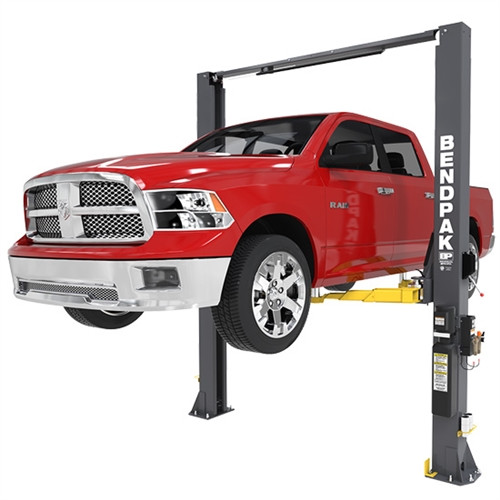

Introducing the BendPak 10APX PRO-Series High-Rise two-post lift, designed specifically for mechanics who constantly work in difficult positions beneath vehicles. This powerful ALI-certified lift delivers an impressive 10,000-lb. lifting capacity and features an exceptional 75.5" max rise height with a rise + pad of 79.5" and a towering 157" overhead beam. Combined with advanced Low-Pro™ arms, revolutionary Bi-Metric™ adaptable swing arms, and BendPak's exclusive Automatic Arm Restraint System (AARS), the 10APX offers unrivaled operator comfort, efficiency, and safety. This package includes the WSA-100 Wall Service Assembly for integrated air and electrical service, plus a full set of frame cradle pads, medium (2.5") and tall (5") 60mm adapters, and an adapter holder — everything you need for versatile, heavy-duty vehicle service right out of the box.
Auto repair shops must stay ahead of the curve by equipping themselves with the best tools available. The BendPak PRO-Series combines cutting-edge lift technology with a revolutionary engineering concept, delivering a two-post lift unlike any other. Purposefully designed for extreme use, high loads, and unmatched operator safety and efficiency, the PRO-Series is built to handle today's evolving automotive landscape—including increasingly heavy electric vehicles (EVs), hybrid trucks, SUVs, and sports cars.
Engineered for the Future of Automotive Service
Over the past few decades, the automotive industry has been a leader in adopting new technologies. The shift toward electric, hybrid, and gas-fed engines is redefining vehicle fuel use, with electric vehicles (EVs) poised to dominate future production. EVs weigh significantly more than traditional gasoline or diesel vehicles due to added batteries, reinforced frameworks, heavier suspension systems, and protective metal armor for battery packs. This extra weight increases stress on automotive lift components — particularly in two-post lifts — posing safety challenges when raising vehicles for service.
The PRO-Series 10APX addresses these challenges head-on. BendPak engineers have enhanced under-car access thanks to the extremely low-profile arms and extra-wide column spacing (with options for 135" or 145" overall width). Critical load-holding components are crafted from high tensile-strength steels, allowing greater telescoping movement in swing arms and tube profiles specifically tailored for low ground clearance vehicles and the outer-positioned lifting points common to EVs.
With the rise of larger and heavier EVs, technicians can now service electric vehicles—including trucks, vans, and sports cars—more efficiently and safely. The PRO-Series 10APX is the perfect EV service solution, offering versatile lift support positioning ideal for electric vehicle maintenance and repair.
Revolutionary Automatic Arm Restraint System (AARS)
Swing arm restraints have been used for decades on two-post lifts to minimize the chance of arms shifting during vehicle loading and service. However, until now, traditional systems struggled to withstand the excessive forces applied when vehicles suddenly and unexpectedly shifted on the support pads or adapters—typically due to improper loading or when heavy drivetrain components are added or removed, causing an unanticipated shift in the vehicle's center of balance.
The BendPak PRO-Series features the groundbreaking Automatic Arm Restraint System (AARS), engineered specifically for heavy vehicle service. With a full 360-degree load-holding grip, this patented, heavily forged-steel design secures lift arms firmly in place with over 2,000 pounds of load-holding force, preventing unplanned swing arm movement during lift use and vehicle service operations.
This revolutionary design is an adaptive system that requires minimal operator involvement and delivers unparalleled holding power. Its distinctive power-hold design ensures precise, non-shifting action, while a handy quick-release operator lever allows for the instant release of clamping pressure, enhancing both efficiency and safety on the shop floor.
BendPak Automatic Arm Restraint System (AARS) in action

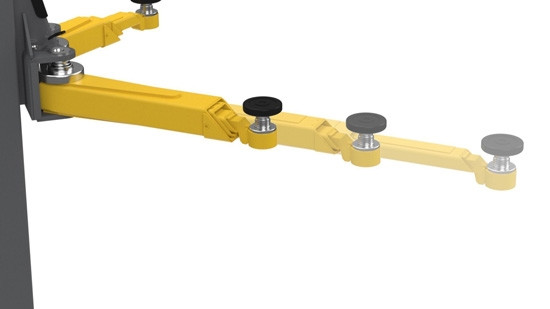

Triple-Telescoping Nested Swing Arm Design
Revolutionary and patented swing arms are specifically tailored for varying vehicle lifting points. Unlike traditional two-post lift arms, 10APX arms retract shorter and extend farther, offering lift operators a myriad of lift arm positioning options—it's like having the best of all worlds.
The innovative three-stage arms achieve more telescoping movement due to their patented nesting feature, resulting in greater retraction and farther reach. Inner sliding arm movement is no longer impeded by arm end plates, tube closeouts, or even the arm pivot pin itself. The inner tubes retract fully through the back of the arm assembly and even beyond the arm pin, allowing for maximum achievable retraction and extension. This design delivers front arm reach of 24.5" to 50" and an impressive rear arm reach of 32" to 59.25".
Each arm supports a maximum load of 2,500 lbs., providing safe, stable lifting for a wide variety of vehicles.
Low-Pro™ Swing Arms for Enhanced Access
BendPak's exclusive Low-Pro™ swing arms incorporate telescoping channels with a lowered profile and dropped-end pad receivers. This design facilitates easier access to lift points on lowered chassis-height vehicles, reducing the risk of damage to vehicle side skirts, running boards, or ground effects. The minimum pad height of just 4" makes it easy to slip pads beneath even the lowest-slung vehicles.
Combined with varying height stackable adapters and two-stage spin-up screw pads (2" / 51mm adjustment), these arms offer precise and safe vehicle support with enhanced vertical pad placement.
Bi-Metric™ Adaptable Swing Arms
The Bi-Metric™ adaptable swing arms are another exclusive BendPak feature, allowing users to load vehicles symmetrically or asymmetrically without needing to switch arms. This versatility dramatically speeds up vehicle servicing, making the PRO-Series 10APX an ideal choice for efficient and effective automotive maintenance in busy shop environments.

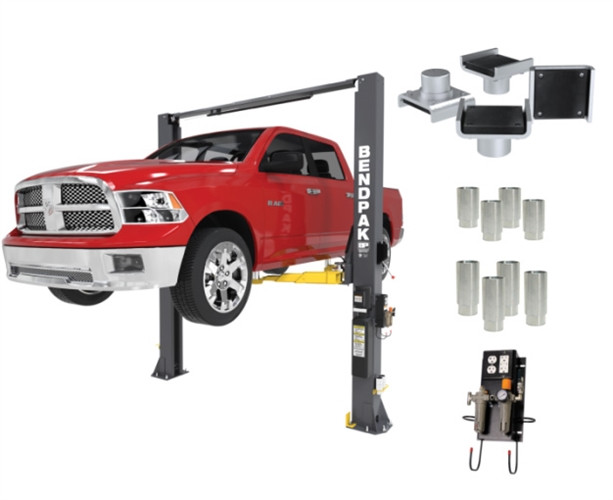

When it comes to lifting full-sized trucks or SUVs onto a two-post lift, you can't cut corners. Reduce your risks with BendPak's Frame Cradle Pads, ensuring your vehicle stays securely in place during every lift operation. Included in this package, the Frame Cradle Pads (set of 4, 60mm pin) feature a rugged build designed to withstand heavy use for the lifetime of your shop. The heavy-duty steel construction and thick polyurethane rubber pad lining provide durability and protection, while the textured polyurethane surface safeguards your chassis frame from damage and minimizes slipping.
This package also includes Medium (2.5") 60mm Adapters (set of 4) and Tall (5") 60mm Adapters (set of 4), along with an Adapter Holder for convenient storage. These stackable adapters enhance the versatility of your lift, accommodating vehicles with uneven underbodies effortlessly. Featuring a 60mm diameter pin that seamlessly drops into the lift arms, these pins instantly extend your lift's height, ensuring safe and easy lifting for any vehicle. They can also be paired with other BendPak accessories, such as Screw Lift Pads, for endless customization options.
WSA-100 Wall Service Assembly Included
This package includes the WSA-100 Wall Service Assembly, providing integrated air and electrical service right at your lift. The WSA-100 is easy to install and adapts to any two-post or four-post lift. It features:
Four 110V GFI outlets equipped with 20 amp industrial GFI protection
Electrical outlets located above the air service to prevent moisture damage and tangling
Air service through 2 outlets: one lubricated for tire inflation and one for pneumatic tools
Air service filter element and lubricator filler port that are easily accessible
Nickel-plated ball valve shutoff
Powder-coated finish for durability and long life
Storage hooks for hoses and tools
Regulator / filter and pressure gauge
Air inlet and oiler
The WSA-100 keeps your workspace organized and efficient, ensuring power and air are always within reach.

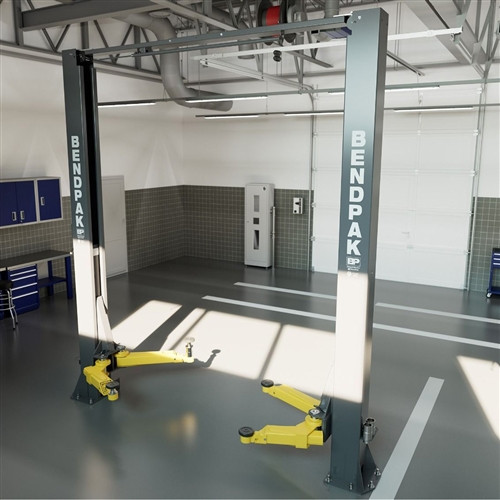

Customizable Width Configurations
Experience the ultimate convenience with the PRO-Series 10APX, offering both wide and narrow installation options in one customizable package. The expandable top beam accommodates wide or narrow drive-thru configurations, providing an inside column clearance of 108.5" or 118.5" and a drive-thru clearance of 97.5" or 107.5". This flexibility ensures the lift adapts perfectly to your shop layout and vehicle service needs.
Built for Durability, Safety, and Reliability
Built to last, the 10APX ensures durability, safety, and reliability for all your automotive needs. Key features include:
Durable powder coat finish for long-lasting protection
Padded overhead safety shutoff bar
Single-point safety release for ease of use
Dual hydraulic direct-drive cylinders
Oversized 53" & 59" tall carriages for superior strength and durability
Electric / hydraulic HVLP power system (220 VAC / 60 Hz / 1Ph)
Self-lubricating Dura-Glide® UHMW polyethylene bearing system
ALI certified for compliance with industry safety standards
The PRO-Series 10APX simple yet sophisticated design minimizes service and maintenance costs, lowering your operating expenses and boosting your shop's productivity. Choose BendPak for quality, efficiency, and performance that exceed expectations.
Key Highlights
10,000 lbs. lifting capacity — handles heavy trucks, SUVs, and EVs
75.5" max rise / 79.5" rise + pad — exceptional under-vehicle access
157" overall height — high-rise design for comfortable working positions
Automatic Arm Restraint System (AARS) — over 2,000 lbs. holding force for unmatched safety
Triple-telescoping nested swing arms — extreme retraction and extension for versatile positioning
Low-Pro™ arms with 4" minimum pad height — ideal for low-clearance vehicles
Bi-Metric™ swing arms — symmetric or asymmetric lifting without changing arms
Expandable top beam — customize for wide (118.5") or narrow (108.5") drive-thru clearance
WSA-100 Wall Service Assembly included — integrated air and electrical service
Complete adapter package included — frame cradle pads, medium & tall adapters, adapter holder
ALI certified — meets rigorous industry safety standards
See the BendPak PRO-Series in action
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
The design, material and specifications are subject to change without notice.
*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV (Current Edition) or ANSI/UL 201. Consult www.autolift.org for a complete list.
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's
published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO
THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER
Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.
Five Years (60-Months) Warranty on the lift structure
Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12-Months) Warranty on operating components
One Year (12-Months) Warranty on electrical components (excluding power unit)
One Year (12-Months) Labor Warranty on site or at factory*
One Year (12-Months) Free-Shipping** on ground-freight charges related to warranty performance
Limited Warranty
Who gives this warranty (Warrantor): BendPak Inc., 1645 lemonwood dr. Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty: Any BendPak Two-Post or Four-Post car lift***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:
Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
Any damage caused by overloading Product beyond rated capacity
Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber pads, lifting cables, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
Rusted components due to improper maintenance or corrosive environments
Cosmetic defects that do not interfere with product functionality
Damage due to incorrect voltage or improper wiring
Any failure that results from improper installation or use not according to specifications
Damage caused by disasters such as fire, flood, wind, and lightning
Damage caused by unauthorized attachments or modifications
Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
Responsibilities of Purchaser under this warranty:
Provide dated proof of purchase and maintenance records
In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any
damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*As determined by Warrantor in its sole discretion**Free-shipping applies to direct shipping points within the 48 continental United States.
Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Two-Post or Four-Post Vehicle Service Lifts
(excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following
1/1/2011.
