The BendPak 10APX represents a revolutionary evolution in two-post lift design, engineered specifically to meet the demands of modern automotive service—particularly the challenges posed by heavier electric vehicles (EVs), high-roof cargo vans, and low-profile sports cars. With a 10,000 lb. lifting capacity, an impressive 79.5" rise, and an overhead beam height of 157", the 10APX delivers unmatched versatility, mechanic comfort, and under-vehicle access. This ALI-certified lift is a complete game-changer for shops that service today's diverse and heavy-duty vehicle lineup.
Unlike traditional two-post lifts, the 10APX features an expandable top beam that accommodates both wide and narrow drive-thru configurations, giving shop owners the flexibility to configure their workspace exactly how they need it. Paired with Bi-Metric™ adaptable swing arms, this lift offers both symmetric and asymmetric vehicle positioning—all without switching out arms—so you can service anything from compact sedans to full-size trucks with maximum efficiency.
10AP Series: Tall-Rise Lifts for Superior Ergonomics and Access
The 10APX has been designed to eliminate the uncomfortable, awkward positions mechanics often endure on the job. With a lifting height of 79.5" and an overhead beam of 157", this beast of a lift gives you plenty of room to work comfortably with the best equipment available. If you're servicing larger vehicles such as high-roof cargo vans, BendPak also offers the 10APX-181, which features the same lifting height but with an even taller 181" overhead beam, ensuring full clearance for the tallest commercial vehicles.
All models in the 10AP Series share the same advanced features: 10,000 lb. capacity, Low-Pro™ arms, Bi-Metric™ swing arms, triple-telescoping arm design, and an exclusive Automatic Arm Restraint System (AARS) that prevents unplanned arm movement during vehicle service.
A New Paradigm in Lifting: Built for Modern Vehicles
Auto repair shops working on the latest technology need to be equipped with the latest and most advanced tools to service them properly. The BendPak 10AP Series features a revolutionary design that factors the best qualities of today's two-post lift types into a completely new concept in car lift engineering. The result is a lift unlike any other two-post lift on the market, purposefully designed for extreme use, high loads, and operator safety and efficiency.
BendPak's 10AP Series offers the convenience of wide or narrow installation wrapped up into one configurable package. This durable, safe, and reliable car lift features an expandable top beam and Bi-Metric™ arms to suit virtually every vehicle lifting requirement—symmetric or asymmetric. The simple, yet highly sophisticated lift design keeps service and maintenance costs to a minimum, delivering lower operating expenses and higher productivity.
New Technology for Increased Operator Safety
Throughout the past few decades, the automotive industry has always been one of the most receptive industries to emerging technologies. Technology has already redefined the way cars use fuel, with electric, hybrid, and solar energy systems beginning to displace the internal combustion engine as the driving force of the future. Forecasters are projecting Electric Vehicles (EVs) to account for a large percentage of all vehicles produced and sold in the near future, and EVs weigh considerably more than traditional gasoline or diesel-powered vehicles.
Those extra pounds have important implications for mechanic safety when vehicles are raised in the air for service. Extra vehicle weight introduces a lot more stresses and forces on automotive lift components, especially when two-post lifts are being considered. The BendPak 10APX was specifically engineered to address these concerns.
Electric Vehicles Are Getting Larger & Heavier
With the emergence of heavier EVs as the impetus for the new 10AP design, technicians are now able to service electric vehicles more efficiently, including trucks, vans, and sports cars. In addition to providing greater under-car access thanks to extremely low-profile arms and extra-wide column spacing, BendPak engineers focused on the use of high tensile-strength steels for all critical load-holding components.
The increased tensile strength allowed BendPak engineers to design swing arms with greater telescoping movement and tube profiles better suited for use on low ground clearance vehicles and outer-positioned EV vehicle lifting points. Safety-critical design enhancements are introduced throughout the lift.
Electric vehicles need newer lifts to safely lift them due to the fact that they're heavier because of the added batteries, reinforced framework, suspension, and the metal armor which protects the battery. From reinforced construction to purposefully engineered design features, the 10APX is the perfect EV service solution. Each 10AP model provides greater under-car access thanks to extremely low-profile arms and extra-wide column spacing; increased arm travel and minimum arm retraction allow for more versatile lift support positioning, which is perfectly suited for electric vehicle service.
Automatic Arm Restraint System (AARS) Prevents Unplanned Movement
Swing arm restraints have been used for decades on two-post lifts to minimize the chance of arms shifting during vehicle loading and service. However, until now, these systems had a difficult time withstanding the excessive forces applied to them when vehicles suddenly and unexpectedly shifted on the support pads or adapters of the far-reaching swing arms—typically due to improper loading or when heavy drivetrain components are added or removed from elevated vehicles, causing an unanticipated transference in the center of balance.
With a full 360-degrees of load-holding grip, the heavily forged-steel design of this patented and exclusive arm restraint system secures the lift arms firmly in place with over 2,000 pounds of load-holding force, preventing unplanned swing arm movement during lift use and vehicle service operations. This revolutionary design is an adaptive system that requires minimal operator involvement and delivers unparalleled holding power. A distinctive power-hold design allows for precise non-shifting action, and a handy quick-release operator lever allows for the instant release of the clamping pressure.
Triple-Telescoping Nested Swing Arm Design
Revolutionary and patented swing arms are specifically tailored for varying vehicle lifting points. Unlike traditional two-post lift arms, 10AP arms retract shorter and extend farther, offering lift operators a myriad of lift arm positioning options—it's like having the best of all worlds.
The innovative three-stage arms achieve more telescoping movement due to their patented nesting feature that results in greater retraction and farther reach. Inner sliding arm movement is no longer impeded by arm end plates, tube closeouts, or even the arm pivot pin itself. The inner tubes retract fully through the back of the arm assembly and even beyond the arm pin, resulting in more achievable retraction and extension.
Front Arm Reach: 24.5" minimum / 50" maximum Rear Arm Reach: 32" minimum / 59.25" maximum Max Load Per Arm: 2,500 lbs.
Low Profile Arms for Hard-to-Reach Lift Points
BendPak's exclusive Low-Pro™ swing arms feature telescoping channels that have a shorter profile and a dropped-end pad receiver, resulting in better serviceability on lowered chassis-height vehicles. They access hard-to-reach lift points with less hindrance, providing increased versatility and less chance of damage to vehicle side skirts, running boards, or ground effects.
Varying height stackable adapters combined with two-stage spin-up screw pads provide greater vertical pad placement for precise and safe vehicle support. The minimum pad height is just 4", making this lift ideal for servicing lowered vehicles and sports cars.
Screw Pads & Adapters That Adjust to Your Needs
Double-telescoping screw adapters feature gouge and tear-resistant polyurethane pads that can be screwed up or down to ensure level lifting in all conditions. This provides more precise and secure frame engagement, ensuring technician safety. The screw pad adjustment offers 2" of vertical travel, allowing you to fine-tune contact points with precision.
The optional 2.5" and 5" stackable adapters (included) provide greater vertical pad placement for precise and safe vehicle support. The drop-in design allows for quick and easy use, and a column-mounted rack keeps the adapters neatly organized and secure.
Innovative Safety Lock System
The patented automatic safety lock system is designed to dramatically improve operator efficiency and safety. The simple yet innovative design ensures automatic safety lock engagement during all lift rising operations. An ergonomic single-point release allows operators to effortlessly release the safety locks during lift descent—literally with a push of a single finger. It's that easy.
Safety locks in each column are spaced every 3 inches, providing secure load-holding at multiple heights and ensuring maximum safety during vehicle service.

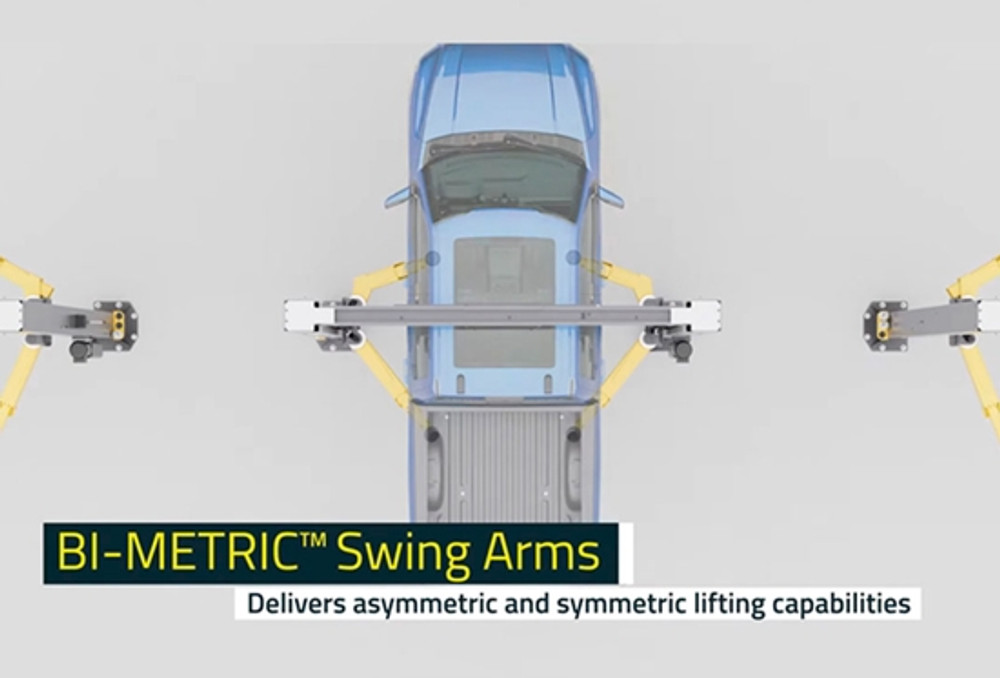

Bi-Metric™ Swing Arms: Symmetric or Asymmetric in Seconds
Exclusive Bi-Metric™ adaptable swing arms give users the ability to set their lift up in either symmetric or asymmetric configurations. The 2-in-1 design gives operators the option of loading vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column).
By not having to switch out arms, you'll be able to service vehicles faster than ever before. This flexibility is critical in busy shops servicing everything from compact cars to full-size trucks and vans.
Key Features & Highlights
10,000 lb. lifting capacity – ideal for heavy EVs, trucks, and vans
79.5" max rise with pads (10APX model) for superior under-vehicle access
Oversized cable sheave diameter reduces cable fatigue and extends service life
Durable powder coat finish for long-lasting corrosion resistance
Padded overhead safety shutoff bar prevents over-lifting
Oversized 53" & 59" tall carriages for superior strength and durability
Electric / hydraulic HVLP power system – 220 VAC / 60 Hz / 1Ph motor
Time to full rise: approximately 45 seconds
Noise level: less than 70 dB
Includes 4-piece screw pads and adapter holder
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's
published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO
THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER
Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.
Five Years (60-Months) Warranty on the lift structure
Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12-Months) Warranty on operating components
One Year (12-Months) Warranty on electrical components (excluding power unit)
One Year (12-Months) Labor Warranty on site or at factory*
One Year (12-Months) Free-Shipping** on ground-freight charges related to warranty performance
Limited Warranty
Who gives this warranty (Warrantor): BendPak Inc., 1645 lemonwood dr. Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty: Any BendPak Two-Post or Four-Post car lift***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:
Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
Any damage caused by overloading Product beyond rated capacity
Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber pads, lifting cables, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
Rusted components due to improper maintenance or corrosive environments
Cosmetic defects that do not interfere with product functionality
Damage due to incorrect voltage or improper wiring
Any failure that results from improper installation or use not according to specifications
Damage caused by disasters such as fire, flood, wind, and lightning
Damage caused by unauthorized attachments or modifications
Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
Responsibilities of Purchaser under this warranty:
Provide dated proof of purchase and maintenance records
In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any
damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*As determined by Warrantor in its sole discretion**Free-shipping applies to direct shipping points within the 48 continental United States.
Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Two-Post or Four-Post Vehicle Service Lifts
(excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following
1/1/2011.
