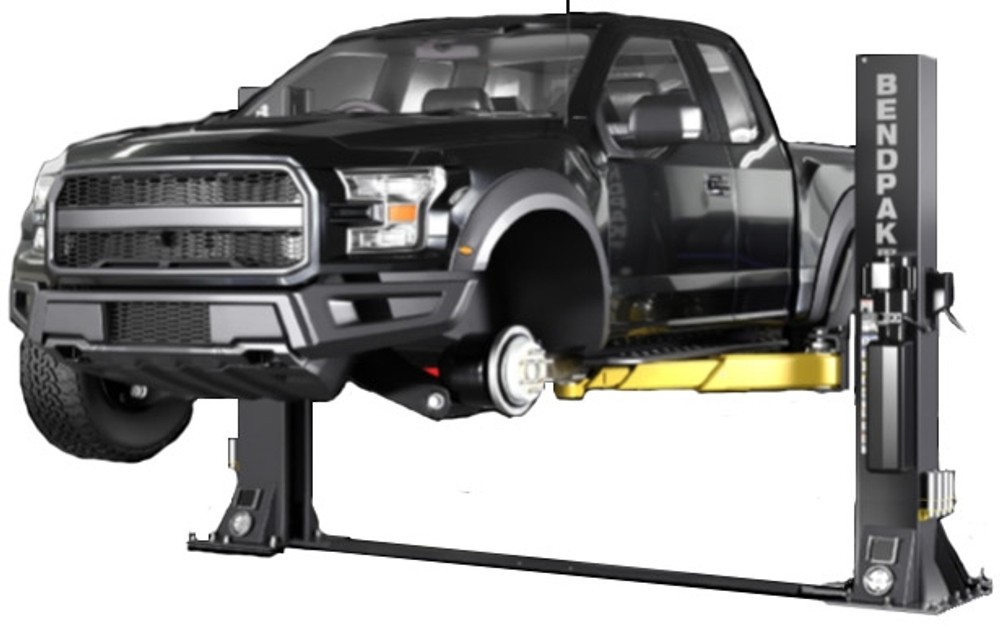

When your shop demands precision, versatility, and low-ceiling compatibility, the BendPak 10AP-SRT delivers. This 10,000 lb. capacity mid-rise two-post lift is engineered for shops and garages where headroom is at a premium. With a 93.5" post height and a maximum rise of 46.25 inches, it fits into spaces where traditional full-rise lifts simply won't work—yet still provides ample height for tire service, detailing, brake jobs, and undercarriage access. Part of BendPak's revolutionary AP Series, the 10AP-SRT combines innovative safety systems, patented telescoping arms, and heavy-duty construction to set a new standard in mid-rise lifting technology.
The Ultimate Mid-Rise Solution
At BendPak, we understand that different jobs require different tools. You're not always going to need a standard full-rise lift so you can stand under a vehicle, and that's where the 10AP-SRT comes in. This short-rise, short-column lift is the latest addition to the revolutionary AP Series and fits perfectly in shops and low-ceiling garages. It's also capable of safely handling up to 10,000 lbs, with a 5,000 lb. front axle capacity and 5,000 lb. rear axle capacity, ensuring balanced and secure lifting for a wide range of vehicles.
Perfect for Tire and Wheel Service
The compact design of the 10AP-SRT makes it the lift of choice when you're performing tasks that don't require you to stand underneath a vehicle. With a max rise of approximately 46 inches, this lift is ideal for tire service, wheel work, and detailing. The drop-end arms provide a low pad height of just 4.5 inches, making it easy to position vehicles and engage lift points quickly and safely.
A New Paradigm in Lifting Technology
The AP Series features an innovative design that combines the best attributes of today's two-post lifts into a completely fresh approach to car lift engineering. The final result is a lift unlike any other on the market, built to handle tough jobs, heavy loads, and ensure the safety of both the vehicle and the operator.
Double-Telescoping Screw Pads and Adapters
BendPak's double-telescoping screw adapters are designed with precision and safety in mind. Featuring durable polyurethane pads that resist gouging and tearing, these adapters can be easily adjusted up or down to ensure level lifting, even in challenging conditions. The 10AP-SRT includes a set of 4 screw pads (Part # 5215752) and an adapter holder (Part # 5701660) for convenient storage. For added versatility, optional 2.5" and 5" stackable adapters provide precise and secure support for vehicles. Their convenient drop-in design allows for quick and effortless use, while a column-mounted rack keeps these adapters neatly organized and secure, streamlining your workflow.

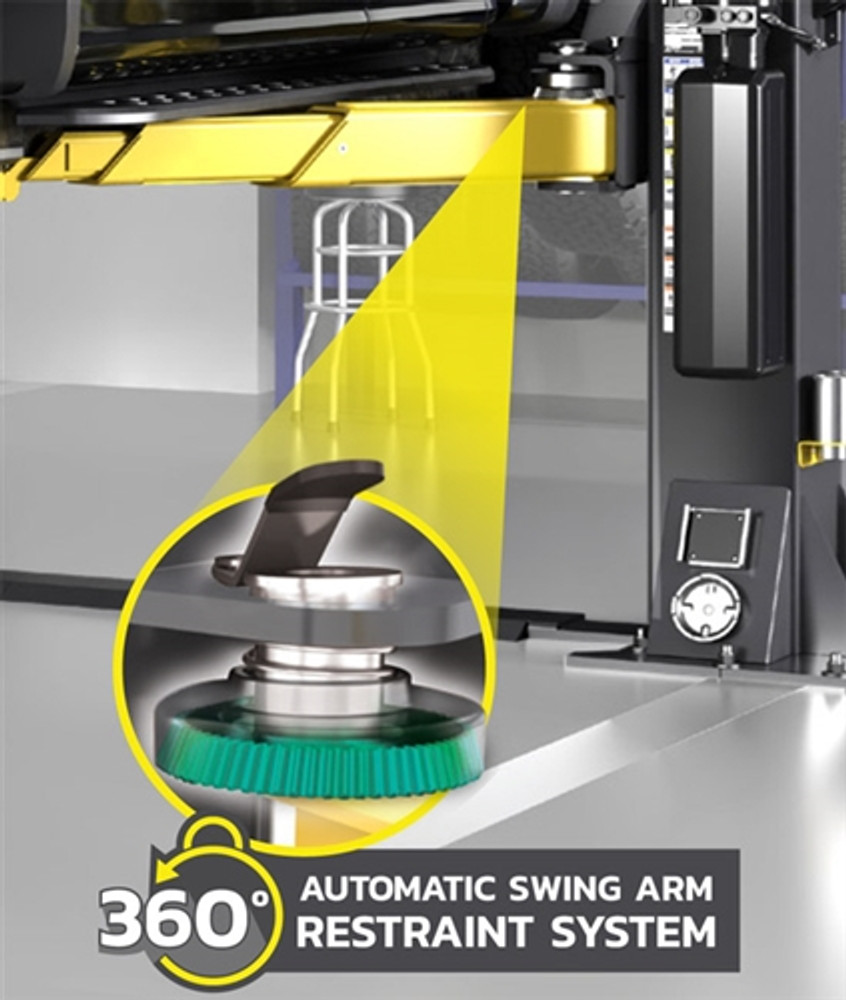

Unparalleled Safety with Automatic Arm Restraint
Traditional swing arm restraints serve their purpose, but BendPak takes safety to the next level. The AP Series introduces the revolutionary Automatic Swing Arm Restraint System (ASARS) that stands strong against the forces exerted when vehicles unexpectedly shift during loading or service. This adaptive system boasts a heavily forged-steel design, providing over 2,000 pounds of load-holding force. With a 360-degree grip, this patented arm restraint system ensures arms stay firmly in place, minimizing unplanned swing arm movement. The system's quick-release operator lever guarantees precise and secure control during every lift operation.
The Future Is Triple-Telescoping
Innovative and patented triple-telescoping swing arms redefine lifting precision. Unlike traditional arms, the AP arms retract shorter and extend farther, offering versatile arm positioning options for lift operators. The unique three-stage design, complete with a patented nesting feature, enables greater retraction and extension. Inner sliding arm movement reaches new levels without any hindrance, allowing for precise lifting action with increased efficiency.
The 10AP-SRT front arms extend from 22.25" minimum to 47.5" maximum, while rear arms extend from 29.5" minimum to 47.5" maximum, providing exceptional reach and versatility for lifting a wide variety of vehicle types and sizes.
Bi-Metric Swing Arms
Exclusive Bi-Metric adaptable swing-arms give users the ability to set their lift up in either symmetric or asymmetric configurations. The 2-in-1 design gives operators the option of loading vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column). By not having to switch out arms, you'll be able to service vehicles faster than ever before, maximizing productivity and minimizing downtime in your shop.
Innovative Safety Lock System
BendPak's patented automatic safety lock system is a game-changer for operator efficiency and safety. Its innovative design ensures that safety locks automatically engage during all lift rising operations, providing a reliable layer of protection. The 10AP-SRT features 8 safety lock positions, spaced every 3.75 inches, giving you flexible work-height options throughout the lift's range.
What truly sets it apart is the user-friendly experience it offers. With an ergonomic single-point release mechanism, operators can effortlessly disengage the safety locks during lift descent. It's that simple, making your operations smoother and safer than ever before.
Dual Hydraulic Power and Quiet Operation
The 10AP-SRT is powered by a robust Electric/Hydraulic HVLP power system with dual hydraulic direct-drive cylinders for smooth, synchronized lifting. The lift operates on 220 VAC, 60 Hz, single-phase power and delivers an impressive time to full rise of approximately 45 seconds. Operating hydraulic pressure under maximum load is a safe 2,170 psi.
Even more impressive is the lift's quiet operation—running at less than 43 dB, it won't disturb your shop environment or conversations with customers. The power side post conveniently houses the power unit, lowering handle, and safety lock release handle, keeping controls at your fingertips.
Heavy-Duty Construction and Finish
Built to last, the 10AP-SRT features 40-inch tall carriages for superior strength and durability. Heavy-duty ½" aircraft-quality equalizer cables and oversized cable sheave diameters reduce cable fatigue and ensure long-term reliability. A durable powder coat finish protects the lift from rust, wear, and the elements, keeping it looking professional year after year.
Key Highlights
10,000 lb. lifting capacity with 5,000 lb. front and rear axle limits
93.5" post height — ideal for low-ceiling garages and shops
46.25" max lifting height — perfect for tire service, brakes, and detailing work
Patented ASARS (Automatic Swing Arm Restraint System) withstands over 2,000 lbs. of side force
Single-point safety release and 8 automatic safety lock positions for operator convenience
Triple-telescoping, Bi-Metric swing arms — symmetric or asymmetric configurations without changing arms
Drop-end arms with 4.5" minimum pad height and double-telescoping screw pads for precise vehicle engagement
Quiet operation (<43 dB) and fast 45-second rise time
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's
published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO
THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER
Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.
Five Years (60-Months) Warranty on the lift structure
Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12-Months) Warranty on operating components
One Year (12-Months) Warranty on electrical components (excluding power unit)
One Year (12-Months) Labor Warranty on site or at factory*
One Year (12-Months) Free-Shipping** on ground-freight charges related to warranty performance
Limited Warranty
Who gives this warranty (Warrantor): BendPak Inc., 1645 lemonwood dr. Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty: Any BendPak Two-Post or Four-Post car lift***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:
Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
Any damage caused by overloading Product beyond rated capacity
Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber pads, lifting cables, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
Rusted components due to improper maintenance or corrosive environments
Cosmetic defects that do not interfere with product functionality
Damage due to incorrect voltage or improper wiring
Any failure that results from improper installation or use not according to specifications
Damage caused by disasters such as fire, flood, wind, and lightning
Damage caused by unauthorized attachments or modifications
Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
Responsibilities of Purchaser under this warranty:
Provide dated proof of purchase and maintenance records
In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any
damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*As determined by Warrantor in its sole discretion**Free-shipping applies to direct shipping points within the 48 continental United States.
Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Two-Post or Four-Post Vehicle Service Lifts
(excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following
1/1/2011.
