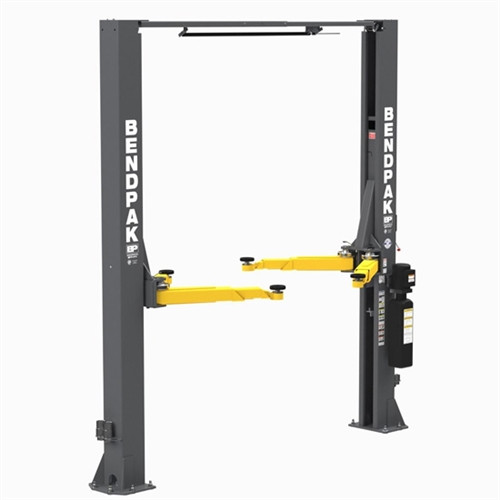

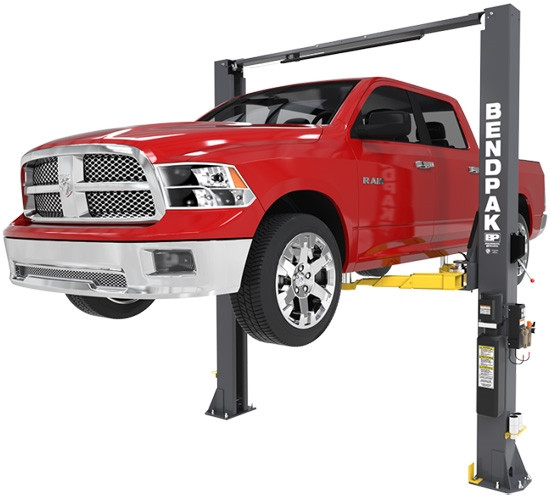

Transform your automotive service bay with the BendPak 10AP Pro Series — an ALI-certified10,000 lb. capacity two-post lift engineered to deliver unmatched versatility, safety, and performance. This adaptable clearfloor design combines an expandable top beam that accommodates both wide and narrow drive-thru configurations, exclusive Bi-Metric™ arms for more versatile arm positioning, and the revolutionary Automatic Swing Arm Restraint System (ASARS) to handle virtually any vehicle lifting requirement, whether symmetric or asymmetric.
From passenger cars to light-duty trucks, the 10AP is designed to maximize productivity, minimize maintenance costs, and provide rock-solid reliability for professional shops and serious enthusiasts alike. Powered by a 220 VAC / 60 Hz / 1-phase motor, this lift features dual hydraulic direct-drive cylinders, an advanced electric/hydraulic HVLP power system, and a self-lubricating dura-glide UHMW polyethylene bearing system that represents the pinnacle of two-post lifting technology.
With four triple-telescoping arms, oversized 53" and 59" tall carriages for superior strength, and safety locks in each column spaced every 3 inches, the BendPak 10AP delivers both exceptional capability and peace of mind. To view or download the lift inspection guide, click here.

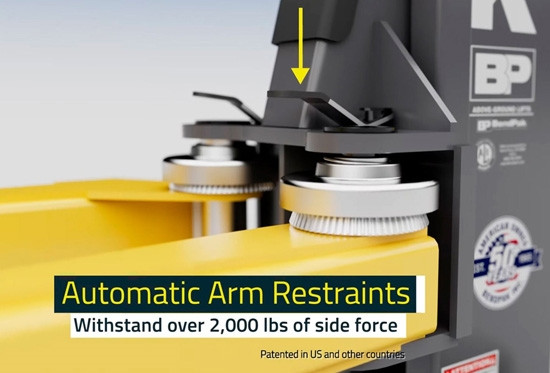

Revolutionary Automatic Swing Arm Restraint System (ASARS)
Game-Changing Vehicle Lifting Technology
At the heart of the AP Pro-Series is the revolutionary Automatic Swing Arm Restraint System (ASARS), an absolute game-changer in vehicle lifting technology. Featuring a robust, forged-steel design, the ASARS offers a complete 360-degree grip with over 2,000 lbs. of load holding force, ensuring absolute stability while preventing unplanned movement during lift operations. This system requires minimal operator intervention, delivering unmatched reliability and ease of use.
Swing arm restraints have been used for decades on two-post lifts to minimize the chance of arm movement during operation. Traditional systems require manual engagement, but BendPak's ASARS takes it to the next level with automatic engagement that activates seamlessly as the lift rises. Once engaged, these automatic arm restraints withstand over 2,000 pounds of side force, providing superior protection against accidental arm displacement.
The single-point safety release allows quick and easy arm adjustment when needed, while the padded overhead safety shutoff bar provides additional operator protection. Combined with safety locks in each column spaced every 3 inches, the 10AP delivers multiple layers of protection that exceed industry standards. The 3/8" (10mm) high-strength multi-strand galvanized steel equalizing cable with oversized sheave diameter reduces cable fatigue for extended service life and reliable synchronization between columns.
Unmatched Versatility with Four Configuration Options

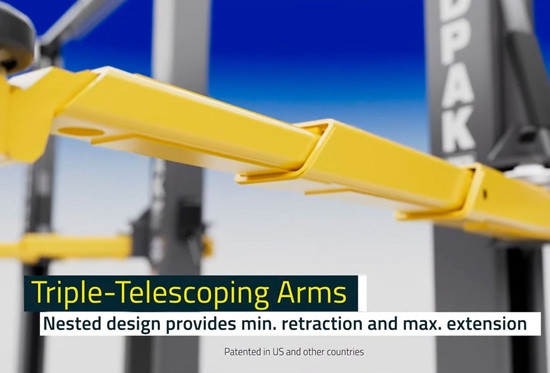

The 10AP Pro Series features four triple-telescoping arms with adjustable reach, accommodating a wide variety of vehicle sizes and configurations. Front arms extend from a 24.5" minimum to 50" maximum reach, while rear arms adjust from 32" to 59.25", providing exceptional flexibility for different vehicle wheelbases and lift point locations. Each arm supports a maximum load of 2,500 lbs., ensuring balanced, safe operation across the entire 10,000 lb. total capacity.
Choose from multiple configurations to match your specific ceiling height requirements and workspace needs:
10AP — 145" overall height, 69" max rise, ideal for standard ceiling applications
10AP-168 — 168" overall height, 69" max rise, extended overhead clearance for taller shop ceilings
10APX — 157" overall height, 75.5" max rise, extra lifting height for larger vehicles and SUVs
10APX-181 — 181" overall height, 75.5" max rise, maximum clearance configuration for ultimate versatility
Each configuration features the same robust 10,000 lb. lifting capacity and build quality. The expandable top beam adjusts to provide either 135" or 145" width overall, with corresponding inside column spacing of 108.5" or 118.5" and drive-thru clearances of 97.5" or 107.5" to accommodate different bay layouts, vehicle widths, and shop configurations. This adjustability makes the 10AP exceptionally adaptable to your specific workspace requirements.
Advanced Lifting Performance & Safety Features
The dual hydraulic direct-drive cylinders paired with the electric/hydraulic HVLP power system deliver smooth, reliable lifting performance with a rise time of approximately 45 seconds to full height. Operating at less than 70 dB noise level, this lift provides quiet operation that won't disrupt your work environment — quieter than a typical vacuum cleaner.
Oversized 53" and 59" tall carriages provide superior strength and durability compared to standard designs, distributing loads more evenly and reducing stress on lift components. These heavy-duty carriages are a hallmark of BendPak quality, contributing to the exceptional longevity and reliability you expect from professional-grade equipment.
The self-lubricating dura-glide UHMW polyethylene bearing system minimizes maintenance requirements while ensuring smooth, consistent operation over thousands of lift cycles. This advanced bearing system reduces friction and wear dramatically, eliminating the need for regular greasing and contributing to the exceptional service life of the 10AP. The result is lower operating costs and more uptime for your shop.
Exclusive Bi-Metric™ Arm Design
The innovative Bi-Metric™ arm design sets the 10AP apart from conventional two-post lifts. This exclusive BendPak technology provides more versatile arm positioning options, allowing you to precisely locate lift points for both symmetric and asymmetric lifting applications. Whether you're working on compact cars, full-size trucks, or anything in between, the Bi-Metric™ system ensures optimal balance and safety by giving you more flexibility in arm placement.
Drop-end arms provide a lower pad height for accessing low-profile vehicles and difficult lift points. Combined with double-telescoping screw pads that offer 2" (51mm) of vertical adjustment and a minimum height of just 4" (102mm) with pads, this lift accommodates virtually any vehicle configuration with ease. This low-profile capability is essential for modern sports cars and low-riding vehicles that challenge conventional lift designs.
The arms are designed to handle the demanding requirements of professional shop environments, with reinforced construction and precision engineering that ensures stable, secure lifting every time. The intuitive arm positioning makes setup fast and straightforward, even for technicians new to the equipment.
Complete Package with Premium Accessories
This comprehensive package includes everything you need to start lifting immediately — no need to purchase additional accessories or adapters separately:
WSA-100 Air-Electric Workstation — integrated controls for convenient operation with both electric and pneumatic functions
Set of 4 Frame Cradle Pads (#5215761) — designed for secure frame engagement on pinch-weld and frame lifting points
Set of 4 Medium Adapters (#5215758) — versatile lifting extensions for a wide range of applications
Set of 4 Tall Adapters (#5215759) — additional height for specialized applications and hard-to-reach lift points

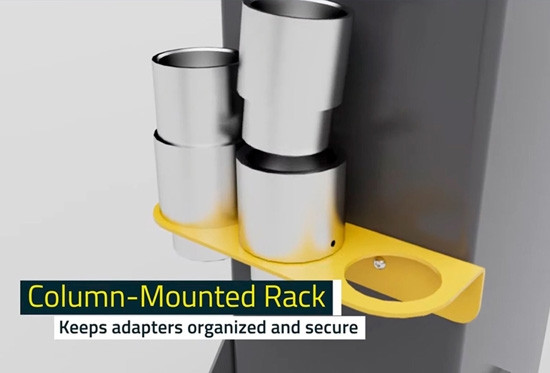

Adapter Holder — convenient storage bracket for quick access to adapters when you need them
With adapters included, the lift provides multiple rise configurations to match your specific needs: 73" rise with pad only, or 82.5" rise with pad plus 63mm adapter for standard models. The extended-rise APX models provide corresponding heights of 79.5" rise with pad only and 89" rise with pad plus adapter, giving you maximum flexibility for lifting taller vehicles and accessing undercarriage components.
The included frame cradle pads and adapters are precision-engineered to work seamlessly with the 10AP's arm design, providing stable, secure contact with vehicle lift points. This attention to detail extends throughout the entire package, ensuring you have professional-grade accessories that match the quality of the lift itself.
Built to Last with Premium Construction
Every BendPak 10AP features a durable powder coat finish that resists corrosion, scratches, and shop chemicals, maintaining its professional appearance through years of hard use. This isn't just about looks — the powder coating provides critical protection for the steel components, extending service life and reducing maintenance requirements.
The lift's construction reflects BendPak's commitment to quality and safety. Heavy-duty steel components, precision-machined parts, and robust welded construction combine to create a lift that's built for decades of reliable service. The oversized cable sheave diameter works in conjunction with the high-strength galvanized steel cables to reduce wear and extend component life far beyond what you'd expect from standard lift designs.
As an ALI-certified lift, the 10AP meets or exceeds the rigorous standards established by the Automotive Lift Institute for safety and performance. This certification provides independent verification that this lift has been tested and validated to industry-leading standards, giving you confidence in your investment.
Why Choose the BendPak 10AP Pro Series?
ALI Certified — meets rigorous industry safety and performance standards
10,000 lb. capacity — handles everything from compact cars to light-duty trucks
Adjustable width — expandable top beam accommodates 135" or 145" overall width configurations
Exclusive Bi-Metric™ arms — superior versatility for symmetric and asymmetric lifting
ASARS technology — automatic restraints with over 2,000 lbs. of holding force
Four model configurations — choose from standard or extended-rise designs to match your ceiling height
Complete package — includes workstation, pads, adapters, and holder
Self-lubricating bearings — reduced maintenance and smooth, reliable operation
Quiet operation — less than 70 dB noise level
Durable construction — powder coat finish and heavy-duty components built to last
Professional-Grade Performance for Demanding Applications
The BendPak 10AP Pro Series delivers the performance professional shops demand day after day. The combination of dual hydraulic direct-drive cylinders, advanced safety features, and precision engineering creates a lifting experience that's smooth, secure, and efficient. Whether you're performing routine maintenance, complex repairs, or diagnostic work, this lift provides the stable platform and convenient access you need.
The clearfloor design maximizes workspace around the vehicle, giving technicians unobstructed access from all angles. There are no base plates or trip hazards to navigate, making it faster and safer to move equipment, tools, and yourself around the lift. This design also simplifies shop cleaning and improves overall workspace efficiency.
With approximately 45 seconds to full rise, the 10AP keeps your workflow moving efficiently. The controls are intuitive and responsive, and the single-point safety release makes it easy to adjust arms or reposition vehicles when needed. Every aspect of this lift has been engineered to maximize productivity and minimize downtime.
Patent-Protected Innovation
This product is protected by patent in the United States (Patent No. US11820632B2), Canada, China, and other countries where corresponding patent protection has been sought. This represents genuine innovation in automotive lift technology — not just incremental improvements, but fundamental advances in how two-post lifts perform and protect operators.
When you invest in a BendPak 10AP, you're getting cutting-edge technology backed by BendPak's decades of engineering expertise and commitment to quality. This is equipment designed to serve your shop for many years, with the performance, safety features, and reliability that professional technicians depend on every day.
Looking for full specifications and features? Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's
published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO
THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER
Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.
Five Years (60-Months) Warranty on the lift structure
Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12-Months) Warranty on operating components
One Year (12-Months) Warranty on electrical components (excluding power unit)
One Year (12-Months) Labor Warranty on site or at factory*
One Year (12-Months) Free-Shipping** on ground-freight charges related to warranty performance
Limited Warranty
Who gives this warranty (Warrantor): BendPak Inc., 1645 lemonwood dr. Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty: Any BendPak Two-Post or Four-Post car lift***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:
Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
Any damage caused by overloading Product beyond rated capacity
Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber pads, lifting cables, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
Rusted components due to improper maintenance or corrosive environments
Cosmetic defects that do not interfere with product functionality
Damage due to incorrect voltage or improper wiring
Any failure that results from improper installation or use not according to specifications
Damage caused by disasters such as fire, flood, wind, and lightning
Damage caused by unauthorized attachments or modifications
Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
Responsibilities of Purchaser under this warranty:
Provide dated proof of purchase and maintenance records
In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any
damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*As determined by Warrantor in its sole discretion**Free-shipping applies to direct shipping points within the 48 continental United States.
Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Two-Post or Four-Post Vehicle Service Lifts
(excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following
1/1/2011.
