A New Paradigm in Automotive Lifting
Auto repair shops working on the latest technology need to be equipped with the most advanced tools to service them properly — they need to evolve alongside the vehicles they service. BendPak's 10AP Series represents a revolutionary design that factors the best qualities of today's two-post lift types into a completely new concept in car lift engineering. The result is a lift unlike any other two-post on the market, purposefully designed for extreme use, high loads, and operator safety and efficiency.
The BendPak 10AP offers the convenience of wide or narrow installation wrapped into one configurable package. With a 10,000 lb. capacity, this durable, safe, and reliable ALI-certified car lift features an expandable top beam and exclusive Bi-Metric™ swing arms to suit virtually every vehicle lifting requirement — symmetric or asymmetric. The simple, yet highly sophisticated lift design keeps service and maintenance costs to a minimum, delivering lower operating expenses and higher productivity.

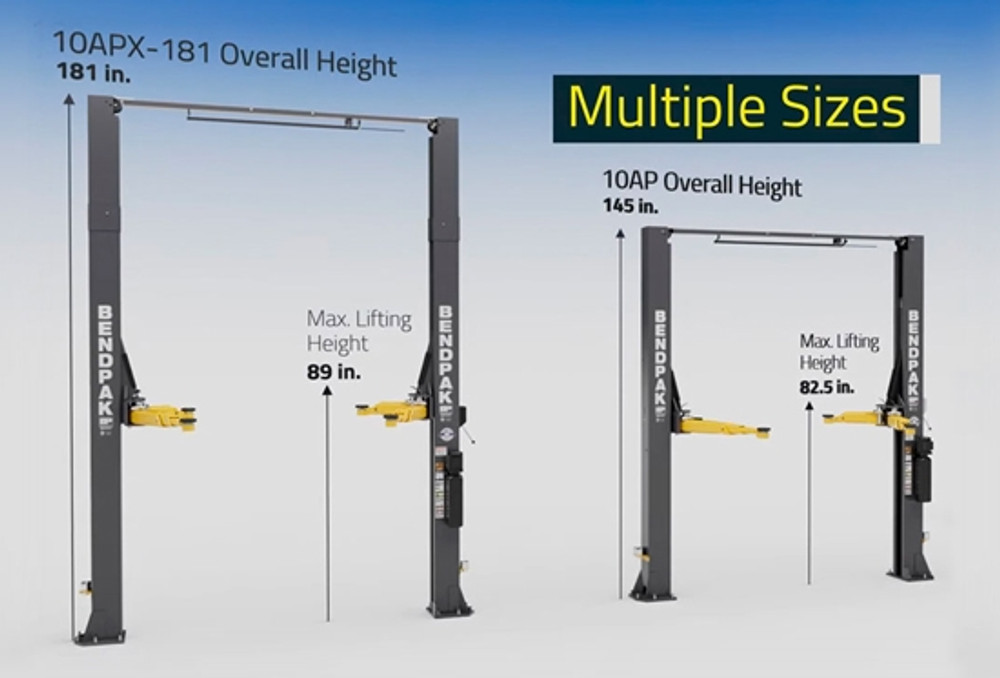

Available in four models — 10AP, 10AP-168, 10APX, and 10APX-181 — with varying overhead heights to fit your shop configuration, this adaptable clearfloor lift system is built for professionals who demand precision, flexibility, and long-term reliability.

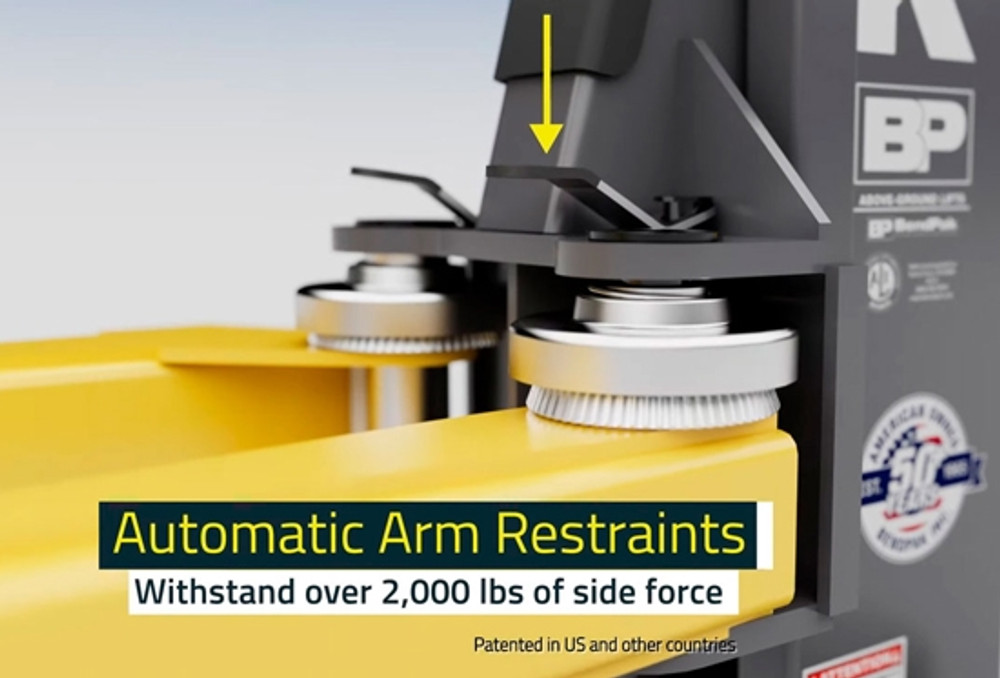

Automatic Arm Restraint System (AARS) — Prevents Unplanned Movement
Swing arm restraints have been used for decades on two-post lifts to minimize the chance of arms shifting during vehicle loading and service. However, until now, these systems had difficulty withstanding the excessive forces applied when vehicles suddenly and unexpectedly shifted on support pads or adapters — typically due to improper loading or when heavy drivetrain components are added or removed from elevated vehicles, causing an unanticipated transference in the center of balance.
With a full 360-degrees of load-holding grip, the heavily forged-steel design of this patented and exclusive arm restraint system secures the lift arms firmly in place with over 2,000-pounds of load-holding force, preventing unplanned swing arm movement during lift use and vehicle service operations. This revolutionary design is an adaptive system that requires minimal operator involvement and delivers unparalleled holding power. A distinctive power-hold design allows for precise non-shifting action, and a handy quick-release operator lever allows for the instant release of clamping pressure.

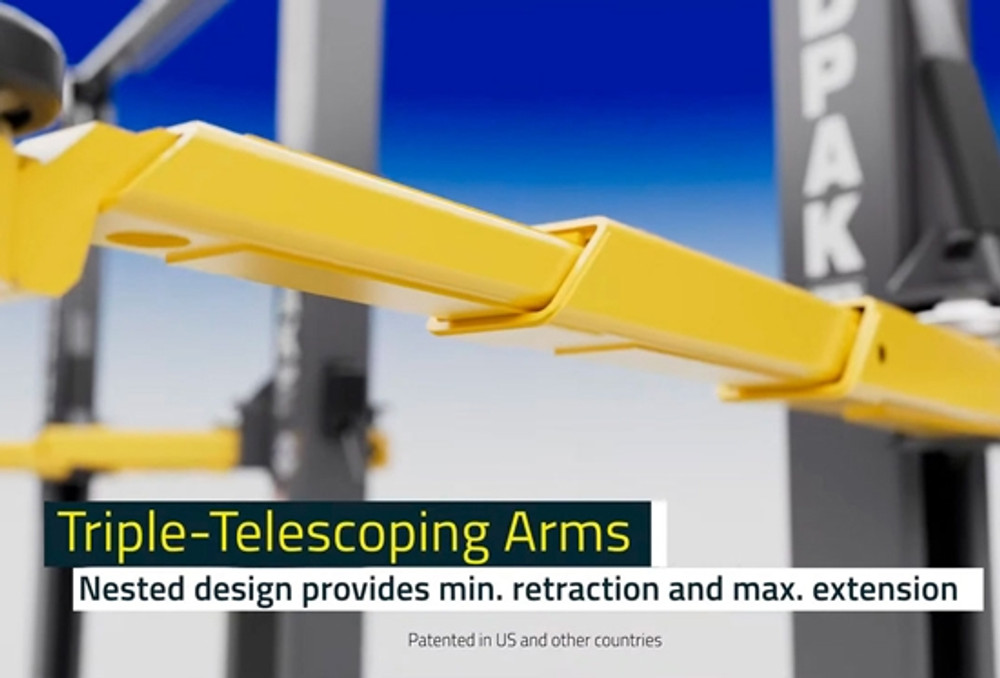

Triple-Telescoping Nested Swing Arm Design
Revolutionary and patented swing arms are specifically tailored for varying vehicle lifting points. Unlike traditional two-post lift arms, 10AP arms retract shorter and extend farther, offering lift operators a myriad of lift arm positioning options — it's like having the best of all worlds.
The innovative three-stage arms achieve more telescoping movement due to their patented nesting feature that results in greater retraction and farther reach. Inner sliding arm movement is no longer impeded by arm end plates, tube closeouts, or even the arm pivot pin itself. The inner tubes retract fully through the back of the arm assembly and even beyond the arm pin, resulting in more achievable retraction and extension.
Front arm reach: extends from 24.5" minimum to 50" maximum. Rear arm reach: extends from 32" minimum to 59.25" maximum. Maximum load per arm is 2,500 lbs, ensuring safe and balanced lifting for a wide variety of vehicles.
Low Profile Drop-End Arms
BendPak's exclusive Low-Pro™ swing arms feature telescoping channels that have a shorter profile and a dropped-end pad receiver, resulting in better serviceability on lowered chassis-height vehicles. They access hard-to-reach lift points with less hindrance, providing increased versatility and less chance of damage to vehicle side skirts, running boards, or ground effects. The minimum pad height is just 4", making this lift ideal for low-clearance and performance vehicles.

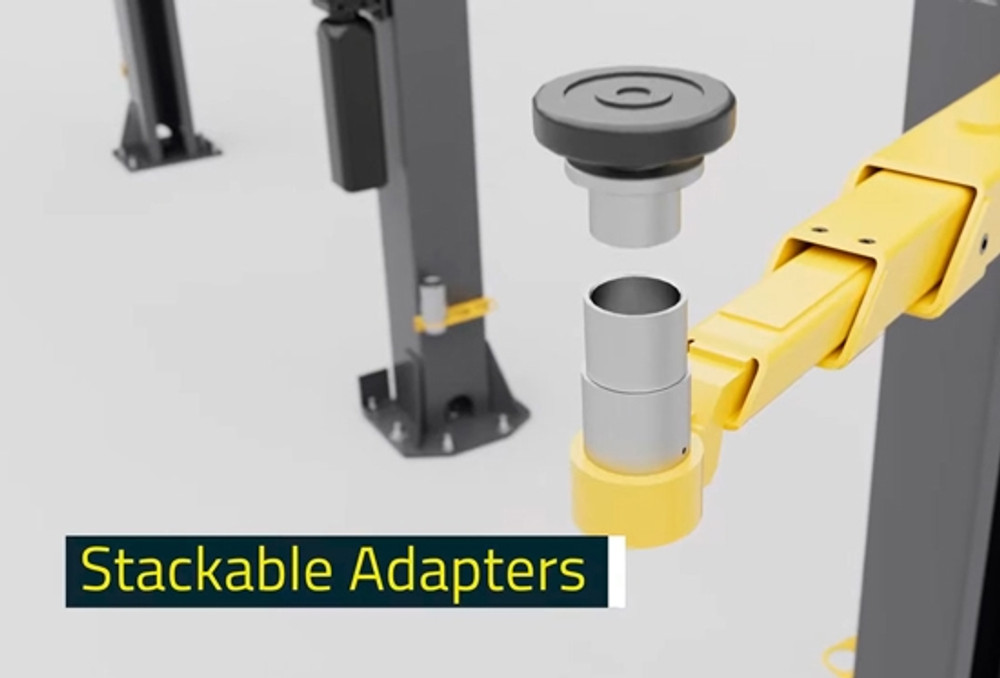

Varying height stackable adapters combined with two-stage spin-up screw pads provide greater vertical pad placement for precise and safe vehicle support.

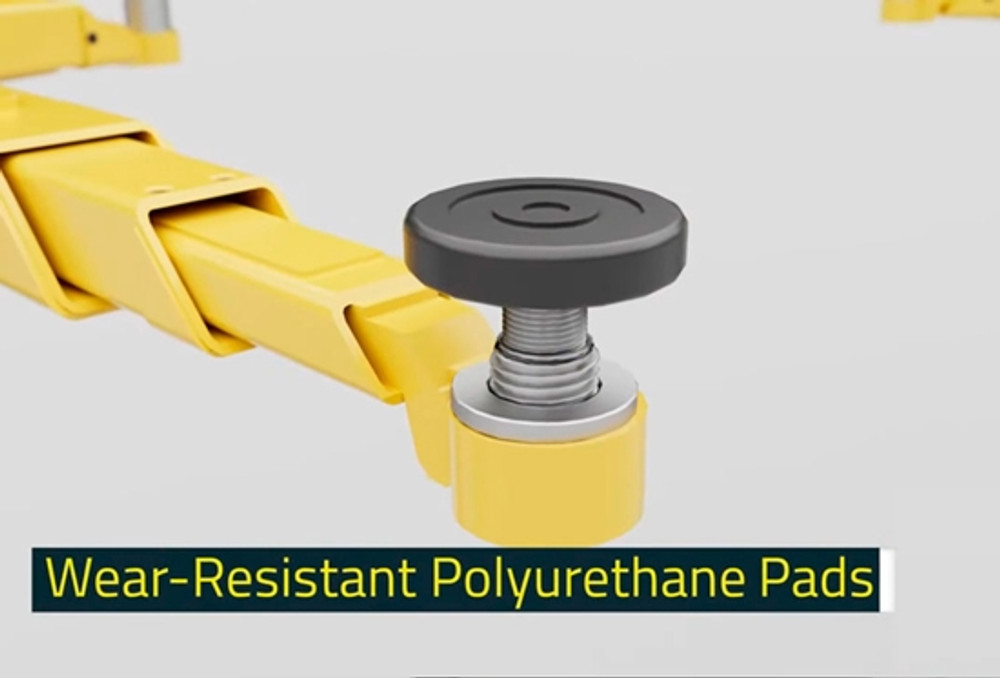

Double-telescoping screw adapters feature gouge and tear-resistant polyurethane pads that can be screwed up or down (2" adjustment) to ensure level lifting in all conditions. This provides more precise and secure frame engagement, ensuring technician safety.

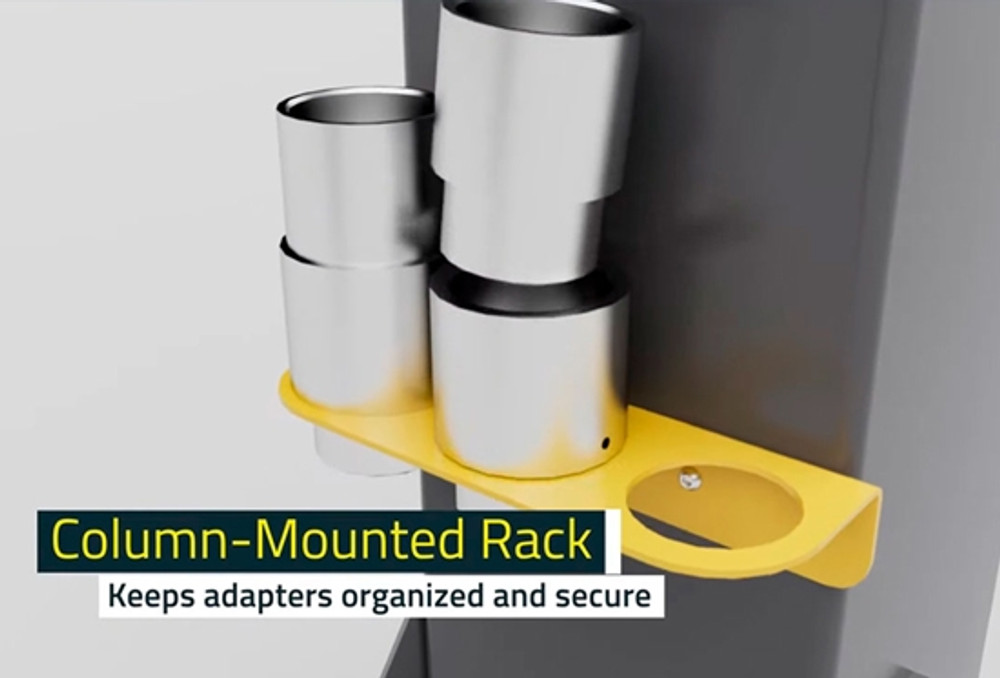

The optional 2.5" and 5" stackable adapters (included with the lift: 4-piece screw pads and adapter holders) provide greater vertical pad placement for precise and safe vehicle support. The 63 mm adapter can provide additional rise height when needed. The drop-in design allows for quick and easy use, and two column-mounted racks keep the adapters neatly organized and secure.
Innovative Patented Safety Lock System
The patented automatic safety lock system is designed to dramatically improve operator efficiency and safety. The simple yet innovative design ensures automatic safety lock engagement during all lift rising operations. Safety locks are positioned in each column and spaced every 3 inches for precise engagement at any height.
An ergonomic single-point safety release allows operators to effortlessly release the safety locks during lift descent — literally with a push of a single finger. It's that easy.

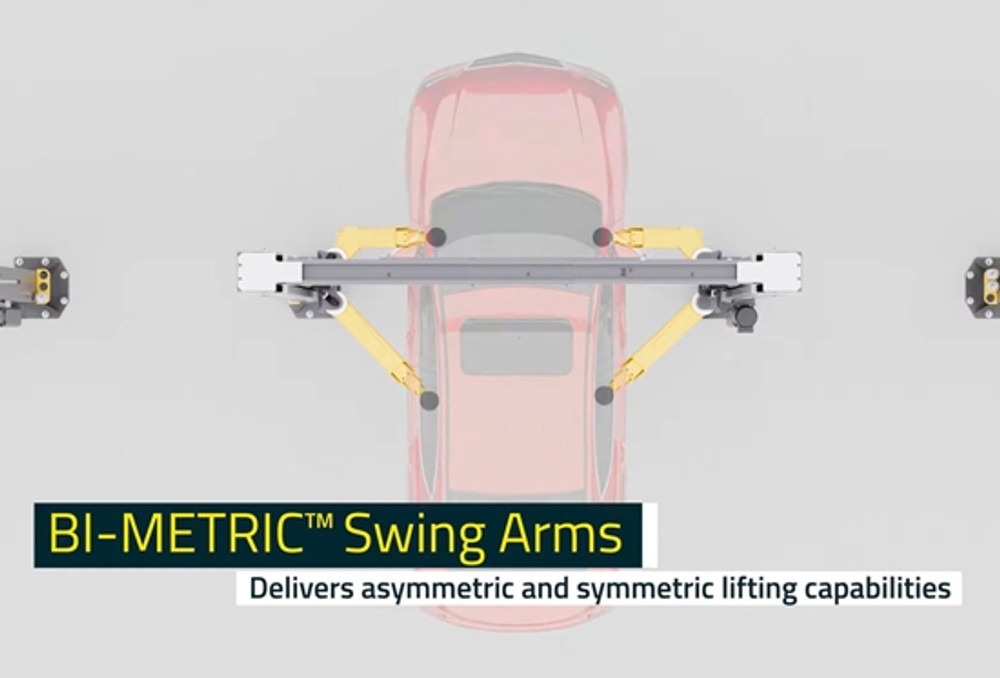

Bi-Metric™ Adaptable Swing Arms — Two Configurations in One
Exclusive Bi-Metric™ adaptable swing arms give users the ability to set their lift up in either symmetric or asymmetric configurations. The 2-in-1 design gives operators the option of loading vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column). By not having to switch out arms, you'll be able to service vehicles faster than ever before.
This innovative flexibility makes the 10AP Series ideal for shops that service a diverse range of vehicles, from compact cars to full-size trucks and SUVs.
Adjustable Width for Wide or Narrow Installations
The 10AP Series features an expandable top beam that accommodates wide or narrow drive-thru configurations. The overall width can be set to either 135" or 145", with inside column spacing of 108.5" or 118.5", and drive-thru clearance of 97.5" or 107.5".
This adjustable-width design allows you to configure the lift to fit your shop layout and the types of vehicles you service most frequently, maximizing space efficiency and operational flexibility.
Built for Durability and Long-Term Performance
The BendPak 10AP is engineered with premium components designed for years of heavy-duty use:
Durable powder coat finish protects against corrosion and wear
Oversized 53" & 59" tall carriages for superior strength and durability
Dual hydraulic direct-drive cylinders provide smooth, reliable lifting action
Electric/hydraulic HVLP power system with 220 VAC / 60 Hz / 1-Phase motor
Self-lubricating Dura-Glide UHMW polyethylene bearing system reduces maintenance
Oversized cable sheave diameter reduces cable fatigue for extended service life
Padded overhead safety shutoff bar prevents over-travel
Quiet operation at less than 70 dB
Fast full rise time of approximately 45 seconds
ALI Certified for Safety and Compliance
The BendPak 10AP Series is ALI certified, meeting rigorous safety and performance standards as prescribed by ANSI/ALI ALCTV. This certification ensures that your lift has been independently tested and validated for safe operation in professional automotive service environments.
Key Highlights
10,000 lb. lifting capacity — handles a wide range of vehicles from compact cars to full-size trucks
Adjustable width configuration — 135" or 145" overall width to fit your shop layout
Exclusive Bi-Metric™ arms — symmetric or asymmetric positioning without changing arms
Patented Automatic Arm Restraint System — over 2,000 lbs. of holding force prevents unplanned movement
Triple-telescoping arms — exceptional reach and retraction for versatile vehicle positioning
Low-profile drop-end arms — minimum pad height of just 4" for low-clearance vehicles
ALI certified — meets rigorous safety and performance standards
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's
published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO
THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER
Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.
Five Years (60-Months) Warranty on the lift structure
Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12-Months) Warranty on operating components
One Year (12-Months) Warranty on electrical components (excluding power unit)
One Year (12-Months) Labor Warranty on site or at factory*
One Year (12-Months) Free-Shipping** on ground-freight charges related to warranty performance
Limited Warranty
Who gives this warranty (Warrantor): BendPak Inc., 1645 lemonwood dr. Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty: Any BendPak Two-Post or Four-Post car lift***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:
Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
Any damage caused by overloading Product beyond rated capacity
Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber pads, lifting cables, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
Rusted components due to improper maintenance or corrosive environments
Cosmetic defects that do not interfere with product functionality
Damage due to incorrect voltage or improper wiring
Any failure that results from improper installation or use not according to specifications
Damage caused by disasters such as fire, flood, wind, and lightning
Damage caused by unauthorized attachments or modifications
Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
Responsibilities of Purchaser under this warranty:
Provide dated proof of purchase and maintenance records
In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any
damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*As determined by Warrantor in its sole discretion**Free-shipping applies to direct shipping points within the 48 continental United States.
Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Two-Post or Four-Post Vehicle Service Lifts
(excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following
1/1/2011.
