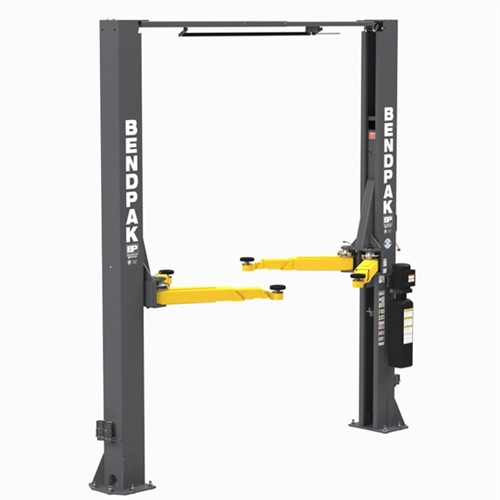

BendPak 10AP-168 Pro Series Adj-Width Ex-Tall ALI 2 Post Lift Package

As the automotive landscape evolves with increasingly advanced technology and diverse vehicle types, professional service facilities demand lifting equipment that meets the challenges of modern repair work. The BendPak 10AP-168 Pro Series Two-Post Lift Package represents a revolutionary advancement in automotive lifting engineering—combining extreme-use durability, heavy-load capacity, and uncompromising operator safety into one comprehensive, ALI-certified professional-grade package.

This premium extra-tall lift features an impressive 168" overall height, providing mechanics with the critical overhead clearance required for tall trucks, oversized SUVs, and commercial vehicles. With a robust 10,000 lb. (4,536 kg) lifting capacity and a maximum rise of 69 inches (1,753 mm), the 10AP-168 delivers professional-grade performance for shops handling diverse vehicle fleets ranging from compact cars to heavy-duty trucks.

Beyond exceptional lifting power, this complete turnkey package includes everything needed for immediate productivity and maximum versatility: WSA-100 Air & Electrical Service Unit with four 110V GFI outlets (featuring 20 amp industrial GFI protection) and dual air service lines, a full set of Frame Cradle Pads (60mm pin) for safely lifting trucks and SUVs, Medium (2.5") and Tall (5") Adapters (60mm) for versatile vehicle contact points, and a convenient Adapter Holder for organized storage. This comprehensive solution eliminates costly add-ons and gets your bay operational faster.

The adjustable-width design allows you to configure the lift with inside column clearances of either 108.5" or 118.5" (2,756 mm or 3,010 mm), providing 97.5" or 107.5" drive-thru clearance (2,477 mm or 2,731 mm). This flexibility ensures optimal fitment for your specific bay dimensions and vehicle service requirements without purchasing separate models.

The BendPak PRO-Series two-post lift is built to address the most demanding automotive service environments with advanced features that prioritize flexibility, safety, and efficiency:

• Expandable Top Beam Design: Seamlessly adapts to both wide and narrow drive-thru configurations, accommodating inside column widths from 108.5" to 118.5" without purchasing additional components. Overall width adjusts to either 135" or 145" (3,431 mm or 3,683 mm)
• Exclusive Bi-Metric™ Arm Technology: Switch instantly between symmetric and asymmetric lifting configurations without changing arms—dramatically increasing bay versatility and service speed for different vehicle types

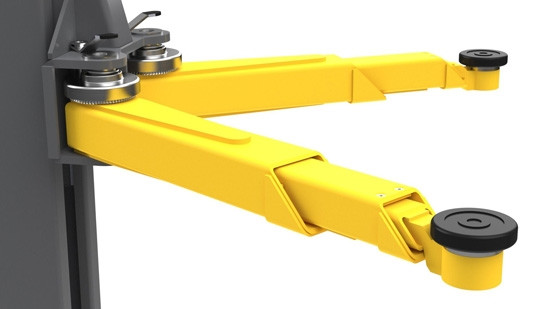

• Four Triple-Telescoping Arms: Three-stage arms retract shorter and extend farther than traditional designs, with front arm reach from 24.5" (622 mm) to 50" (1,270 mm) and rear arm reach from 32" (813 mm) to 59.25" (1,505 mm)—maximum positioning flexibility

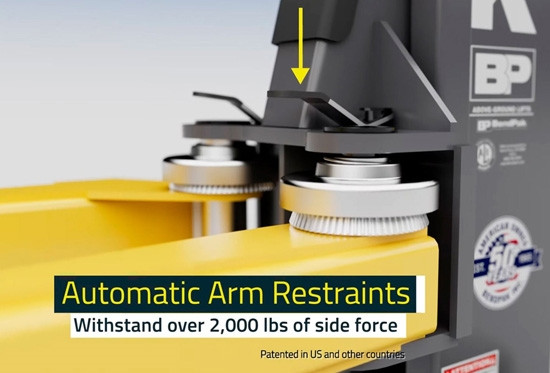

• Automatic Swing Arm Restraints: Forged steel restraints withstand over 2,000 lbs. of side force with 360-degree grip for unmatched stability during vehicle movement, tire removal, and undercarriage work
• Double-Telescoping Screw Pads: Offer 2" (51 mm) of fine adjustment per pad, allowing precise positioning at multiple contact points to safely accommodate a wide range of vehicle frames and unibody designs
• Drop-End Arms: Provide a lower minimum pad height of just 4" (102 mm) to lift low-profile sports cars, sedans, and vehicles with minimal ground clearance
• Single-Point Safety Release: Simple, intuitive control reduces operator error and speeds up vehicle lowering procedures while maintaining full safety lock engagement

The 10AP-168 model features oversized 53" and 59" tall carriages that provide superior strength and durability compared to standard-height designs. These extended carriages support the extra-tall overhead configuration while maintaining structural rigidity throughout the entire lift cycle. Combined with dual hydraulic direct-drive cylinders and an electric/hydraulic HVLP power system running on 220 VAC / 60 Hz. / 1Ph, this lift achieves full rise in approximately 45 seconds—keeping your workflow efficient without compromising precision or safety.

Safety is engineered into every component. A padded overhead safety shutoff bar prevents accidental over-lifting and protects vehicles from contact damage at maximum rise. Safety locks in each column engage automatically every 3 inches throughout the entire rise, providing continuous mechanical backup to the hydraulic system at all lift heights. Heavy-duty 1/2" aircraft-quality equalizer cables with oversized sheave diameter reduce cable fatigue and ensure smooth, synchronized lifting operation for decades of reliable service.

The advanced self-lubricating dura-glide UHMW polyethylene bearing system eliminates the need for frequent maintenance while delivering whisper-quiet operation (less than 70 dB noise level). This precision-engineered bearing technology reduces friction, extends component life, and keeps your shop environment comfortable for technicians working nearby throughout the day.

The lift's durable powder coat finish provides long-lasting protection against shop chemicals, moisture, and daily wear, ensuring your investment maintains its professional appearance for years while resisting corrosion and surface damage.

The 10AP-168's rise specifications make it exceptionally versatile for a wide range of service scenarios. With a maximum rise of 69" (1,753 mm), you achieve excellent working height for undercarriage access. Add the included pads and you reach 73" (1,854 mm) of total rise. When you need even more height for lifted trucks or specialized applications, the included tall 63mm adapters extend your total rise to an impressive 82.5" (2,096 mm).

Each of the four arms is rated for a maximum load of 2,500 lbs. (1,134 kg), allowing balanced lifting of the full 10,000 lb. capacity across all four contact points. The screw pad adjustment provides 2" (51 mm) of fine-tuning per pad to accommodate uneven frames, different pinch weld heights, and specific manufacturer lift point requirements.

The floor to overhead safety switch is positioned at 163" (4,140 mm) on the 10AP-168 model, ensuring adequate clearance for the padded shutoff bar while accommodating facilities with standard commercial ceiling heights. The outside column width measures 127.5" or 137.5" (3,239 mm or 3,493 mm) depending on your width configuration. This extra-tall configuration is ideal for shops servicing modern trucks, vans, and SUVs that exceed the capabilities of standard-height lifts.

With approximately 45 seconds to full rise, you minimize vehicle wait time and maximize bay throughput without sacrificing smooth, controlled operation. This performance is critical in high-volume shops where every minute counts toward daily productivity and customer satisfaction.

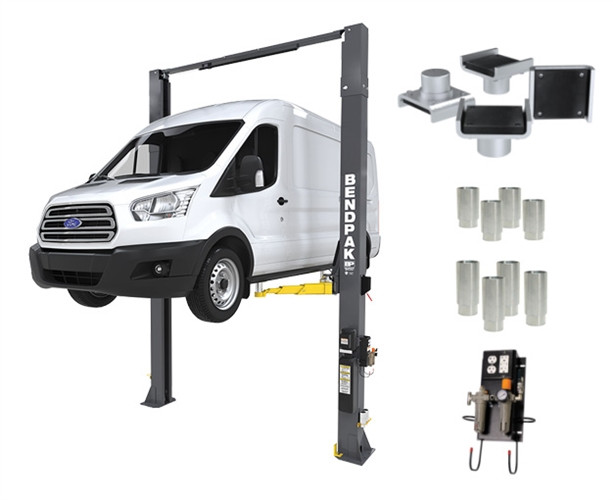

This isn't just a lift—it's a comprehensive service bay solution designed to handle the full spectrum of automotive service work. The BendPak 10AP-168 Package includes premium accessories that would cost hundreds or even thousands of dollars when purchased separately, giving you immediate capability and maximum return on investment:

WSA-100 Air & Electrical Service Unit

• Easy to install and adapts to any two-post or four-post lift configuration
• Four 110V GFI outlets equipped with 20 amp industrial GFI protection for powering diagnostic equipment, battery chargers, impact tools, and other shop equipment
• Electrical outlets positioned above the air service to prevent moisture damage and eliminate hose/cord tangling
• Air service through 2 outlets: one lubricated line for tire inflation and one for pneumatic tools
• Air service filter element and lubricator filler port are easily accessible for routine maintenance
• Nickel-plated ball valve shutoff for precise air flow control
• Powder-coated finish for durability and long life in demanding shop environments
• Oiler, pressure gauge, regulator/filter, air inlet, and storage hooks for hoses and tools—everything needed for a complete air/electrical service station

Frame Cradle Pads (Set of 4 – 60mm pin)

• Heavy-duty frame cradle pads designed specifically for lifting trucks, SUVs, and body-on-frame vehicles at safe factory-recommended lift points
• 60mm pin design ensures secure, stable attachment to lift arms during operation
• Provides wide, flat contact surface to distribute load evenly across vehicle frame rails, preventing damage to undercarriage components

Medium Adapter – 60mm (Set of 4 – 2.5")

• 2.5" height extension for reaching elevated lift points on trucks and SUVs
• 60mm pin compatibility works seamlessly with included frame cradle pads and lift arms
• Ideal for mid-height adjustments when standard pads are too short but tall adapters are unnecessary

Tall Adapter – 60mm (Set of 4 – 5")

• 5" height extension for accessing high lift points on full-size trucks, lifted vehicles, and oversized SUVs
• 60mm pin compatibility maintains secure connection throughout lifting operation
• Combined with lift pads, tall adapters bring your total rise capability to 82.5" (2,096 mm)

Adapter Holder

• Convenient storage bracket keeps all adapters organized and within easy reach
• Prevents adapters from cluttering your shop floor or getting lost between jobs
• Mounts directly to lift columns for instant access when switching between vehicle types

With this complete package, you're ready to service everything from low-slung sports cars to heavy-duty diesel trucks on day one—no waiting for accessories to ship, no compatibility questions, and no unexpected costs. BendPak has engineered this package to deliver maximum value and eliminate downtime.

• 10,000 lb. (4,536 kg) capacity handles the full range of passenger vehicles, trucks, and commercial vans
• 168" (4,267 mm) overall height provides critical clearance for tall trucks, lifted vehicles, and oversized SUVs
• Adjustable width configuration offers 108.5" or 118.5" inside clearance for flexible bay layouts
• Bi-Metric™ arm design switches between symmetric and asymmetric configurations instantly
• ALI Certified – meets rigorous safety and performance standards for professional automotive lifting
• Complete package includes air/electrical service unit, frame pads, medium and tall adapters, and storage holder
• Self-lubricating UHMW bearing system reduces maintenance and ensures whisper-quiet operation
• Safety locks every 3" provide continuous mechanical backup throughout the entire lift range
• ~45 second full rise time maximizes bay productivity without sacrificing smooth operation

Choosing the right automotive lift isn't just about lifting capacity—it's about investing in a system that grows with your business, protects your technicians, and delivers consistent performance year after year. The BendPak 10AP-168 Pro Series Package checks every box:

Unmatched versatility: The combination of adjustable width, Bi-Metric™ arms, triple-telescoping reach, and included adapters means you can service virtually any vehicle that rolls into your shop—from compact sedans to lifted F-350s—without purchasing separate specialized equipment.

Built for professional use: ALI certification isn't just a badge—it's proof that this lift has undergone rigorous third-party testing to meet or exceed industry safety standards. When your business depends on uptime and your technicians depend on safety, certification matters.

Superior engineering: From the oversized 53" and 59" tall carriages to the aircraft-quality equalizer cables and automatic arm restraints rated for 2,000+ lbs. of side force, every component is designed for extreme-duty professional service environments. This isn't a hobby lift—it's a commercial-grade workhorse built to handle thousands of lift cycles.

Turnkey solution: Many competitors sell you a bare lift and leave you scrambling to find compatible accessories. BendPak includes everything in one package—air and electrical service unit, frame pads, adapters, and storage—so you're productive from day one without hidden costs or compatibility headaches.

Quiet, low-maintenance operation: The self-lubricating UHMW polyethylene bearing system and sub-70 dB noise level mean less time on maintenance and a more comfortable shop environment. Your team can communicate clearly and work efficiently without the constant roar of hydraulic pumps drowning out conversations.

Extra-tall design: As vehicles get larger and taller, standard lifts become limitations. The 168" overall height ensures you're ready for today's tallest trucks and tomorrow's evolving vehicle market without needing to upgrade again in a few years.

When you combine 10,000 lb. capacity, 69" maximum rise (up to 82.5" with adapters), adjustable width, premium accessories, and ALI certification, the 10AP-168 Package represents one of the most complete, capable, and cost-effective professional lift solutions available.

Click image to view full-size specification diagram

Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
