The Auto Lift AL2-9K-SCX represents a new generation of two-post automotive lifts, combining 9,000 lb capacity with thoughtful engineering refinements that deliver exceptional value for professional shops and home garages alike. This symmetric clear floor lift is part of Auto Lift's redesigned 9K "X" Series, which introduces a host of improvements that elevate performance, safety, and ease of use without compromising affordability.
Engineered with single-piece column construction and featuring a chain drive system, the AL2-9K-SCX delivers smooth, reliable operation with a lifting speed of just 50 seconds to its full 72-inch max lift height. The symmetric design provides equal front and rear arm reach (31" to 45" on both front and rear arms), making it ideal for a wide range of vehicles from compact cars to light trucks. With a 104-inch drive-thru clearance and 113.6-inch width between columns, you'll have plenty of room to work comfortably around lifted vehicles.
The 9K-SCX has been completely reimagined to now include features that were once considered premium upgrades. Every aspect of this clear floor lift has been refined to create one of the best two-post lift values in the industry today.
The new single-piece column construction eliminates weak points and provides enhanced structural integrity throughout the lift cycle. Constructed from 5mm-thick column steel with 5mm carriage thickness and robust 6mm-thick arms, this lift is built to handle demanding shop environments day after day. The 3/8" diameter cables and dual-point lock release system provide redundant safety, giving you confidence with every lift.
A standout safety upgrade is the new padded overhead shut-off bar with integrated kill switch. This provides an immediate emergency stop option that's always within reach, adding an extra layer of protection for operators. Combined with rubber door guards that protect vehicle doors from contact with the metal frame, the AL2-9K-SCX prioritizes both operator and vehicle safety.
Key Advantages of the AL2-9K-SCX:
Each arm is rated to handle up to 2,250 lbs, and the lift operates on standard 220V, 20 AMP, single-phase power, making installation straightforward in most shop environments. The clear floor design eliminates tripping hazards and makes positioning vehicles easier, while the durable construction keeps the shipping weight at a manageable 1,370 lbs.

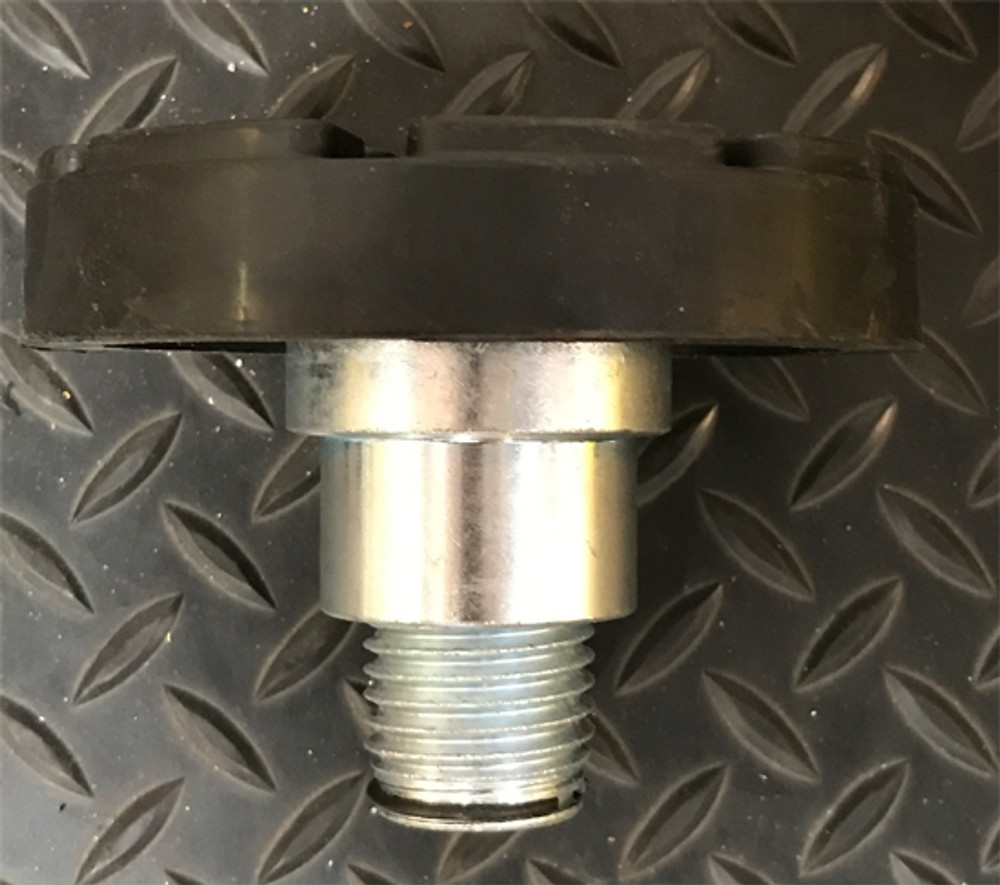

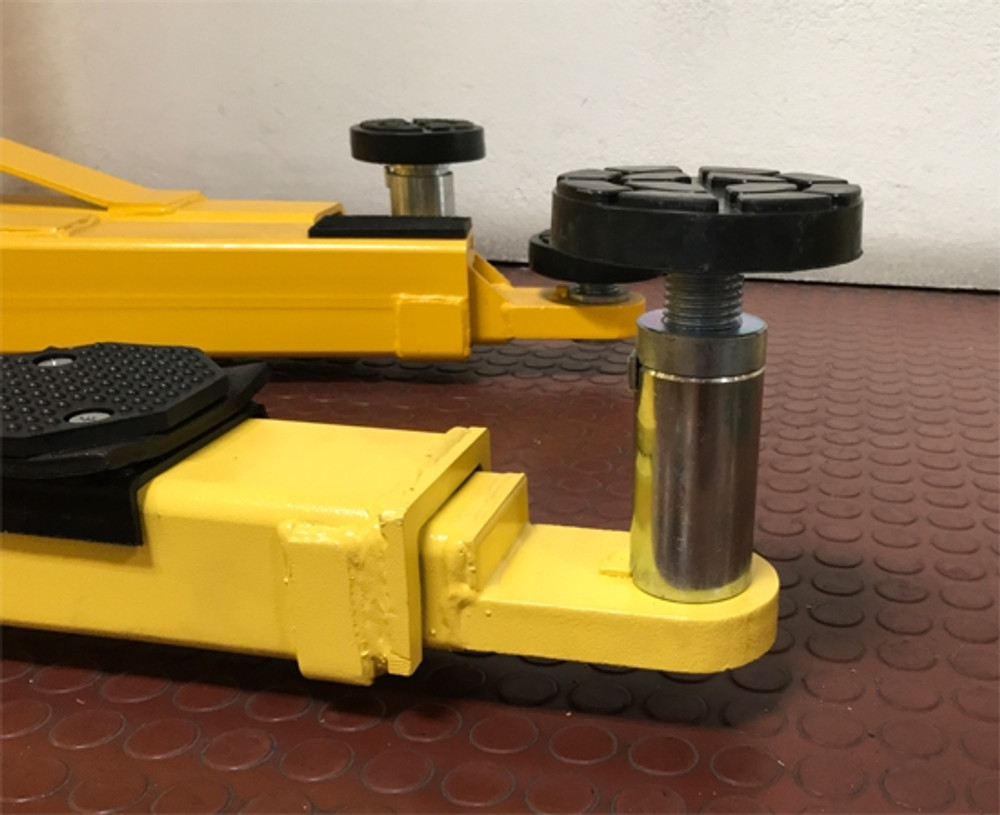

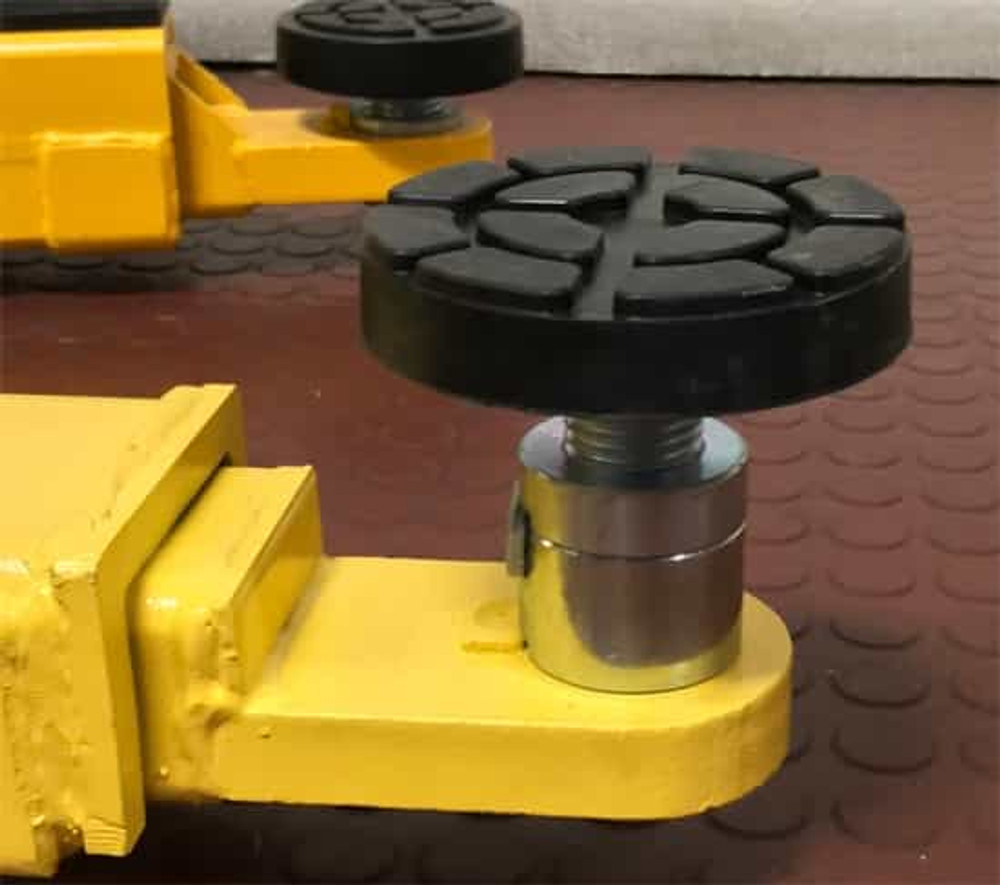

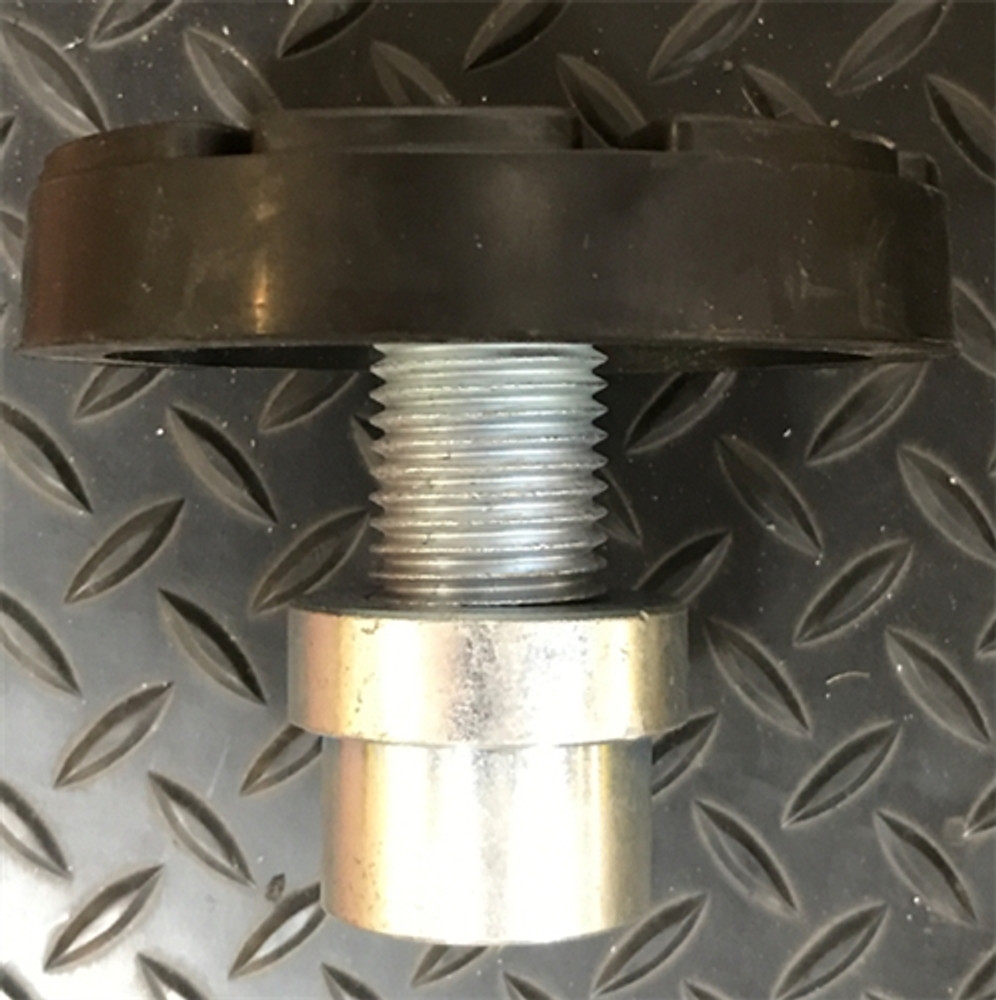

Low Profile Swivel Pads
The innovative drop-in swivel pad design allows for quick, tool-free adjustment with 1-1/2" of vertical height adjustment. These pads provide a secure contact point for vehicle frames and pinch welds while accommodating varying vehicle geometries. The low-profile design ensures compatibility with sports cars, lowered vehicles, and other low-clearance applications.
Stackable Height Adapters
Every AL2-9K-SCX includes a complete set of stackable drop-in height adapters: four 1-3/8" adapters and four 4" adapters. These can be used individually or stacked to create the perfect lifting height for trucks, SUVs, and vehicles with higher ground clearance. The drop-in design makes switching between configurations fast and effortless.
Front-Side Power Unit Mounting
By relocating the power unit to the front side of the column, Auto Lift has reduced the overall width of the AL2-9K-SCX without sacrificing performance. This space-saving design improvement allows the lift to fit in tighter bays while maintaining full 104-inch drive-thru clearance for easy vehicle positioning.
Internal Hose Routing with Integrated Guards
Hydraulic hoses are routed internally through the columns and protected by integrated hose guards, shielding them from accidental damage, shop traffic, and environmental hazards. This design choice not only extends component life but also creates a cleaner, more professional appearance and safer work environment.
Rubber Door Guards
Protective rubber door guards line the inner surfaces of the columns, preventing vehicle doors from making contact with the metal frame during entry and exit. This thoughtful detail protects your customers' vehicles from scratches and dings while improving your shop's professional reputation.
Optional Spin-Up Cradle Adapters
Expand the versatility of your AL2-9K-SCX with the TP9KX-SPNCA optional set of four spin-up cradle adapters. These adapters provide alternative lifting points for vehicles with unique frame configurations or those requiring additional support surfaces during service.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Structural Warranty:
The following parts and structural components carry a five year warranty:
Limited One Year Warranty
Auto Lift Distributors LLC warrants to the original purchaser of a Auto Lift Lift that it will replace without any charge any part of a Auto Lift Lift found under normal use, in the United states or Canada, to be defective in materials or workmanship, for a period of one year after purchase. These parts are all steel components including:
Columns, Arms, Uprights, Swivel pins,
Pulleys, Carriages, Overhead beam, Floor plate, Tracks, Cross rails, Ramps, Top rail beam, Ramp pin, Legs
Exclusions
This warranty will not apply to any lift:
1.Which has not been operated or maintained according to specifications
2.Which has been abused, misused altered or improperly maintained
Other limitations
This warranty does not cover:
1.Parts needed for normal maintenance
2.Wear parts, which include but are not limited to, cables, hoses, slider blocks, chains and rubber pads
3.On-site labor
4.Upon delivery of goods, the Customer has sole responsibility to notify Auto Lift Distributors of missing parts or concealed damage within 72 hours of receipt. If no notification of missing parts or of concealed damage is made, all parts will be purchased after 72 hours has passed.
5.The Customer must notate on the freight receipt any visible damages to packing and/or equipment.The Customer has the right to refuse any shipment that appears to have been damaged or mis-handled in shipping.If the customer signs “clear” on visible damage, the freight company will reject the claim, thus making the Customer liable for any charges to replace equipment and/or parts.
6.The customer must make arrangements to unload the equipment from the freight trailer, no labor or equipment rental will be paid by Auto Lift Distributors.
Auto Lift Distributors LLC will replace any defective part under warranty at no charge as soon as said parts become available from the parts manufacturer. However, the purchaser is responsible for shipping charges involved; and no warrantee or guarantee is given as to the immediate availability of the replacement part.
Auto Lift Distributors LLC reserves the right to make improvements and/or design changes to its lifts without any obligation to previously sold, assembled or fabricated equipment.
There is no other express warranty on the Auto Lift Distributors lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
To the fullest extent allowed by law, Auto Lift Distributors, LLC shall not be liable for loss of use, cost of cover, lost profits, inconvenience, lost time, commercial loss or other incidental or consequential damages.
This Warrantee is granted to the original purchaser only, and is not transferable or assignable in any manner whatsoever.
Some States do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so that the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from State to State.
