Professional-Grade Performance, Unbeatable Value
The Atlas® PV series represents the absolute best value for the customer who demands a heavy-duty professional-grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade with thousands sold across the country. Descriptions such as "bullet-proof," built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day by satisfied customers to describe any of the Atlas® PV series models.
The Atlas® PV12PX is a commercial-grade lift engineered to accommodate both long wheelbase trucks and, because of its low pad height, passenger cars with equal confidence. With a 12,000 lb capacity, this lift is built to handle the demands of busy professional shops while remaining accessible to serious home enthusiasts who need commercial capability.
Extra-Wide, Extra-Tall Design for Maximum Versatility
The distance between the symmetric columns is an impressive 123¼ inches, with a drive-through space of over 109½ inches. This extra distance between the columns will allow the widest of vehicles or vehicles with wide rearview mirrors to be lifted or driven through with ease. Whether you're working on dually pickups, commercial vans, or vehicles with aftermarket running boards, the PV12PX accommodates them all.
The increased length of the symmetric arms, coupled with the additional height of the included peg-style 12-piece truck adapter set, allows the operator to safely raise long wheelbase trucks with a variety of running boards and undercarriage configurations. The extra height means extra clearance, allowing you to lift vans, box trucks, and tall vehicles without worry.
The arms on the PV12PX extend from 37½ inches collapsed to 57 inches fully extended, providing tremendous flexibility for different vehicle sizes and lift point locations. The minimum arm height is just 4½ inches (assuming a level floor), making this lift ideal for low-profile sports cars and passenger vehicles in addition to trucks.
Adjustable Height Configuration for Any Shop
The Atlas® XH-PV12PX features three adjustable height settings to fit your specific shop ceiling requirements:
Low Setting: 150 inches (12' 6") overall height (requires purchase of additional shorter cables, sold separately)
High Setting: 177 inches (14' 9") overall height – maximum clearance for tall vehicles
This unique adjustable height capability means you can configure the PV12PX to fit your existing shop space, rather than being forced to modify your building or compromise on lift performance. The height to shut-off bar adjusts accordingly: 141 inches (11' 9") on the low setting, 156 inches (13') on the middle setting, and 168 inches (14') on the high setting.
Maximum lift height without adapters is 72¼ inches, and with adapters installed, the lift reaches an impressive 79¼ inches, providing exceptional working clearance underneath even the largest vehicles.
Key Features & Highlights
Automatic Arm Restraints – Enhanced safety during vehicle positioning
"Padded" Shut-Off Bar – Prevents damage and provides a cushioned stop
Door Guards on Carriages – Protects vehicle doors during lifting operations
Single Point Lock Release – Convenient one-handed safety lock disengagement
Dual Direct-Drive Cylinders – Reliable, synchronized lifting power
Durable Powder Coat Finish – Long-lasting corrosion resistance and professional appearance
Free 12-Piece Truck Adapter Set Included – Adds versatility for trucks, vans, and SUVs

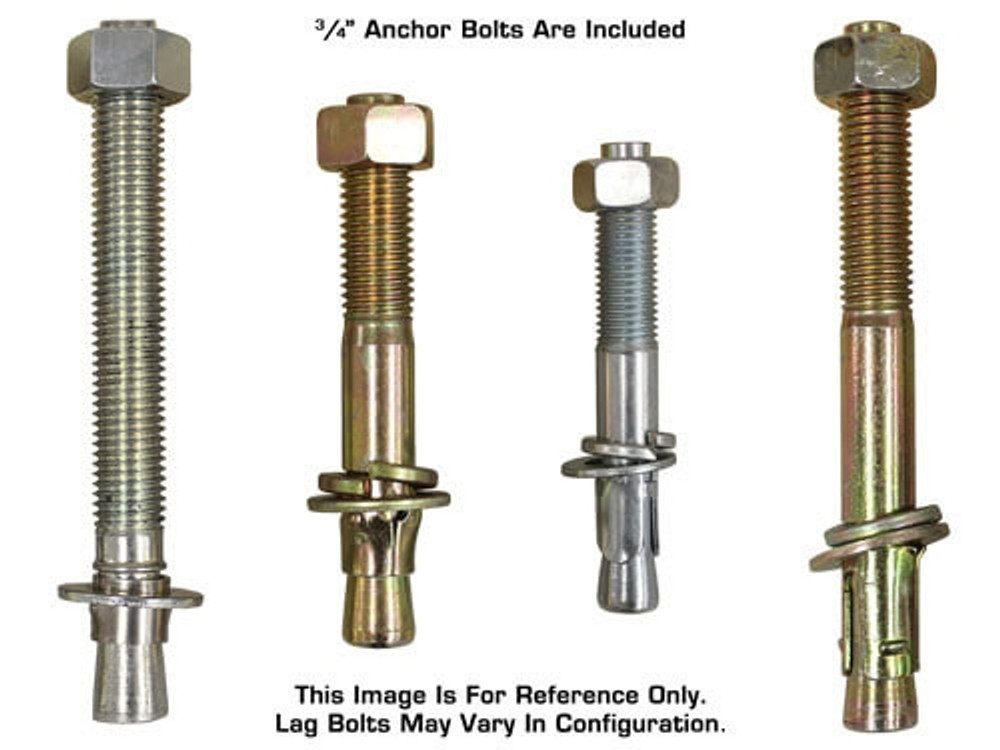

All Mounting Hardware Included – Everything you need for installation in the box
Free Truck Adapter Set Included:
Every PV12PX ships with a complete 12-piece truck adapter set featuring adapters in three sizes: 1¼", 2½", and 5". This professional adapter set provides secure lifting points for trucks, vans, and SUVs with various frame configurations.
Robust Construction & Reliable Operation
Built for daily commercial use, the PV12PX features heavy-duty steel construction with a durable powder coat finish that resists corrosion and maintains a professional appearance for years. The lift is powered by dual direct-drive cylinders that deliver smooth, synchronized lifting operation without the complexity of cables or pulleys that require frequent adjustment.
The round lift pads are 5½ inches across with a 1¼ inch shank, designed to securely cradle the vehicle's lift points. The included adapter set provides 1¼", 2½", and 5" extensions, giving you the flexibility to lift vehicles with recessed or elevated frame rails.
Overall width is 150¾ inches without the motor and 159 inches with the motor installed. The distance from outside column to outside column is 138½ inches, providing a stable, wide footprint for maximum lift stability.
Electrical & Installation Requirements
The Atlas® PV12PX operates on 220V single-phase power, with a 30 amp breaker recommended for safe, reliable operation. The hydraulic system requires 3-5 gallons of AW32 or AW46 hydraulic oil for proper operation.
Installation requires a minimum of 6 inches of concrete with a 3500 psi rating. All necessary mounting hardware is included with the lift. With a shipping weight of 2,160 lbs, the lift arrives securely packaged and ready for professional installation.
Important Installation Note:
The low height configuration (150" / 12' 6") requires the purchase of additional shorter cables, which are sold separately. The lift ships standard with cables for the middle (165") and high (177") height configurations.
See the PV12PX in Action
Why Choose the Atlas® PV12PX?
Unmatched Versatility: The combination of extra-wide column spacing, extra-tall height, adjustable configuration options, and low minimum pad height makes the PV12PX one of the most versatile two-post lifts available. From low sports cars to tall box trucks, this lift handles them all.
Commercial Durability: Built to the same exacting standards as lifts found in professional dealerships and heavy-duty truck shops, the PV12PX delivers reliable, day-in, day-out performance. The dual direct-drive cylinder design eliminates common wear points found in cable-equalized systems.
Complete Package: With the included 12-piece truck adapter set, all mounting hardware, and comprehensive installation manual, the PV12PX arrives ready for installation. You won't need to purchase additional accessories to start lifting a wide variety of vehicles.
Backed by Atlas®: As part of the legendary Atlas® PV series, this lift benefits from over a decade of continuous refinement and improvement. The PV series has earned a reputation as one of the toughest, most reliable lift lines in the industry, with thousands of satisfied customers nationwide.
