Professional-Grade Performance at an Unbeatable Value
The Atlas® PV10PX represents the absolute best value for customers who demand a heavy-duty, professional-grade two-post lift at the lowest possible price. For over a decade, Atlas® Automotive Equipment has been manufacturing the PV series two-post above-ground lifts—thousands sold to satisfied customers worldwide. This lift has earned its reputation through descriptions such as "bullet-proof," built like a brick outhouse, tougher than nails, and other euphemisms that mechanics use every day to describe the rugged reliability of any Atlas® PV series model.
The commercial-grade Atlas® PV10PX incorporates key modifications and improvements that make it one of the most popular above-ground lifts in the world. With a 10,000 lb capacity, asymmetric/symmetric arm configuration, and adjustable overall height, this lift adapts to virtually any shop environment and lifting requirement.
This lift is the perfect choice for use in either a large commercial service department or for the "pole barn" owner who wants the "biggest and baddest" lift in the country. The Atlas® PV10PX is designed and engineered to safely lift—and work on—everything from a Smart Car® to a one-ton diesel dually. Whether you're running a busy commercial shop or building out your dream garage, this lift delivers the strength, versatility, and dependability you need.
Built to Last: Commercial-Grade Construction

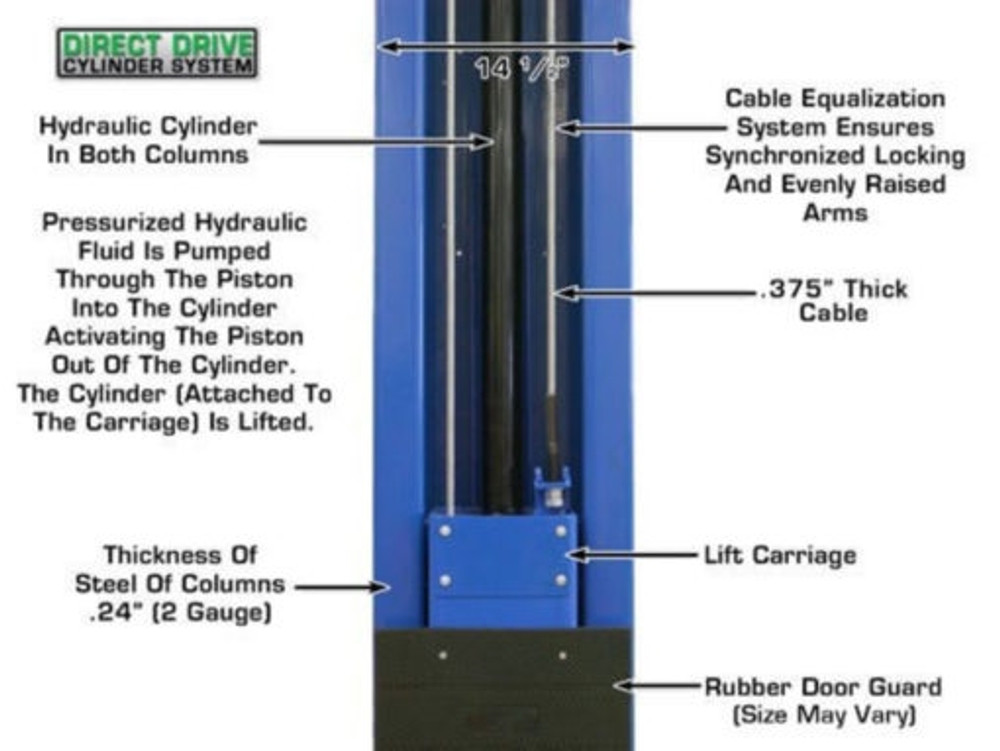

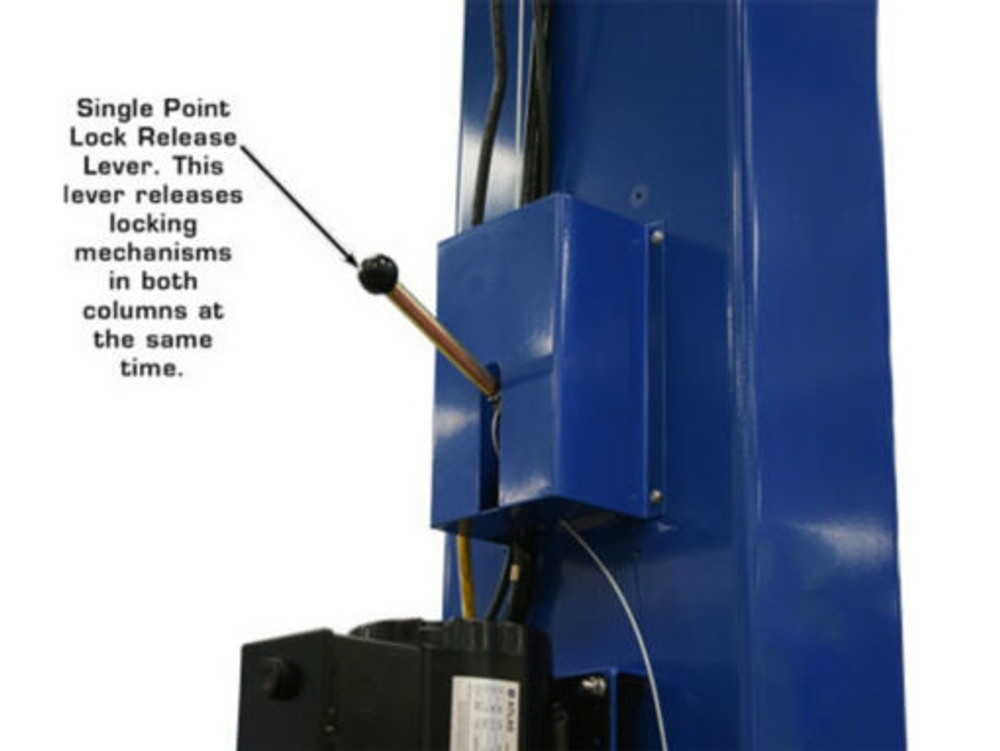

Durability is engineered into every inch of the PV10PX. The lift features 6mm thick steel columns and arms—heavy-gauge construction designed to handle the rigors of daily commercial use. The robust 7 1/2" x 14 1/2" columns sit on a wide 17 1/2" x 20 1/2" base for maximum stability during lifting operations. Combined with direct-drive cylinders and a single-point lock release system, this lift delivers smooth, reliable performance shift after shift.

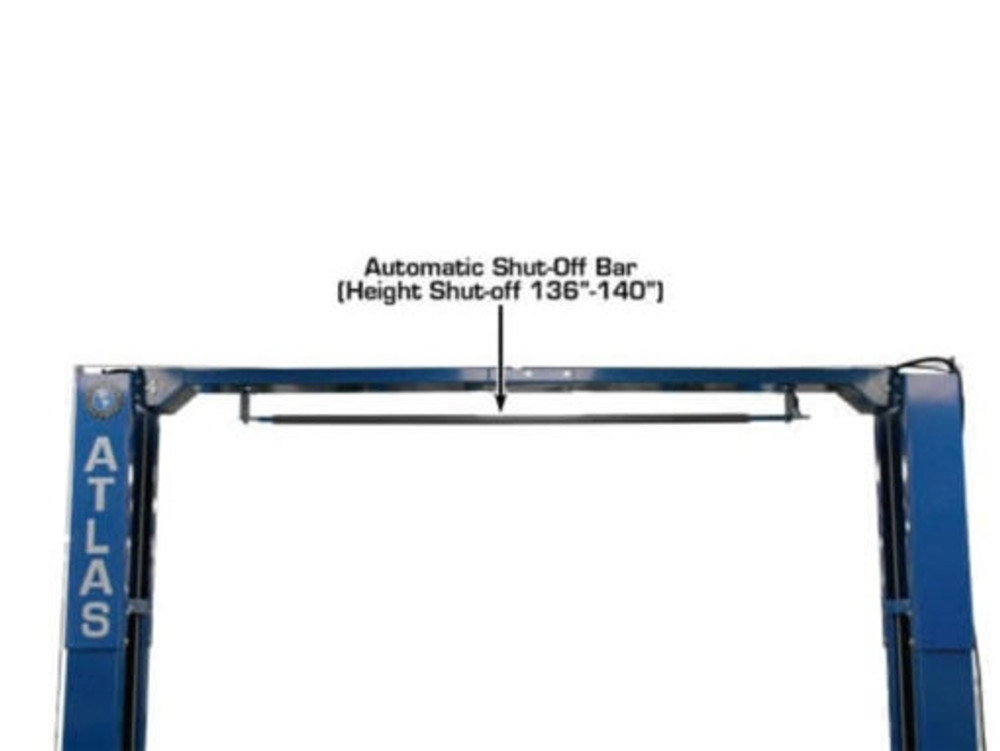

Safety and vehicle protection are paramount. The PV10PX includes automatic arm restraints, a "padded" shut-off bar, and thick rubber covers on carriages to protect vehicles from scratches and damage. The powder coat finish not only looks professional but provides lasting protection against rust, corrosion, and the harsh chemicals found in every automotive shop.
Versatile Configuration: Asymmetric or Symmetric
The asymmetric/symmetric arm design gives you the flexibility to position vehicles for optimal balance and access. In asymmetric mode, achieve a 90 1/4" drive-thru clearance—perfect for positioning the vehicle's center of gravity between the columns and allowing easy door access. Switch to symmetric configuration for a 96 1/4" drive-thru when lifting longer vehicles or trucks.
Arms adjust to a minimum height of just 4 1/2", allowing you to lift low-profile sports cars with ease. Maximum lift height reaches 72 1/2" without adapters and an impressive 81 1/4" with adapters—providing ample overhead clearance for undercarriage work on trucks and SUVs. The 110 1/8" inside column width accommodates a wide range of vehicle wheelbases.
Adjustable Height for Any Shop
Shop ceiling clearance can be a limiting factor when choosing a lift. The PV10PX solves this problem with adjustable overall height: choose between 143 1/8" (11' 11 1/8") in low configuration or 146 7/8" (12' 2 7/8") in high configuration. This flexibility allows the lift to fit shops with lower ceilings while still delivering maximum lifting capacity and performance. The overall width of 137 1/2" (11' 5 1/2") and 125 1/2" outside column-to-outside column span make efficient use of your shop floor space.
Complete Package: Truck Adapters and Hardware Included
Every Atlas® PV10PX comes ready to lift trucks and taller vehicles right out of the box. Included with your purchase is a free 12-piece truck adapter set featuring adapters in three heights: four each of 1.25", 2.5", and 5". These adapters fit the lift's 1.5" arm hole/adapter peg size and allow you to safely reach higher lift points on trucks, SUVs, and commercial vehicles. All mounting hardware is included, streamlining your installation process.
Key Highlights
10,000 lb capacity – handles everything from compact cars to one-ton diesel trucks
Asymmetric/symmetric arm configuration – flexible positioning for optimal vehicle balance and access
Adjustable height: 11'11 1/8" or 12'2 7/8" – fits shops with varying ceiling clearances
Maximum lift height: 81 1/4" with adapters – ample overhead clearance for undercarriage work
6mm thick steel columns and arms – commercial-grade construction for long-lasting durability
Free 12-piece truck adapter set included – ready to lift trucks and SUVs right away
Automatic arm restraints and single-point lock release – engineered for safety and ease of use
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Installation Requirements
Proper installation is critical to the safe operation of any two-post lift. The Atlas® PV10PX requires a minimum of 4" of concrete with 3000 psi for full-floor installation. If you're pouring individual pads for each column, you'll need 4' x 4' pads, 6" thick with 3000 psi concrete to ensure a stable, secure foundation.

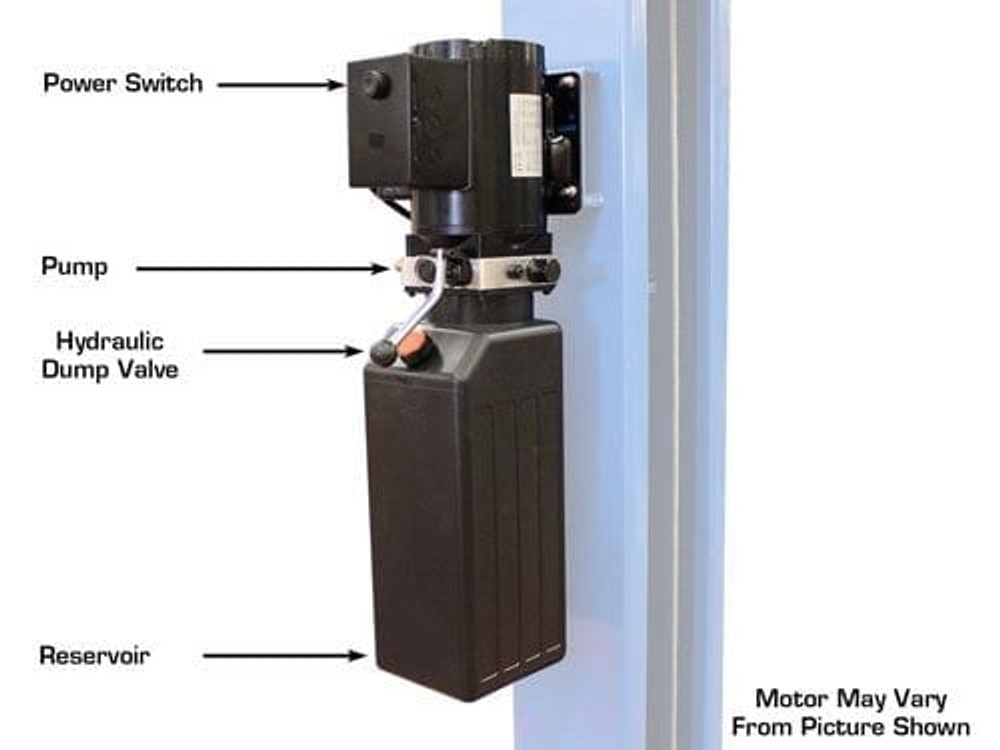

Electrical requirements:220V / 1 phase / 30 amp breaker is required. Oil requirement:3-5 gallons of AW32/AW46 hydraulic oil (not included). Shipping weight:1,875 lbs—plan accordingly for delivery and installation logistics.
All mounting hardware is included with your lift, and the detailed installation manual walks you through every step of the process. If you need assistance during installation, our AI-powered chat assistant has read the entire manual and can help guide you through specific steps in real time.
Why Choose the Atlas® PV10PX?
When you invest in an Atlas® PV10PX, you're not just buying a lift—you're gaining a proven workhorse backed by over a decade of engineering refinement and thousands of satisfied customers. This lift combines commercial-grade strength, flexible configuration options, and outstanding value in a package designed to serve you reliably for years to come.
Whether you're outfitting a professional shop or building the ultimate home garage, the Atlas® PV10PX delivers the capacity, versatility, and durability you need to work on any vehicle with confidence. From compact cars to heavy-duty trucks, this lift handles it all—safely, efficiently, and with room to spare.
⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
