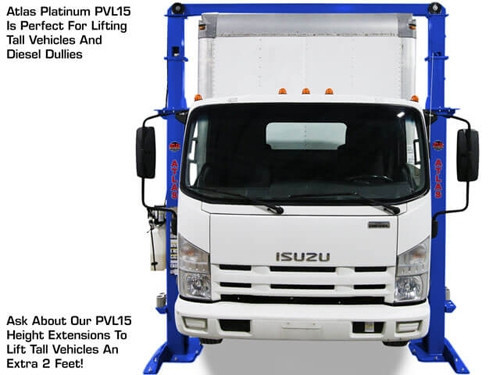

The Atlas® Platinum PVL15 is the ultimate solution for professional shops that need to handle everything from long wheelbase trucks to passenger cars with confidence and safety. This ALI CERTIFIED, commercial-grade overhead two-post lift is engineered with a robust 15,000 lb capacity and features an extra-tall design with an overall height of 174 1/2" (14' 6 1/2") — perfect for accommodating lifted trucks, commercial vehicles, and fleet work. Included with this package is the AP-Z23A-00H1 Height Extension Kit, which adds an additional 2 feet of height, giving you the versatility to lift even taller vehicles with ease.

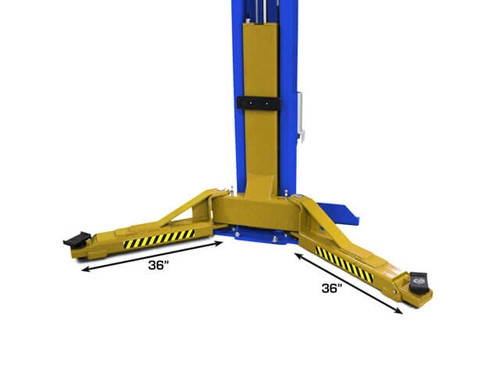

Built for durability and performance, the PVL15 features symmetric arms, padded carriages, and a professional-grade arm lock restraint system that ensures safe, stable operation under heavy loads. The dual direct-drive hydraulic cylinders provide smooth, powerful lifting, while the heavy-duty 3/8" equalization cables ensure balanced lift performance every time. With an inside column clearance of 119 1/4" and a drive-thru clearance of 107 1/2", this lift offers exceptional workspace for positioning vehicles and accessing undercarriages.
At the heart of the PVL15 is the premium ALLY Hydraulic AL2300 Power Unit, certified by MET Laboratories Inc. for electrical compliance in both the United States and Canada. This power unit is engineered with extra heavy-duty armatures and enhanced motor windings featuring increased silver metal content in the wires and connections. The result? Far less heat generation, constant torque throughout the lifting process, and superior reliability. Plus, the AL2300 is backed by an industry-leading two-year limited warranty for added peace of mind.
To view or download the official lift inspection guide from the Auto Lift Institute, click here.

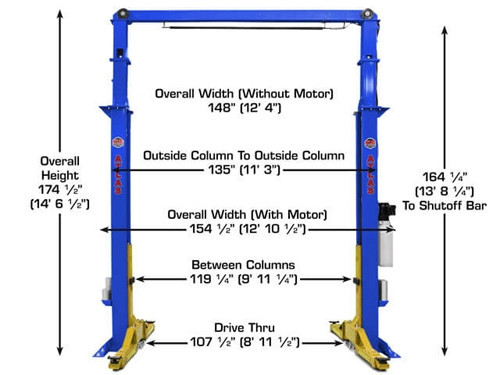

Extra-tall & extra-wide design with an overall height of 174 1/2" and overall floor width of 148"
Height Extension Kit included — adds 2 feet of additional height for taller vehicles
ALI CERTIFIED for safety and compliance with industry standards
Premium ALLY AL2300 Power Unit with advanced heat management and constant torque performance
Includes free 8-piece truck adapter set and 4 screw-up frame adapters
220V single-phase power requirement with 30 amp breaker
Height Extension Kit: AP-Z23A-00H1
The Atlas® Platinum AP-Z23A-00H1 Height Extension Kit is included with this package and transforms your PVL15 by adding a full 2 feet to the overall height. This kit consists of precision-engineered column extensions, longer hydraulic hoses, and extended equalization cables — all designed to seamlessly integrate with your lift and maintain the same high standards of safety and performance. Whether you're working on lifted trucks, oversized commercial vehicles, or specialty builds, this extension kit gives you the clearance you need.
Note: This kit supersedes the ATTDP-APEX10H-STD-EXT-KIT.
What's Included

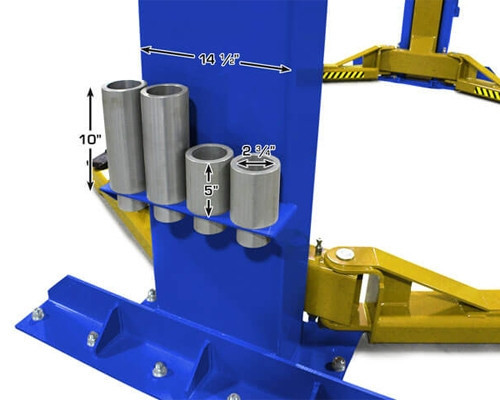

8-piece truck adapter set — 4 each of 5" and 10" adapter heights
4 screw-up frame adapters for versatile vehicle lifting
AP-Z23A-00H1 Height Extension Kit (column extensions, longer hoses, and cables)
All mounting hardware for installation
Professional-grade arm lock restraint system
Padded carriages to protect vehicle components
Premium Power Unit Performance

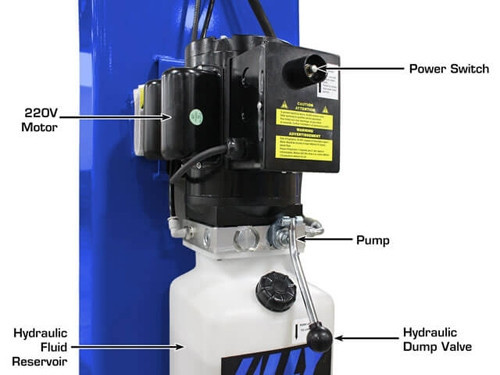

The ALLY Hydraulic AL2300 Power Unit sets this lift apart from the competition. Certified by MET Laboratories Inc., this power unit features extra heavy-duty armatures and advanced motor windings with increased silver metal content. This engineering translates to significantly reduced heat generation, consistent torque delivery, and long-term reliability even under demanding commercial use. The AL2300 operates on 220V single-phase power and requires a 30 amp breaker. For complete power unit specifications and parts list, click here.
Built for Heavy-Duty Commercial Use

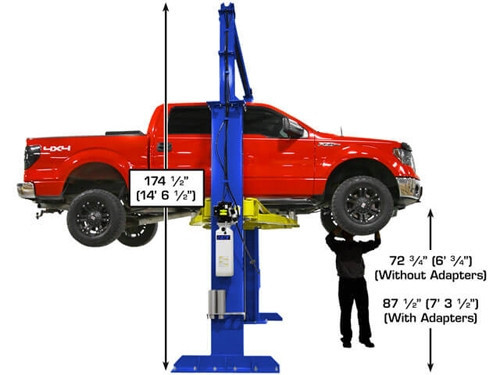

The PVL15 is designed to withstand the rigors of a busy commercial shop. With dual direct-drive hydraulic cylinders, you get fast, powerful lifts with a lifting time of approximately 80 seconds. The lift provides a maximum lift height with truck adapters of 87 1/2" and 72 3/4" without adapters, with a minimum arm height of just 6 inches for low-clearance vehicles. The robust 8" x 14 1/2" column size and heavy-duty construction ensure years of dependable service.

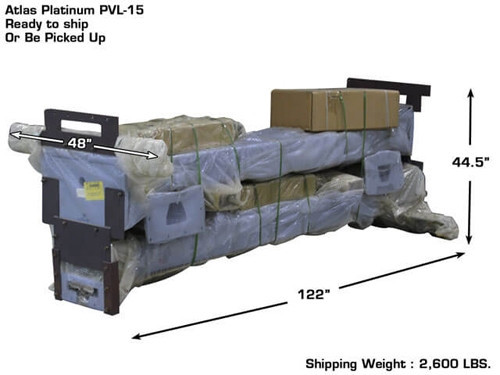

The lift requires 3-5 gallons of AW32/AW46 hydraulic oil (not included) and weighs approximately 2,600 lbs. With an outside column to outside column width of 135", this lift provides ample workspace while maintaining a compact enough footprint for most shop environments.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
