The Atlas® Platinum PVL10 is a premium 10,000 lb capacityALI CERTIFIED two-post automotive lift designed for commercial-grade performance and reliability. This complete package includes the AP-Z23A-00H1 Height Extension Kit, which adds an additional 2 feet of overall height to accommodate larger vehicles, trucks, and SUVs. Engineered with the proven Double S column design, the PVL10 delivers the structural strength and dependability that has made this patented technology a worldwide standard for over two decades.

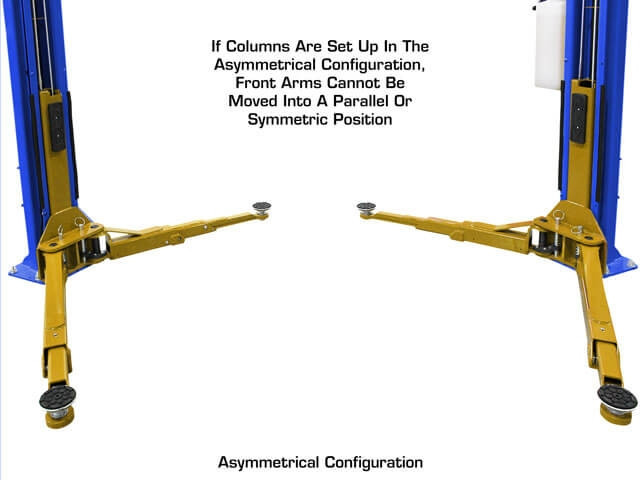

Whether you're lifting passenger cars, light trucks, or taller commercial vehicles, the PVL10-EXT offers the versatility you need. Configurable in both symmetric or asymmetric positions, this lift features three-stage telescoping front arms and two-stage rear arms, providing exceptional reach and flexibility. The adjustable height design allows you to tailor the lift to your facility's ceiling clearance, with configurations of 159 7/8" or 163 7/8" overall height available.
Backed by the ALI Certification Program, this lift meets the industry's most rigorous safety and performance standards. To view or download the official lift inspection guide, click here.
Proven Double S Column Technology
The Atlas Platinum PVL10 was engineered to bring commercial-grade reliability and strength to shops that demand the best. Tens of thousands of above-ground lifts incorporating the revolutionary Double S column design have been sold worldwide, establishing a proven track record of durability and safety. This innovative design incorporates special bends in the column structure that dramatically increase strength and load distribution—technology once protected by patent and now available in the Atlas Platinum line.
Constructed with 6mm thick steel columns measuring 7" x 10 1/4", the PVL10 is built to handle the toughest workloads. The 15" x 18" base footprint ensures exceptional stability, while the higher quality powder coating provides long-lasting protection against wear, corrosion, and the rigors of daily use in a professional automotive environment.
Premium Components and Professional-Grade Features

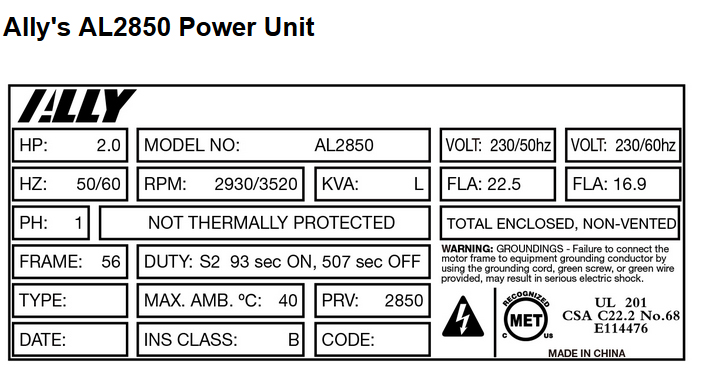

At the heart of the PVL10 is the ALLY Hydraulic AL2850 Power Unit, a premium hydraulic system certified by MET Laboratories Inc. for electrical compliance in both the United States and Canada. This industry-leading power unit features extra heavy-duty armatures and enhanced motor windings with increased silver metal content in the wires and connections, which drastically reduces heat generation and maintains constant torque throughout the entire lifting process. Unlike lower-grade power units that struggle under load, the AL2850 delivers smooth, consistent performance lift after lift—and is backed by an industry-leading two-year limited warranty.

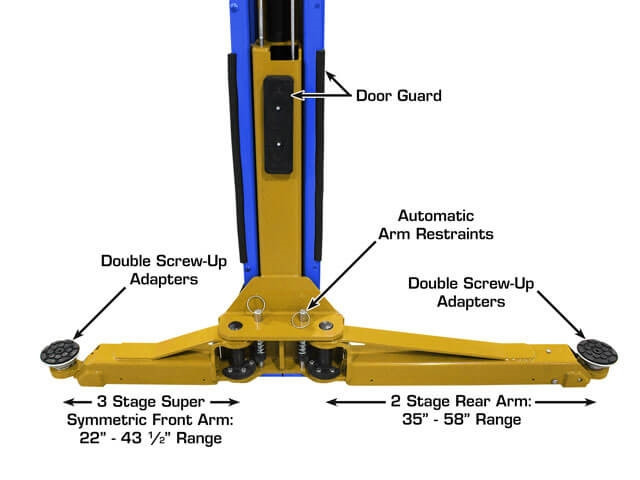

The lift is equipped with padded carriages and rubber column guards to protect vehicles from scratches and damage during lifting operations. A professional-grade arm lock restraint system with single point lock release ensures fast, safe operation, while the double screw rubber/metal adapters with included truck height extensions accommodate a wide range of vehicle types and lifting points.

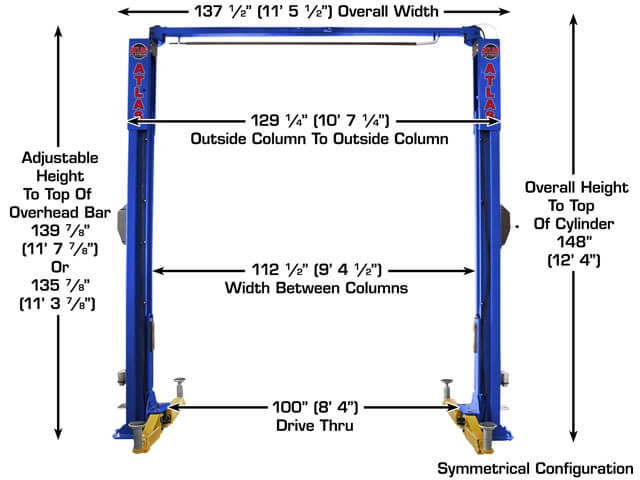

The PVL10 lifts to a maximum height of 81 1/2" with adapters or 72 1/2" without adapters, with a minimum arm height of just 4 inches, allowing you to work on low-clearance vehicles with ease. The lift offers generous drive-thru clearance of 91" in asymmetric mode and 99 1/2" in symmetric mode, making vehicle positioning simple and efficient.
Complete Package with Height Extension Kit
This model includes the AP-Z23A-00H1 Height Extension Kit (supersedes ATTDP-APEX10H-STD-EXT-KIT), which adds 2 feet of height to the overall lift structure. The kit includes column extensions, longer hydraulic hoses, and longer cables—everything you need to transform your PVL10 into a taller configuration ideal for shops working on trucks, vans, and vehicles with aftermarket lift kits or oversized tires.

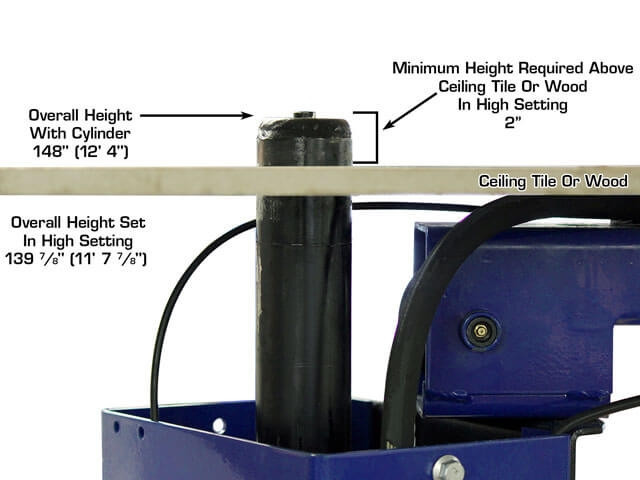

With the extension kit installed, the lift reaches an overall height of 163 7/8" (13' 7 7/8"), with cylinders extending to 12' 4", providing the clearance you need for a wide variety of service tasks. The adjustable height design means you can configure the lift to match your facility's ceiling height and workflow requirements.
What's Included
The Atlas Platinum PVL10-EXT comes complete with everything you need for installation and operation:
Mounting hardware for secure floor installation
Truck adapter set for lifting larger vehicles and trucks
Double screw-up adapter kit with four each of 3" and 6" adapter heights
10,000 lb capacity with ALI Certification for proven safety and reliability
Adjustable height configuration (159 7/8" or 163 7/8") to fit your facility and with extension kit installed
Double S column design with 6mm thick steel for maximum strength and durability
Premium ALLY Hydraulic AL2850 Power Unit with two-year limited warranty and MET Labs certification
Symmetric or asymmetric positioning for versatile vehicle compatibility and shop layout flexibility
Installation Insights
Installing the Atlas Platinum PVL10 is straightforward with the right tools and preparation. The lift requires a minimum of 4 inches of concrete with 3000 psi for proper anchoring. Electrical requirements are 2 HP 220V single phase with a 30 amp breaker. You'll also need 3-5 gallons of AW32 or AW46 hydraulic oil (not included). With a shipping weight of approximately 2,000-2,100 lbs, the lift ships in manageable components for easier handling.
Professional installers have completed PVL10 installations in as little as 3 hours. Watch the time-lapse video below to see the installation process in action:
See the PVL10 in Action
Get a complete overview of the Atlas Platinum PVL10's features, construction, and operation in this detailed product video:
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
