Engineered for Large Vehicles and Professional Shops
The Atlas® OHX10000X two post commercial grade above ground lift is the perfect choice for those large commercial repair facilities or the "Mr. Homeowner" who demands the highest quality at the absolute best price. This is a TRUE 10,000 lb. capacity two post lift that offers exceptional value and versatility. The Atlas® OHX10000X was engineered and manufactured to lift vehicles ranging from Smart Cars® to a one ton diesel dually.

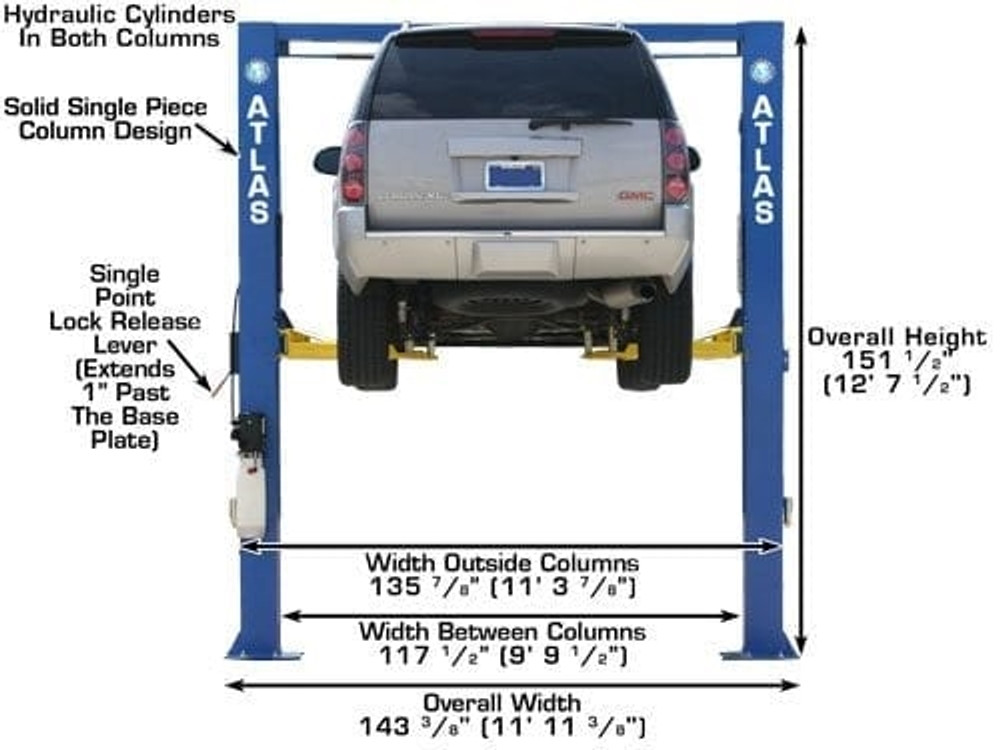

With its extra tall design at 152" (12' 8") overall height and extra wide floor width of 144 3/8", this lift provides superior clearance and workspace. The extra lifting height and extra width between the columns allows the operator to work on all sizes of vehicles and offers a "fudge factor" of about 6 inches when "driving through" to another part of the building or lifting the van or "ladder truck". If you are over 6' 2", the Atlas® OHX10X has longer cylinders which allow the vehicle to be "lifted" about 3 inches higher than many other lifts.
The Atlas® OHX10X incorporates a single piece 12' 7" formed column and an extra long carriage that provides maximum column and arm strength to lift and support a 10,000 lb. vehicle. The single piece columns require the customer to have a ceiling of at least 13 feet to stand the column.
Key Features & Benefits
Commercial Grade Construction: Built with 5mm thick steel columns and a powder coat finish for long-lasting durability in demanding shop environments.
Extended Height Capacity: Achieve a maximum lift height with adapters of 85 3/4" or 74 3/4" without adapters, giving you the clearance needed for trucks, vans, and oversized vehicles.
Wide Drive-Through Clearance: With 106 7/8" (8' 10 7/8") drive-through clearance and 118 1/4" inside column spacing, maneuver large vehicles with ease and confidence.
Safety & Convenience Features: Equipped with automatic arm restraints, single point lock release, padded shut-off bar, and rubber covers on carriages for operator safety and vehicle protection.
Dual Direct-Drive Cylinders: Powerful and reliable lifting system designed for consistent performance and years of trouble-free operation.
Versatile Symmetric Arms: Symmetric arm design with a minimum arm height of just 4 1/2" accommodates low-profile sports cars all the way up to heavy-duty pickups.
Complete Adapter Set Included: Comes with a 12-piece truck adapter set featuring 4 each of 2", 3", and 6" adapters to handle various lift points and vehicle configurations.
Electrical Requirements:
This lift requires 220V single phase with a 30 amp breaker. Oil requirement: 3-5 gallons AW32/AW46.
Installation requires a minimum of 4" of concrete with 3000 psi. If only pouring pads for each post, need 4' x 4' pad, 6" thick with 3000 psi.
What's Included
Your Atlas® OHX10000X comes complete with everything you need for professional installation and immediate operation:
12-Piece Truck Adapter Set (4 each: 2", 3", 6" adapters)
Complete mounting hardware
Detailed installation manual
12-Piece Truck Adapter Set Included
See the Atlas® OH-10X in Action
Watch the Atlas® OH-10X Two Post Lift Overview
Why Choose the Atlas® OHX10000X?
The Atlas® OHX10000X stands out in the crowded two-post lift market by delivering commercial-grade quality at an exceptional price point. Whether you're outfitting a professional shop that services everything from compact cars to heavy-duty trucks, or you're a serious enthusiast building the ultimate home garage, this lift provides the extra height, extra width, and extra capacity needed to handle today's diverse vehicle lineup.
The combination of robust construction, thoughtful safety features, and generous clearances makes this lift a smart investment that will serve you reliably for years to come. With its 136" outside column to outside column width and maximum 85 3/4" lift height, you'll never feel constrained by your equipment—even when working on the largest trucks and vans.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
