The Atlas® BP12000X is a commercial-grade heavy-duty two-post lift designed for professional garages that demand reliability, power, and flexibility. With a robust 12,000 lb. capacity, this base-plate above-ground lift tackles everything from passenger vehicles to heavy-duty trucks and trailers with confidence. Its open-top design and oversized columns make it the ideal solution for shops with limited ceiling height, delivering maximum lifting capability without compromising overhead clearance.
Built for versatility, the BP12000X features adjustable width settings that allow you to configure the lift to accommodate wider trucks, trailers, or unique vehicle configurations. The dual width options also facilitate drive-through access between the columns, streamlining workflow in busy commercial environments. Whether you're lifting full-size pickups, vans, or specialty vehicles, this lift adapts to your shop's needs.
Engineered with symmetric three-stage arms, automatic arm restraints, and dual hydraulic chain-over cylinders, the Atlas® BP12000X ensures smooth, controlled lifting and rock-solid stability. The single-point lock release allows for quick, effortless engagement and disengagement of the safety locks, saving valuable service time. Plus, the powder-coat finish provides lasting durability and a professional appearance that stands up to the toughest shop conditions.
Key Highlights
12,000 lb. capacity – Perfect for heavy-duty trucks, vans, and trailers
Low-profile ceiling clearance – 126" overall height ideal for shops with limited overhead space
Dual hydraulic chain-over cylinders with 60-second lifting time for fast, efficient operation
Free 12-piece truck adapter set included – Ready to service a wide variety of vehicles right out of the box
Professional-Grade Construction

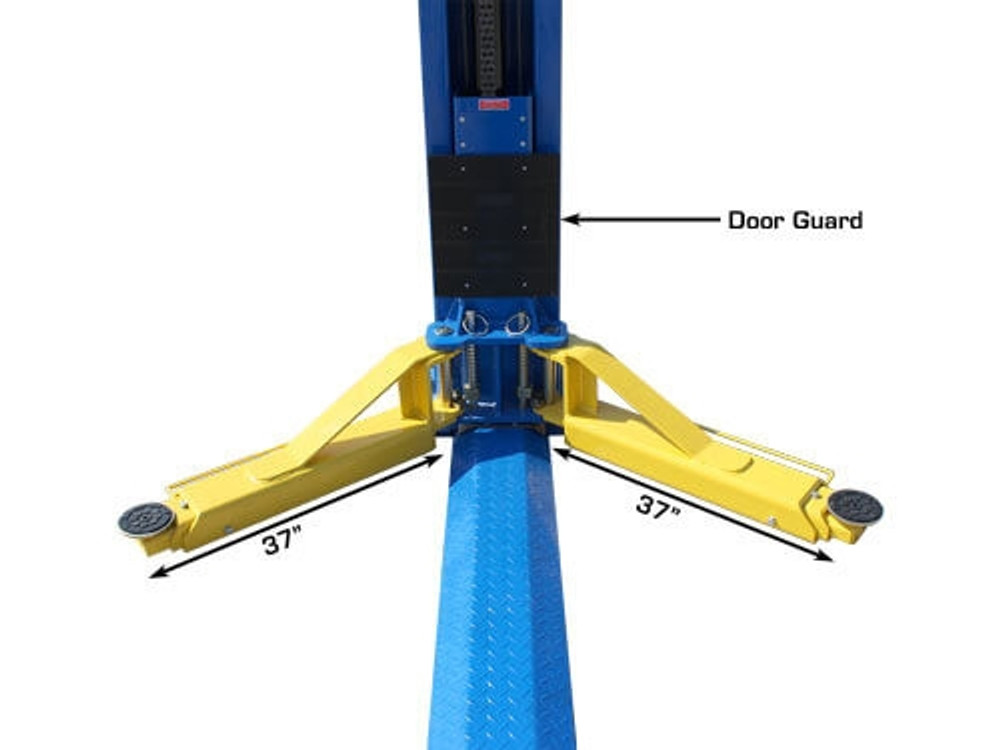

The Atlas® BP12000X is built to withstand the rigors of commercial service bay operations. The base-plate design provides unmatched stability, while the oversized 8 3/4" x 14" columns deliver the strength needed to lift heavy vehicles day in and day out. Rubber guards on carriages protect vehicle finishes, and the automatic arm restraints add an extra layer of security during service.
The lift reaches a maximum lift height of 88 1/2" with adapters (or 77 1/2" without adapters), with a minimum arm height of just 4 inches. This low starting position makes it easy to engage low-clearance vehicles. The lift operates on 220-volt single-phase power with a 30-amp breaker requirement, and uses 3-5 gallons of AW32/AW46 hydraulic oil (not included).
Included Accessories
Every BP12000X comes complete with a 12-piece truck adapter set featuring multiple heights (four each of 2", 3", and 6" adapters), giving you the flexibility to lift a broad range of vehicles right from day one. All necessary mounting hardware is included, making installation straightforward and efficient.
12-Piece Truck Adapter Set Included
Installation Requirements
Foundation Requirements: The Atlas® BP12000X requires a minimum of 6 inches of concrete with 3000 psi strength for safe, reliable installation. Proper anchoring ensures lift stability and operator safety.
The lift ships at a 2,130 lb. shipping weight and is designed for professional installation. Be sure to review the installation manual and follow the cylinder bleeding procedure immediately after installation to ensure optimal performance.
