Important: Cylinder Bleeding Procedure
After installation, immediately perform the Cylinder Bleeding Procedure to ensure safe, optimal lift performance.

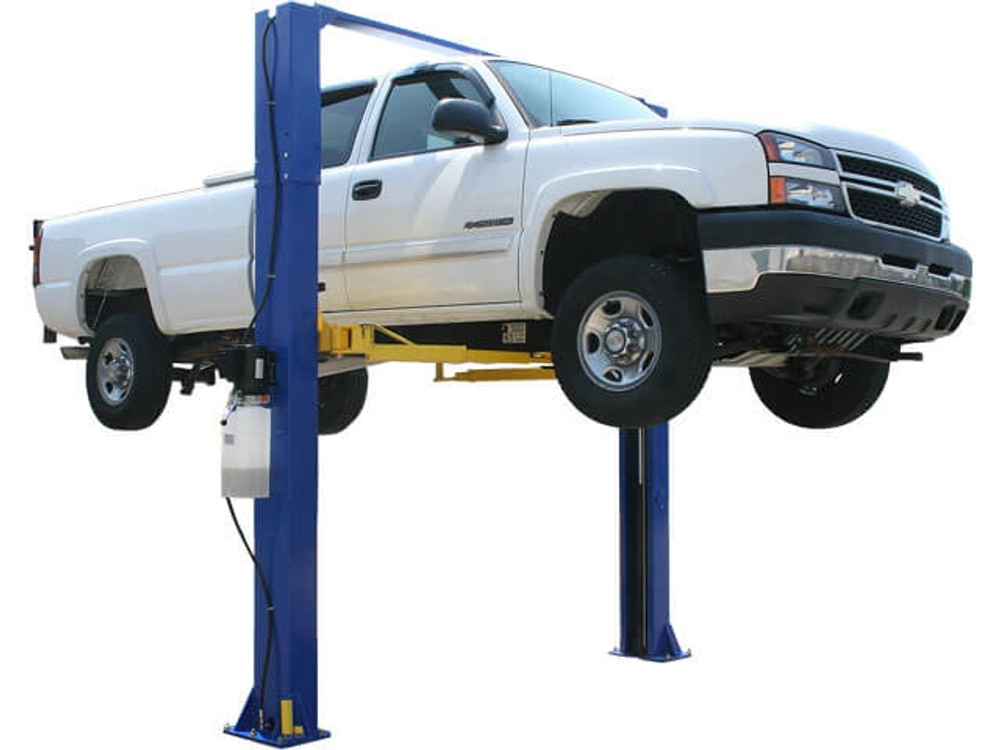

The Atlas® 9KOH is the perfect solution for professionals and serious enthusiasts who demand maximum lifting capacity without breaking the bank. With a robust 9,000 lb capacity and an overhead, open-floor design, this versatile two-post lift tackles everything from compact cars to heavy-duty pickup trucks with confidence and precision.
Built with flexibility in mind, the Atlas® 9KOH can be adjusted to two different height settings: 11' 6" or 11' 10", allowing you to optimize the lift for your ceiling clearance and workspace requirements. This adaptability makes it an ideal fit for a wide range of shop environments.
Asymmetric & Symmetric Arm Configuration
The Atlas® 9KOH features symmetric columns paired with specially designed arms that can be configured in either symmetric or asymmetric position. This dual-mode capability provides unmatched versatility, enabling you to position vehicles for optimal balance and door clearance depending on the job at hand.
The asymmetric/symmetric arm design offers an extremely low lift pad position with an EZ-metric lift arm configuration. With a minimum arm height of just 4 inches, the 9KOH allows operators to position lift arms under most small cars with low pick-up points, as well as heavier pickup trucks, without compromise. This low-profile design ensures you can service a diverse range of vehicles safely and efficiently.
Comprehensive Package & Included Accessories
The Atlas® 9KOH arrives complete with everything you need to start lifting immediately. Included in the package is a free 8-piece solid peg type truck adapter set, a set of sliding lift point adapters, and all necessary mounting hardware. The lift also features a 220V single-phase power unit that can be mounted on either side of the lift, providing installation flexibility to match your shop layout. (Note: The power unit column must be positioned on the correct side for safe operation.)
What's Included:
8-Piece Truck Adapter Set for versatile vehicle positioning
Sliding Arm Adapters for enhanced flexibility
Complete Mounting Hardware for secure installation
Free 8-Piece Truck Adapter Kit Included with the Atlas® 9KOH
Advanced Safety & Reliability Features
Safety is paramount in every Atlas® lift. The 9KOH two-post lift utilizes a proven "chain over roller" design paired with dual hydraulic chain-drive cylinders for smooth, balanced lifting performance. The lift is equipped with a spring-loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain, providing an additional layer of protection and peace of mind.
Additional safety features include automatic arm restraints, a dual-point lock release mechanism for secure lowering, and rubber guards on all carriages to protect vehicle finishes. These thoughtful design elements ensure that every lift is safe, controlled, and vehicle-friendly.
Key Highlights
9,000 lb lifting capacity – handles cars, trucks, and SUVs with ease
Adjustable height options: 11' 6" or 11' 10" overall height for flexible installation
Asymmetric & symmetric arm configurations for versatile vehicle positioning and door clearance
Maximum lift height of 81 inches with adapters (74.5" without) – plenty of working room
Overhead, open-floor design keeps the workspace clear and accessible
Dual hydraulic chain-drive cylinders with automatic secondary lock system for enhanced safety
Includes free truck adapter set and sliding adapters – ready to work out of the box
Installation Requirements
Electrical: Requires 220V single-phase power with a 30-amp breaker. Concrete: Minimum 4 inches of concrete with 3000 psi strength is required for safe anchoring. Hydraulic Oil: Requires 3-5 gallons of AW32/AW46 hydraulic oil (not included).
See the Atlas® 9KOH in Action
Watch the Atlas® 9KOH lift in action
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
