Professional Performance with Innovative Design
The AMGO OHX-10 is renowned for its exceptional performance and elaborately engineered structure. Built with a 10,000 lb lifting capacity, this two-post lift delivers the professional-grade capability you need in a design that makes installation and maintenance remarkably straightforward. Featuring a single-piece column, split-structure top beam, and extremely long carriages, the OHX-10 ensures easier setup, reduced stress on structural components, and superior durability compared to conventional two-post lifts.
Ideal for workshops and garages with over 12 ft ceiling clearance, the OHX-10 offers unmatched versatility. The optional width extension kit allows you to expand the drive-thru clearance from 99 13/16" to 105 11/16", accommodating a broader range of vehicles and providing the flexibility to adapt to your shop's evolving needs. The OHX-10 combines robust construction with intelligent design to deliver a lift that's as reliable as it is versatile.
Super-Asymmetric® Technology – Lift Any Vehicle with Precision
The OHX series features AMGO's innovative Super-Asymmetric® technology, providing the versatility to lift vehicles both symmetrically and asymmetrically upon demand. This groundbreaking design gives you the freedom to position vehicles with doors open or to optimize clearance for cab work, all without compromising stability or safety. Whether you're working on compact cars, sedans, trucks, or SUVs, the Super-Asymmetric® arms adapt to load different vehicles in the configuration that best suits your service needs.
Engineered with self-lubricating UHMW polyethylene sliders, the arm assemblies move smoothly and reliably, reducing maintenance while protecting your shop from excessive wear. Rubber door guards safeguard vehicle finishes from accidental contact, and the automatic arms restraint ensures the arms stay securely in place during lifting and lowering operations.
Engineered for Durability and Reliability
The extremely long carriages on the OHX-10 are designed to reduce the force and stress exerted on the columns, translating to a more durable and reliable lift. In fact, the carriages are two times or more longer than comparable products on the market, distributing load forces more evenly and prolonging the service life of critical components. This thoughtful engineering means you can count on the OHX-10 for years of trouble-free operation.
Built with dual direct-drive hydraulic cylinders manufactured to exacting standards, the OHX-10 delivers smooth, consistent lifting performance every time. The 2 HP, 220V single-phase motor powers the lift with impressive efficiency, achieving a full lift in just 57 seconds (OHX-10 model). The split-structure top beam is designed with adjustment capability to fit different width demands, and the overhead safety shut-off device actively prevents vehicle damage by measuring clearance and stopping lift travel when necessary.
Safety and Convenience Features

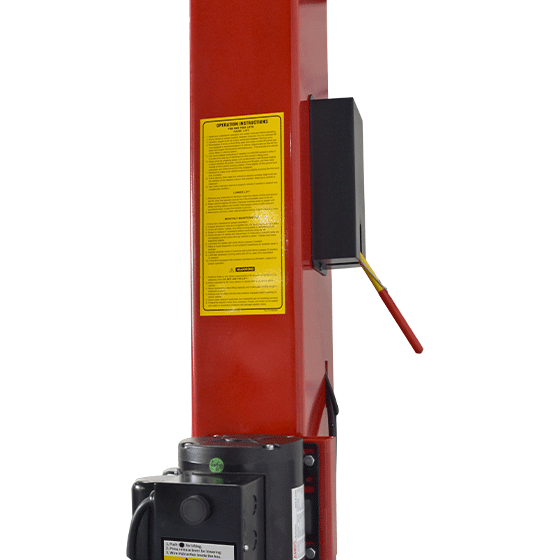

Single Point Safety Release: The OHX-10's single point safety release system allows the operator to disengage both column locks simultaneously from one column, streamlining the lowering process and reducing the time needed to reposition vehicles.

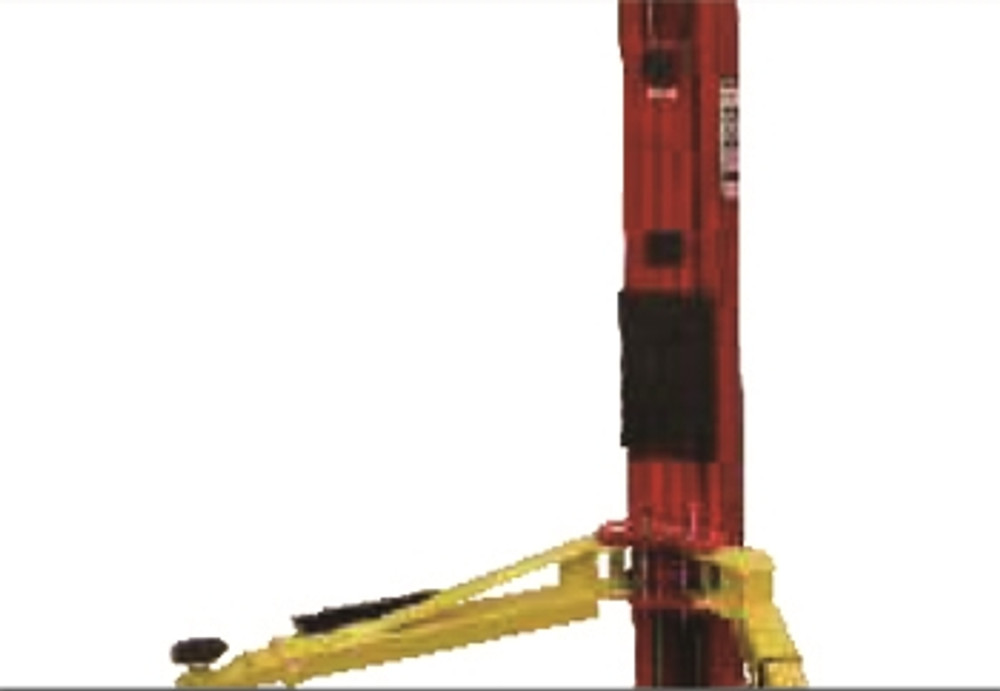

Automatic Arm Lock: The automatic release device, combined with a high-strength gear rack, delivers more stable and safer arm positioning. Arms lock securely into place during operation, giving you confidence that the vehicle is supported reliably throughout your service work.
Clear Floor Design: The clear floor design provides unobstructed floor use, eliminating the cables and cross-beams that can clutter your workspace. Aero sync cables come as standard, ensuring synchronized lifting while maintaining a clean, open work area.
Detachable Toe Guard and Tool Tray: The lift comes with a detachable toe guard for added safety and a convenient tool tray to keep your essential tools within easy reach during service operations.
What's Included with Your OHX-10
Each OHX-10 two-post lift includes double-screw rubber pads with 3" extension adapters, providing the lift point versatility you need to safely engage a wide range of vehicle frame and pinch-weld configurations. With a minimum pad height of 3 1/2", the OHX-10 accommodates low-profile vehicles with ease.
An optional width adjustable kit (#21004) is available to extend the overall width from 134 15/16" to 140 7/8" and increase the width between columns from 112 1/4" to 118 1/8", offering even greater flexibility for shops that service a diverse range of vehicles.
Key Highlights at a Glance
10,000 lb lifting capacity – handles cars, trucks, and SUVs with confidence
Single-piece column design – easier installation and maintenance
Super-Asymmetric® arms – lift vehicles symmetrically or asymmetrically on demand
Extremely long carriages – reduce column stress and improve durability
Single point safety release – disengage both columns from one location for faster operation
Looking for full specifications and features? Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
