Huth HB-10 Pipe Bender Complete Package w/028 Die Package


Huth HB-10



Alternative Views:





Made in USA
List Price: $9,450.00
: $7,999.00





Product Code: HUTHHB10

Delivery Options

Residence or Business?*:

Electrical Options

High Speed [Add $694.00]
High Voltage (over 240 Volts) [Add $165.00]
Must Specify a Motor Phase


Pipe Bender Accessory

Optional #95458:
95458 Foot Pedal Option (See Below)
[Add $156.00]

Optional #958:
958 Rod Bracket Bender [Add $230.00] more info...
Optional Tooling Accessory

#477:
477 Segment Set, 3" - 3-1/2" [Add $221.00]

#478:
478 Segment Set, 3-1/2" - 4" [Add $243.00]

#986:
Muffler Stand [Add $150.67]

#996:

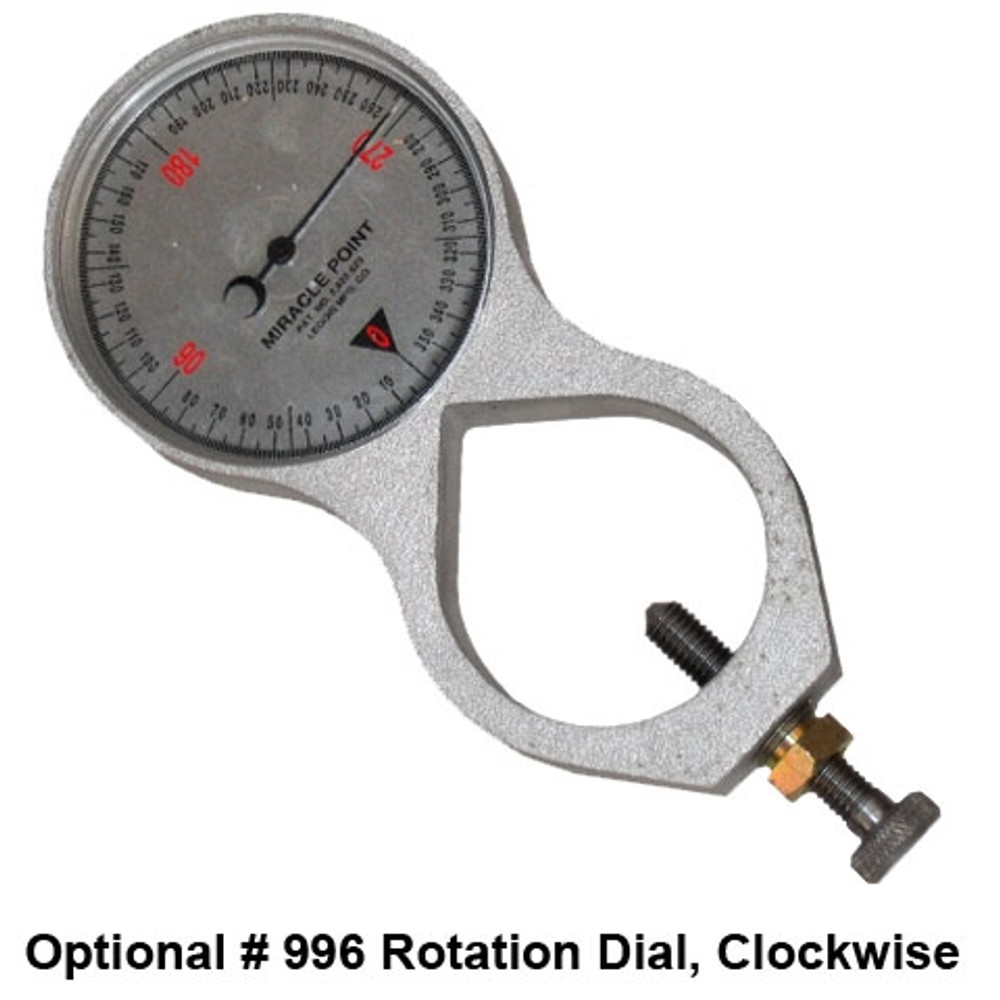

Rotation Dial, Clockwise [Add $222.27]

Qty:
Description Warranty

Huth HB-10 Pipe Bender w/ 028 Die Package

download manual

Huth's HB-10 Complete Bender Package includes Huth's newest Manual Knee Control Bender and comprehensive tooling package - everything you need to create O.E.- fit and custom-bent pipes.

The HB-10 is Huth's entry level bender, designed to introduce you to Huth quality while showing you the incredible profit potential that awaits you.

The HB-10 features knee control activation, manual depth-of-bend control and 58,000 lbs. of bending power - more than enough for 3" tubing.

Huth End-Finishing

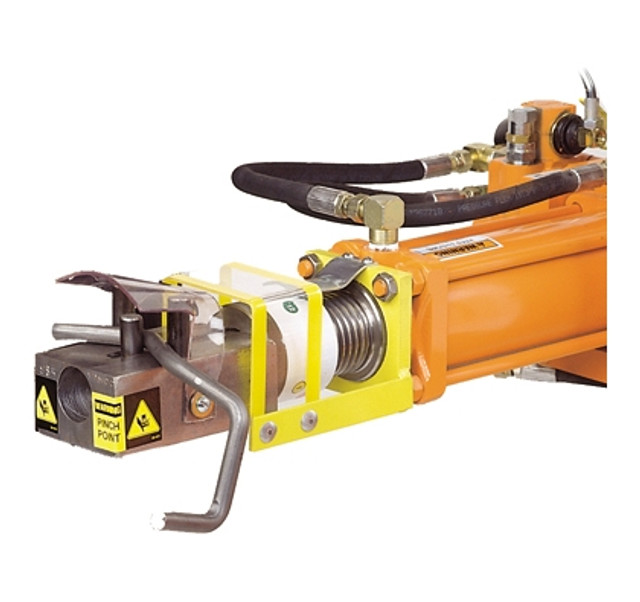

Built-In Swager/Expander

The built-in heavy duty swager/expander gives you complete end-finishing capabilities - 1" to 3" tubing on the swager end and 1" to 51/2" tubing on the expander end.

With Huth’s Accu-Sizer™ automatic bull’s-eye expanding system, you’ll be able to dial in precise expansions every time.



Huth Knee Control

Knee Control

Slim Knee Control Activation allows you to get closer to your work for quick, precise bending.

An Easy-to-Read Bend Indicator shows how far into a bend you are.

Plus, you receive bending dies, end-finishing tooling and a Huth DVD - everything you need to start bending pipes for thousands of applications.


Huth 3in Tube Bend vs Asian-made Huth 3in Tube Bend vs Asian-made

Huth 3" Tube Bend (top on tube) vs. Asian-made
(Notice dimpling on bend in lower sample)

Huth 3" Tube Bend (tube to left) vs. Asian-made
(Notice tube flattening on the right)





The Easy to Use Pipe Bender

A compression pipe bender is an extremely powerful and versatile tool, but many who have not used one don’t fully appreciate how easy it is to use. When we get people to do their first bend, intimidation tends to fade away and enthusiasm to do more takes over!

There are two ends to the machine … the bending end, and the end-forming end. We’ll focus on the bending end to show just how simple this tool is. There are 3 things you need to know in advance … the distance between bends, the orientation of the desired bend, and the depth of the desired bend.

Plot your distances with a marker: Mark your pipe where you want your bends, working from left to right.

Now turn the bender on … you are almost ready to go: Apply lubrication and set your pipe in the jaws.

Setting a rotation dial to keep oriented: Prior to your 1st bend, setting a rotation dial on the far right end of your pipe, set to zero, will keep you oriented as your progress through multiple bends on each pipe. This is especially important if you are using bending program cards.

Choose Bend radius: Smaller radii give tighter bends, larger radii are more forgiving. Normally smaller tubes utilize smaller radii (larger tubes use larger radii) with a minimum 1.5-2X the tube OD.

Bend to the right depth: Every bender has a depth of bend indicator, and automatic benders let you pre-set the depth of bend. The pointer tells you when you reach your target bend angle.

Basically, that’s it. There are times when a bit more knowledge helps (When do I use a ½ shoe? What do I use for thin-walled material?). But these are compression bender basics for bending with your machine!

"Bending exhaust pipe without cards? Watch this!"





Features
  • Comes with comprehensive tooling package and instructional DVD
  • Easy-To-Use Knee Pad Control
  • Manual Depth-of-Bend Indicator
  • Complete Manual Control
  • 58,000 lbs of bending power - More than enough for 3" tubing
  • Agricultural Cylinders
  • Flat Tool Tray
  • Bending Die Retainer
  • Heavy-Duty Swager/Expander
  • Rugged I-Beam Construction
  • Exclusive Safety-Guard Package
  • Front Swivel Casters w/o Brakes
  • 220V, 60 Hz Operation. Single-Phase requires 30 amp service. Three-Phase requires 20 amp service.

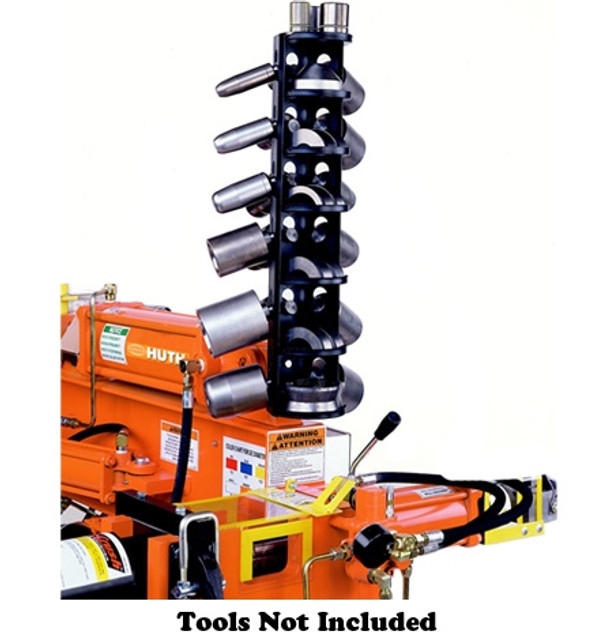

The HB-10 Bender package comes as shown. However, the HB-10 accepts all of Huth’s standard tooling and accessories such as the Ready-Rak, Rod Bracket Bender and Oil Filter Crusher.

* Additional tooling available at extra charge.

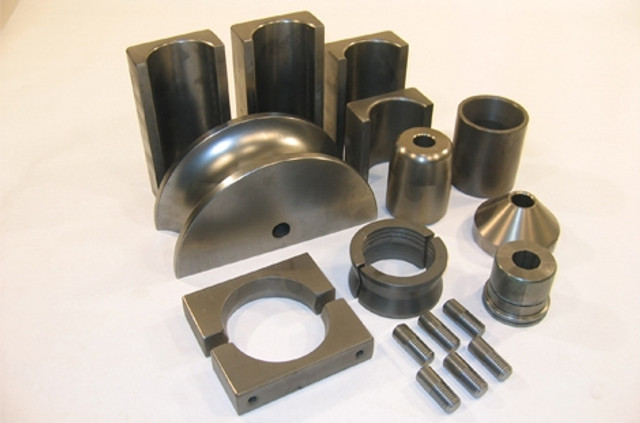

HB-10 Package Includes 028 Die Package

Huth 028 Die Package
Part# Item Name Part# Item Name
5530 5” Radius Die 3” 557 Domer Die 1¾”-2½”
5412 5” Radius Die 2½” 558 Domer Die 2-5/8”- 2¾”
5414 5” Radius Die 2¼” 555 Female Ball Die 1¾”-2”
5200 5” Radius Die 2” 556 Female Ball Die 2¼”- 2½”
4414 4” Radius Die 2¼” 550 Male Ball Die 1¾”: Swage 2”
4200 4” Radius Die 2” 552 Male Ball Die 2”: Swage 2¼”
3134 3” Radius Die 1¾” 553 Male Ball Die 2¼”: Swage 2½”
3112 3” Radius Die 1½” 554 Male Ball Die 2½”: Swage 2¾”
1350 (2) Full Back Shoes 3” 112 Swage Die 1½”
4412 (2) Full Back Shoes 2½” 134 Swage Die 1¾”
4211 (2) Full Back Shoes 2¼” 508 Arbor
1200 (2) Full Back Shoes 2” 498 Arbor Tip
1134 (2) Full Back Shoes 1¾” 499 Arbor Tip
1112 (2) Full Back Shoes 1½” 473 Segment 1-3/8”- 1-3/4”
4410 Half Shoe 2½” 474 Segment 1-3/4”- 2-1/8"
4416 Half Shoe 2¼” 475 Segment 2-1/8” – 2-1/2”
1045 Half Shoe 2” 476 Segment 2-1/2”-3”
1040 Half Shoe 1¾” 97050 Die Spring
1038 Half Shoe 1½” 870 O-Ring Kit
1750 Collet 2½” 815 Die Holder (853)
1725 Collet 2¼” 816 Die Holding Pin
1720 Collet 2” 855 Die Pins (Qty. 30)
1734 Collet 1¾” 1079 (2) Full Shoe Spacers
1712 Collet 1½” 1080 Half Shoe Spacers
853 Flare Tool 97302 Huth Instructional Video

Optional Die Tooling Packages Available

Part# Item Name
010 Die Package Tooling To View Package
011 Die Package Tooling To View Package
013 Die Package Tooling To View Package
016 Die Package Tooling To View Package
024 Die Package Tooling To View Package
028 Die Package Tooling To View Package
74 Die Package Tooling (Use with 1674 Expander Only) To View Package

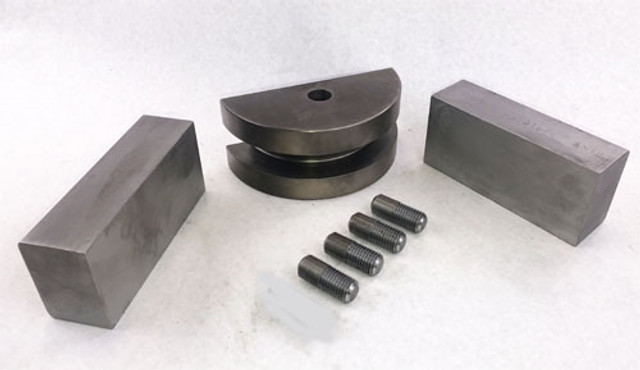

Optional Tooling Available

  • 477 Segment Set, 3" - 3-1/2"
  • 478 Segment Set, 3-1/2" - 4"
  • 980 Vintage Bend Data System
  • 986 Muffler Stand
  • Square Tooling

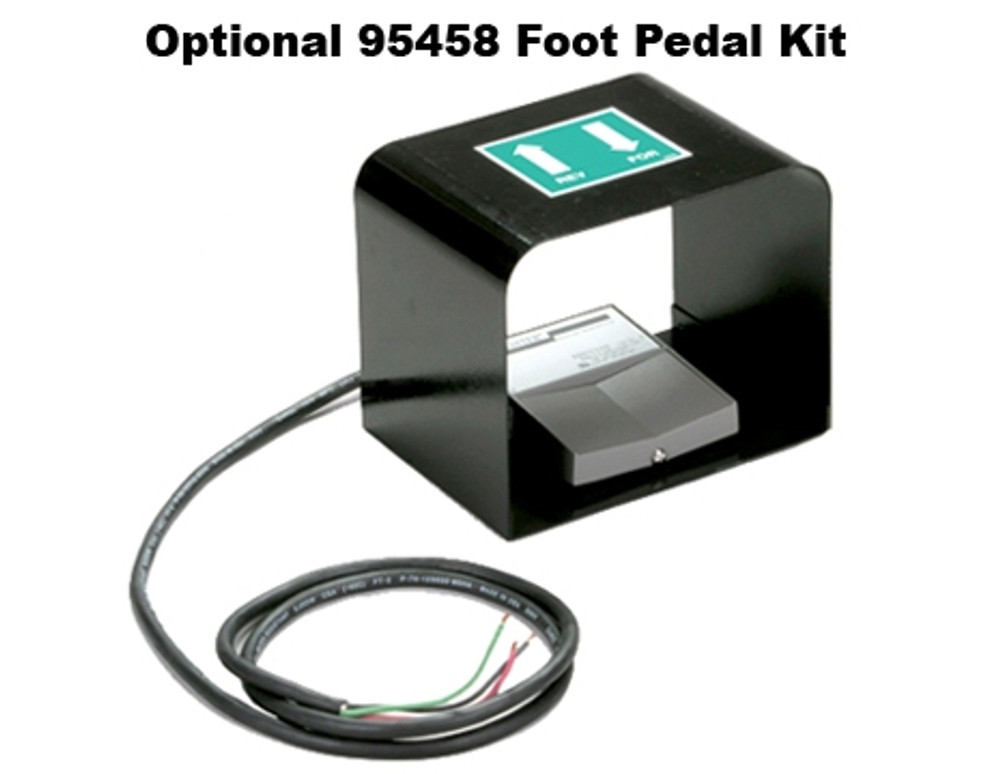

Optional 95458 Foot Pedal Kit

Huth 95458 Foot Pedal Kit

Made in USA
