This professional-grade combination package pairs the Atlas® TC289 rim-clamp swing arm tire changer with the Atlas® WB11 computerized spin balancer, delivering a complete tire service solution at an exceptional value. Engineered for farms, homeowners, and professional shops of all sizes, this combo handles everything from passenger cars to large SUVs and one-ton trucks with precision and reliability. Both machines operate on 110V power, feature CE approval, and are backed by the Atlas® 1-year parts warranty. Whether you're equipping a new service bay or upgrading existing equipment, this proven combination delivers the performance and versatility your operation demands.
Complete Tire Service Solution
• TC289 Tire Changer: Handles rims 10" to 32" diameter with 3-position clamping jaws and powerful 5,500 lbs bead breaker
• WB11 Wheel Balancer: Self-calibrating precision up to 150 lbs wheels with 1g accuracy
• Both units include integrated safety features and protective rim guards
• 110V/1-phase operation — no special electrical required
• Built-in bead blaster and inflator system on tire changer

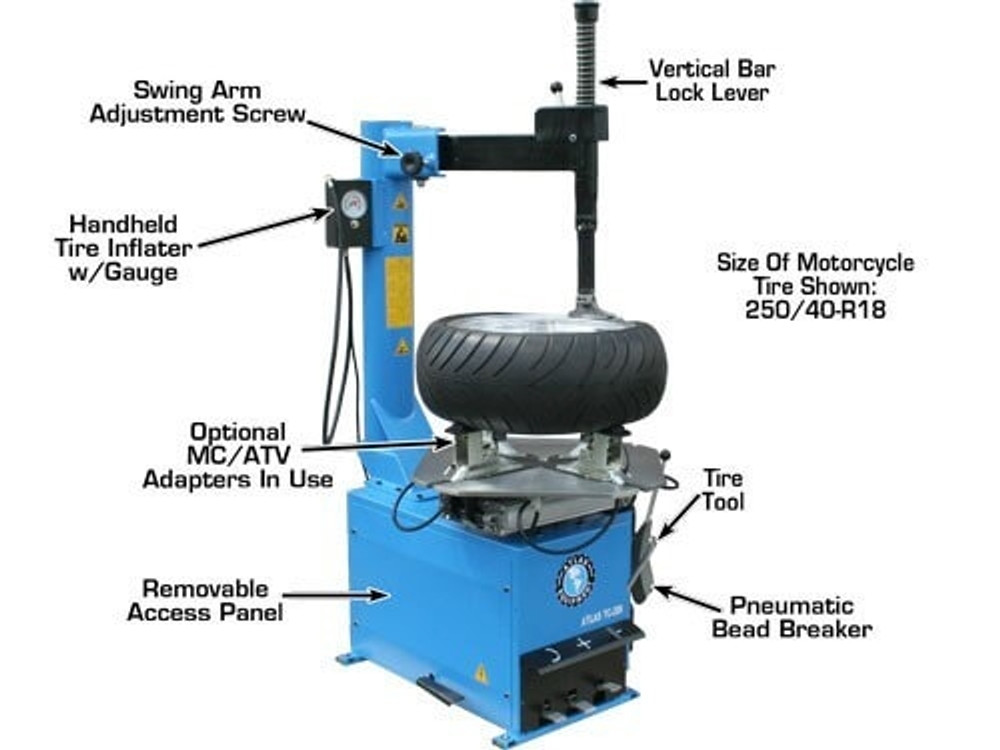

The Atlas® TC289 wheel clamp tire changer is the perfect choice for general automotive service departments and medium-sized tire stores looking for professional-grade performance without breaking the bank. This robust tire changer excels at changing tires on large SUVs and one-ton trucks, with a maximum tire diameter of 47½" and exceptional clamping versatility. The TC289 can be fitted with optional LH assist arm, RH assist arm, or Atlas® DAA arm assembly for enhanced capability when working with difficult or low-profile tires.
Designed to service both high-priced alloy wheels and steel wheels without damage, the Atlas® TC289 features advanced rim protection throughout every operation. The powerful adjustable bead breaker mounted on the side of the unit is engineered to break even the most stubborn and rusted beads without causing rim damage. Delivering 5,500 lbs of pneumatic force with adjustable positioning, this bead breaker handles maximum wheel widths up to 14¾" in Position 1 and 18½" in Position 2, ensuring compatibility with a wide range of wheel and tire combinations.
The turntable jaws can be covered with the included 4 black plastic rim protectors to hold rims securely without damaging the wheel surface. These jaws feature 3 adjustable positions along the turntable slides, allowing you to increase or decrease the clamping range to match your specific wheel dimensions. Outside clamping ranges from 11⅞" to 28" and inside clamping ranges from 13⅞" to 29⅞" provide exceptional flexibility across vehicle types. The unit even accommodates specialty applications with flip adapters, supporting ATV configurations (rims as small as 5") and motorcycle wheels (up to 31").
The TC289 comes equipped with a powerful integrated bead blaster system and complete inflator setup including hose adapter and pressure gauge. The robust turntable rotating torque of 885 ft/lbs ensures smooth, consistent rotation even under heavy loads. An oiler, filter, and regulator are included standard, along with a convenient soap reservoir for bead lubrication. Operating on 90-110 PSI air pressure (with a maximum inlet pressure rating of 170 PSI), this tire changer integrates seamlessly into your existing shop air system.
The Atlas® WB11 is the most popular wheel balancer in the Atlas lineup — and for good reason. Combining low price, proven dependability, and repeatable accuracy, the WB11 delivers professional-grade balancing results that rival machines costing significantly more. This is a simple yet sophisticated wheel balancer that eliminates complexity without sacrificing performance. Each electrical component is designed with a virtually "plug and play" architecture, making repairs fast and affordable when parts eventually need replacement.
One of the standout features of the WB11 is its self-diagnosis capability. The machine monitors its own operation and displays error codes directly to the operator, allowing you to make necessary adjustments or repairs in-house. There's no need to wait for expensive service technicians or send the unit out for calibration — the self-calibration function keeps the machine running accurately shift after shift. This simplicity, both in ease of use and ease of maintenance, makes the WB11 the perfect choice for shops that value uptime and low total cost of ownership.
The WB11 handles wheels up to 150 lbs and accommodates rim diameters from 10" to 32" for cars and light trucks, with rim widths ranging from 1½" to 20". The 40mm shaft and maximum tire diameter of 39" ensure compatibility with the vast majority of passenger and light truck applications. With a balancing speed of 150 RPM and precision accuracy to 1 gram, this balancer delivers fast cycle times without compromising measurement quality. The weight position resolution of 1.4° ensures pinpoint placement guidance for weights.
Operator convenience is built into every aspect of the WB11. An automatic and pedal-operated brake provides precise control, while the automatic start/stop function activates when the hood is lowered or raised — no fumbling for buttons mid-cycle. The balancer offers both static and dynamic balancing modes, with a rapid optimization (OPT) feature that speeds up the balancing process. The display shows readings in your choice of grams or ounces, millimeters or inches, adapting to your shop's preferred measurement system. Best of all, the WB11 features exceptional stability in reading unbalance between planes and requires no anchor-down installation — simply position it and plug it in.
Purchasing the TC289 and WB11 as a combination package gives you a complete, turnkey tire service station that's ready to generate revenue from day one. Both machines share the same 110V/1-phase power requirement, simplifying your electrical setup and eliminating the need for special wiring or three-phase service. The CE approval on both units reflects their adherence to international safety and quality standards, while the Atlas® 1-year parts warranty provides peace of mind as you put these machines to work.
From a rugged farm operation changing implement and tractor tires to a high-volume automotive shop servicing customer vehicles all day long, this combo delivers the reliability and performance you need. The TC289's adjustable clamping positions and powerful bead breaker handle the toughest jobs, while the WB11's self-calibrating precision and intuitive operation keep your workflow moving smoothly. Together, they represent one of the best values in tire service equipment available today.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Warranty Information
To View Atlas® Automotive Equipment TC289 Warranty Click Here
To View Atlas® Automotive Equipment WB11 Warranty Click Here
