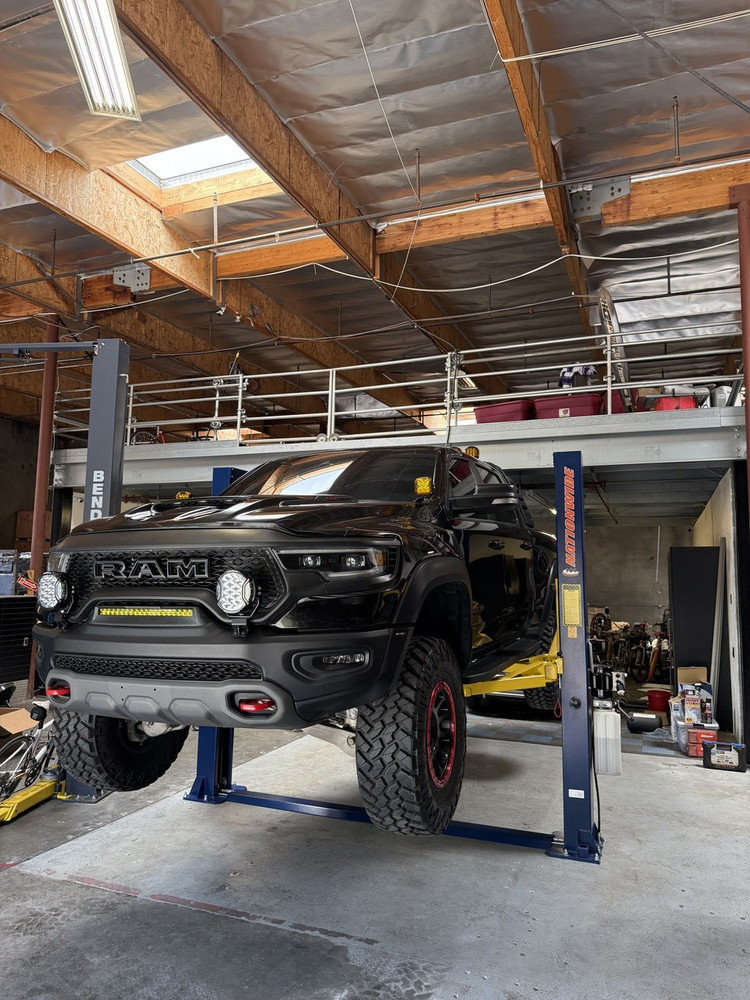

The Nationwide NW10KFP-E is a symmetric floor-plate (baseplate) two-post car lift with a 10,000 lb. lifting capacity—built for cars, SUVs, and light trucks in professional shops and home garages alike. Its low-profile, drive-over base plate connects the two columns at floor level, routing the equalizer cables safely across the bay and keeping the overall height to just 110.85 inches. That makes the NW10KFP-E an ideal choice for shops and garages with lower ceilings where an overhead-style lift won’t fit. Built to Best Buy Auto Equipment quality standards, it delivers dependable, everyday lifting in a compact footprint.
The NW10KFP-E runs on dual hydraulic cylinders—one in each column—synchronized by steel equalizer cables that keep both carriages rising level as the vehicle goes up. A durable 3 HP motor on standard 220V single-phase power raises a full load in about 45 seconds, and its two-stage arms spot vehicles quickly and securely.
Safety System for Reliable Protection
The NW10KFP-E is protected by automatic mechanical arm restraints that lock the arms in position under load. Manual safety locks at both columns require the technician to release the lock at each column before the lift will lower, and steel equalizer cables keep the lift rising level from side to side.
Low-Ceiling Floor Plate Design
Unlike overhead (clearfloor) lifts, the NW10KFP-E uses a drive-over floor plate to tie the columns together, so there is no overhead beam to worry about. With an overall height of just 110.85 inches, it fits comfortably under lower ceilings and in residential garages. The trade-off compared to an overhead design is the low base plate that spans the drive-through — an easy step-over that keeps ceiling clearance free.
This is a symmetric two-post lift with two-stage telescoping arms of slightly staggered length — front arms extend from 29.5 to 42.5 inches and rear arms from 35.4 to 55.1 inches — which gives a small amount of extra flexibility when positioning a vehicle. The columns sit 112.2 inches apart, and the lift raises vehicles to a working height of 74.8 inches with a low 4.2-inch minimum pad height for easy loading of low-clearance vehicles.
Key Performance Highlights
10,000 lb. lifting capacity handles cars, SUVs, and light trucks with ease
Floor-plate (baseplate) design keeps overall height to just 110.85" for low-ceiling shops and garages
Symmetric design with two-stage front & rear arms (29.5"–42.5" / 35.4"–55.1") of slightly staggered length
Dual hydraulic cylinders (one per column) with steel equalizer cables for synchronized, level lifting
Fast ~45-second rise time keeps your bay productive
Powerful 3 HP motor on standard 220V / 60Hz / single-phase power
Built for Professional Shops
The NW10KFP-E is engineered for daily service work. It operates on standard 220V / 60Hz / 1-phase power (20A), with a maximum operating hydraulic pressure of 3,046 PSI and an ISO VG32 hydraulic system holding 2.4 US gallons. The lift runs at a quiet 72 dB(A) at the operator’s station.
Overall dimensions are 110.85 inches tall and 131.5 inches wide (outside base), with 112.2 inches between columns. The complete lift weighs approximately 1,334 lbs.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Important Installation Requirements
Concrete & Anchoring: This lift must be installed on a solid, level concrete floor with a minimum thickness of 4.25 inches (108 mm) at 3,000 PSI, and is secured with ten 3/4" x 6-1/4" wedge anchors (included). Always verify anchoring and concrete requirements in the installation manual before installation.
Improper installation may result in serious injury or damage. Consult the installation manual for complete anchoring and clearance requirements.
