Ranger R76ATR Tilt-Back Tire Changer with Assist Tower – 30-Inch Capacity
Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

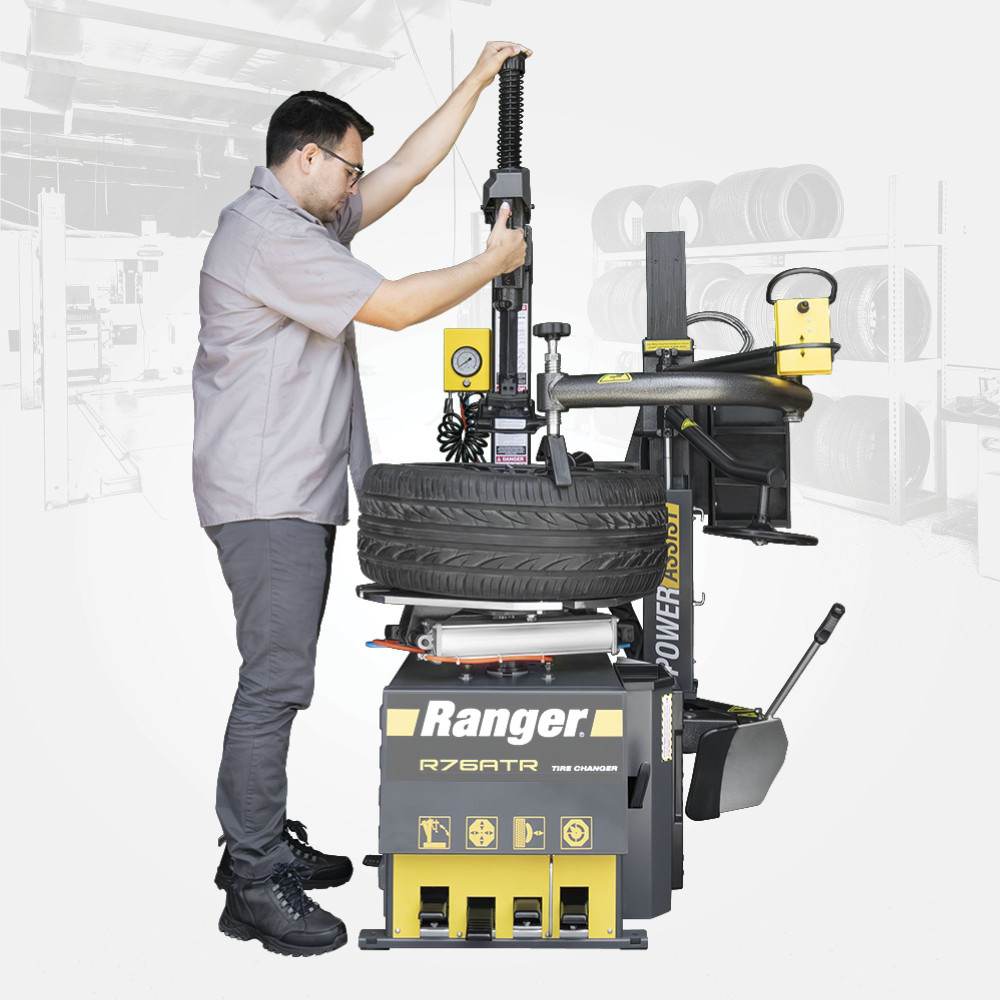

The Ranger R76ATR Tilt-Back Tire Changer with Assist Tower is a professional tire-changing machine designed for automotive repair shops, tire service centers, and busy wheel service bays. Featuring a 30-inch wheel clamping capacity, tilt-back tower design, adjustable RimGuard clamps, and right-side assist tower, the R76ATR provides the control and versatility needed to service passenger cars, SUVs, performance vehicles, and compatible light-duty trucks.
Engineered for demanding tire applications, the Ranger R76ATR helps technicians mount and demount low-profile tires, run-flat tires, aluminum wheels, and stiff-sidewall tire assemblies with greater efficiency and reduced manual effort. Its high-torque electric turntable, advanced bead assist tools, protective mounting components, and TurboBlast bead seating system work together to streamline tire service while helping minimize the risk of tire and wheel damage.
Ranger R76ATR Tire Changer Features
- 30-Inch Wheel Clamping Capacity: Accommodates a wide range of compatible passenger car, SUV, and light-duty truck wheels.
- Professional Tilt-Back Tower: Moves the mount/demount head away from the wheel for convenient loading, unloading, and faster setup between tire changes.
- Right-Side Assist Tower: Provides additional support for low-profile tires, run-flat tires, and challenging stiff-sidewall applications.
- Adjustable RimGuard Clamps: Hardened-steel wheel clamps provide secure positioning with protective features for aluminum and alloy wheels.
- 8" to 26" Internal Clamping Range: Accommodates compatible wheels using internal rim clamping.
- 10" to 30" External Clamping Range: Provides expanded wheel service capability using external rim clamping.
- High-Torque Electric Turntable: Delivers dependable rotational power for efficient tire mounting and demounting.
- Reversible Turntable Rotation: Allows technicians to control turntable direction during tire service.
- Top Bead Assist Rollers: Help control difficult tire beads and reduce manual effort.
- Traveling Drop-Center Tool: Helps maintain proper tire bead positioning within the wheel's drop center.
- Lower Bead Lifting Disc: Provides additional assistance when lifting and positioning difficult tire beads.
- Non-Marring Wheel Restraint: Helps protect wheel surfaces while maintaining control during demanding tire service.
- TurboBlast Bead Seating System: Delivers a concentrated burst of compressed air to assist with seating tire beads.
- Integrated Tire Inflation System: Includes an inflation gauge, air dump valve, and pressure regulation components.
- Alloy-Steel and Nylon Mount/Demount Heads: Provides mounting head options for different wheel service requirements.
- Shop-Ready Accessories: Includes essential tire service tools, lubrication components, and convenient tool storage.
30-Inch Wheel Capacity for Versatile Tire Service
The Ranger R76ATR offers an expanded wheel clamping range designed to accommodate a broad selection of compatible passenger vehicle and light truck wheels.
Its adjustable RimGuard clamping system provides two configurations:
- Internal Wheel Clamping: 8" to 26"
- External Wheel Clamping: 10" to 30"
This versatile clamping range allows technicians to service different wheel diameters using one tire-changing machine. The hardened-steel RimGuard clamps are designed to securely position wheels while helping protect aluminum and alloy wheel surfaces during service.
Tilt-Back Tower for Faster Wheel Loading & Unloading
The R76ATR tilt-back tower allows the mounting assembly to move away from the wheel during loading and unloading. This provides convenient access to the turntable and reduces the need to repeatedly reposition the mount/demount head when servicing different wheel assemblies.
For busy tire shops, this configuration can help reduce setup time between jobs while improving technician convenience and overall service bay efficiency.
The tilt-back design is especially beneficial when handling larger wheels and tire assemblies that require additional clearance during positioning.
Right-Side Assist Tower for Low-Profile & Run-Flat Tires
The Ranger R76ATR features a right-side assist tower designed to provide additional control when servicing challenging tire-and-wheel assemblies.
Low-profile and run-flat tires often feature stiff sidewalls that make conventional mounting and demounting more difficult. The assist tower helps technicians manage tire bead positioning and movement, reducing the amount of manual force required during service.
For professional automotive shops regularly working with performance tires and modern wheel designs, the assist system provides a valuable upgrade over basic swing-arm tire changers.
Advanced Drop-Center Control & Bead Assist Tools
The Ranger R76ATR incorporates specialized assist components designed to help technicians control difficult tire beads throughout the mounting and demounting process.
- Top Bead Assist Rollers: Apply controlled pressure to help guide and position the tire bead.
- Multi-Profile Traveling Drop-Center Tool: Helps keep the tire bead positioned within the wheel's drop center to reduce mounting resistance.
- Lower Bead Lifting Disc: Assists with lifting and positioning the lower tire bead.
- Non-Marring Wheel Restraint Device: Provides additional control while helping protect wheel surfaces.
- Specialized Saucer and Roller Combination: Offers additional support for challenging tire bead configurations.
These components work together to make low-profile, run-flat, and stiff-sidewall tire service more manageable while helping reduce operator fatigue and improve control.
High-Torque Electric Turntable with Reversible Rotation
The R76ATR features a high-torque electric turntable drive designed to deliver reliable rotational power during tire mounting and demounting operations.
Its reversible rotation allows technicians to change turntable direction when needed, providing greater flexibility when working with challenging tire beads and wheel configurations.
Controlled turntable operation helps technicians manage tire positioning and bead movement, supporting an efficient service process while reducing unnecessary strain on tire components.
TurboBlast Bead Seating System
The TurboBlast bead seating system provides additional assistance when seating tire beads during inflation.
By delivering a concentrated burst of compressed air, the system helps technicians seat compatible tire beads that may be difficult to seal using conventional inflation methods alone.
This feature is particularly useful when servicing tire assemblies that require additional airflow to establish an initial seal between the tire bead and wheel rim.
Always follow tire and wheel manufacturer inflation procedures and use appropriate safety equipment when seating tire beads.
Integrated Tire Inflation System with Pressure Controls
The Ranger R76ATR includes an integrated tire inflation system designed to support controlled inflation during tire service.
Inflation and compressed air components include:
- Tire Inflation Gauge
- Integrated Air Dump Valve
- Pressure Regulator/Limiter
- Air Regulator
- Water Filter
- Oiler/Lubricator
These components help technicians monitor inflation pressure and manage the compressed air supply used during tire-changing operations.
Protective Mount/Demount Heads & Included Accessories
The Ranger R76ATR includes both alloy-steel and nylon mount/demount heads to support different wheel service applications.
The nylon head provides a non-metallic contact option for compatible wheels where additional surface protection is desirable, while the alloy-steel head offers a durable alternative for appropriate tire-changing applications.
Additional tire service accessories include:
- Alloy-Steel Mount/Demount Head
- Nylon Mount/Demount Head
- Tire Bead Tool
- Soap Bucket
- Application Brush
- Centering Cone
- Tool Tray Storage
These accessories provide useful tools for daily tire service while helping technicians maintain an organized and efficient workstation.
Designed to Improve Productivity & Reduce Operator Fatigue
The Ranger R76ATR combines tilt-back convenience, advanced bead assist technology, protective wheel clamping, and high-torque turntable operation to support a more efficient tire-changing process.
By reducing the amount of manual effort required for difficult tire assemblies, the assist system helps technicians manage demanding jobs with greater control. The tilt-back tower also simplifies wheel loading and unloading, making the R76ATR particularly useful in busy service bays where multiple tire changes are performed throughout the day.

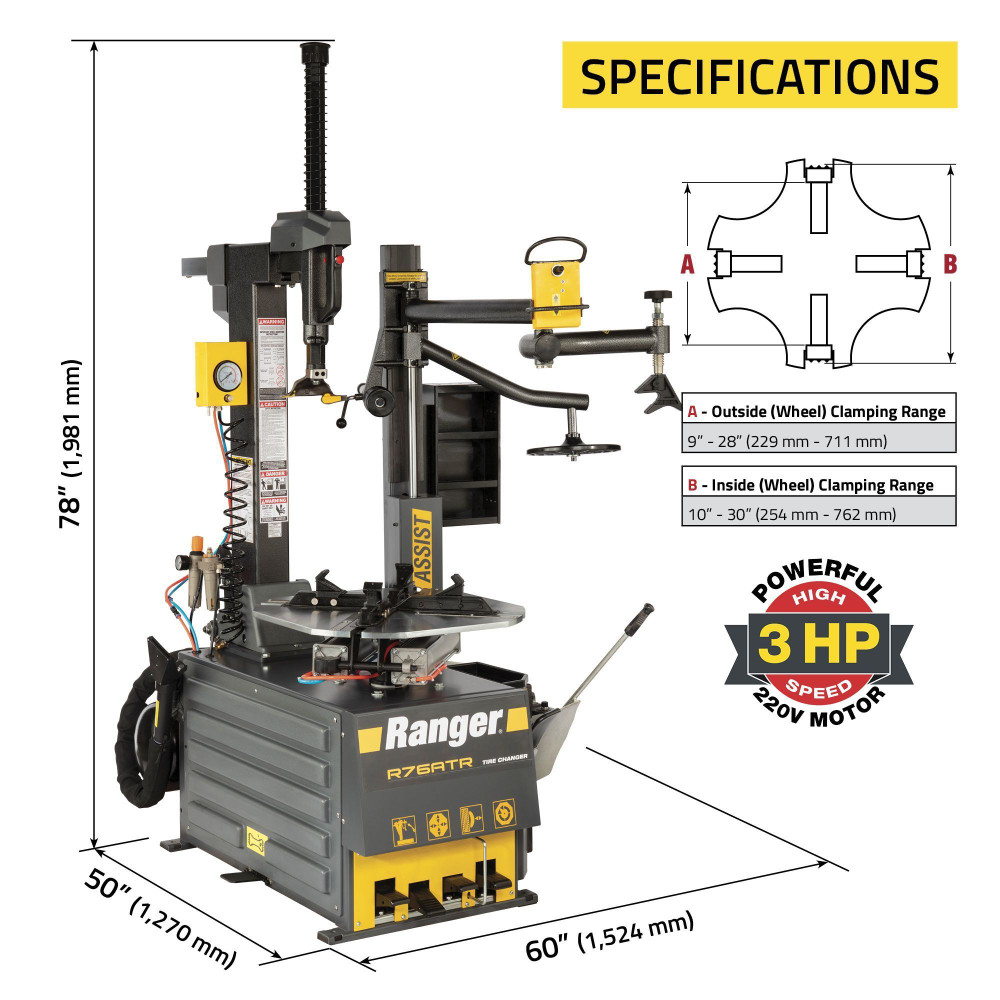

Ranger R76ATR Tire Changer Specifications
- Manufacturer: Ranger
- Model: R76ATR
- Product Type: Professional Tire Changer
- Tire Changer Design: Tilt-Back Tower
- Assist System: Right-Side Single-Tower Assist
- Maximum External Clamping Diameter: 30"
- Internal Clamping Range: 8" to 26"
- External Clamping Range: 10" to 30"
- Wheel Clamps: Adjustable Hardened-Steel RimGuard Clamps
- Turntable Drive: High-Torque Electric
- Turntable Rotation: Reversible
- Bead Assist: Top Bead Rollers, Traveling Drop-Center Tool, Lower Bead Lifting Disc
- Bead Seating System: TurboBlast
- Inflation System: Integrated with Gauge and Pressure Controls
- Mount/Demount Heads: Alloy-Steel and Nylon
- Primary Applications: Passenger Cars, SUVs, Performance Vehicles, and Compatible Light-Duty Trucks
Ideal Applications
- Professional Automotive Repair Shops
- Tire Sales and Service Centers
- Passenger Car Tire Mounting and Demounting
- Low-Profile Tire Service
- Compatible Run-Flat Tire Applications
- Aluminum and Alloy Wheel Service
- Performance Vehicle Tire Service
- SUV and Compatible Light-Duty Truck Tire Service
- Independent Automotive Garages
- Commercial Automotive Service Departments
- High-Volume Tire Replacement Operations
Professional Ranger Tilt-Back Tire Changer with Assist Tower
The Ranger R76ATR Tilt-Back Tire Changer with Assist Tower delivers the performance, versatility, and technician-friendly features needed for professional tire service. Featuring a 30-inch wheel clamping capacity, adjustable RimGuard clamps, right-side assist tower, high-torque reversible electric turntable, TurboBlast bead seating system, and integrated inflation controls, this tire changer provides a capable solution for daily tire mounting and demounting.
Whether upgrading from a basic swing-arm tire changer or equipping a professional tire service bay, the R76ATR offers the additional control and assistance needed for modern low-profile, run-flat, and stiff-sidewall tire applications.
Compatibility Note: Verify wheel diameter, wheel width, tire dimensions, clamping range, electrical requirements, compressed air supply, and installation clearances against the manufacturer's published specifications before purchase. Run-flat and specialty tire service must follow applicable tire and wheel manufacturer procedures, and some assemblies may require additional accessories or specialized equipment.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
California Prop 65 Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Wheel Service Equipment Warranty
The Best Warranty in the Business - You Have Ranger's Word
Duration: From the date of purchase by the original Purchaser or 24-12 months from the date of shipment by Ranger or whichever comes first.
Two Years (24-Months) Warranty on equipment structure*
One Year (12-Months) Warranty on operating components
One Year (12-Months) Labor Warranty on site or at factory
One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance
Limited Warranty
- Who gives this warranty (Warrantor): BendPak/Ranger 1645 lemonwood dr. Santa Paula, CA 93060
- Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
- What products are covered by this warranty: Any Ranger brand tire changer, wheel balancer or brake lathe***
- What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below
- What is not covered under this warranty:
- Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
- And damage caused by overloading lift beyond rated capacity
- Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
- Items considered general wear parts such as rubber or plastic pads/protectors, cutting tips, plastic trays, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
- Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
- Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
- Rusted components due to improper maintenance or corrosive environments
- Cosmetic defects that do not interfere with product functionality
- Damage due to incorrect voltage or improper wiring
- Any incidental, indirect, or consequential loss, damage, or expense that may result from any defect, failure, or malfunction of Ranger product
- All electrical components are guaranteed for one year against defects in workmanship and/or materials when the lift is installed and used according to specifications
- Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Ranger will pay reasonable labor costs for the first 12 months only
- Responsibilities of Purchaser under this warranty:
- Provide dated proof of purchase and maintenance records
- In some cases, components may be required to be shipped to the nearest Ranger Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
- Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
- When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.
**Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses.
***For all Ranger brand tire changers, wheel balancers or brake lathes manufactured on or following 11/1/2011.
Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages BendPak/Ranger products are provided and sold as is without any express or implied warranties including warranties of merchantability or fitness for particular purpose. No warranties, expressed or implied, will apply after this period. BendPak/Ranger may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
